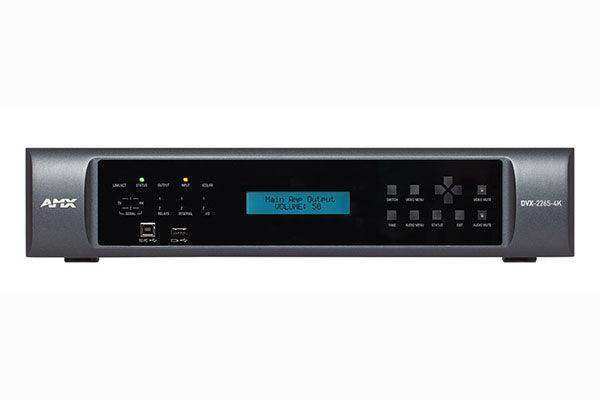

AMX DVX-2265-4K 6x2+1 4K60 4:4:4 All-In-One Presentation Switcher

The AMX Enova DVX is an all-in-one presentation switcher that simplifies the control and distribution of high-quality audio and video over a network. The DVX-2265-4K combines video switching and scaling with legendary Harman audio technology. Include support for HDR and Dante audio. Wrap it up with unrivaled network security, and you have a system that delivers the lowest total cost of ownership in the industry.

Output stunning 4K60 4:4:4 HDR video over standard HDMI or cost-effective Category cable (using DXLink, sold separately) with SmartScale technology that auto-scales to the optimal resolution for any display. The Enova DVX has 4 separate HDMI inputs with 2 scaled outputs and handles the switching without the need for any external equipment.

Your audio is as important as your video and Harman takes audio seriously. At the heart of the Enova DVX is a 120W per-channel Crown DriveCore amplifier that can operate at low impedance or on 70/100V lines to fit your application. Integrated BSS digital processing includes a 10-band parametric EQ, independent input gain adjustments, and variable compression, allowing you to adjust the signal for the room acoustics. There's also integrated support for Dante audio with 8 channels of input and output over network cable.

Configuration doesn't require an IT degree thanks to a mobile-friendly HTML5 Interface with built-in status and troubleshooting features. This alleviates the need for proprietary configuration software and allows for auto-configuration of endpoints. And rest assured that the dual NICs (Network Interface Cards) combined with 802.1X protected network access and LDAP integration allows the Enova DVX to provide rock-solid security.

To send and receive AV over twisted pair category cable DXLink receivers and transmitters are required.

AMX DVX-2265-4K-TAA Applications:

College and university classrooms and meeting rooms

Corporate meeting rooms and boardrooms

Healthcare facilities distributing high-resolution video within training rooms

AMX DVX-2265-4K-TAA Includes:

• Qty (1) DVX-2265-4K
• Qty (1) Power Cord, US
• Qty (2) Front Rack Mounting Bracket (Attached)
• Qty (4) Rubber foot (Attached)
• Qty (2) IR Emitter

AMX DVX-2265-4K-TAA Features:

• 4K60 4:4:4 Support
• HDMI 2.0 and HDCP 2.2 Support with HDR and Scaled Outputs
• High Dynamic Range (HDR) and Deep Color Support
• Mobile-friendly HTML5 Web Interface with built-in status and troubleshooting features
• Dante Audio provides 8 input channels and 8 output channels of IP audio.
• 120W per channel Crown DriveCore amplifier
• Stereo output at 4/8 ohms 120W mono at 70/100 Volt.
• High-speed USB 2.0 data transmission
• DXLink Twisted Pair Inputs and Outputs
• Receivers and Transmitters can be up to 100m away over one twisted pair cable.
• Controller, matrix switcher, video scaler, audio signal processor, amplifier, plus twisted pair distribution - all in a space-saving 2U chassis.
• Low Total Cost of Ownership
• Unrivaled Network Security
• Optimal Video Image Quality Every Time with no need for scalers
• BSS Audio Processing
• dbx AFS2 Advanced Feedback Suppression
• Embedded audio from any HDMI or DXLink input can be de-embedded from the video, processed through the DSP, and switched to any analog, HDMI, DXLink, or Dante output.

AMX DVX-2265-4K Specifications:

• General
  • Enclosure: Metal with dark gray matte finish
  • Dimensions (HxWxD):
    • Without front rack mounting brackets: 3.5” x 17.3” x 15.0” (8.8 x 44.0 x 38.0 cm)
    • With front rack mounting brackets: 3.5” x 19.0” x 15.0” (8.8 x 44.0 x 48.3 cm)
  • Weight:
    • Without front rack mounting brackets: 10.27 Kg
    • With front rack mounting brackets: 10.60 Kg
  • Regulatory Compliance (PENDING): FCC Part 15 Class A; EN 55032; EN 55035; IEC/EN 60950; IEC/EN 62368-1; UL 60950; UL 62368-1; RoHS/WEEE; EMC (Australia); EMC (Canada); EMC (Japan)
• Active power requirements
  • Power Consumption:
    • 63 Watts typical without amplifier
    • 103 Watts typical average with amplifier
    • 56 Watts idle
  • Power Connection:
    • IEC Power Cord Connector
    • 100-240 VAC, 10A
    • 47-63 Hz
  • Power Factor Correction (PFC): Supported, complies with N60555-2and EN61000-3-2
• Environmental
  • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
  • Temperature (Storage): 14°F to 158°F (-10°C to 70°C)
  • Humidity (Operating): 5% to 85% RH, Non-condensing
  • Heat Dissipation (Typical): 215 BTU/hr.
• Ethernet
  • Connection: (1) RJ-45
  • Description:
    • 10/100/1000 Port RJ-45 connector provides TCP/IP communication.
    • Auto MDI/MDI-X enabled.
    • Supports IPv4 and IPv6 networks.
    • Supports HTTP, HTTPS, Telnet, FTP.
  • Link/Act Indicator: Link/Activity LED (green) blinks when receiving Ethernet data packets, one on Ethernet RJ-45 connector and one on the front panel
  • Speed Indicator: Speed LED (yellow) lights ON when the connection speed is 1000 Mbps Ethernet connection and turns OFF when the speed is 10 or 100 Mbps
• Integrated amplifier
  • Integrated Amplifier Selectable between:
  • 2 x 120 W RMS into 8 Ohms Class D stereo amplifier (4 Ohms stable)
  • 120 W, 70V / 100 V mono amplifier
  • NOTE: Only one amplifier output can be in use at any one time.
  • NOTE: This amplifier is floating output, DO NOT connect any output to ground!
• ICSLAN
  • ICSLan Connection:
    • (1) RJ-45, 10/100 Port RJ-45 connector.
    • Auto MDI/MDI-X enabled.
    • Supports IPv4 and IPv6 networks.
  • ICSLan Link/Active Indicator: ICSLan LED (green) blinks when receiving Ethernet data packets, one on Ethernet RJ-45 connector and one on the front panel
  • ICSLan Speed Indicator: Speed LED (yellow) lights ON when the connection speed is 100 Mbps Ethernet connection and turns OFF when the speed is 10 Mbps
• Onboard master
  • Controller: Integrated Controller is the equivalent of a NetLinx NX2200 Integrated Controller with the exception of the number of control ports
  • Memory:
    • NVRAM: 1 MB
    • Memory Card: 16 GB Micro SD
    • DDRAM: 512 MB
    • Note: Supports external USB Solid State Drive
  • Processor: 1600 MIPS
  • Program Port: (1) USB Standard B
  • Configuration Dip Switch: 4-Position
  • ID Pushbutton: Black ID pushbutton for setting IP mode and reverting to default configuration and firmware It has no effect on the Internal Switcher Device
  • Status Indicator: Status LED (green) blinks to indicate that the system is programmed and communicating properly
  • Input Indicator: Input LED (yellow) blinks to indicate that the Controller is receiving data
  • Output Indicator: Output LED (red) blinks to indicate that the Controller is transmitting data
  • USB Host Port: (2) USB Standard-A, one on front and one on back, USB Host port supports Solid State drive for upgrading firmware, loading code files, copying configuration data and remote storage

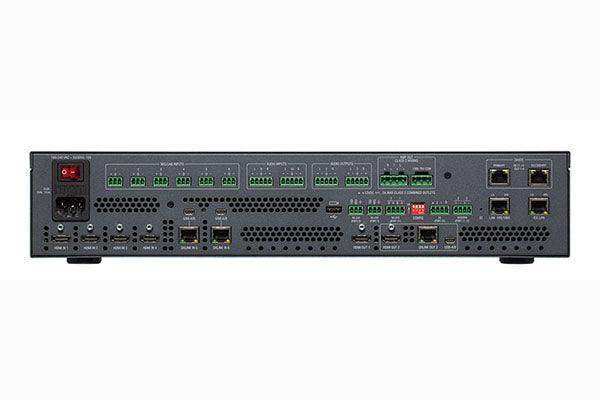

• Control ports & Indicators
  • RS-232 Port (Rear Panel):
    • (2) 3-position 3.5mm Screw Terminal
    • NetLinx Ports 1 and 2
    • 300 -115,200 baud
  • Serial Indicators (Front Panel): (2) sets of LEDs (red/yellow) indicate when serial Ports 1-2 are transmitting and receiving data
  • IR/Serial Port (Rear Panel):
    • (2) 2-position 3.5mm Screw Terminal
    • 2 IR Transmit / 1-way Serial ports
    • NetLinx Ports 11-12
    • Support high-frequency carriers up to 1.142 MHz
    • 2 IR/Serial data signals can be generated simultaneously
  • IR/Serial Indicators (Front Panel): (2) LEDs (red) indicate when each of the IR/Serial ports (11-12) are transmitting control data
  • I/O Channels (Rear Panel):
    • (1) 4-position 3.5mm Screw Terminal
    • 2-channel binary I/O port for contact closure with each input being capable of voltage sensing
    • +12V DC and GND Included on the connector
    • NetLinx Port 22
    • Channels 1-2
  • I/O Indicators (Front Panel): (2) LEDs (yellow) indicate each of the I/O channels (1-2) are active
  • Relays (Rear Panel):
    • (2) 2-position 3.5 mm Screw Terminal
    • (2) single-pole, single-throw relays
    • NetLinx Port 21
    • Channels 1-2
    • Each relay can switch up to 24 VDC or 28 VAC @ 1 A
    • Each relay is independently controlled
  • Relay Indicators (Front Panel): (2) LEDs (red) indicate when each of the relay channels (1-2) are active (closed)
• Integrated matrix switcher
  • Video Switching: 6x2 Matrix Video Switching, any of the 6 inputs can be routed to any or all of the 2 video outputs
  • Video Inputs:
    • (4) HDMI; supports HDMI/HDCP
    • (2) DXLink; supports digital video, HDCP, audio, Ethernet, bi-directional control and power
  • Video Outputs:
    • (2) HDMI; supports HDMI/HDCP
    • (1) DXLink; mirrors associated HDMI output; supports digital video, audio, Ethernet and bi-directional control
  • Video Resolution Support: Supports resolutions up to 4096 x 2160 @ 30Hz, including 3840 x 2160 @ 60Hz.
  • Progressive Resolution Support: 480p up to 4096 x 2160 @ 30Hz, including 3840 x 2160 @ 60Hz.
    • If input is interlaced, all scaled outputs will deinterlace video to a progressive resolution format. If in scaler Bypass mode, interlaced input will pass through unaltered
  • HDCP Support:
    • Full matrix HDCP1.4 and HDCP2.0 support (includes any input to any or all outputs)
    • Key Management System
    • AMX HDCP InstaGate Pro Technology
    • Key support up to 16 sinks per output, independent of source device
  • EDID Management: A preferred EDID can be selected for each input or any display EDID can be mirrored to any input independently
  • Audio Switching: 12x4 Matrix Audio Switching. Each of the 4 audio outputs has independent volume, EQ, ducking, sync delay and mixing. Any of the 4 audio paths can be routed to any analog, HDMI or Dante output (each mirrored DXLink output passes audio sent to its associated HDMI output)
  • Audio Inputs:
    • (2) 3.5 mm 5-position captive-wire terminals; support balanced (differential) or unbalanced (single-ended) stereo audio
    • (6) 3.5 mm 3-pin captive-wire MIC connectors; supports up to six mono microphones, unbalanced or balanced audio
    • (4) HDMI connections support digital audio
    • (2) DXLink connections support audio from DXLink Transmitters
    • (8) Dante mono input channels. Each of 4 pairs of mono Dante inputs can be configured as 2 mono mic inputs to be mixed, or 1 stereo audio input to be switched.
  • Audio Outputs:
    • (1) Amplified audio output; 4-position captive wire connector; supports amplified, variable, mono or stereo audio into 4-8 Ohm
    • (1) Amplified audio output; 3-position captive wire connector; supports 70V or 100V mono audio Connect speakers to either but not both simultaneously
    • (2) Line level audio output; supports balanced or unbalanced mono or stereo
    • (8) Dante mono outputs; each of 4 pairs can be configured as mono or stereo; mirrors any of the 4 audio outputs, or 2 HDMI outputs
    • (2) HDMI connections support digital versions of analog audio or direct pass-through audio
    • (1) DXLink output mirrors associated HDMI output; supports digital version of analog audio or direct passthrough.
  • Audio Breakaway: Yes, stereo audio from any input can be de-embedded from its associated video, processed through the DSP, and switched independently to any analog, Dante or HDMI output for a total of up to four unique audio
  • output signals. (DXLink outputs are mirrored to associated HDMI outputs so they will pass the same associated audio.)
• HDMI
  • Input Connections: (4) HDMI Type A Female, Ports (1-4)
  • Input Signal Type Support: HDMI/HDCP, DVI/HDCP, Display Port ++
  • Data Rate (Max): 18 Gbps
  • Pixel Clock (Max): 600 MHz
  • Input Equalization: Yes
  • Input Re-Clocking (CDR): Yes
  • Output Connections: (2) HDMI Type A Female, Ports (1-2)
  • Output Signal Type Support: HDMI/HDCP1.4 and HDCP2.0, DVI/HDCP1.4 and HDCP2.0
  • Output Scaling:
    • SmartScale or Manual Configuration or Bypass
    • SmartScale output resolution support: All resolutions between 480p and 4096 x 2160 @ 30Hz via automatic
    • SmartScale query of the display's declared EDID Detailed Timing Definition
  • Deep Color Support:
    • Scaled Outputs: 24-bit
    • Pass-thru Outputs: 24-bit, 30-bit, 36-bit
  • Color Space Support: Y,Cb,Cr & RGB
  • HDCP1.4 Compliance: Yes
  • HDCP2.0 Compliance: Yes
  • Audio Format Support for HDMI: Supports Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio, DTS, L-PCM
  • Notes:
  • DisplayPort ++ requires DisplayPort to HDMI adapter cable
  • Supports full matrix switching, video processing and scaling of 8 bit per color standard Input video signals.
  • Supports full matrix switching and pass-thru of all HDMI compliant video signals including Deep Color
  • Each output can deliver processed and scaled video or pass-thru video from any video input
  • Each output can embed audio from any of the 4 audio outputs as Stereo L-PCM or can pass-thru Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio, DTS, L-PCM audio from the selected video source
• DXLINK
  • Input Connections:
    • (2) RJ-15; Port (5,6)
    • (2) USB Micro AB for point-to-point USB connection to a compatible DXLink Transmitter
  • Input Compatible Formats: Digital video, audio, Ethernet, bi-directional control and power (supported capabilities for DXLink vary by connected device, see connected device manual for more information)
  • Output Connections:
    • (1) RJ-45; Port (2); DXLink output mirrors HDMI output 2
    • (1) USB Micro AB for point-to-point USB connection to a compatible DXLink Receiver
  • Output Compatible Formats:
    • Digital Video with embedded audio, analog audio, Ethernet, bidirectional control
    • Supports full matrix switching and pass-thru of all HDMI compliant video signals including Deep Color
    • Audio Signal Types: Supports Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio, DTS, L-PCM
  • Output Re-Clocking: Yes
  • Output Scaling: SmartScale or Manual Configuration or Bypass
  • HDCP Support: Yes
  • Twisted Pair Cable Type: Shielded Cat6, Cat6A and Cat7
  • DXLink twisted pair cable runs for DXLink equipment shall only be run within a common building where a common building is defined as: the walls of the structure(s) are physically connected and the structure(s) share a single ground reference
• Analog audio
  • Analog Audio Input Connections: (2) 3.5 mm 5-position captive-wire terminals; support balanced (differential) or unbalanced (single-ended) stereo audio
  • Input Level (Nominal): +4 dBu (1.228 Vrms) balanced or -10 dBV (0.3162 Vrms) unbalanced
  • Input Level (Maximum): +8.2 dBu 2 Vrms
  • Input Impedance: >12 kOhms balanced, >12 kOhms unbalanced
  • Analog Audio Output Connections:
    • (1) Amplified audio output; 4-position captive wire connector; supports amplified, variable, mono or stereo audio into 4 or 8 Ohms.
    • (1) Amplified audio output; 3-position captive wire connectors; supports 70V or 100V mono audio. Connect a speaker to either but not both simultaneously
    • (2) Line level audio output; supports balanced or unbalanced mono or stereo
  • Volume Control: -100 dB to +0 dB in 1 dB steps
  • Balance Control: 20 steps each left and right
  • Output Level (Maximum): 8.2 dBu (line level)
  • Output Impedance: 200 Ohms (line level)
  • Audio Channel Crosstalk:
    • Balanced Line Inputs: -100 dB @ 0 dBV, 20 Hz to 20 kHz
    • Unbalanced Line Inputs: -80 dB @ 0 dBV, 20 Hz to 20 kHz
  • Audio Frequency Response:
    • AMP: (+0.5 dB, -1 dB) 20 Hz to 20 kHz @ 8 Ohms
    • Line: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Audio Input Compression:
    • Independent Compression per input
    • Attack: 1 to 2000 ms
    • Release: 10 to 5000 ms
    • Compression Ratio: 1 to 20
    • Threshold: -60 to 0 dB
  • Audio Input Gain Compensation: -24 dB to +24 dB, 1 dB steps
  • Audio Output Equalizer:
    • 10-band parametric EQ with variable center frequency, filter type and Q per band
    • Center Frequency: 20 Hz to 20 kHz
    • EQ Gain: -12 to +12 dB
    • Q: 0.1 to 20
    • Filter Types: Bell, Base Shelf, Treble Shelf, Low Pass, High Pass, Band Pass, Band Stop
  • Audio Output Sync Delay: 0 to 200 ms
  • Audio S/N Ratio:
    • AMP: 106 dB @ 8 Ohms, full output, 1kHz A-weighted
    • Line: 106 dB @ 2 Vrms, AES17
  • Audio THD+N:
    • AMP: less than 0.01% @ 8 Ohms, 20 Watts, 20 Hz to 20 kHz; less than 0.025% @ 8 Ohms, 120 Watts, 20 Hz to 20 kHz
    • Line: less than 0.003% @ 0 dBV, 1 kHz
  • Note: Independent EQ, Volume and Balance control per output
• Microphone audio
  • Microphone Input Connections: (6) 3.5 mm 3-pin captive-wire MIC connectors; supports up to two mono microphones, unbalanced or balanced audio
  • Microphone Input Level (Maximum): 8.2 dBu
  • Microphone Input Format Support: Line or Mic level, balanced or unbalanced audio
  • Microphone Input Impedance: 3.5 kOhms, accepts 60 to 600 Ohms sources
  • Microphone Input Frequency Response: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Microphone Input Gain: -24 dB to 84 dB, 1 dB steps
  • Microphone Input Equalizer:
    • 3-band parametric EQ with variable center frequency, filter type and Q
    • Center Frequency: 20 Hz to 20 kHz
    • EQ Gain per Band: -12 to +12 dB
    • Q per band: 0.1 to 20
    • Filter Types: Bell, Base Shelf, Treble Shelf, Low Pass, High
    • Pass, Band Pass, Band Stop
  • Microphone Input Compression:
    • Independent Compression per Microphone
    • Attack: 1 to 2000 ms
    • Release: 10 to 5000 ms
    • Compression Ratio: 1 to 20
    • Threshold: -60 to 0 dB
  • Microphone Gating:
    • Independent Gating per Microphone
    • Attack: 1 to 2000 ms
    • Release: 10 to 5000 ms
    • Depth: 0 to 20 dB
    • Hold Off: 0 to 2000 ms
    • Threshold: -60 to 0 dB
  • Microphone Limiter:
    • Independent Limiting per Microphone
    • Attack: 1 to 2000 ms
    • Release: 10 to 5000 ms
    • DVX-2265-4K | 10
    • Threshold: -60 to 0 dB
  • Microphone Ducking:
    • Independent Ducking per each of 4 audio paths
    • Attack: 1 to 2000 ms
    • Release: 10 to 5000 ms
    • Attenuation: 0 to 20 dB
    • Hold Off: 0 to 4000 ms
    • Threshold: -60 to 0 dB
  • Microphone Inputs Note: Phantom Power: switchable 48 V to each microphone @ 7 mA max per port
• Dante audio
  • Dante Audio Inputs: (8) On Primary or Secondary RJ-45 Connector. Eight mono Dante/AES67 digital audio inputs with support for 48KHz.
  • Dante Audio Outputs: (8) On Primary or Secondary RJ-45 Connector. Eight mono Dante/AES67 digital audio outputs with support for 48KHz.
