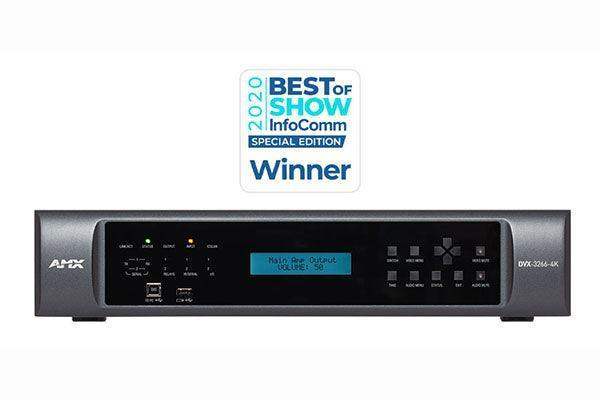

AMX DVX-3266-4K 8x4+2 4K60 4:4:4 All-In-One Presentation Switcher

AMX DVX-3266-4K-TAA DVX 8x4+2 All-In-One Presentation Switcher

The AMX Enova® DVX-3266-4K is a combined audio, video, and control device that eliminates the need for multiple components as well as the integration and reliability challenges that accompany them.

This all-in-one presentation switcher incorporates a 120-watt Crown DriveCore amplifier, BSS audio processing, and dbx feedback suppression to deliver exceptional audio quality. The switcher provides class-leading video quality with support for 4K60 4:4:4 video, HDMI 2.0, HDCP 2.2, and HDR.

The compact, easy to install DVX-3266-4K is a perfect solution for simplifying AV control and distribution in medium to large boardrooms, conference rooms and classrooms.

AMX DVX-3266-4K Includes:

• Qty (1) DVX-3266-4K
• Qty (3) AC power cords (US, UK, EU pins)
• Qty (8) 3-pin, 3.5mm Phoenix male connectors
• Qty (3) 4-pin, 3.5mm Phoenix male connectors
• Qty (4) 6-pin, 3.5mm Phoenix male connectors
• Qty (1) 3-pin, 5.08mm Phoenix male connector
• Qty (1) 4-pin, 5.08mm Phoenix male connector
• Qty (2) IR emitters
• Qty (2) Front rack mounting brackets (attached)
• Qty (4) Rubber feet (attached)
• Qty (1) Quick start guide

Features

AMX DVX-3266-4K Features:

• An all-in-one solution with the controller, matrix switcher, video scaler, audio signal processor, amplifier, and twisted pair distribution in one compact unit.
• 4K60 4:4:4 support, HDMI 2.0 support and HDCP 2.2 support plus HDR and scaled outputs for the highest possible video quality over HDMI and category cable
• Support for HDR10 and 36-bit Deep Color
• 8 input and 8 output channels of Dante audio
• HTML5 Web interface with built-in status and troubleshooting features for simple configuration and support
• Crown DriveCore amplifier with 120W per channel stereo at 4/8 ohms and 120W mono at 70/100 volt
• USB 2.0 to handle high-speed data from devices like web cameras and storage devices without requiring separate cables
• DXLink™ twisted pair inputs and outputs to send and receive audio, video, bi-directional control, USB 2.0 and Ethernet to DXLink HDMI receivers and transmitters up to 100 meters away over one twisted pair cable
• Rock-solid network security with dual NIC to isolate equipment from the primary network, 802.1X for protected network access, and LDAP integration with unlimited user-defined groups
• BSS audio processing with capabilities such as independent 10-band parametric EQ, independent gain adjustments and variable compression that allow precision tuning to match unique room and source attributes
• SmartScale technology automatically scales the video image to the best resolution and video parameters for each display without manual setup, for perfect video image quality every time
• dbx AFS2 Advanced Feedback Suppression
• Audio Breakaway feature enables embedded audio from any HDMI or DXLink input to be de-embedded from the video, processed through the DSP, and switched to any analog, HDMI or DXLink output
• Audio Matrix Switching with 4 independently switched and processed audio paths that provide 4 unique volume, EQ, ducking and mixing configurations for use in perfectly tuned room audio, integration with A/V conferencing, induction loop systems, voice reinforcement speakers and audio recording devices
• Independent 3-band parametric EQ, compression, gating, auto-ducking, and limiting on each mic input

Specifications

AMX DVX-3266-4K Specifications:

• Video Inputs: 4x HDMI, 4x DXLink 4K60
• Video Outputs:
  • 4x HDMI (supports HDMI/HDCP)
  • 2x 4K60 DXLink (mirrors associated HDMI outputs, supports digital video, audio, Ethernet and bi-directional control)
• Video Resolution Support: 480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including 3840x2160p @ 50/60Hz 4:2:0, 4096x2160p @ 50/60Hz 4:2:0
• Audio Inputs: 6x Analog Mic/Line, 2x Analog stereo audio, 8x Dante channel
• Audio Outputs: 1 x Amp (8-ohm and 70/100V), 2x Analog stereo audio, 8x Dante channel
• RS232 Port: 2x 3-position 3.5mm screw terminal, 2 bi-directional serial ports, 300-115,200 baud
• IR/Serial: 2x 2-position 3.5mm screw terminal, 2x IR transmit/1-way serial ports
• I/O channels1x 4-position 3.5mm screw terminal, 2-channel binary I/O port for contact closure with each input being capable of voltage sensing (12VDC and GND included on the connector)
• Relays: 2x 4-position 3.5mm screw terminal, 2x independently controlled single-pole, single-throw relays (each relay can switch up to 24VDC or 28VAC at 1A)
• Dimensions: 3.46” high x 17.32” wide x 14.96” depo (8.8 x 44 x 38 cm)
• Weight: 21.08 lb., (9.56 kg)
