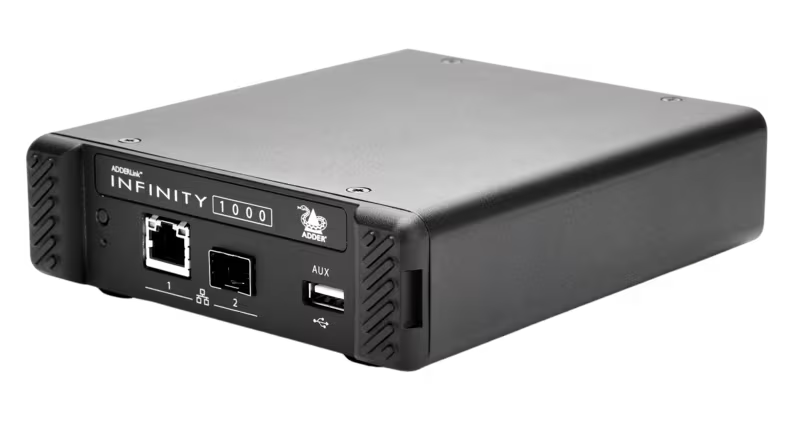

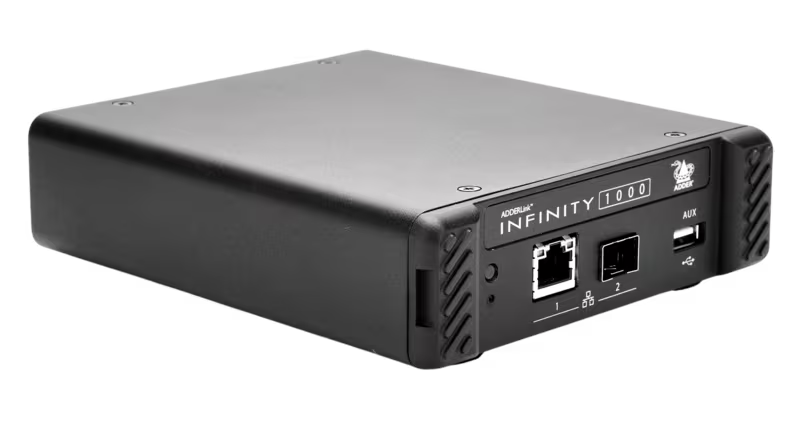

Adder ALIF1104T-US – HDMI USB 2.0 IP KVM Transmitter

Product Overview

The Adder ALIF1104T-US is the HDMI transmitter of the ADDERLink INFINITY 1104 IP KVM extender, engineered to carry pixel-perfect 2560x1600 at 60Hz video, USB 2.0 and audio from a source computer over a standard 1GbE network. As a single-head HDMI IP KVM transmitter, it lets organizations relocate critical computing hardware into a secure, temperature-controlled room while users keep an at-the-desk experience. Running on standard IP infrastructure, this HDMI KVM over IP extender supports CATx or fiber links and integrates into ADDERLink INFINITY matrix systems managed by AIM.

Product Description

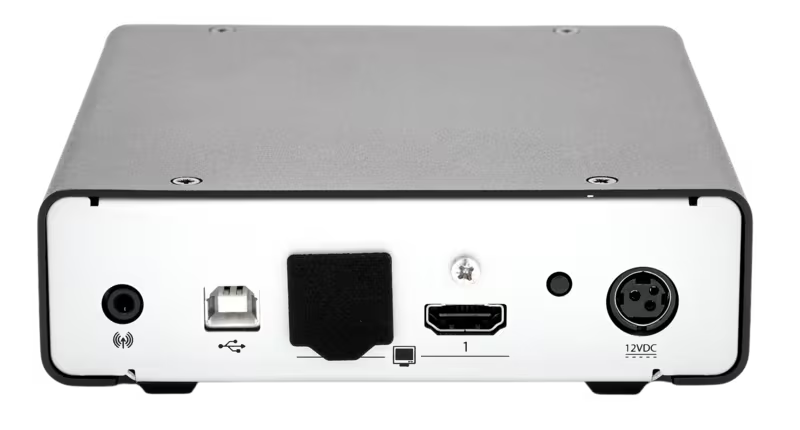

The ALIF1104T-US connects to the host computer via HDMI, a USB 2.0 Type-B port with True Emulation, and a 3.5mm audio input. Adder's spatially-lossless encoding with 1:1 pixel mapping ensures the digital video received at the user station is identical to the video leaving the remote computer — color accurate, artifact-free and suitable for real-time control.

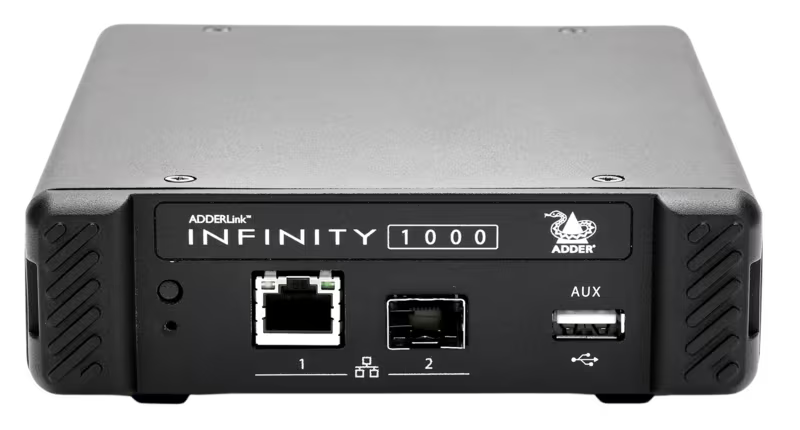

The transmitter carries a fixed 1GbE RJ45 port plus an SFP socket, letting integrators run copper CATx or fiber and team the two links for redundancy in load-balanced, mission-critical systems. Extension distance is effectively unlimited: each additional 1GbE network device adds another 100m/328ft, repeatable many times, while fiber SFP transceivers cover much greater spans. USB 2.0 with class control supports graphics tablets, jog shuttles, joysticks and 3D explorers, with optional lockout of non-HID devices for secure facilities.

Like all ALIF1100-series devices, the unit ships zero-config and works as a point-to-point extender or part of a self-managed distributed switch in which each receiver can access up to 16 sources. With the ADDERLink INFINITY Manager (AIM), the same hardware scales into a digital KVM matrix linking any workstation to any computer on the network. Find compatible receivers, SFP modules and rack kits in the Adder Technology collection at Creation Networks.

Key Features

• Pixel-Perfect HDMI Extension — Spatially-lossless 1:1 pixel mapping carries 2560x1600 at 60Hz HDMI video with no compression artifacts.
• USB 2.0 True Emulation — High-speed USB with class control supports HID and mass-storage devices, with non-HID blocking for secure applications.
• CATx or Fiber over 1GbE — Fixed RJ45 plus SFP socket give a choice of copper or fiber on standard gigabit IP networks.
• Unlimited Extension Distance — Add a 1GbE network device for each extra 100m/328ft, or fit fiber SFPs for long-haul links.
• Bi-Directional USB Audio — 2-channel 16-bit/48kHz digital audio is carried via USB and the HDMI connector.
• Matrix Scalability with AIM — Converts from point-to-point extender into a managed KVM matrix with the ADDERLink INFINITY Manager.
• Intelligent EDID Management — True display characteristics pass back to the computer for correct output with no manual setup.

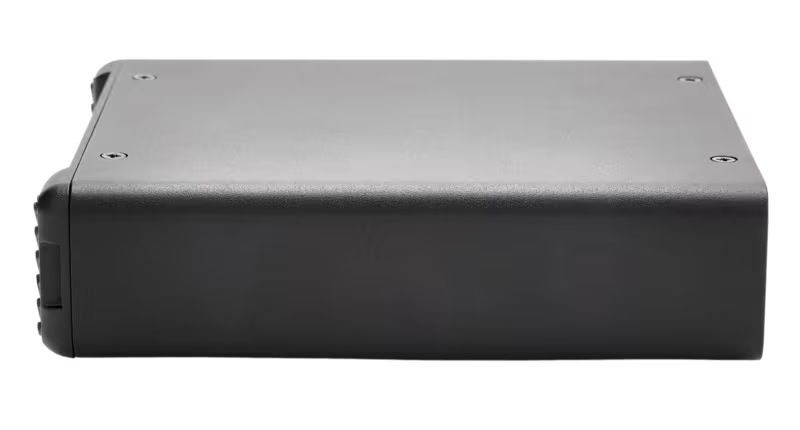

• Fanless, Zero-Config Hardware — Silent metal chassis, plug-and-play operation and compatibility with all known operating systems.

Typical Applications

• Broadcast studio equipment rooms feeding production positions
• Government space deployments with computers held in secured racks
• Training room PCs centralized away from learner desks
• Commercial meeting space sources housed in remote AV racks

Technical Specifications

Frequently Asked Questions

Which receiver pairs with the ALIF1104T-US?
It links to ADDERLink INFINITY 1100-series receivers over a 1GbE network. Contact Creation Networks for help matching the right receiver to your display output.

Does it support HDCP-protected content?
No. Per Adder's specification the ALIF1104 does not support HDCP or CEC control; it is intended for computer desktop extension rather than protected media playback.

Can it operate in a KVM matrix?
Yes. Adding the ADDERLink INFINITY Manager (AIM) turns point-to-point extenders into a scalable matrix where any user station reaches any computer.

What cabling is required?
Standard CATx network cable to a 1GbE switch or directly to the receiver; the SFP socket optionally accepts Adder fiber or copper SFP modules for the second link.

Is any software installation needed?
No. The unit ships in a zero-config state, requires no drivers, and works with all known operating systems including dithered video from some Mac computers.

How is it rack mounted?
The optional RMK17 kit mounts three transmitters across 1U, with RM17-BP blanking plates available for unused positions.
