Adder ASP-001-US – ADDERLink INFINITY Manager (AIM) Server, 24 Endpoints

Product Overview

The Adder ASP-001-US ADDERLink INFINITY Manager (AIM) is the management server that turns ADDERLink INFINITY (ALIF) endpoints into an IP KVM matrix over standard IP networks. As the central controller for a KVM-over-IP matrix, AIM provides any-station-to-any-computer routing, co-operative sharing of computers, and video multicasting across the network. The unit ships licensed for 24 endpoints out of the box, with AIMLIC licenses available to expand capacity to 48, 96, 192, 288, or unlimited endpoints. For control rooms, broadcast facilities, and enterprise operations that need a scalable IP KVM matrix manager, the ASP-001-US is the required system component.

Product Description

An ADDERLink INFINITY deployment without AIM is a set of point-to-point extenders; with AIM, those same transmitters and receivers become a fully routed matrix in which any operator station can connect to any computer on the network. AIM coordinates routing, co-operative sharing so multiple users can work with shared machines, and video multicasting so one source can be viewed at many destinations simultaneously.

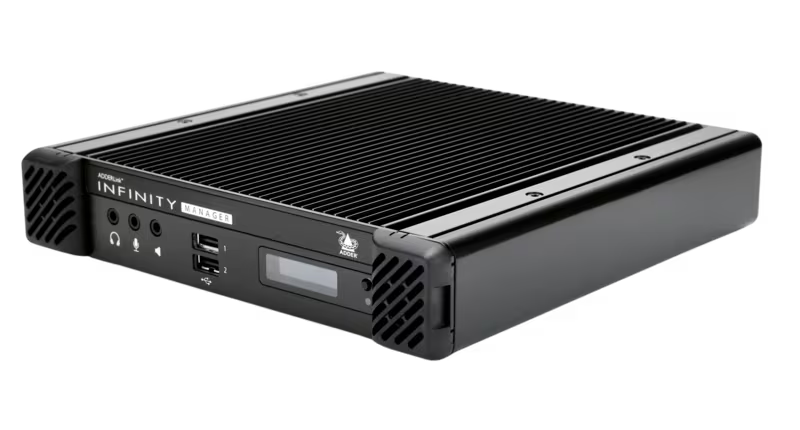

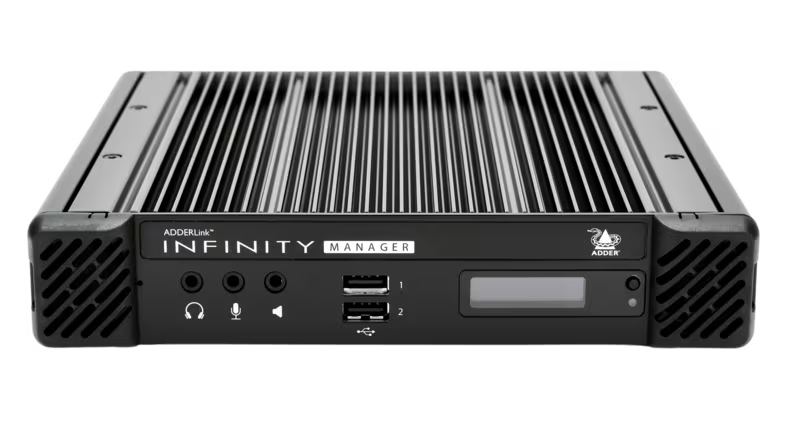

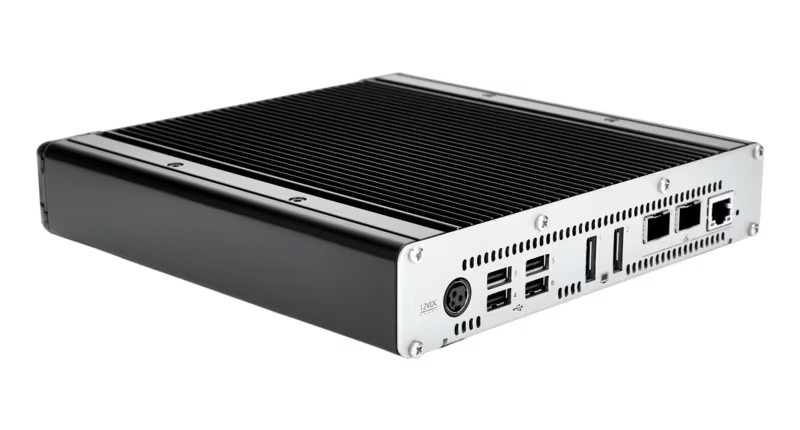

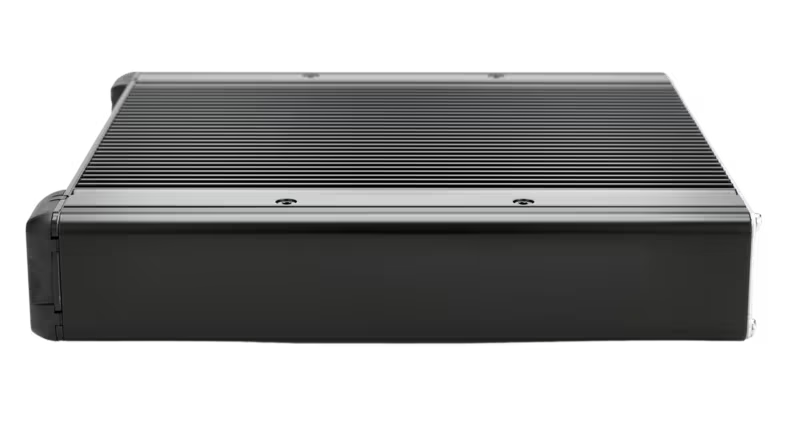

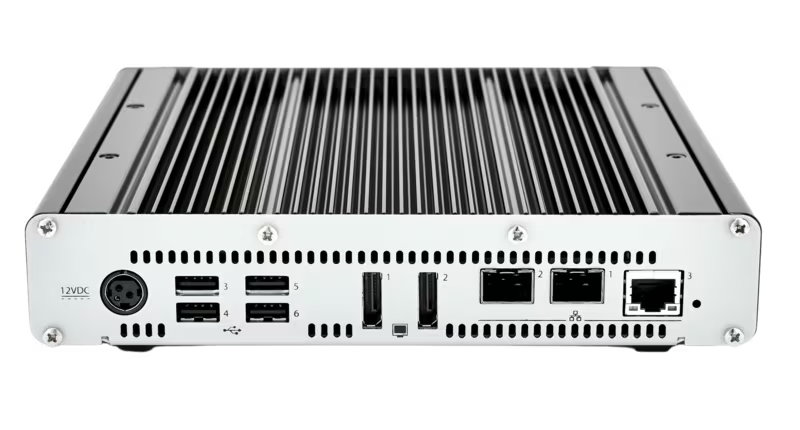

The appliance is a compact metal-construction server measuring 215 x 40 x 210 mm (8.5 x 1.6 x 8.3 in) and weighing 1.8 kg (4 lb), with a built-in fan and an OLED status screen on the front panel for at-a-glance health and network information. Connectivity consists of two SFP link ports and one RJ45 link port operating at 1GbE (10/100 is not supported), and the dual NICs can be independently routed or teamed to suit the network design.

For high-availability designs, a primary and a backup AIM unit fit side by side in a single 1U rack tray, and "-BCK" license variants keep both servers licensed identically for failover. Power draw is modest at 18W typical (60W maximum), and the unit carries CE, cULus (E476334), FCC, ICES, RCM, and UKCA approvals with a 77,500-hour MTBF rating.

Each ASP-001-US ships with a PSU-IEC-12VDC-5A power supply, an SFP-CATX-RJ45 module, and an IEC cable, and is licensed for 24 ALIF endpoints from day one. When the matrix grows, AIMLIC endpoint licenses expand capacity without hardware changes. Browse companion transmitters, receivers, and licenses in our Adder Technology collection.

Key Features

• IP KVM Matrix Management — Converts ADDERLink INFINITY endpoints into a routed matrix with any-station-to-any-computer connectivity over standard IP networks.
• 24 Endpoints Included — The base unit is licensed for 24 ALIF endpoints out of the box, so smaller matrices run with no additional license purchase.
• Scalable Licensing — AIMLIC licenses expand capacity to 48, 96, 192, 288, or unlimited endpoints as the installation grows.
• Co-operative Sharing and Multicasting — Multiple users can share computers co-operatively, and video sources can be multicast to many destinations at once.
• Dual Network Interfaces — Two SFP ports plus one RJ45 port at 1GbE, with dual NICs that can be independently routed or teamed.
• Redundancy-Ready — Primary and backup AIM units fit together in a 1U rack tray, with "-BCK" licenses covering the failover server.
• OLED Status Screen — Front-panel display provides immediate visibility of unit status without logging into the management interface.
• Efficient, Compact Appliance — Metal construction, 1.8 kg, 18W typical draw, built-in fan, and a 77,500-hour MTBF rating.
• Complete In-Box Kit — Ships with PSU-IEC-12VDC-5A power supply, SFP-CATX-RJ45 module, and IEC cable.

Typical Applications

• Broadcast studio production and master control KVM-over-IP matrices
• Government spaces requiring managed, redundant operator-to-computer routing
• Training rooms where instructor and student stations share pools of networked computers
• Commercial meeting spaces and technical operations areas with centralized equipment rooms

Technical Specifications

Frequently Asked Questions

Is AIM required for an ADDERLink INFINITY matrix?
Yes. AIM is the management server that provides matrix routing, co-operative sharing, and multicasting across ALIF endpoints. Without it, ALIF units operate only as point-to-point extenders.

How many endpoints can one ASP-001-US manage?
The unit ships licensed for 24 endpoints. AIMLIC licenses expand capacity to 48, 96, 192, 288, or unlimited endpoints on the same hardware.

How is redundancy handled?
A second ASP-001-US can be deployed as a backup/failover server. Both units fit in a single 1U rack tray, and "-BCK" license variants cover the primary and backup pair together.

What network infrastructure is required?
The AIM server connects at 1GbE via SFP or RJ45 link ports over standard IP networks. Note that 10/100 connections are not supported.

What is included in the box?
The server ships with a PSU-IEC-12VDC-5A power supply, an SFP-CATX-RJ45 module, and an IEC power cable.

Can Creation Networks help design the matrix?
Yes. Our team can specify AIM servers, ALIF transmitters and receivers, and the correct license tier for your endpoint count and redundancy requirements.
