Adder ALIF1102R-US – DisplayPort IP KVM Receiver

Product Overview

The Adder ALIF1102R-US is the receiver unit of the ADDERLink INFINITY 1102 DisplayPort IP KVM extender, built to deliver pixel-perfect 2560x1600 at 60Hz video, USB 2.0 and bi-directional audio to a user station over a standard 1GbE network. As a single-head DisplayPort IP KVM receiver, it sits at the operator desk and connects back to an ALIF1102 transmitter installed alongside the source computer, letting organizations relocate critical hardware into a secure, climate-controlled room. Because it runs on standard IP infrastructure, this KVM over IP receiver supports CATx or fiber links and scales from a simple point-to-point DisplayPort KVM extension to a full matrix when paired with an AIM manager.

Product Description

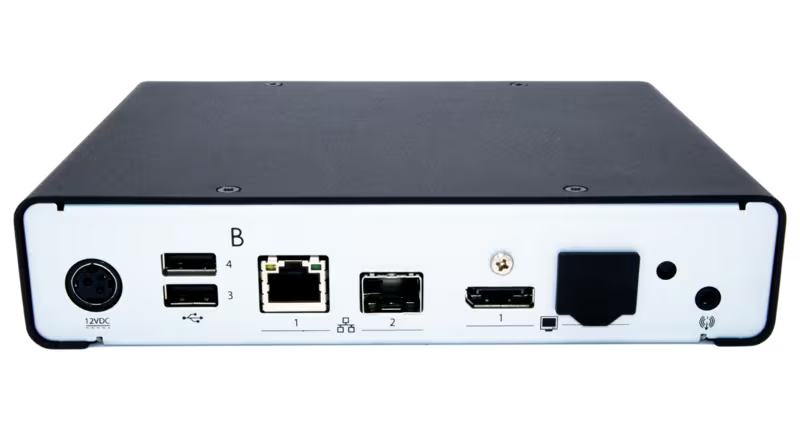

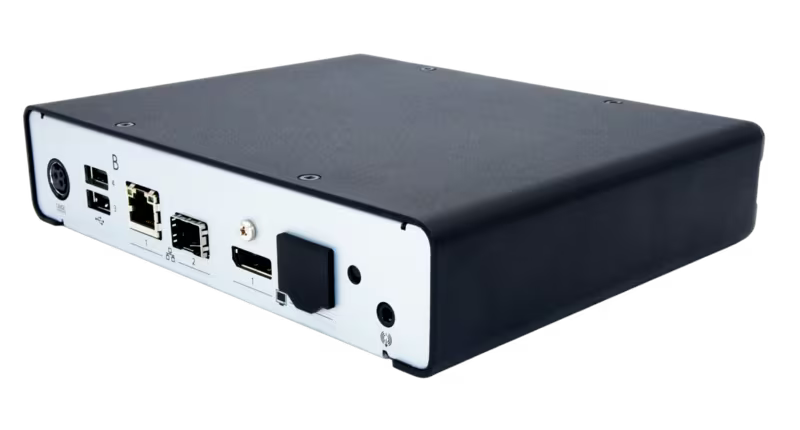

The ALIF1102R-US receiver uses Adder's spatially-lossless encoding with 1:1 pixel mapping, so the video drawn at the console is identical to the video leaving the remote computer — no compression artifacts, accurate color and real-time response. The receiver provides a full-size DisplayPort 1.1 output for the console display plus four USB 2.0 Type-A ports for keyboard, mouse and peripherals.

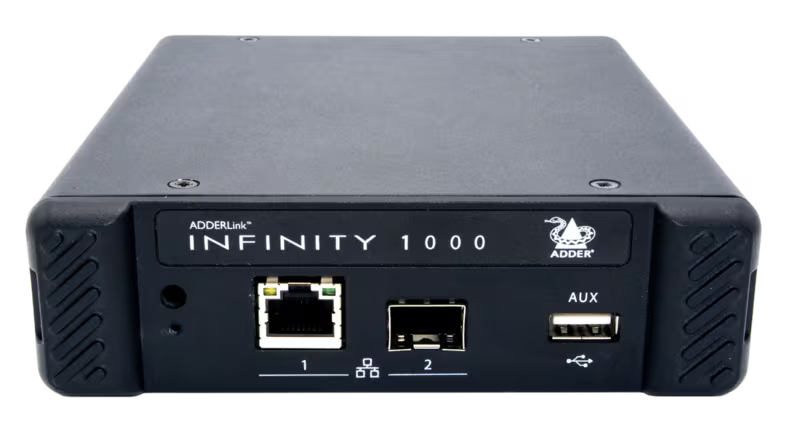

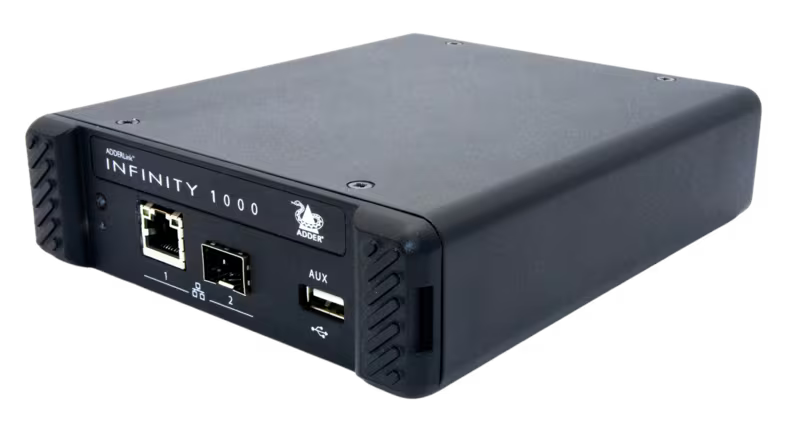

Network connectivity is handled by a fixed RJ45 copper port and an SFP cage, giving integrators a choice of CATx or fiber and the option of teamed, redundant links for mission-critical control positions. Extension distance is effectively unlimited: every 1GbE network hop adds another 100m/328ft of reach, and fiber SFP modules extend much further. USB 2.0 with class control supports graphics tablets, jog shuttles, joysticks and 3D controllers, and can block non-HID devices in secure environments without physically capping ports.

Out of the box, each ALIF1102 receiver can be configured as a self-managed distributed KVM switch with rapid switching between up to 16 sources. Adding the ADDERLink INFINITY Manager (AIM) turns multiple extenders into a scalable digital KVM matrix where any workstation can reach any networked computer. Pair this receiver with the ALIF1102T-US transmitter for a complete DisplayPort KVM over IP link, and browse the full Adder Technology collection for accessories and rack kits.

Key Features

• Pixel-Perfect Video — Spatially-lossless encoding with 1:1 pixel mapping delivers 2560x1600 at 60Hz DisplayPort video with no visible artifacts.
• Standard 1GbE IP Infrastructure — Runs over ordinary gigabit networks via RJ45 CATx or SFP fiber, so no proprietary cabling is required.
• Unlimited Extension Distance — Each 1GbE network device adds another 100m/328ft of reach, and fiber SFP modules support far greater distances.
• USB 2.0 with Class Control — Four console USB ports support HID and mass-storage devices, with the option to disable non-HID devices for secure sites.
• Extender or Distributed Switch — Each receiver can rapidly switch between up to 16 sources without any external management appliance.
• AIM Matrix Ready — Scales into a full digital KVM matrix when managed by the ADDERLink INFINITY Manager.
• Redundant Network Teaming — Dual network paths can be teamed for load balancing and failover on mission-critical desks.
• Plug and Play, Fanless — Ships in a zero-config state with no drivers or software, and silent fanless operation suits operator positions.

Typical Applications

• Broadcast studio production and post-production desks
• Government space operator consoles with secured equipment rooms
• Training room workstations driven from a central rack
• Commercial meeting space presentation PCs relocated off-room

Technical Specifications

Frequently Asked Questions

Does the ALIF1102R-US work on its own?
No. It is the receiver half of an extension link and must be paired with an ADDERLink INFINITY transmitter such as the ALIF1102T-US connected to the source computer.

Can it run over my existing corporate network?
Yes. The unit uses standard 1GbE IP technology over CATx or fiber. Adder recommends adequate gigabit bandwidth on the links carrying KVM traffic; dedicated or VLAN-segmented networks are common in larger deployments.

How many computers can one receiver access?
In self-managed mode each receiver can switch between up to 16 sources. With an ADDERLink INFINITY Manager (AIM), the system scales into a full matrix across the network.

What displays does it support?
The receiver outputs full-size DisplayPort at up to 2560x1600 @ 60Hz, and intelligent EDID management passes the monitor's true characteristics back to the computer.

Is software or a driver required?
No. ADDERLink INFINITY devices ship in a zero-config state and are plug and play with all known operating systems.

What support does Creation Networks provide?
Creation Networks is an authorized Adder Technology reseller and supports system design, AIM matrix planning and post-sale technical assistance for commercial AV and KVM deployments.
