Adder ALIF101T-HDMI – ZeroU USB-Powered HDMI IP KVM Transmitter

Product Overview

The Adder ALIF101T-HDMI is a ZeroU USB-powered IP KVM transmitter that extends HDMI video, bi-directional USB audio and USB 2.0 from a computer over a single CATx cable on a standard 1GbE network. Designed as a compact KVM dongle for extension or matrix, it draws power directly from the host computer's USB ports, occupies zero rack units and supports pixel-perfect video up to 2560x1600 @ 60Hz. For data centers and control facilities building an HDMI KVM over IP matrix, the ALIF101T removes the need for external power supplies and rack space at the source end.

Product Description

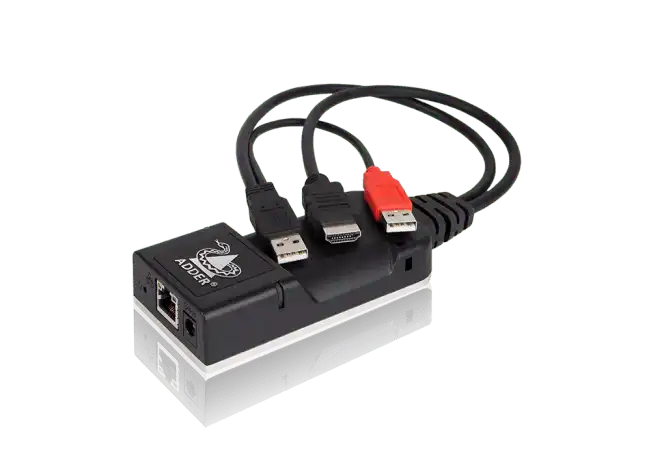

Measuring just 110 x 55 x 25 mm with a 300mm flying lead, the ALIF101T-HDMI attaches directly behind the source computer and connects via one HDMI input and two USB 2.0 Type-A connectors. Drawing under three watts in typical use from the host's USB ports, it dramatically reduces power-provisioning and air-conditioning requirements in dense server rooms, while options for external 5V or redundant power remain available.

Adder's spatially-lossless encoding with 1:1 pixel mapping delivers HDMI video to the receiver that is identical to the video leaving the computer — color accurate, artifact-free and updated in real time. USB 2.0 with class control supports low, full and high-speed devices including graphics tablets, jog shuttles, joysticks and mass storage, and non-HID devices can be disabled for secure installations without physically blocking ports. Bi-directional 2-channel USB audio at 16-bit/48kHz and HDMI-embedded linear PCM audio are both supported.

The transmitter links to the network through a single RJ45 port at 1GbE over CAT5e or better cable, reaching 100m/328ft per hop. As part of the ADDERLink INFINITY family, it operates point-to-point with INFINITY receivers or joins a full digital KVM matrix under the ADDERLink INFINITY Manager (AIM), where any workstation can connect to any computer. Intelligent EDID management, dithered-video support for Mac sources and zero-config plug-and-play deployment complete the package. Browse receivers and accessories in the Adder Technology collection.

Key Features

• ZeroU Form Factor — The dongle mounts directly at the computer and consumes no rack space, simplifying dense installations.
• USB Powered — Draws power from two host USB 2.0 ports (2x 500mA @ 5V), eliminating the external PSU in most deployments.
• Pixel-Perfect HDMI Video — Spatially-lossless encoding with 1:1 pixel mapping supports up to 2560x1600 @ 60Hz with no artifacts.
• Low Power Consumption — Under 3W typical operation reduces power and cooling load across large estates.
• USB 2.0 with Class Control — Supports tablets, jog shuttles, joysticks and storage, with non-HID lockout for secure sites.
• Bi-Directional Digital Audio — 2-channel 16-bit/48kHz USB audio plus HDMI 2-channel linear PCM.
• AIM Matrix Capability — Joins a scalable digital KVM matrix when managed by the ADDERLink INFINITY Manager.
• High Reliability — 1,200,000-hour MTBF (Telcordia SR332) and 0-50 °C operating range suit always-on facilities.

Typical Applications

• Broadcast studio racks where source machines feed remote operator desks
• Government space facilities centralizing computers in secured rooms
• Training room PCs relocated to an equipment closet
• Commercial meeting space sources mounted behind displays or in credenza racks

Technical Specifications

Frequently Asked Questions

Does the ALIF101T-HDMI need a power supply?
Normally no — it is powered from two host USB 2.0 ports. An external 5VDC 1A supply or a redundant PSU option is available if the computer's USB power budget is insufficient.

What receiver does it pair with?
It works with ADDERLink INFINITY receivers over a 1GbE network, point-to-point or in an AIM-managed matrix. Creation Networks can help specify the right receiver for your displays.

Can it be part of a KVM matrix?
Yes. Under the ADDERLink INFINITY Manager (AIM), multiple transmitters and receivers form a scalable digital matrix.

Does it pass HDCP content?
No. Per Adder's specification it does not support HDCP or CEC; it is intended for computer desktop extension.

What network cabling is required?
CAT5e or better supports the full 100m/328ft per hop at 1GbE; 10/100 networks are not supported.

Is driver installation required?
No. The unit ships zero-config, requires no software, and is compatible with all known operating systems including Mac sources that use dithered video.
