Adder ALIF101T-DVI – ZeroU USB-Powered DVI IP KVM Transmitter

Product Overview

The Adder ALIF101T-DVI is a ZeroU USB-powered IP KVM transmitter that extends DVI-D video, bi-directional USB audio and USB 2.0 from a computer across a single CATx cable on a standard 1GbE network. Built as a compact KVM dongle for extension or matrix, it draws its power from the host computer's USB ports, takes zero rack units and delivers pixel-perfect 1920x1200 @ 60Hz video. For facilities standardized on DVI sources, this DVI KVM over IP transmitter removes external power supplies and rack space at the source end while integrating into AIM-managed matrix systems.

Product Description

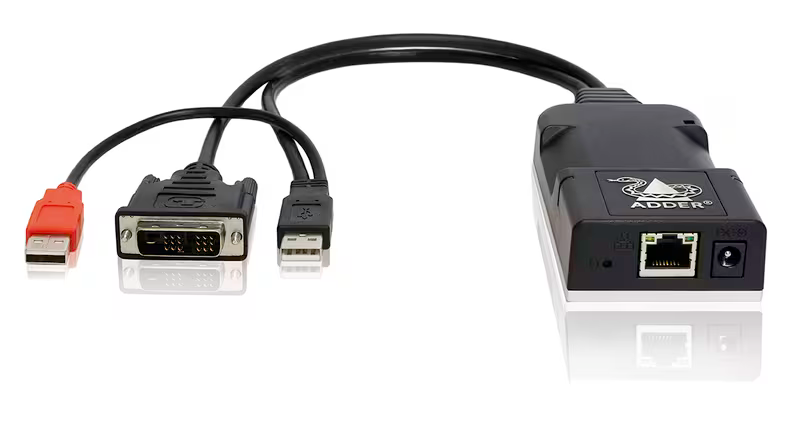

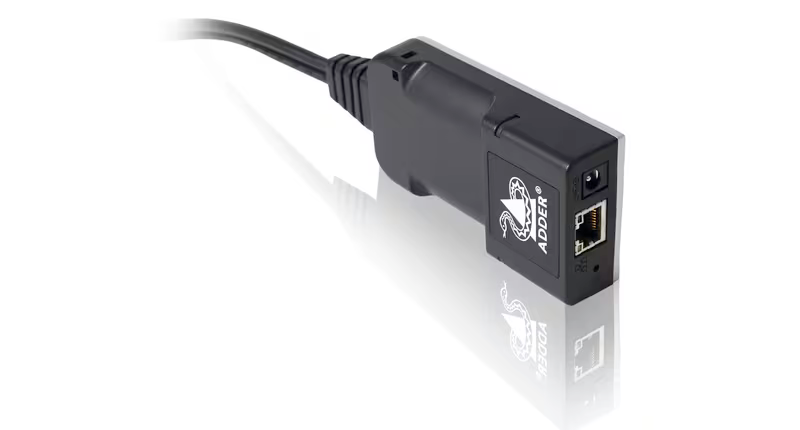

At just 110 x 55 x 25 mm with a 300mm flying lead, the ALIF101T-DVI mounts directly behind the source computer, connecting through one DVI-D input and two USB 2.0 Type-A plugs. It consumes under three watts in typical use — powered entirely by the host's USB ports — which significantly reduces power-provisioning and cooling requirements in dense server rooms. External 5V and redundant power options are available where the USB budget is constrained.

Adder's spatially-lossless encoding with 1:1 pixel mapping ensures the video at the receiver is identical to the video leaving the computer: color accurate, artifact-free and updated in real time, with support for dithered video from some Mac sources. USB 2.0 with class control handles low, full and high-speed devices — graphics tablets, jog shuttles, joysticks, mass storage — and can disable non-HID devices for secure environments without physically capping ports. Bi-directional 2-channel USB audio runs at 16-bit/48kHz.

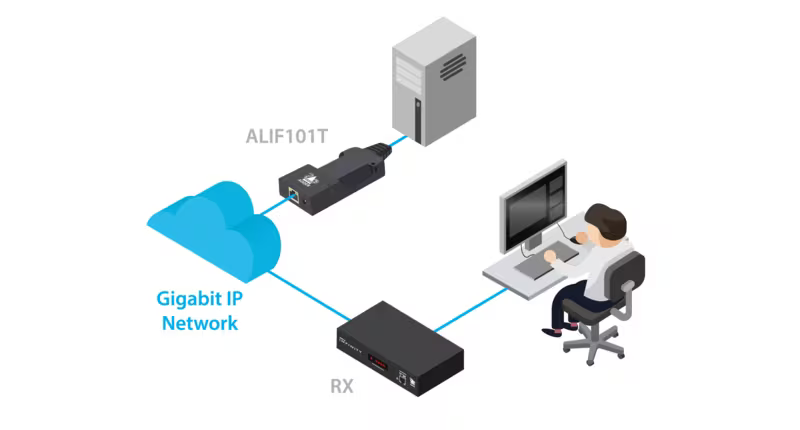

The single RJ45 link port runs 1GbE over CAT5e or better cable at up to 100m/328ft per hop. The transmitter operates point-to-point with ADDERLink INFINITY receivers or scales into a full digital KVM matrix under the ADDERLink INFINITY Manager (AIM), where any workstation can reach any computer on the network. With intelligent EDID management, zero-config deployment and a 1,200,000-hour MTBF, it suits always-on professional facilities. See receivers, PoE splitters and power accessories in the Adder Technology collection.

Key Features

• ZeroU Form Factor — Mounts directly at the computer and occupies no rack space, easing high-density installs.
• USB Powered — Runs from two host USB 2.0 ports (2x 500mA @ 5V) with no external PSU in most deployments.
• Pixel-Perfect DVI Video — Spatially-lossless encoding with 1:1 pixel mapping at up to 1920x1200 @ 60Hz, 8 bpc.
• Under 3W Typical Power — Cuts power supply and air-conditioning demands across large estates.
• USB 2.0 with Class Control — Supports tablets, jog shuttles, joysticks and storage, with non-HID lockout for secure sites.
• Bi-Directional USB Audio — 2-channel 16-bit/48kHz digital audio in both directions.
• AIM Matrix Capability — Scales from point-to-point extension into a managed digital KVM matrix.
• High Reliability — 1,200,000-hour MTBF (Telcordia SR332) and 0-50 °C operating range.

Typical Applications

• Broadcast studio racks extending DVI source machines to operator desks
• Government space facilities with computers consolidated in secure rooms
• Training room PCs relocated to equipment closets
• Commercial meeting space sources installed in remote AV racks

Technical Specifications

Frequently Asked Questions

Does the ALIF101T-DVI require its own power supply?
Usually not — it draws power from two host USB 2.0 ports. An external 5VDC 1A supply, a redundant PSU converter, or a 1GbE PoE splitter (all sold separately) are options when host USB power is limited.

Which receivers does it work with?
It pairs with ADDERLink INFINITY receivers over a 1GbE network in point-to-point or AIM-managed matrix configurations. Creation Networks can recommend the right receiver for your displays.

Can it join a KVM matrix?
Yes. With the ADDERLink INFINITY Manager (AIM), multiple transmitters and receivers form a scalable digital matrix.

What cabling does it need?
CAT5e or better supports the full 100m/328ft per hop at 1GbE. 10/100 networks are not supported.

Does it work with VGA or analog sources?
The video input is DVI-D (digital only). Adder's DVA converter accessory is listed for analog conversion; contact Creation Networks for guidance.

Is software needed on the host computer?
No. The unit is plug and play, ships zero-config and works with all known operating systems.
