Adder ALDV120T – AdderLink DV120 DVI Transmitter over CATx

Product Overview

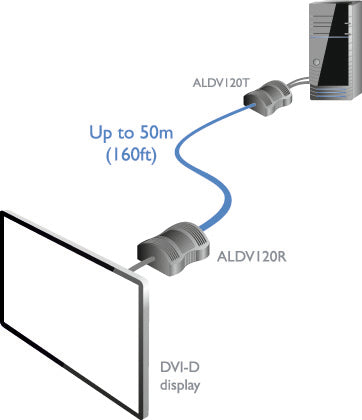

The Adder ALDV120T is the transmitter unit of the AdderLink DV120 DVI extender over CATx, designed to distribute the exact content seen on a local monitor to a remote display up to 50 meters away. This compact USB-powered DVI transmitter carries uncompressed digital video at resolutions up to 1920 x 1200 @ 60Hz across a single CATx cable, letting media playback hardware live in a secure, temperature-controlled environment away from the display point. With power harvested from a standard USB socket, this DVI over CATx extension solution installs without any external power supply at the source.

Product Description

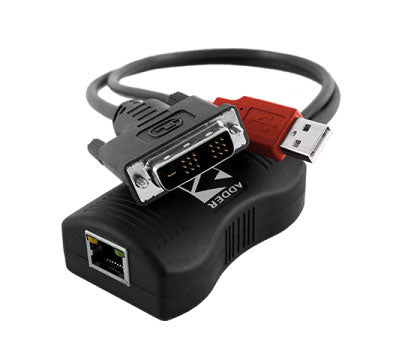

DVI-D remains a dependable digital video interface across signage players, industrial PCs, and control room workstations, and the DV120 gives those systems a clean extension path over structured cabling. The ALDV120T connects to the source machine through a DVI-D male connector and a USB Type A plug used purely for power, then links to the remote receiver over a single CATx run.

Video is transmitted with an uncompressed communication system and zero data loss, so the remote screen shows a pixel-perfect copy of the source at resolutions including 480p, 720p, 1080p, and WUXGA (1920 x 1200) @ 60Hz with 24-bit color. EDID management allows the remote system to exactly mirror the data coming from the source monitor, eliminating resolution mismatches during deployment.

The unit is housed in a tough but lightweight injection-molded ABS enclosure measuring 45 x 63 x 21 mm with 30 cm pigtails, and its energy-efficient design uses less than an eighth of the power required by some competing systems — just 2.5W at 5VDC for transmitter and receiver combined. Extenders are delivered in a zero-config state and work as soon as they are connected, with no drivers or software, on all known operating systems. Adder recommends CAT6 shielded or better cabling, with CAT7 achieving the full 50-meter distance.

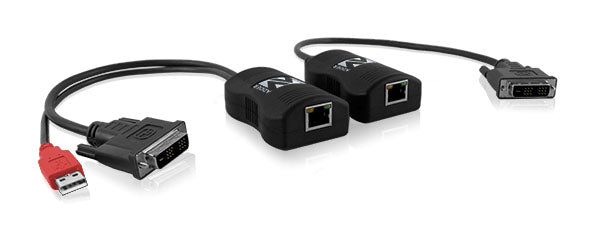

This listing covers the transmitter unit only; complete the link with the AdderLink ALDV120R DVI receiver. Additional Adder extenders and CATx cabling are available in the Adder Technology collection.

Key Features

• Pixel-Perfect Digital Video — An uncompressed communication system delivers zero data loss at resolutions up to 1920 x 1200 @ 60Hz (WUXGA).
• 50m over a Single CATx Cable — Video and power share one cable, with achievable distance dependent on cable type and patch connections.
• USB-Powered Efficiency — Power is harvested from a standard USB socket, removing the need for an external PSU at the transmitter.
• EDID Management — The remote system exactly mirrors the data coming from the source monitor for correct resolution negotiation.
• Plug and Play — Delivered in a zero-config state and operational as soon as connected, with no drivers or software required.
• Compact, Durable Enclosure — Tough but light ABS housing with reliable internal and external connectors withstands environmental pressures.
• Broad Hardware Compatibility — Works with all computers offering DVI-D and USB connections, on all known operating systems.
