Adder ALDV120R – AdderLink DV120 DVI Receiver Unit
Product Overview

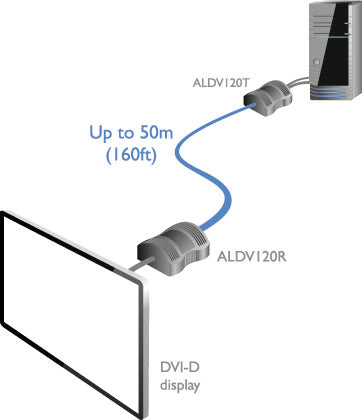

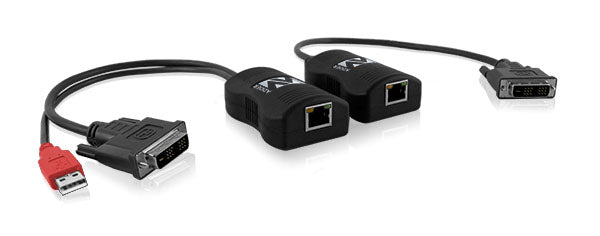

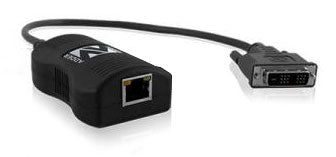

The Adder ALDV120R is the receiver unit of the AdderLink DV120, a highly compact DVI extender over CATx cable that distributes pixel-perfect digital video up to 50m on a single cable. Paired with the ALDV120T transmitter, this USB-powered DVI receiver lets you locate media playback hardware in a secure, temperature-controlled environment while the remote display shows precisely the content seen on the local monitor. It is a compact, driverless choice for any DVI over CATx extension requirement.
Product Description
The DV120 uses an uncompressed communication system with zero loss of data for resolutions up to 1920 x 1200 @ 60Hz (WUXGA) at 24-bit color depth, supporting common formats such as 480p, 720p, and 1080p over its DVI-D interface. Video and power share the single CATx link, so the receiver position needs no power outlet of its own.
Energy efficiency is a defining trait: power is harvested from a standard USB socket at the source, and the complete RX/TX pair draws just 2.5W at 5VDC — less than an eighth of the power required by some competing systems, per Adder. The small-form-factor dongle housing (45 x 63 x 21mm injection-molded ABS with 30cm pigtails, 250g per pair) tucks behind displays and inside enclosures.
Deployment is plug and play: DV120 extenders ship in a zero-config state and work as soon as connected, with no drivers or software and compatibility with all known operating systems. EDID management enables the remote system to exactly mirror the data coming from the source monitor. Adder recommends CAT7 shielded foiled twisted pair (Daetwyler 7702 patch / 7120 bulk); 50m is specified over CAT7 or shielded CAT6a on unbroken runs, with 40m achievable across two patch connections. Find the matching transmitter and qualified cabling in the Adder Technology collection at Creation Networks.
Key Features
- Pixel-Perfect Uncompressed Video — Zero data loss at resolutions up to 1920 x 1200 @ 60Hz with 24-bit color for an exact remote image.
- 50m Single-Cable Extension — Video and power share one CATx cable up to 50m, simplifying pathways to the display point.
- USB-Powered Efficiency — Harvests power from a standard USB socket; the RX/TX pair consumes only 2.5W with no external PSUs.
- EDID Management — Lets the remote system exactly mirror the data coming from the source monitor for correct resolution negotiation.
- Plug and Play — Ships zero-config with no drivers or software, compatible with all known operating systems.
- Compact, Durable Housing — Tough, lightweight ABS enclosure measuring 45 x 63 x 21mm with reliable connectors for demanding installs.
Technical Specifications
| SKU | ALDV120R (DV120 receiver; pair: ALDV120P, transmitter: ALDV120T) |
|---|---|
| Video Interface | DVI-D; supports 480p, 720p, 1080p, and WUXGA 1920 x 1200 @ 60Hz (reduced blanking), 24-bit color |
| Extension Distance | Up to 50m over a single CATx cable (CAT7 or shielded CAT6a, unbroken run; 40m with 2 patch connections) |
| Receiver Connector | DVI-D male (display); RJ45 link |
| Power | USB powered, 5VDC; 2.5W for RX and TX units combined |
| Recommended Cable | CAT7 shielded foiled twisted pair (Daetwyler 7702 flexible patch / 7120 bulk); CAT6 shielded or better required |
| Enclosure | Injection-molded ABS; 45mm (W) x 63mm (D) x 21mm (H) with 30cm pigtails; 250g per pair |
| Operating Temperature | 0 to 40°C / 32 to 104°F |
| OS Compatibility | All known operating systems; computers with DVI-D and USB connections |
| Approvals | CE, FCC |
