AVPro Edge AC-CXWP-LPU-T – Low-Profile USB-C Wall Plate Transmitter

Product Overview

The AVPro Edge AC-CXWP-LPU-T is a low-profile USB-C wall plate transmitter for BYOD conference rooms and other commercial AV spaces standardizing on USB-C laptop connections. This ConferX USB-C wall plate transmitter sends signal over Category 6A cable to a matching HDBaseT receiver, supporting extension up to 100 meters (328 ft). It is sold as a transmitter-only unit designed to pair with the receiver included in the AVPro Edge AC-CXWP-LPU-KIT, letting integrators add USB-C wall plate transmitters to additional rooms without ordering a full kit each time.

Product Description

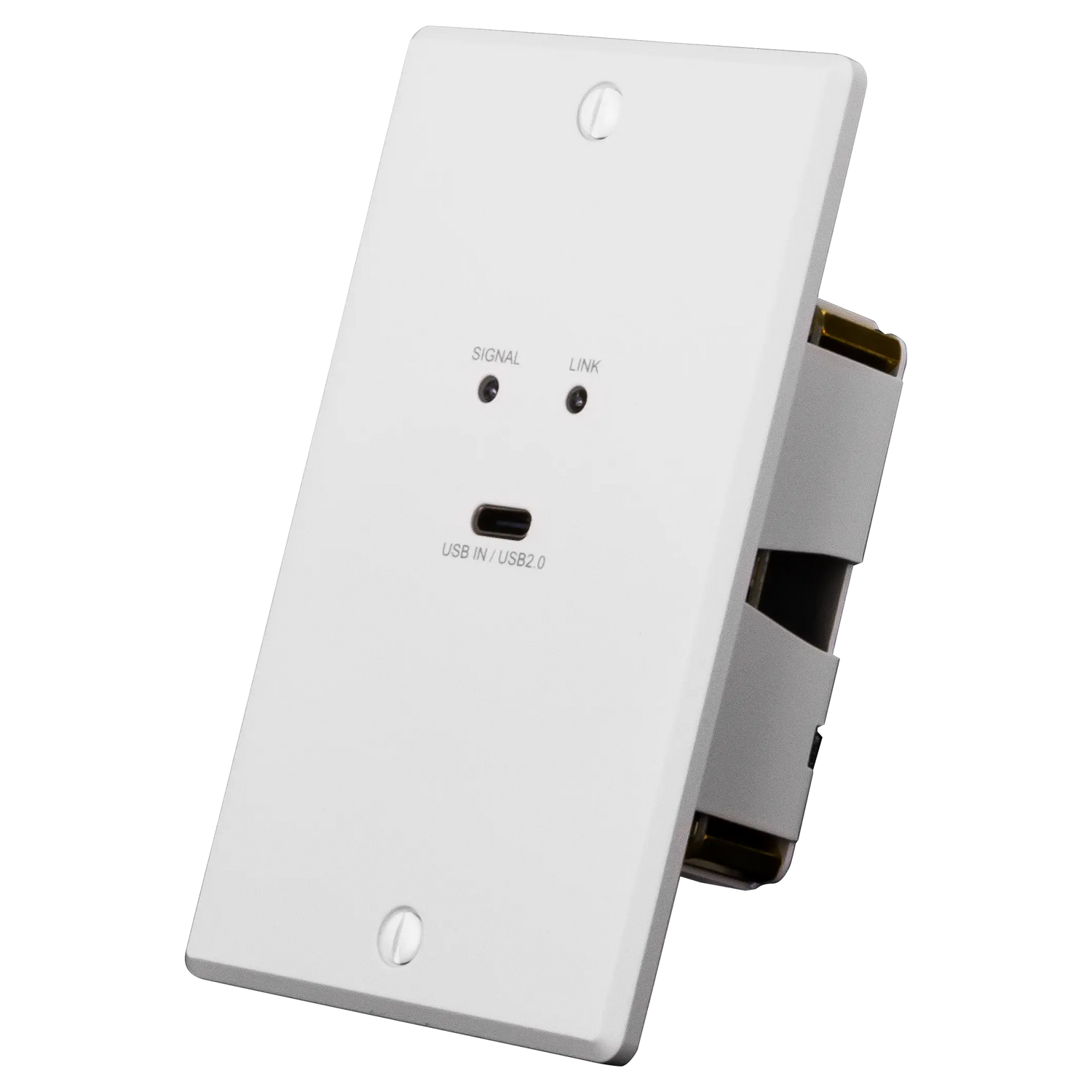

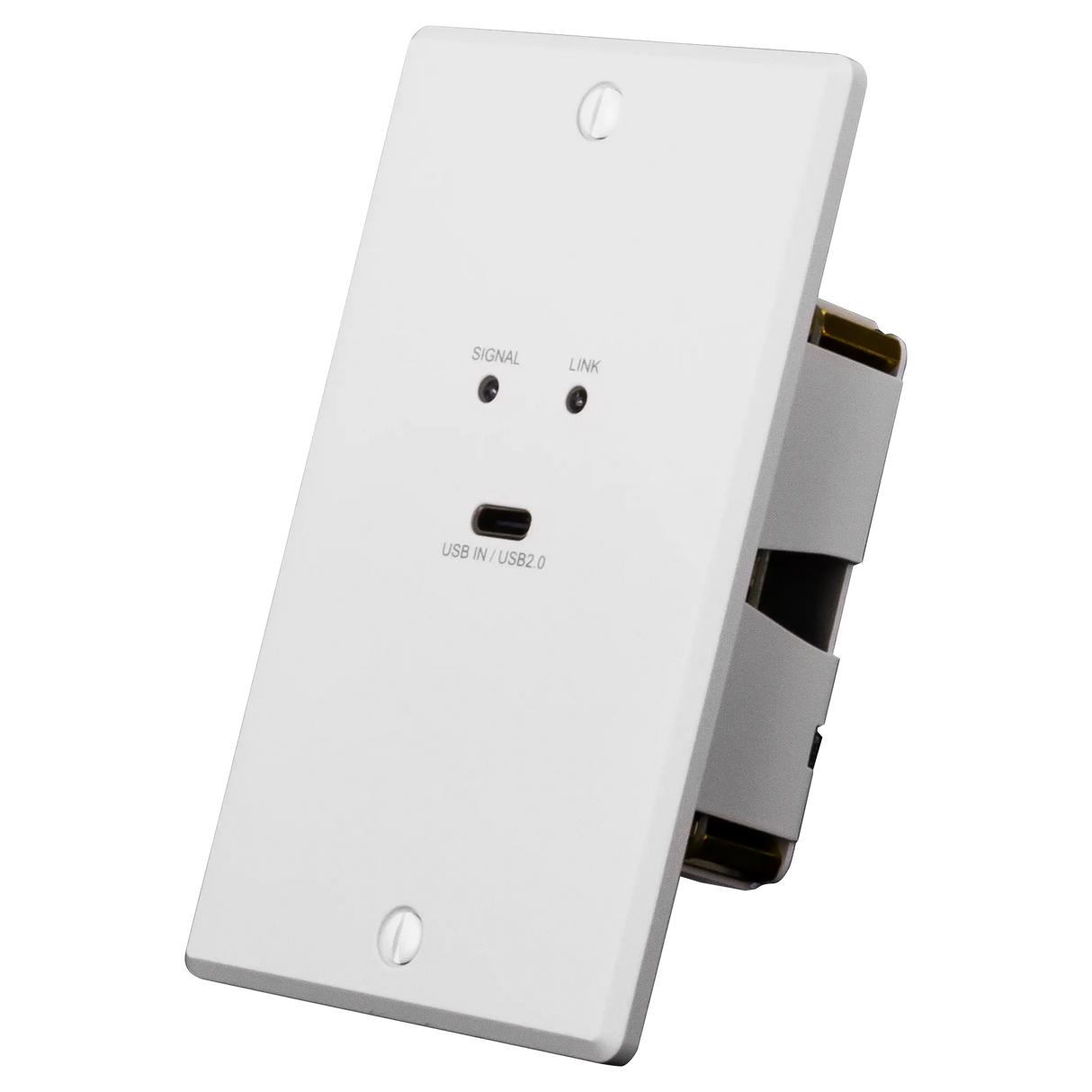

The AC-CXWP-LPU-T mounts into a standard single-gang workbox and extends only 13/64 in. (5 mm) from the wall surface for a clean, low-profile appearance in conference rooms and other finished commercial spaces. The transmitter auto-senses a USB-C connection from a laptop and activates transmission automatically, with LED indicators confirming signal presence and receiver link. A 16-position EDID dial, including a copy-from-output mode, helps integrators manage display compatibility in the field. An HDCP input request dip switch toggles between requesting and bypassing HDCP 2.x, useful for resolving handshake issues with mixed source equipment. The transmitter supports 1080p to 328 ft (100 m) and 4K/60 Hz 4:2:0 signals to 229 ft (70 m) over Cat 6A cabling, with AVPro Edge Invisible Compression Technology (ICT) enabling source bandwidths up to 18 Gbps. The embedded USB hub in this transmitter consumes one tier in the USB chain. Power is supplied via PoC from the paired HDBaseT receiver, so no local power supply is required at the wall plate. This transmitter ships with a white faceplate; black and stainless steel faceplate covers are sold separately. This unit pairs directly with the receiver included in the AC-CXWP-LPU-KIT for a complete USB-C extension installation.

Key Features

• Auto-Sensing USB-C Input — The transmitter detects an active USB-C connection and begins transmission automatically, confirmed by LED status indicators.
• 100-Meter HDBaseT Extension — Category 6A cabling carries 1080p up to 328 ft (100 m) and 4K/60 Hz 4:2:0 signals up to 229 ft (70 m).
• Low-Profile Wall Plate Design — Wall plate excursion of only 13/64 in. (5 mm) keeps the transmitter flush and unobtrusive.
• 16-Position EDID Management — A rotary EDID dial with copy-from-output capability simplifies on-site display compatibility.
• PoC Powered — Power is delivered over the HDBaseT link from the paired receiver, eliminating the need for a local supply.
• HDCP Input Request Switch — A dip switch toggles HDCP 2.x requests on or off to resolve handshake conflicts.

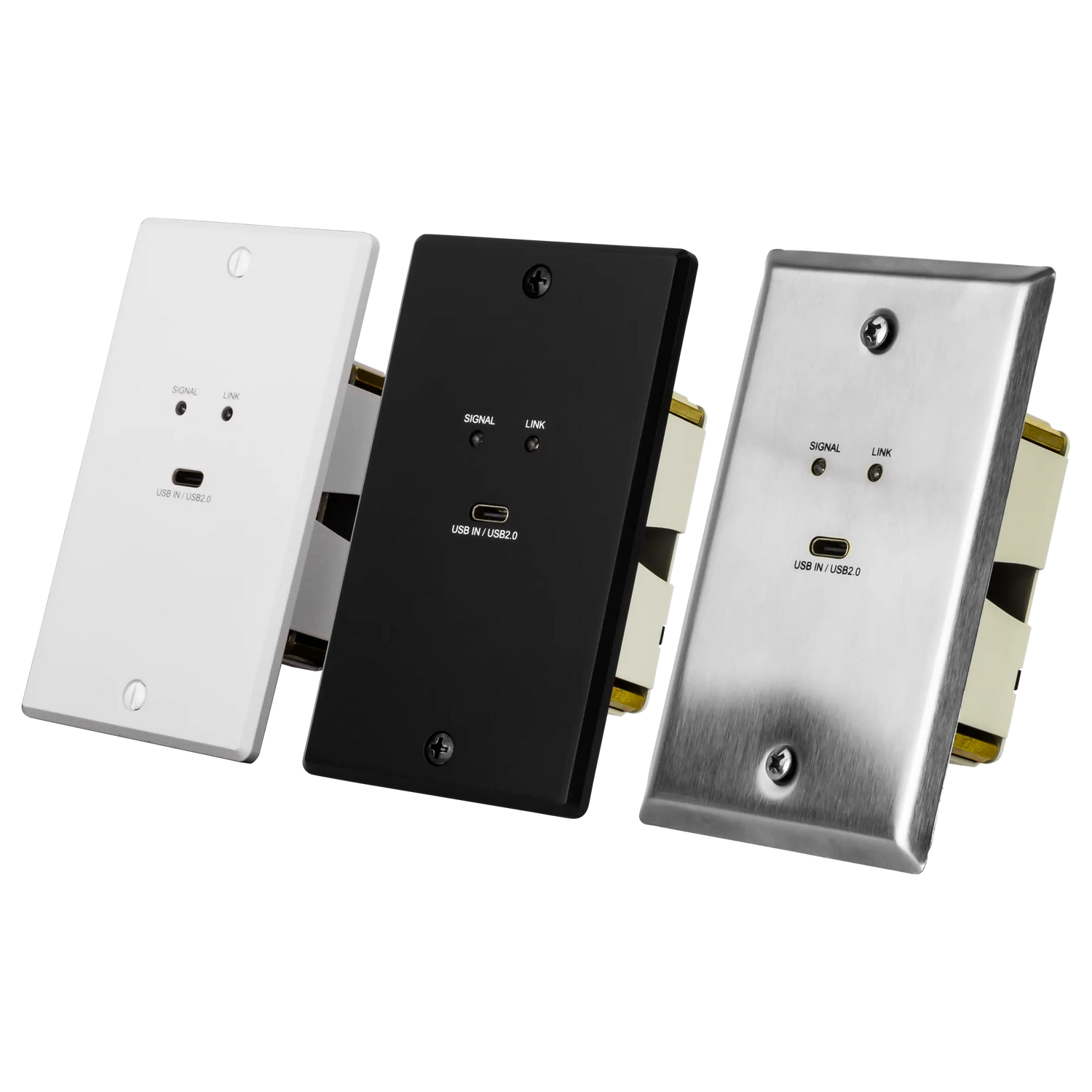

• Interchangeable Faceplates — Ships with a white faceplate; black and stainless steel covers are available separately.
• 10-Year AVPro Edge Warranty — Backed by AVPro Edge's no-hassle 10-year warranty.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Training room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

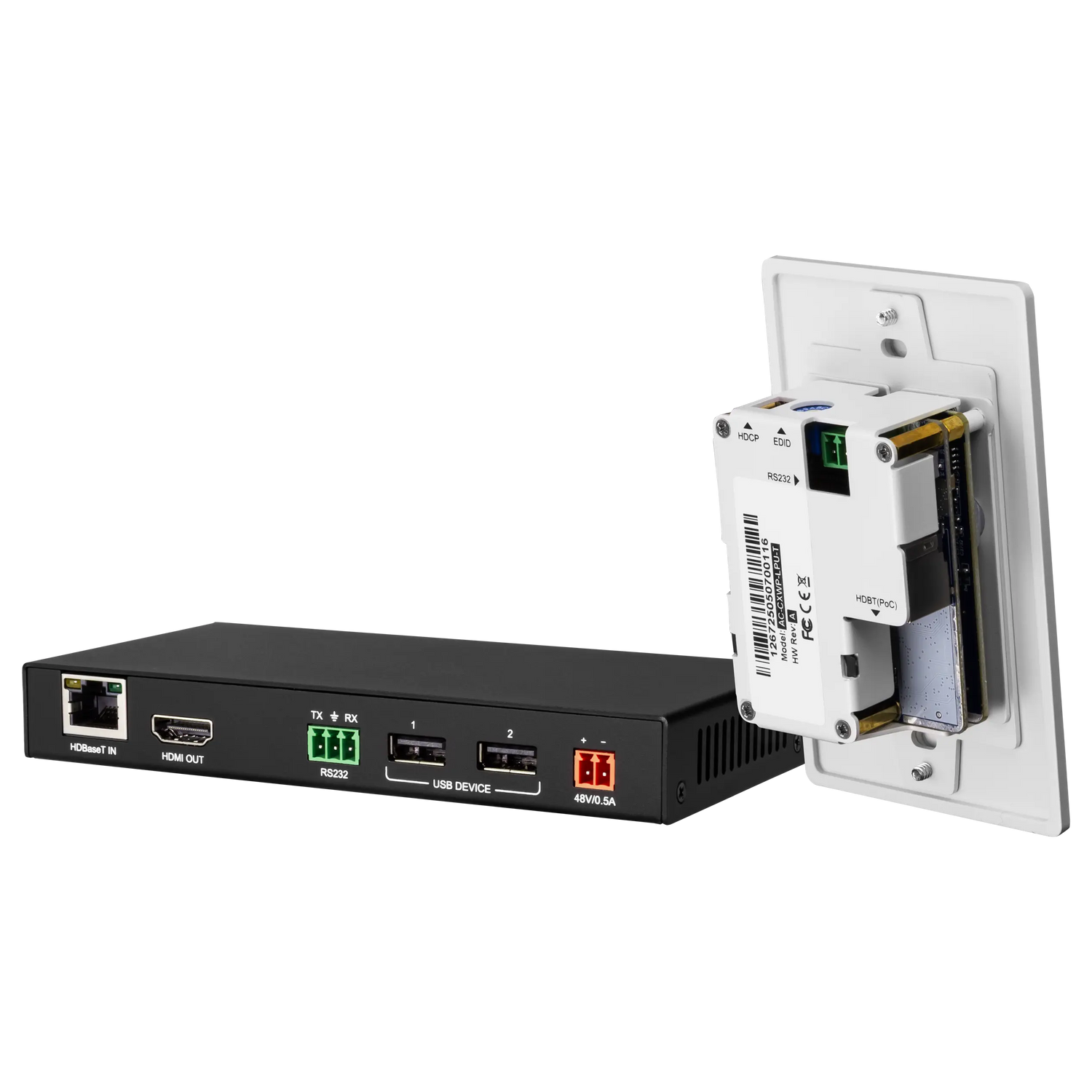

• Does this transmitter include a receiver? No. The AC-CXWP-LPU-T is transmitter-only and pairs with the receiver included in the AC-CXWP-LPU-KIT.
• What cabling is required for a 100-meter run? Properly terminated Category 6A UTP cable is required to achieve rated 1080p and 4K distances.
• Does this support HDMI sources as well as USB-C? No, the AC-CXWP-LPU-T is a USB-C-only input transmitter; integrators needing HDMI should use the AC-CXWP-LPH-T instead.
• How do I fix an EDID handshake issue? Use the 16-position EDID dial to select a compatible profile, or copy the EDID directly from the connected display.
• Does the wall plate need its own power supply? No. It is powered over the HDBaseT link (PoC) from the paired receiver.
• Are black or stainless steel faceplates available? Yes, both are sold separately from the standard white faceplate.
• What warranty covers this transmitter? AVPro Edge's 10-year, no-hassle warranty.
• Can multiple transmitters share one receiver? No. Each transmitter requires its own matching receiver, such as the one included in the AC-CXWP-LPU-KIT.
