AVPro Edge AC-CXWP-LPH-T – Low-Profile HDMI Wall Plate Transmitter

Product Overview

The AVPro Edge AC-CXWP-LPH-T is a low-profile HDMI wall plate transmitter built for commercial AV installations that need a clean HDMI connection point without running HDMI cable across a room. This ConferX HDMI wall plate transmitter sends signal over Category 6A cable to a matching HDBaseT receiver, supporting HDMI over HDBaseT extension up to 100 meters (328 ft). It is sold as a transmitter-only unit designed to pair with the receiver included in the AVPro Edge AC-CXWP-LPH-KIT, giving integrators flexibility to add wall plate transmitters to a multi-room deployment without duplicating full kits.

Product Description

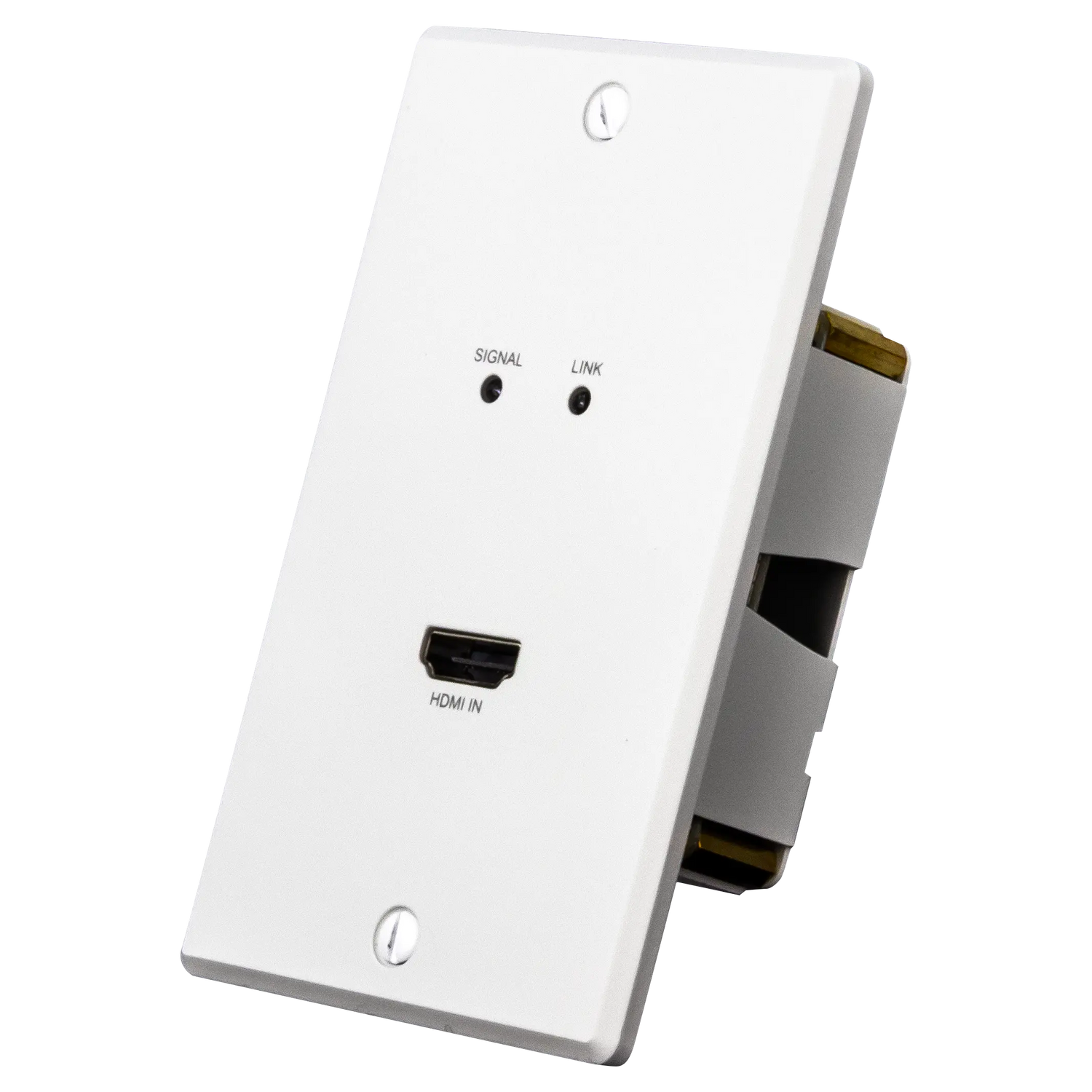

The AC-CXWP-LPH-T mounts into a standard single-gang workbox and extends only 13/64 in. (5 mm) from the wall surface, keeping the installation low-profile and unobtrusive in conference rooms and other finished commercial spaces. The transmitter auto-senses an HDMI connection from a laptop or other source and activates transmission automatically, with LED indicators confirming signal presence and receiver link. A 16-position EDID dial, including a copy-from-output mode, lets integrators match display EDID requirements without a separate EDID management tool. An HDCP input request dip switch can be toggled to request or bypass HDCP 2.x, which helps resolve handshake conflicts in rooms with mixed source equipment. The transmitter supports 1080p signals to 328 ft (100 m) and 4K/60 Hz 4:2:0 8-bit signals to 229 ft (70 m) over Cat 6A cabling, with AVPro Edge Invisible Compression Technology (ICT) enabling source configurations up to 18 Gbps. Power is supplied via PoC from the paired HDBaseT receiver, so no local power supply is required at the wall plate. This transmitter ships with a white faceplate; black and stainless steel faceplate covers are sold separately. Because the active module is not Decora dimensioned, it must be installed with an AVPro Edge ConferX wall plate. This unit pairs directly with the receiver included in the AC-CXWP-LPH-KIT for a complete transmitter-and-receiver installation.

Key Features

• Auto-Sensing HDMI Input — The transmitter detects an active HDMI connection and begins transmission automatically, confirmed by LED status indicators.
• 100-Meter HDBaseT Extension — Category 6A cabling carries 1080p up to 328 ft (100 m) and 4K/60 Hz 4:2:0 8-bit signals up to 229 ft (70 m).
• Low-Profile Wall Plate Design — Wall plate excursion of only 13/64 in. (5 mm) keeps the transmitter flush and unobtrusive.
• 16-Position EDID Management — A rotary EDID dial with copy-from-output capability simplifies on-site display compatibility.
• PoC Powered — Power is delivered over the HDBaseT link from the paired receiver, eliminating the need for a local power supply.
• HDCP Input Request Switch — A dip switch toggles HDCP 2.x requests on or off to resolve handshake conflicts.

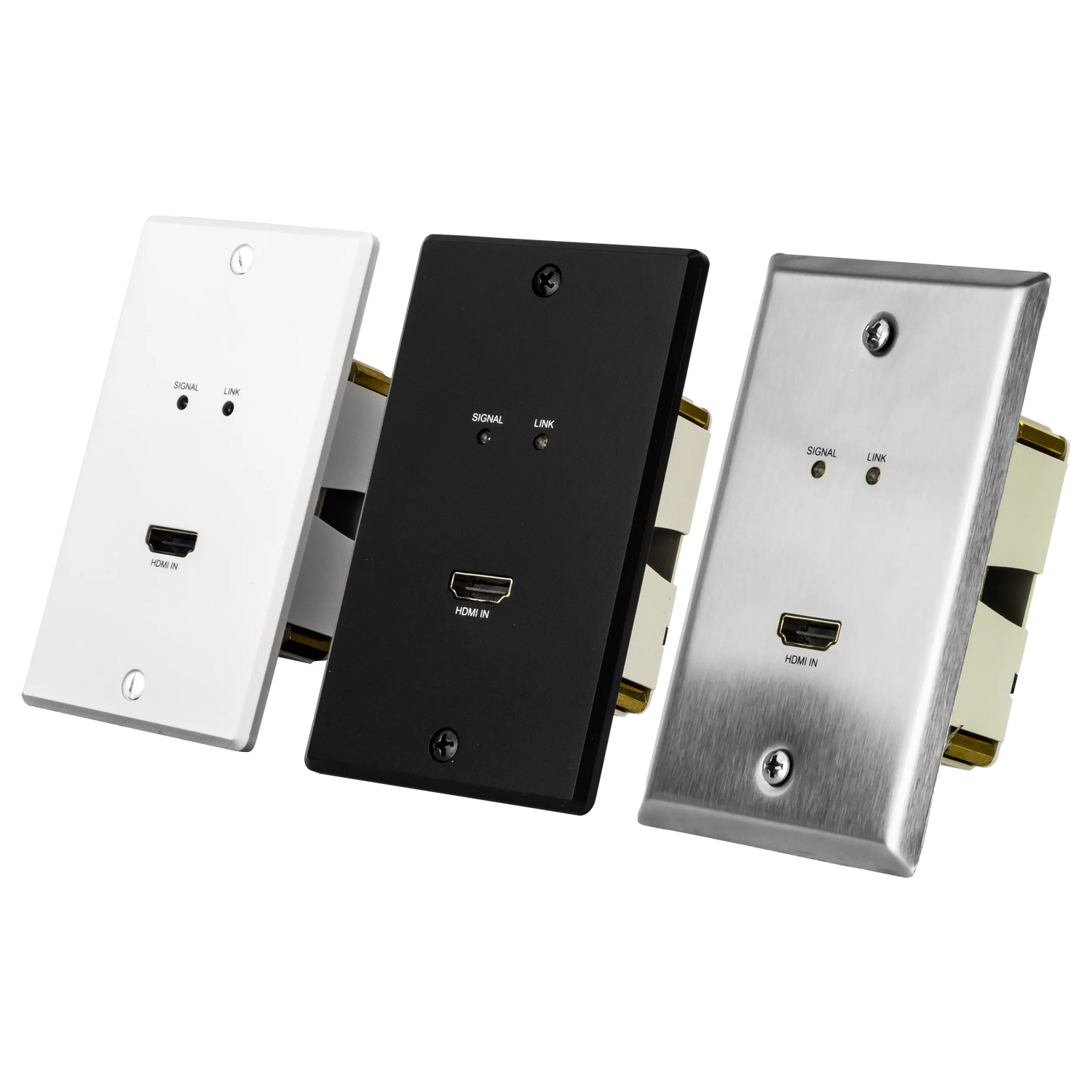

• Interchangeable Faceplates — Ships with a white faceplate; black and stainless steel covers are available separately.
• 10-Year AVPro Edge Warranty — Backed by AVPro Edge's no-hassle 10-year warranty.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Training room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

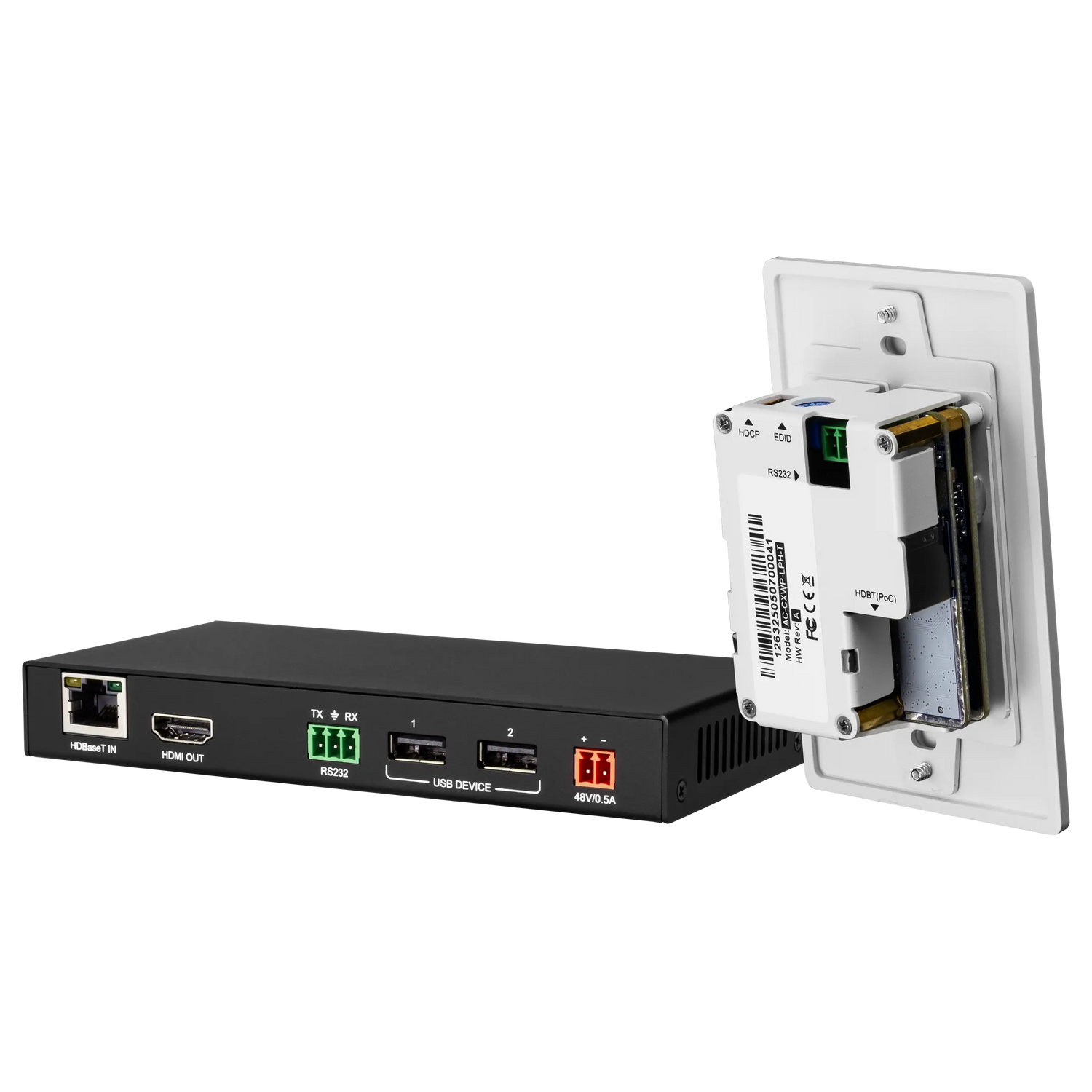

• Does this transmitter include a receiver? No. The AC-CXWP-LPH-T is transmitter-only and pairs with the receiver included in the AC-CXWP-LPH-KIT.
• What cabling is required for a 100-meter run? Properly terminated Category 6A UTP cable is required to achieve rated 1080p and 4K distances.
• Can I use a standard Decora wall plate with this unit? No. The active module is not Decora dimensioned and must be installed with an AVPro Edge ConferX wall plate.
• How do I fix an EDID handshake issue with a source? Use the 16-position EDID dial to select a compatible profile, or copy the EDID directly from the connected display.
• Does the wall plate need its own power supply? No. It is powered over the HDBaseT link (PoC) from the paired receiver.
• Are black or stainless steel faceplates available? Yes, both are sold separately from the standard white faceplate.
• What warranty covers this transmitter? AVPro Edge's 10-year, no-hassle warranty.
• Can multiple AC-CXWP-LPH-T transmitters share one receiver? No. Each transmitter requires its own matching receiver, such as the one included in the AC-CXWP-LPH-KIT.
