AVPro Edge AC-CXWP-LPU-KIT – USB-C Wall Plate HDBaseT Kit

Product Overview

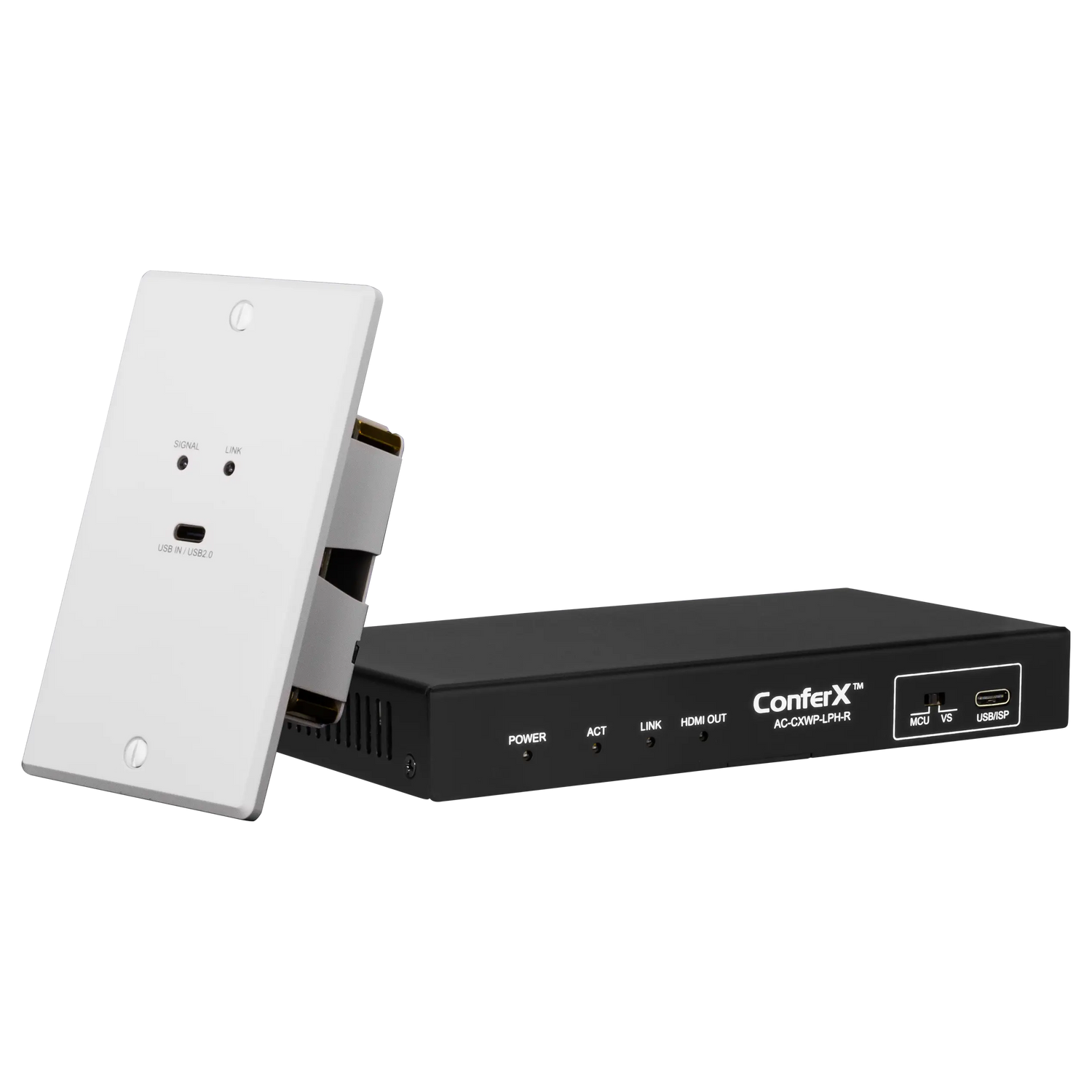

The AVPro Edge AC-CXWP-LPU-KIT is a complete USB-C wall plate extender kit for BYOD conference rooms and other commercial spaces that need a single-cable USB-C connection at the table. This ConferX kit pairs a low-profile USB-C wall plate transmitter with a matching HDBaseT receiver, extending video and USB signal up to 100 meters (328 ft) over Category 6A cable. Integrators specify this USB-C wall plate extender kit when a room standardizes on laptop USB-C output and needs a discreet, single-gang connection point instead of a tabletop switcher.

Product Description

The AC-CXWP-LPU-KIT extends a USB-C source connection from a low-profile wall plate transmitter to a receiver near the display or AV rack, using Category 6A cabling instead of long USB-C or HDMI runs. Wall plate excursion from the wall surface is only 13/64 in. (5 mm), keeping the installation clean in boardrooms, huddle rooms, and other commercial meeting spaces. The transmitter auto-senses a USB-C connection from a laptop and activates transmission automatically, with LED indicators confirming signal presence and receiver link. A 16-position EDID dial, including a copy-from-output setting, simplifies display compatibility management on site. An HDCP input request dip switch can be toggled to request or bypass HDCP 2.x for troubleshooting handshake issues. The kit supports 1080p signals to 328 ft (100 m) and 4K/60 Hz 4:2:0 signals to 229 ft (70 m), with AVPro Edge Invisible Compression Technology (ICT) supporting source bandwidths up to 18 Gbps. The transmitter's embedded USB hub consumes one tier in the USB chain, and the receiver outputs to two USB Type-A device ports for peripherals such as room cameras and speakerphones. Power is supplied to the transmitter via PoC over the HDBaseT link, so no local power supply is required at the wall plate. The kit ships with a white faceplate; black and stainless steel faceplate covers are available separately. Every ConferX product, including this kit, carries the AVPro Edge 10-year, no-hassle warranty.

Key Features

• Auto-Sensing USB-C Input — The transmitter detects an active USB-C connection and begins transmission automatically, confirmed by LED indicators.
• 100-Meter HDBaseT Extension — Category 6A cabling carries 1080p up to 328 ft (100 m) and 4K/60 Hz 4:2:0 signals up to 229 ft (70 m).

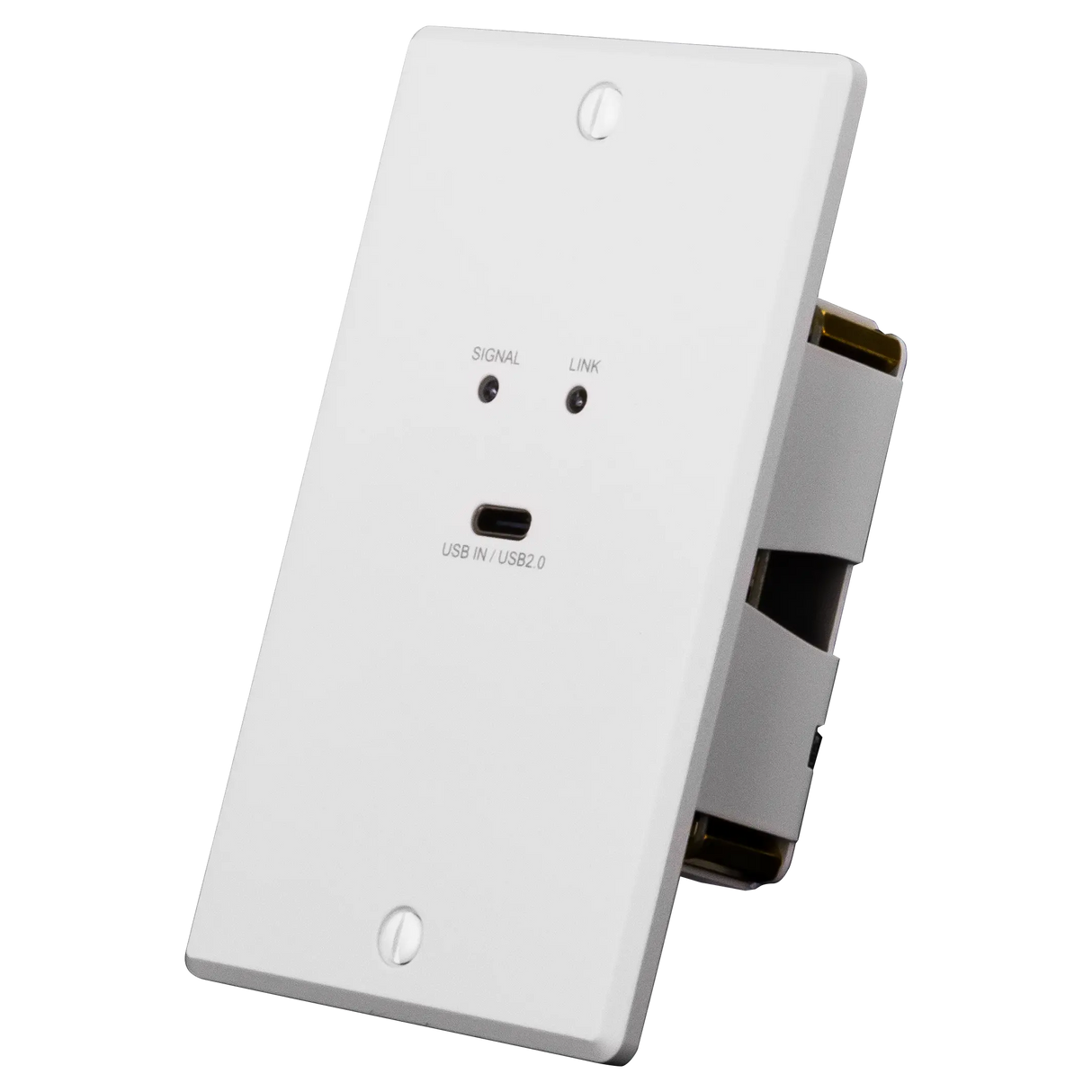

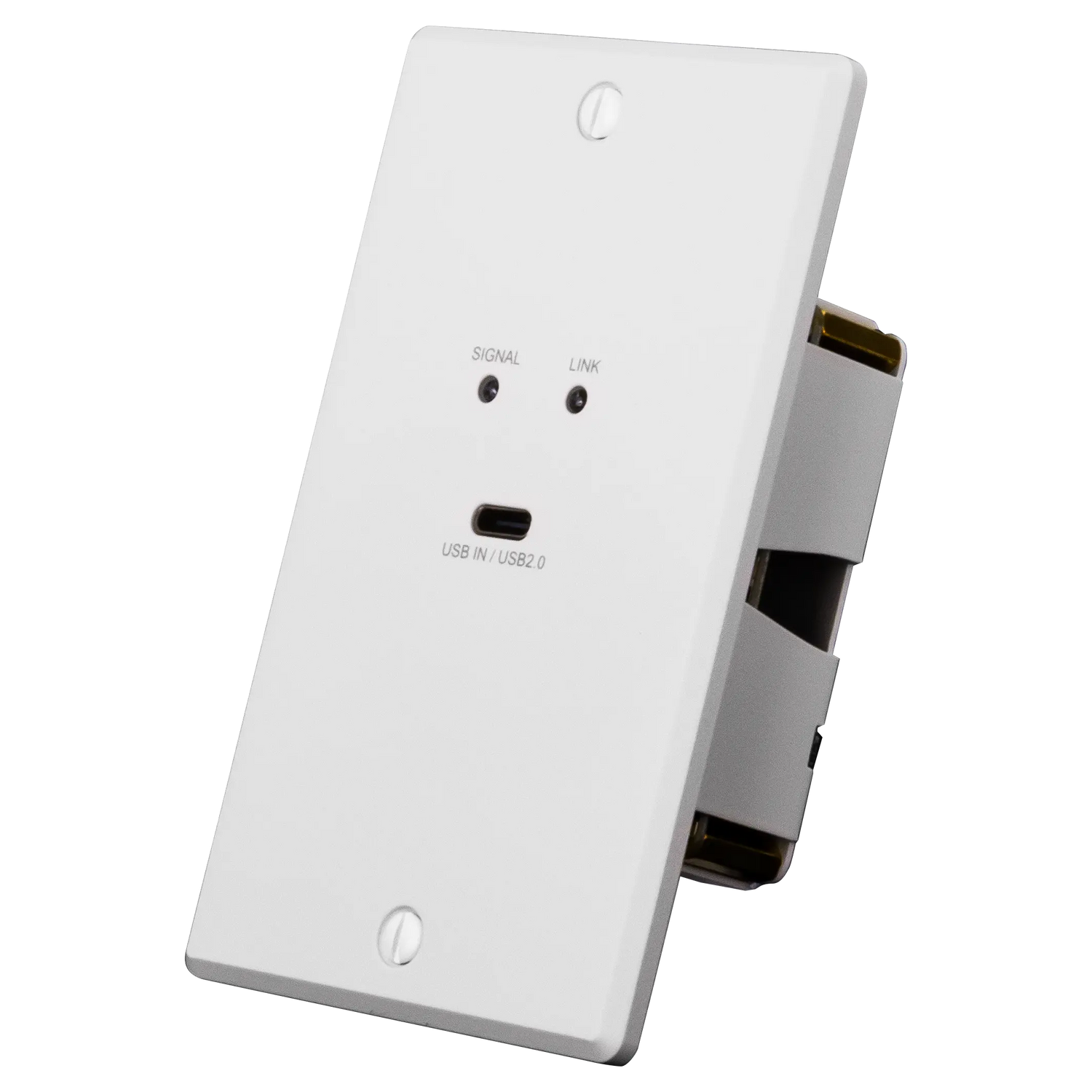

• Low-Profile Wall Plate Design — Wall plate excursion of only 13/64 in. (5 mm) fits discreetly into finished commercial spaces.

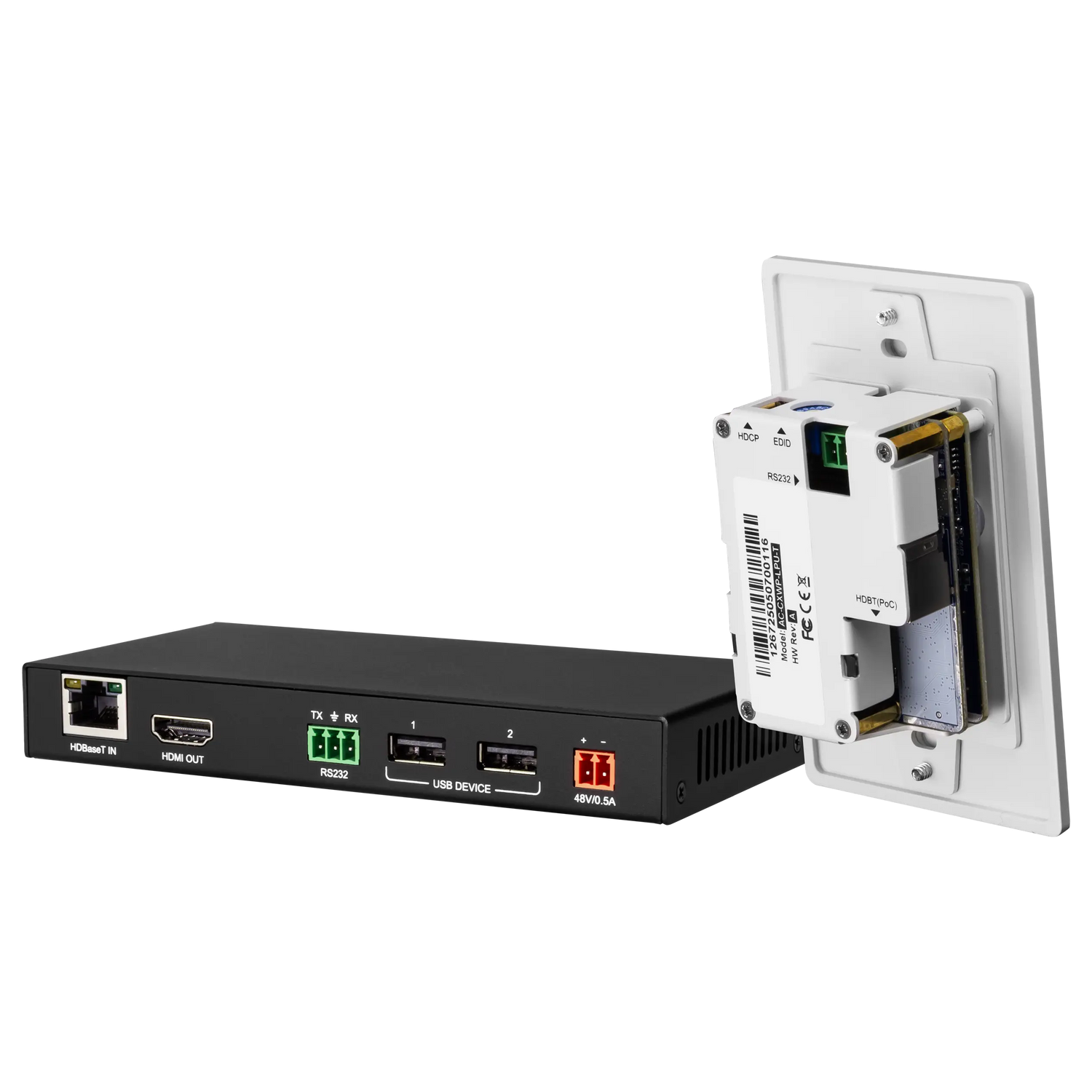

• USB Peripheral Support at the Display — The receiver provides two USB Type-A device ports for connecting cameras, speakerphones, or other room peripherals.
• 16-Position EDID Management — A rotary EDID dial with copy-from-output capability simplifies display compatibility troubleshooting.
• PoC Powered Transmitter — Power is delivered from the receiver over the HDBaseT link, eliminating the need for a local power supply at the wall plate.

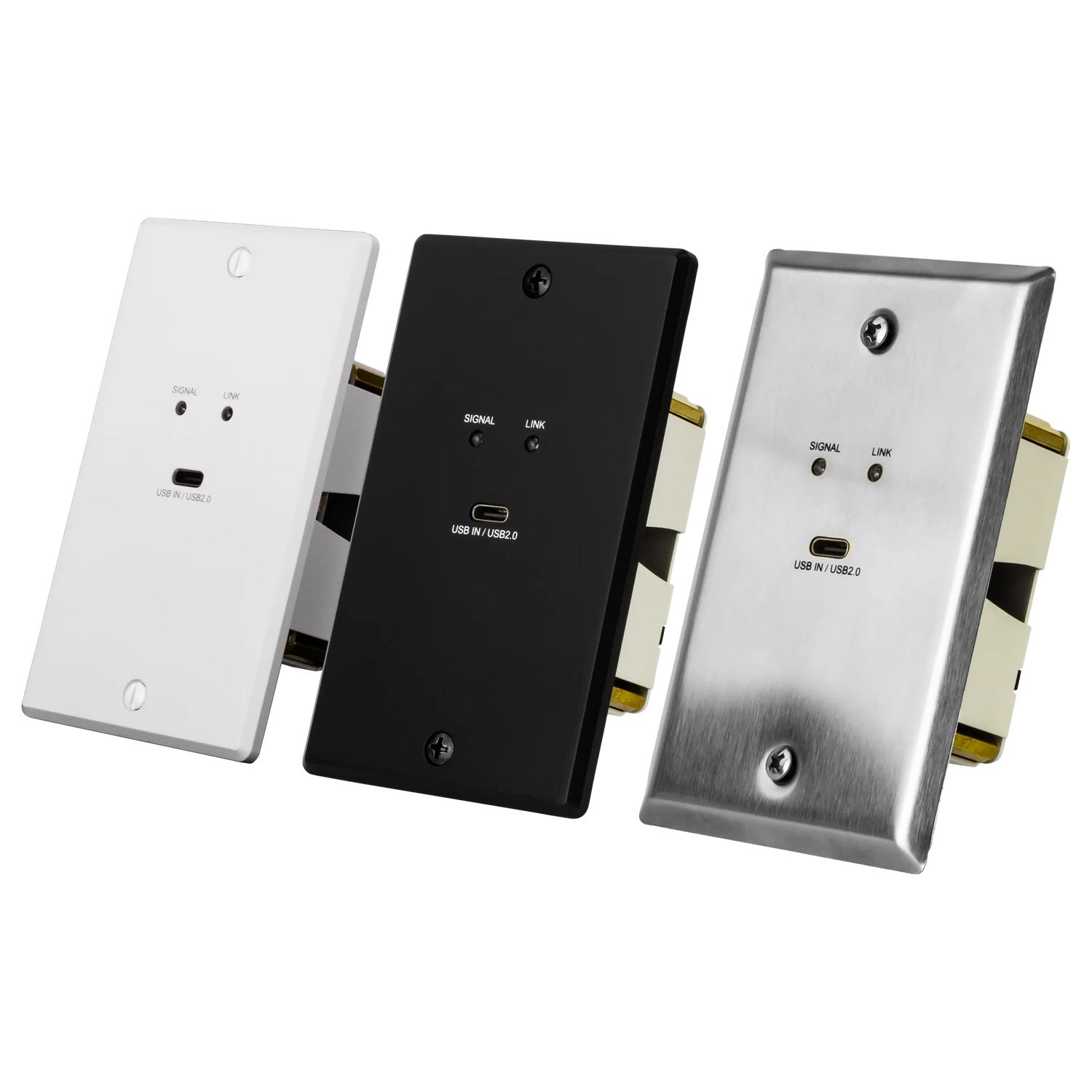

• Interchangeable Faceplates — Ships with a white faceplate; black and stainless steel covers are available separately.
• 10-Year AVPro Edge Warranty — Every ConferX wall plate kit is backed by AVPro Edge's no-hassle 10-year warranty.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Commercial meeting space
• Training room

Technical Specifications

Frequently Asked Questions

• Does the AC-CXWP-LPU-KIT include both transmitter and receiver? Yes. The kit includes the low-profile USB-C wall plate transmitter, a matching receiver, a 48 VDC/0.5 A power supply, white faceplate, and mounting hardware.
• What cable is needed for the 100-meter run? Properly terminated Category 6A UTP cable is required to reach the rated 1080p and 4K distances.
• Can I connect USB peripherals at the display end? Yes. The receiver includes two USB Type-A device ports for cameras, speakerphones, or similar peripherals.
• How do I resolve an EDID handshake issue? Use the 16-position EDID dial to select a compatible profile or copy the EDID directly from the connected display.
• Does the wall plate need local power? No. The transmitter is powered over the HDBaseT link from the receiver.
• Are black or stainless steel faceplates available? Yes, both are sold separately from the standard white faceplate.
• What warranty applies to this kit? AVPro Edge's 10-year, no-hassle warranty.
• Can the receiver integrate with an AV control system? Yes, via the RS-232 terminal block on the receiver.
