AVPro Edge AC-CXWP-LPDHU-T – Low-Profile HDMI/USB-C Wall Plate TX

Product Overview

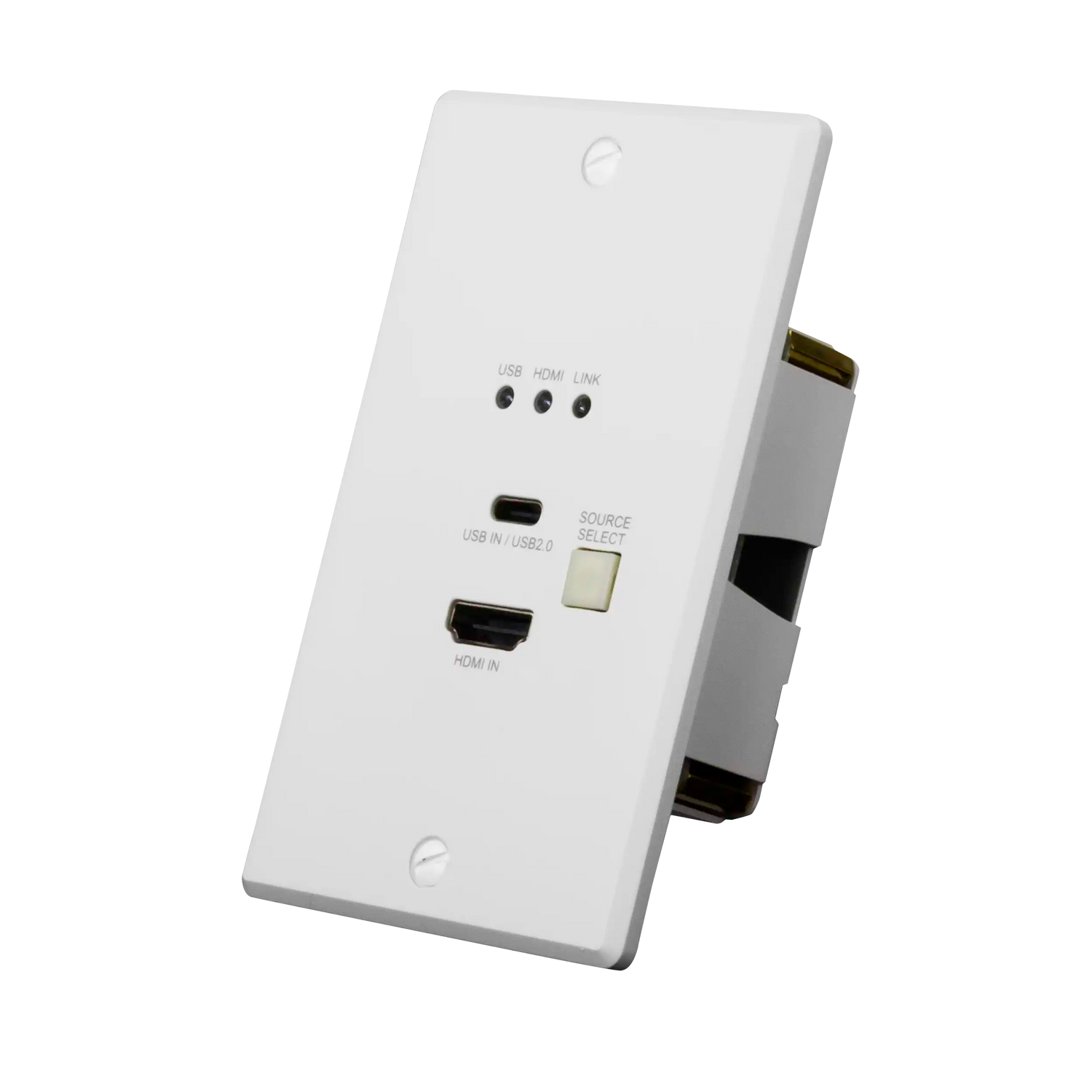

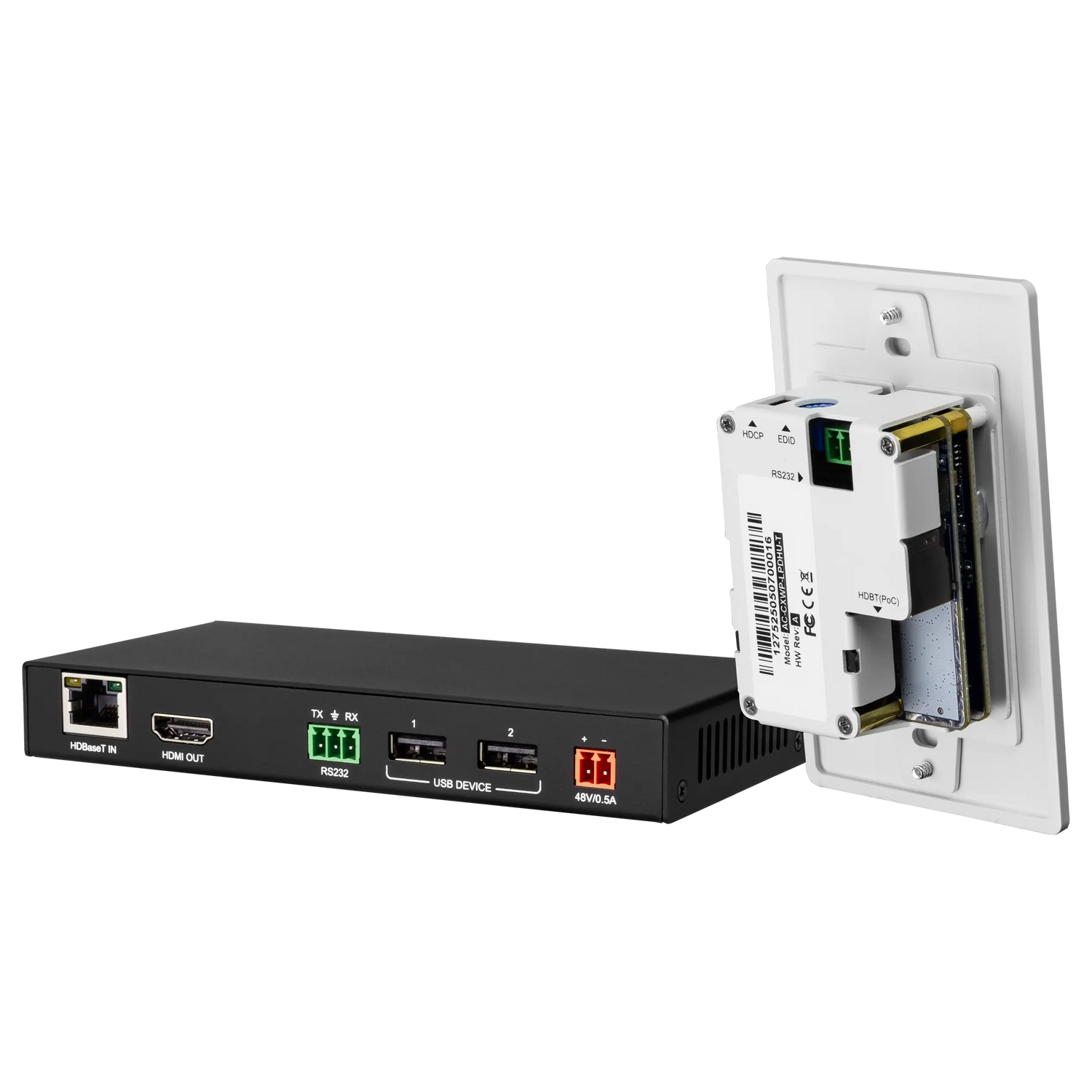

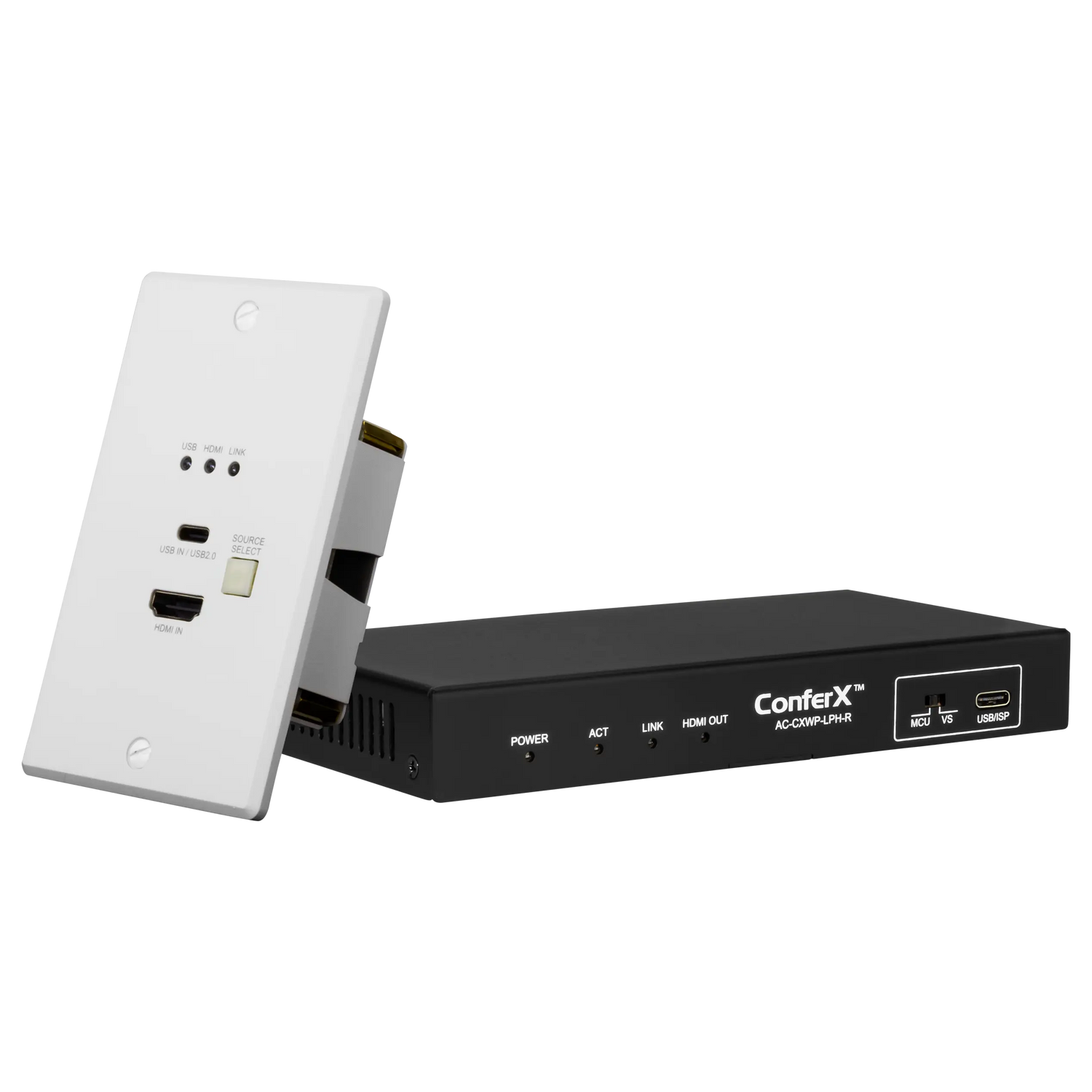

The AVPro Edge AC-CXWP-LPDHU-T is a low-profile HDMI and USB Type-C wall plate transmitter designed for HDBaseT signal transport in commercial AV environments that already have a matching receiver installed. This low-profile HDMI/USB-C wall plate transmitter gives presenters an auto-sensing choice between an HDMI source and a USB-C laptop connection at a single wall location, with a sleek 5mm wall excursion for a modern BYOD conference room installation. It pairs with an AVPro Edge HDBaseT receiver to extend signals up to 100 meters over Cat6a, and is sold separately for integrators expanding an existing ConferX Low-Profile HDMI/USB-C system or replacing a transmitter unit.

Product Description

The AC-CXWP-LPDHU-T accepts an HDMI input at up to 4K/60Hz 4:4:4 and a USB Type-C input at up to 4K/60Hz 4:2:0 via DisplayPort Alt Mode, transporting either signal over HDBaseT using AVPro Edge's Invisible Compression Technology (ICT) for up to 18 Gbps of bandwidth. Distance over Cat6a reaches 100 meters for both 1080p and 4K/60Hz signals, suitable for wall plate extension in most conference room and huddle room cable runs. The USB-C input also carries USB 2.0 host data at up to 290 Mbps, letting a single cable handle both video and peripheral connectivity for BYOD presentation setups; note that this device adds one tier to the USB chain due to its embedded USB hub. Auto-sensing input detection activates transmission automatically when a source is connected, and a front-panel push button lets presenters manually switch between the two inputs. An HDCP input request dip switch and 16-position rotary EDID dial with copy-from-output capability give AV integrators granular control over source handshaking during commercial AV system integration. Power is supplied entirely by the paired HDBaseT receiver, so no local power supply is required at the wall plate. This transmitter-only unit is intended for integrators who already have a matching AVPro Edge Low-Profile HDMI/USB-C receiver in place, or who prefer to purchase the transmitter and receiver separately. It installs into a standard single-gang workbox and is available in white, black, and stainless steel finishes.

Key Features

• HDMI and USB-C Inputs — Supports both an HDMI source and a USB Type-C (DisplayPort Alt Mode) laptop connection.
• Low-Profile Design — A 5mm wall excursion and compact 2.75 x 4.5 inch footprint fit a modern commercial AV aesthetic.
• 100-Meter HDBaseT Distance — Extends 1080p and 4K/60Hz signals up to 100 meters over Cat6a.
• 18 Gbps Bandwidth with ICT — AVPro Edge's Invisible Compression Technology supports full 4K/60Hz 4:4:4 HDMI sources with HDR.
• USB 2.0 Host Pass-Through — The USB-C input carries USB 2.0 data at up to 290 Mbps for peripheral connectivity.
• HDCP Input Request Switch — A dip switch lets integrators toggle HDCP request behavior for failure-free source connections.
• EDID Management — A 16-position rotary dial with copy-from-output capability simplifies source compatibility.
• No Local Power Required — Power is supplied via the paired HDBaseT receiver.

Typical Applications

• Conference room
• Huddle room
• Training room
• Boardroom
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

• Does this transmitter include a receiver? No. This is a transmitter-only unit intended to pair with an AVPro Edge Low-Profile HDMI/USB-C receiver; a complete kit is available as the AC-CXWP-LPDHU-KIT.
• Can I use both HDMI and USB-C at the same time? No, the transmitter auto-senses and passes one active source at a time, with a front-panel button to switch manually.
• What resolution does the USB-C input support? Up to 4K/60Hz 4:2:0 via USB-C DisplayPort Alt Mode.
• What is the maximum transmission distance? Up to 100 meters (328 feet) over Cat6a for both 1080p and 4K/60Hz signals.
• Does the transmitter need local power? No. Power is supplied entirely through the HDBaseT connection from the paired receiver.
• What control integration does it support? RS-232 via a 3-pin terminal block for room control system integration.

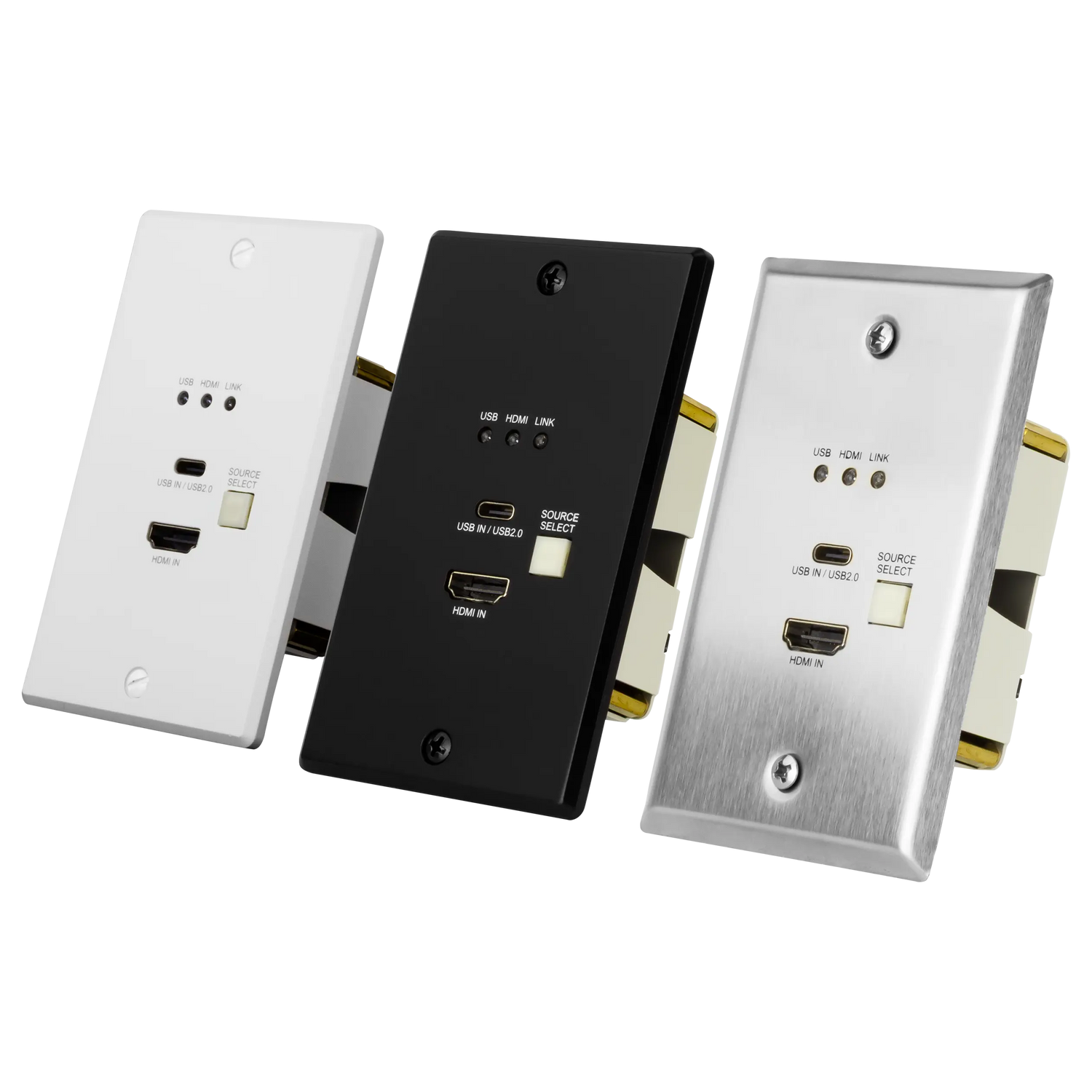

• What finishes are available? White, black, and stainless steel decora-style wall plate covers.
