AVPro Edge AC-CXWP-LPDHU-KIT – Low-Profile HDMI/USB-C Wall Plate Kit

Product Overview

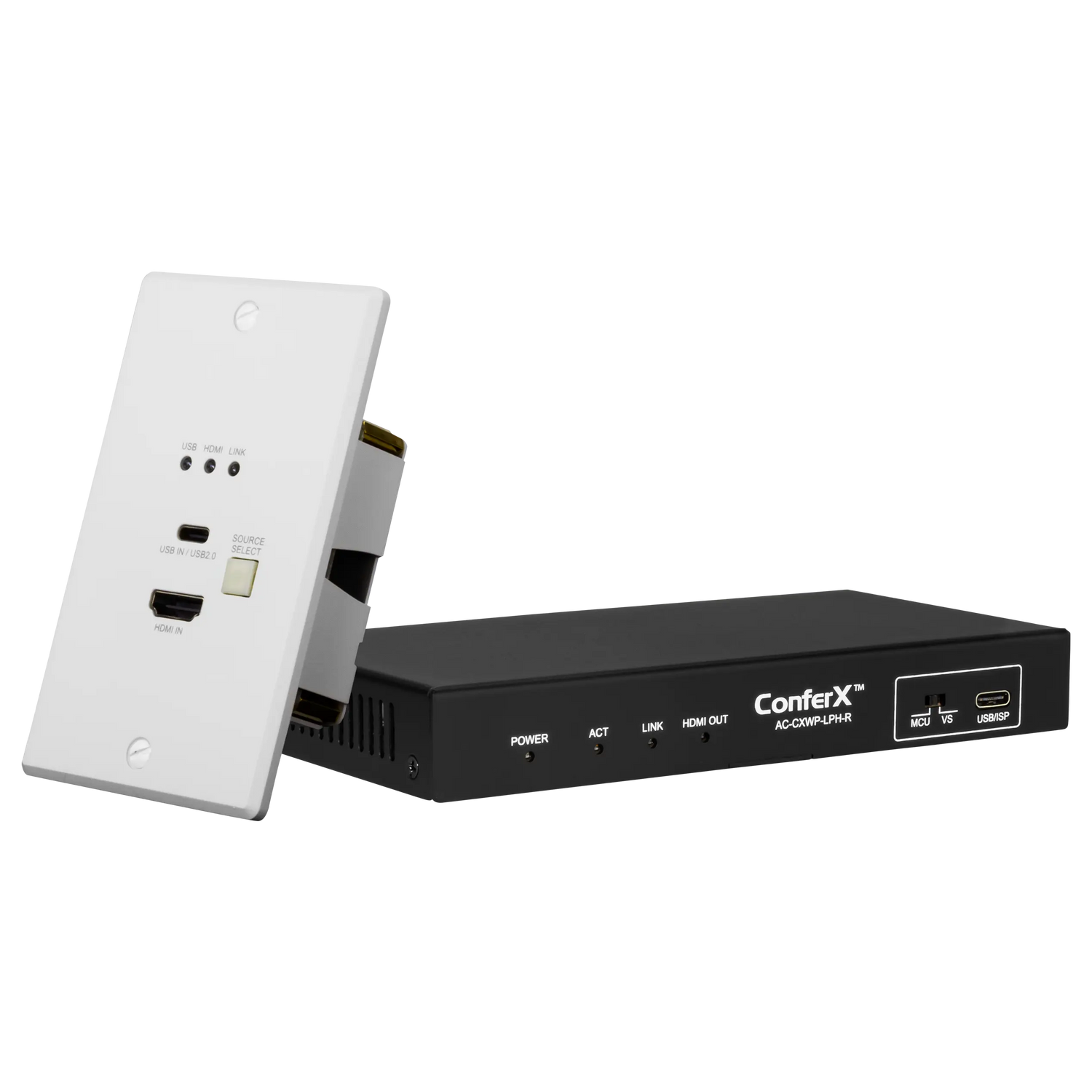

The AVPro Edge AC-CXWP-LPDHU-KIT is a low-profile HDMI and USB Type-C wall plate transmitter and receiver kit built for HDBaseT signal transport in modern BYOD conference rooms. This low-profile wall plate extender kit gives presenters a choice between an HDMI source and a USB-C laptop connection at a single wall location, with auto-sensing input switching for either input type. Its slim 5mm wall plate excursion suits commercial AV installations that want a nearly flush, modern wall plate rather than a bulky legacy extender. The kit ships as a complete transmitter and receiver pair for HDBaseT wall plate installation in a standard single-gang workbox.

Product Description

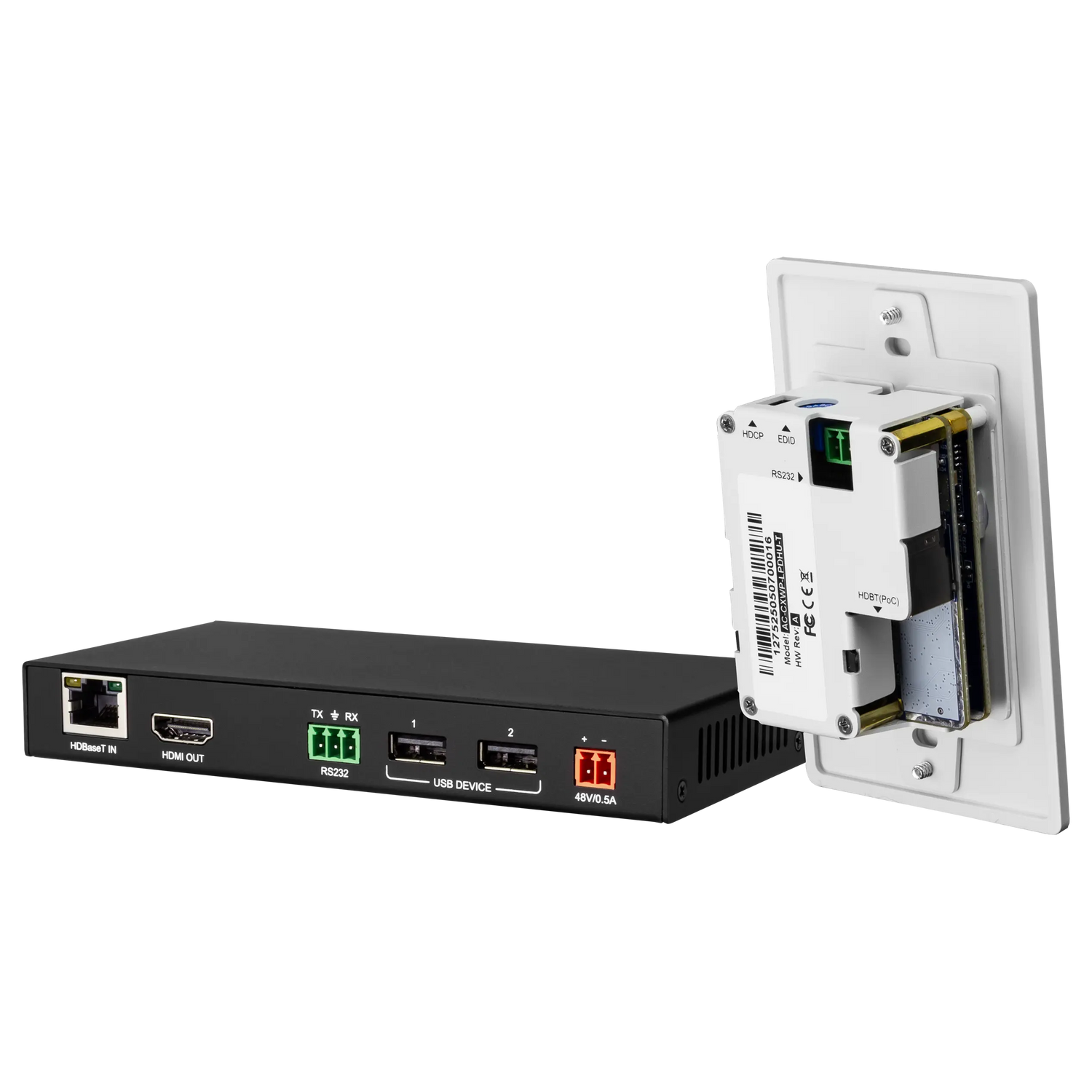

The AC-CXWP-LPDHU-KIT extends HDMI up to 4K/60Hz 4:4:4 or USB Type-C DisplayPort Alt Mode up to 4K/60Hz 4:2:0 over a single Cat6a cable using AVPro Edge's Invisible Compression Technology (ICT) for up to 18 Gbps of bandwidth, with Dolby Vision, HDR10, HDR10+, and HLG support on the HDMI input. Transmission distance reaches 100 meters for both 1080p and 4K/60Hz signals over Cat6a, which covers the vast majority of commercial conference room and training room cable runs. The USB-C input carries USB 2.0 host data at up to 290 Mbps, letting a single laptop connection handle both video and USB peripheral pass-through for BYOD presentation setups. The low-profile design measures only 2.75 x 4.5 inches with a 5mm wall excursion and is available in white, black, and stainless steel finishes. A front-panel push button lets presenters manually switch between the HDMI and USB-C inputs, while a 16-position rotary EDID dial with copy-from-output capability simplifies source handshaking during commercial AV system integration. The receiver outputs HDMI along with two USB Type-A ports for peripheral pass-through, and both transmitter and receiver include RS-232 for room control integration. Power is supplied entirely via the HDBaseT receiver, so no local power is needed at the wall plate. This kit is intended for huddle rooms and conference rooms adopting BYOD workflows where both HDMI and USB-C laptops need to connect at a single wall location.

Key Features

• HDMI and USB-C Inputs — Supports both HDMI and USB Type-C (DisplayPort Alt Mode) sources at a single wall location.
• Low-Profile Wall Plate — A 5mm wall excursion and 2.75 x 4.5 inch footprint deliver a nearly flush, modern appearance.
• 100-Meter HDBaseT Distance — Extends 1080p and 4K/60Hz signals up to 100 meters over Cat6a.
• 18 Gbps Bandwidth with ICT — AVPro Edge's Invisible Compression Technology supports full 4K/60Hz 4:4:4 HDMI sources with HDR.
• USB 2.0 Host Pass-Through — The USB-C input carries USB 2.0 data at up to 290 Mbps for peripheral connectivity from a single cable.
• Auto-Sensing Inputs — Automatically detects and activates transmission when either an HDMI or USB-C cable is connected.
• EDID Management — A 16-position rotary dial with copy-from-output capability simplifies source compatibility.
• No Local Power Required — Power is supplied via the HDBaseT receiver, eliminating a separate power supply at the wall plate.

Typical Applications

• Conference room
• Huddle room
• Training room
• Boardroom
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

• Can I connect both HDMI and USB-C sources? Yes, the transmitter auto-senses either input and a front-panel push button lets you switch manually between them.
• What resolution does the USB-C input support? Up to 4K/60Hz 4:2:0 via USB-C DisplayPort Alt Mode.
• Does the USB-C connection carry data as well as video? Yes, it carries USB 2.0 host data at up to 290 Mbps in addition to video.
• What is the maximum distance for 4K video? Up to 100 meters (328 feet) over Cat6a cabling.
• Does this kit require local power at the wall plate? No. Power is supplied entirely through the HDBaseT connection from the receiver.
• Is a stand-alone transmitter version available? Yes, the transmitter-only unit is sold separately as the AC-CXWP-LPDHU-T.

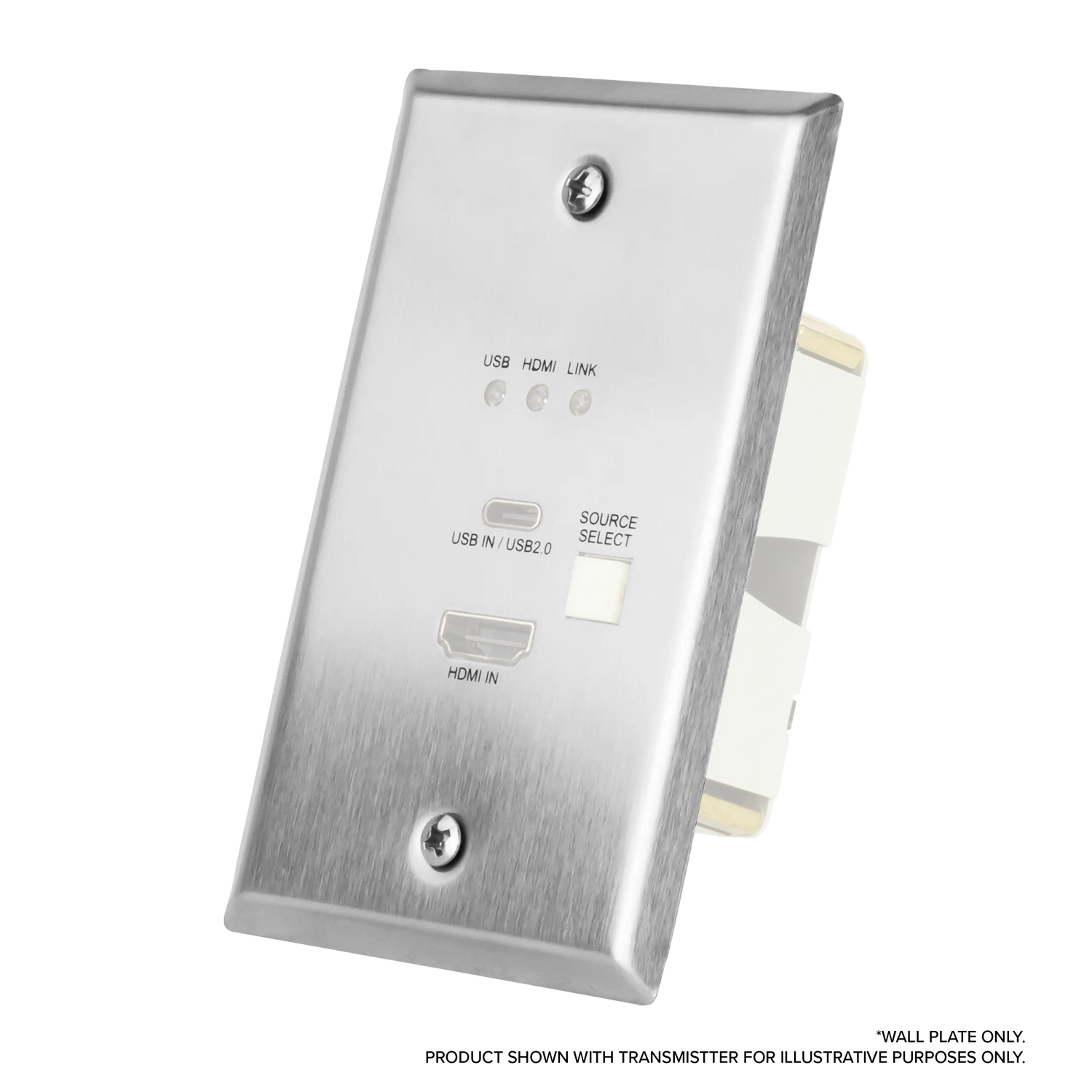

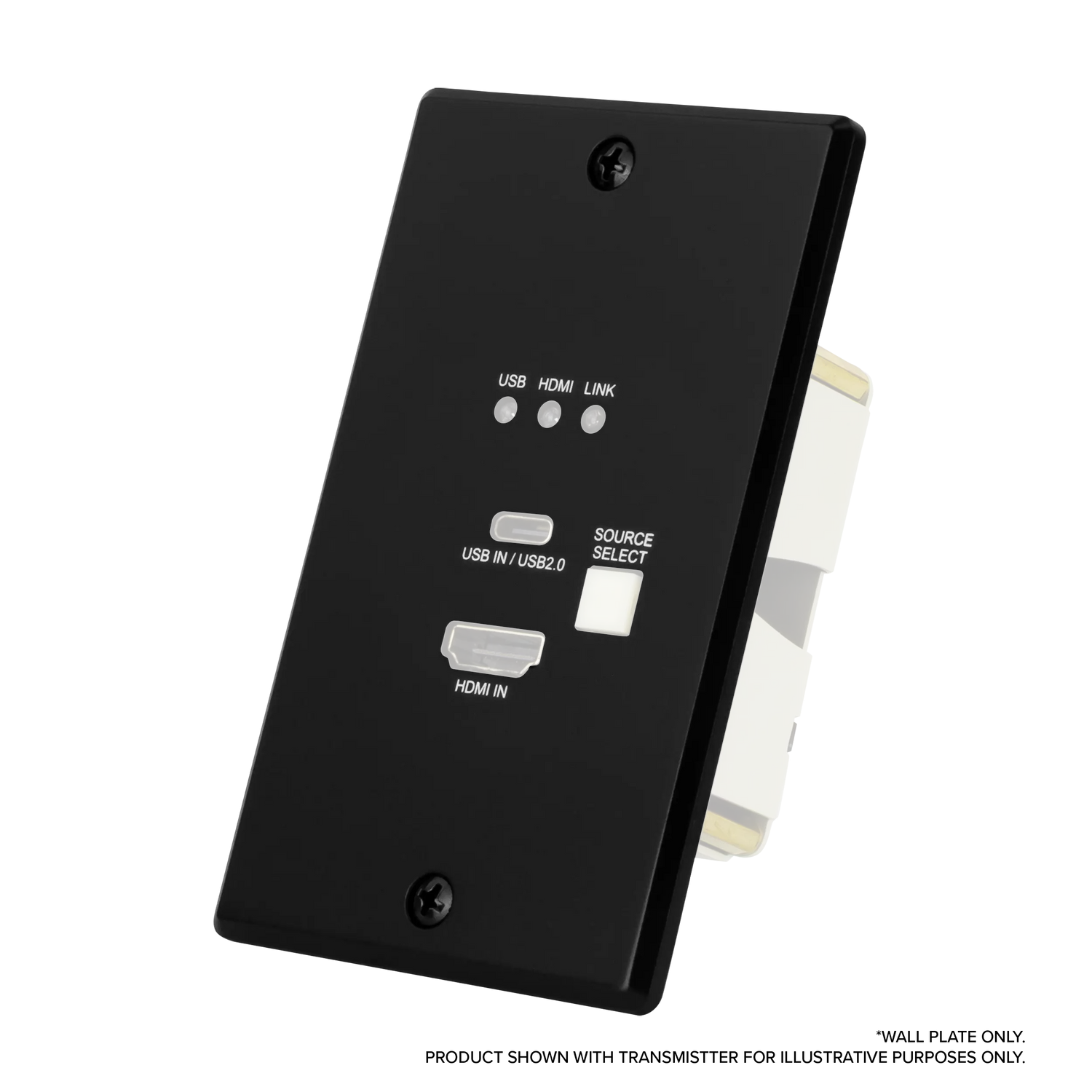

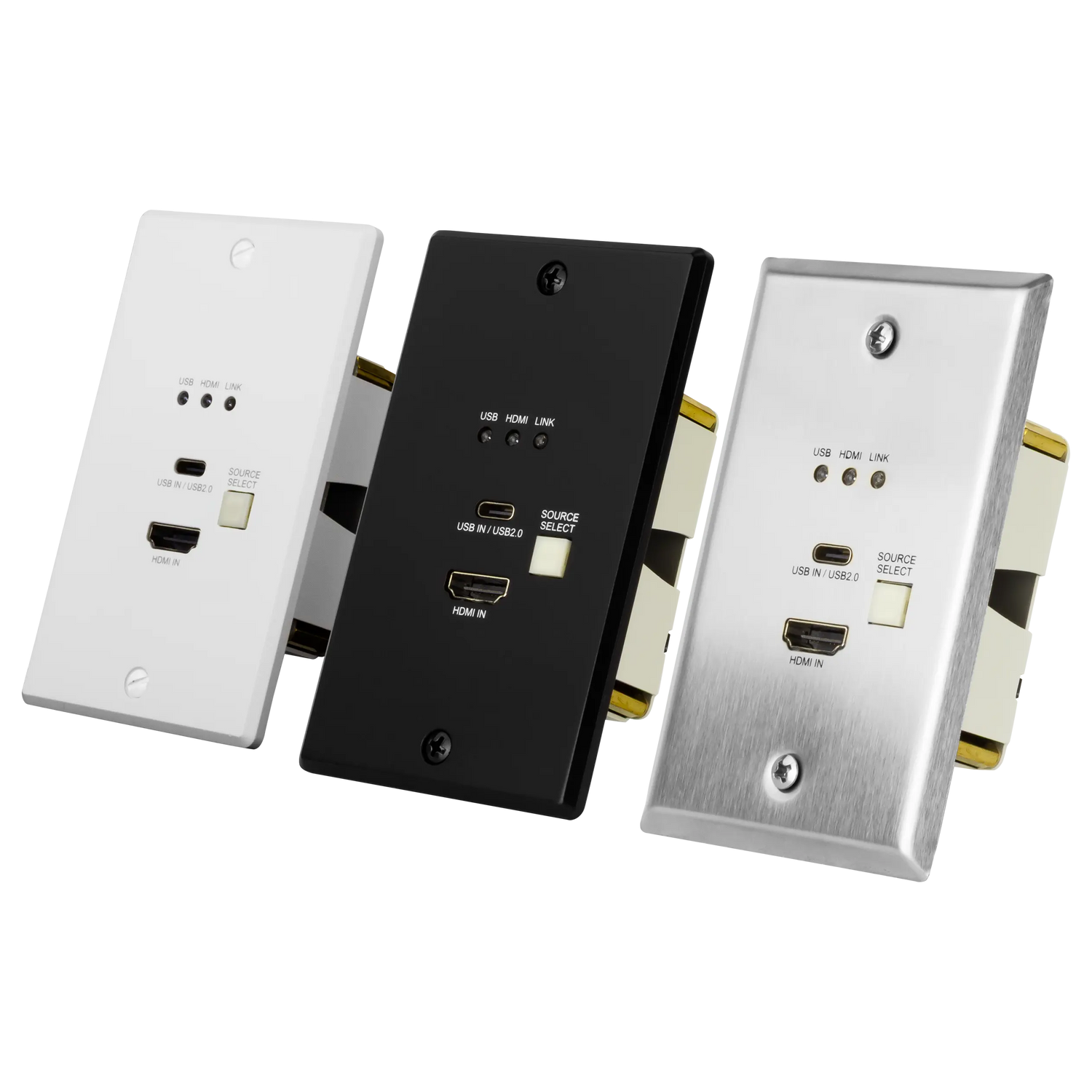

• What finishes are available for the wall plate? White, black, and stainless steel decora-style covers.
