AVPro Edge AC-CXWP-LPDH-T – Low-Profile Dual HDMI Wall Plate TX

Product Overview

The AVPro Edge AC-CXWP-LPDH-T is a low-profile dual HDMI wall plate transmitter designed for HDBaseT signal transport in commercial AV environments that already have a matching receiver installed. This low-profile HDMI wall plate transmitter gives presenters two auto-sensing HDMI inputs at a single wall location, with a sleek 5mm wall excursion for a modern conference room or huddle room installation. It pairs with an AVPro Edge HDBaseT receiver to extend signals up to 100 meters over Cat6a, and is sold separately for integrators expanding an existing ConferX Low-Profile Dual HDMI system or replacing a transmitter unit.

Product Description

The AC-CXWP-LPDH-T accepts two HDMI Type A inputs and transports 4K/60Hz 4:4:4 video with Dolby Vision, HDR10, HDR10+, and HLG support over HDBaseT using AVPro Edge's Invisible Compression Technology (ICT) for up to 18 Gbps of bandwidth. Distance over Cat6a reaches 100 meters for both 1080p and 4K/60Hz 4:2:2 8-bit signals, suitable for wall plate HDMI extension in most conference room and training room cable runs. Auto-sensing input detection activates transmission automatically when a source is connected, and a front-panel push button lets presenters manually switch between the two inputs. An HDCP input request dip switch and 16-position rotary EDID dial with copy-from-output capability give AV integrators granular control over source handshaking during commercial AV system integration. Power is supplied entirely by the paired HDBaseT receiver, so no local power supply is required at the wall plate. This transmitter-only unit is intended for integrators who already have a matching AVPro Edge Low-Profile Dual HDMI receiver in place, or who prefer to purchase the transmitter and receiver separately rather than as a bundled kit. It installs into a standard single-gang workbox and is available in white, black, and stainless steel finishes.

Key Features

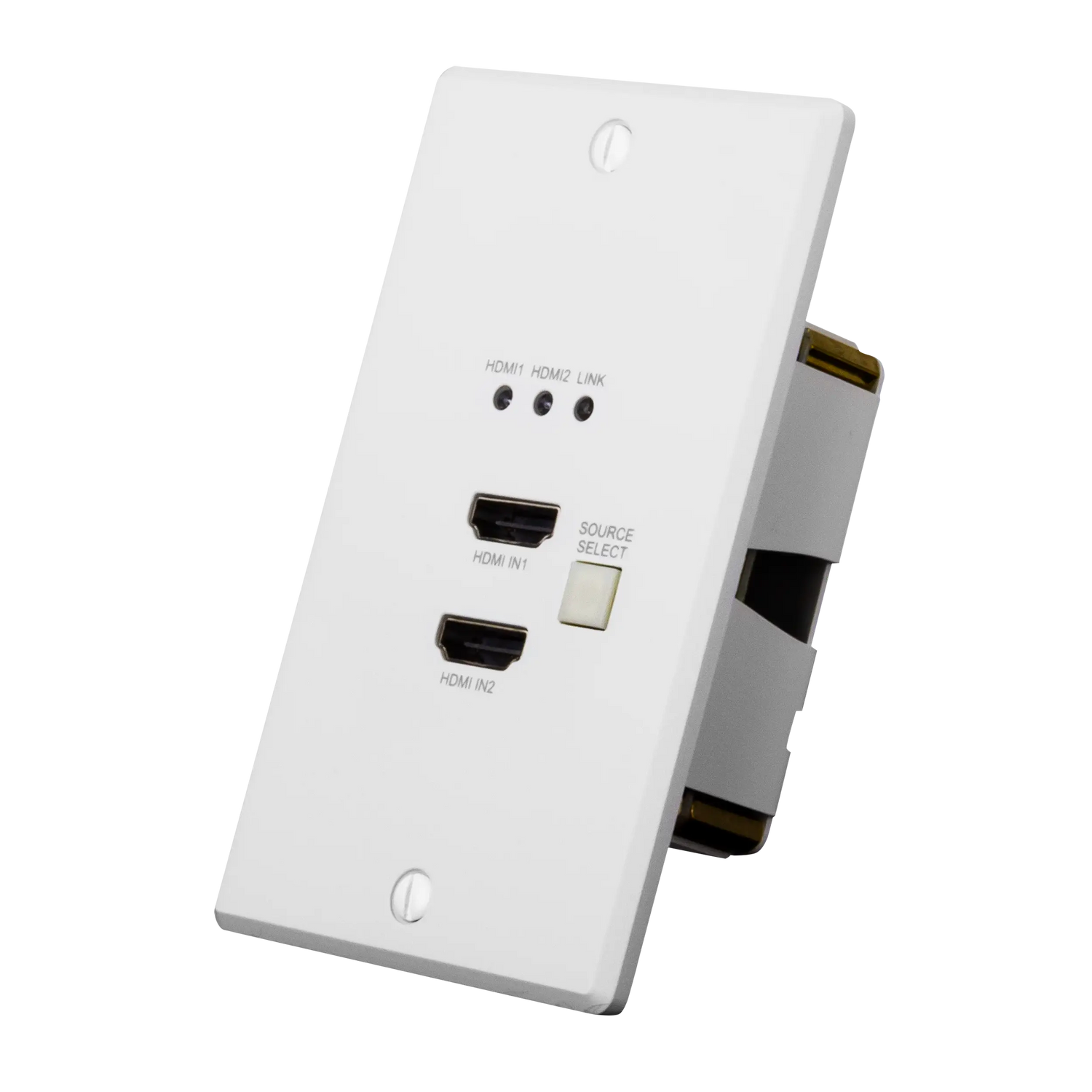

• Dual HDMI Inputs — Two HDMI Type A inputs allow presenters to connect multiple sources at one wall location.
• Low-Profile Design — A 5mm wall excursion and compact 2.75 x 4.5 inch footprint fit a modern commercial AV aesthetic.
• 100-Meter HDBaseT Distance — Extends 1080p and 4K/60Hz 4:2:2 8-bit signals up to 100 meters over Cat6a.
• 18 Gbps Bandwidth with ICT — AVPro Edge's Invisible Compression Technology supports full 4K/60Hz 4:4:4 sources with HDR.
• Auto-Sensing Inputs — LED status indicators confirm signal presence and automatically activate transmission.
• HDCP Input Request Switch — A dip switch lets integrators toggle HDCP request behavior for failure-free source connections.
• EDID Management — A 16-position rotary dial with copy-from-output capability simplifies source compatibility.
• No Local Power Required — Power is supplied via the paired HDBaseT receiver.

Typical Applications

• Conference room
• Huddle room
• Training room
• Boardroom
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

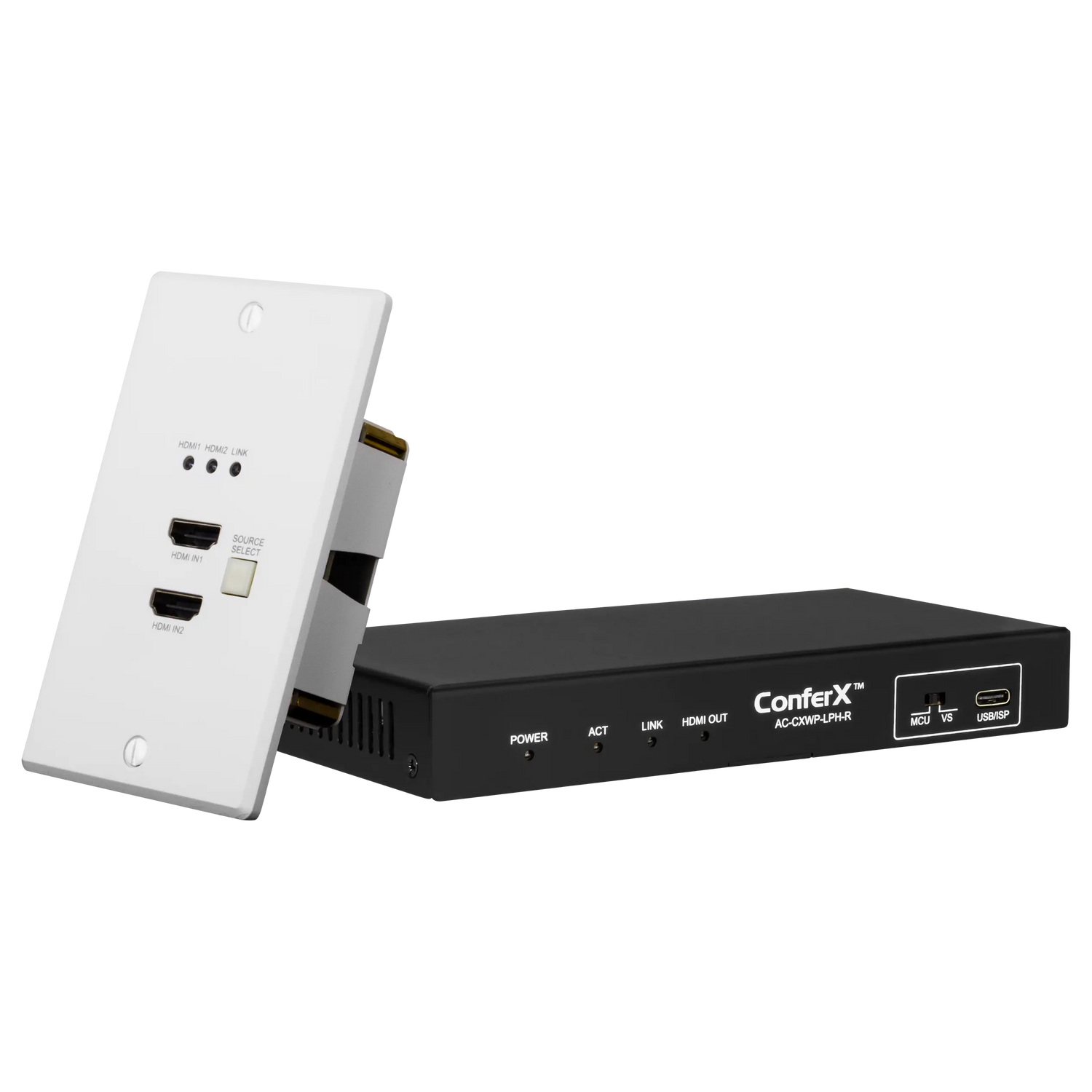

• Does this transmitter include a receiver? No. This is a transmitter-only unit intended to pair with an AVPro Edge Low-Profile Dual HDMI receiver; a complete kit is available as the AC-CXWP-LPDH-KIT.
• How many HDMI sources can I connect? Two, with a front-panel push button to switch between them.
• What is the maximum transmission distance? Up to 100 meters (328 feet) over Cat6a for both 1080p and 4K/60Hz 4:2:2 signals.
• Does the transmitter need local power? No. Power is supplied entirely through the HDBaseT connection from the paired receiver.
• What is the HDCP dip switch for? It lets integrators toggle whether the transmitter requests HDCP 2.x from the source, ensuring compatibility with copy-protection requirements.

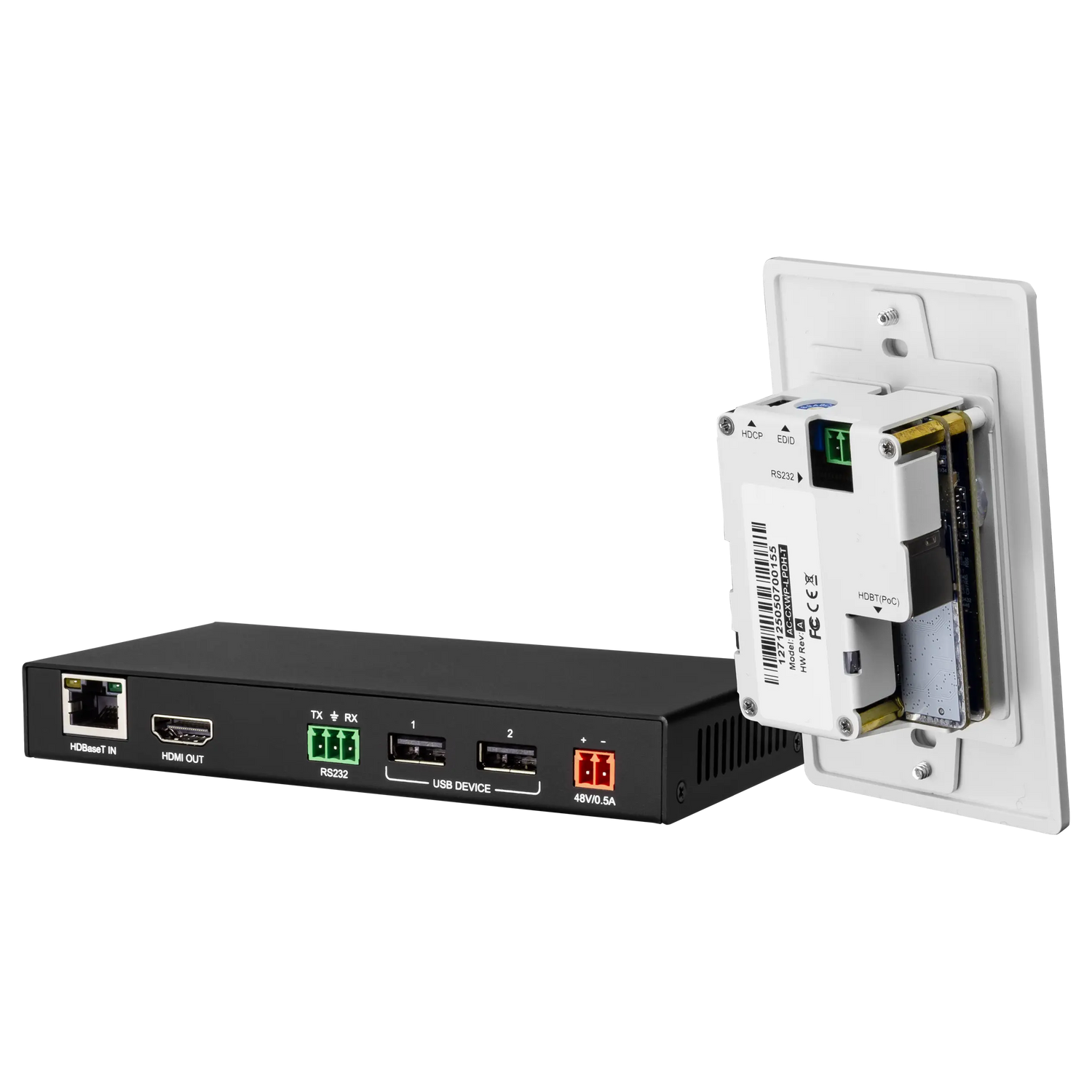

• What control integration does it support? RS-232 via a 3-pin terminal block for room control system integration.

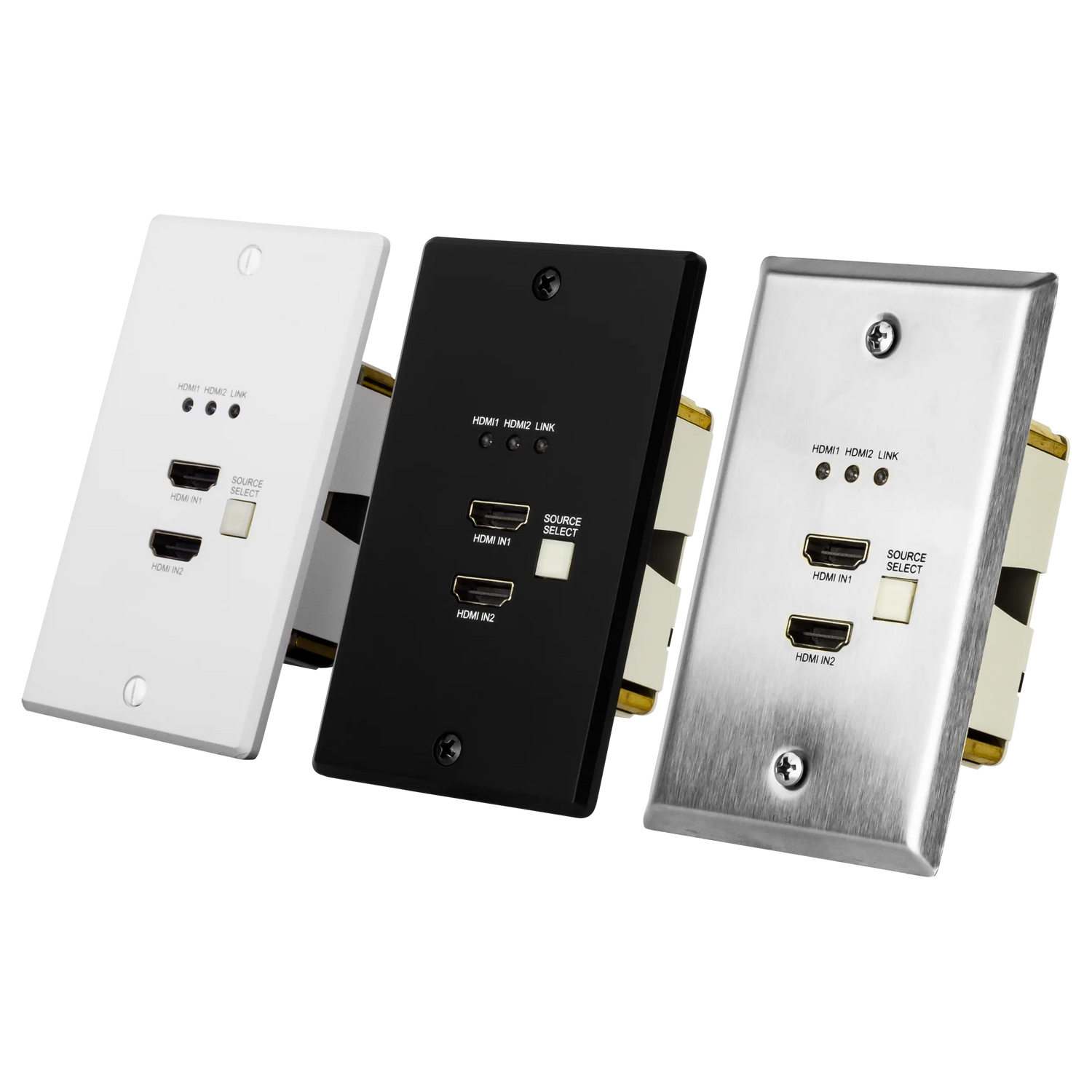

• What finishes are available? White, black, and stainless steel decora-style wall plate covers.
