AVPro Edge AC-CXWP-LPDH-KIT – Low-Profile Dual HDMI Wall Plate Kit

Product Overview

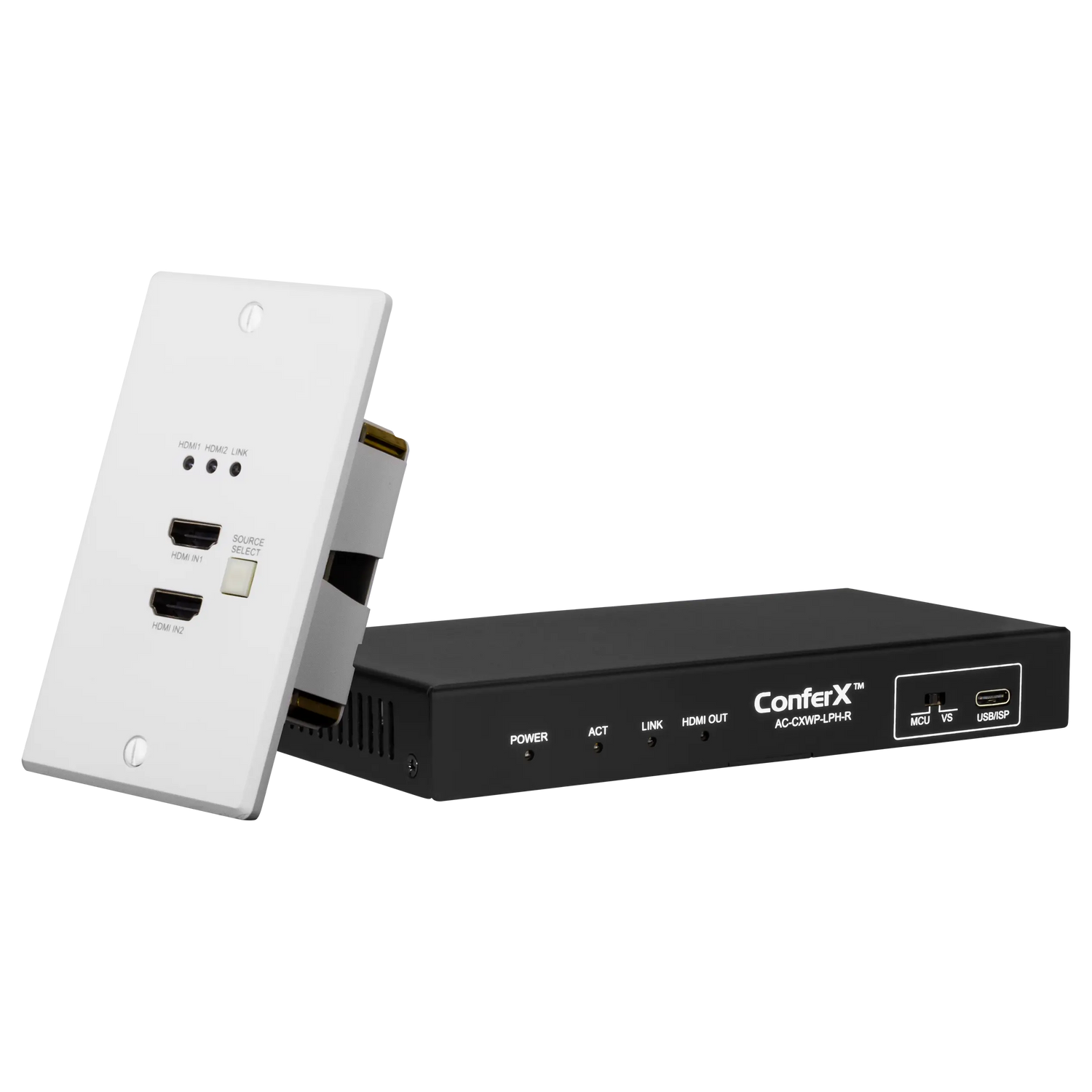

The AVPro Edge AC-CXWP-LPDH-KIT is a low-profile dual HDMI wall plate transmitter and receiver kit built for HDBaseT signal transport in conference rooms and other commercial meeting spaces. This low-profile HDMI wall plate extender kit gives presenters two HDMI inputs at a single wall location, with auto-sensing input switching that activates transmission the moment a source is connected. Its slim 5mm wall plate excursion makes it well suited for commercial AV installations that prioritize a clean, modern appearance over a bulky legacy wall plate. The kit ships as a complete transmitter and receiver pair, ready for HDBaseT wall plate installation in a standard single-gang workbox.

Product Description

The AC-CXWP-LPDH-KIT extends dual HDMI inputs over a single Cat6a cable using AVPro Edge's Invisible Compression Technology (ICT), delivering up to 18 Gbps of bandwidth for 4K/60Hz 4:4:4 sources with Dolby Vision, HDR10, HDR10+, and HLG support. Transmission distance reaches 100 meters for both 1080p and 4K/60Hz 4:2:0 8-bit signals over Cat6a, which covers the vast majority of commercial conference room and training room cable runs. The low-profile design measures only 2.75 x 4.5 inches with a wall excursion of 5mm, giving integrators a wall plate transmitter for HDBaseT distribution that sits nearly flush for a modern aesthetic, and it is available in white, black, and stainless steel finishes. A front-panel push button lets presenters manually switch between the two HDMI inputs, while a 16-position rotary EDID dial with copy-from-output capability simplifies source handshaking during commercial AV system integration. The receiver outputs HDMI along with two USB Type-A ports for peripheral pass-through, and both transmitter and receiver include RS-232 for room control integration. Power is supplied entirely via the HDBaseT receiver, so no local power is needed at the wall plate. This kit is intended for conference rooms, huddle rooms, and training rooms where a dual-input, low-profile wall plate solution is preferred over a bulkier standard extender.

Key Features

• Dual HDMI Inputs — Two HDMI Type A inputs let presenters connect multiple sources at a single wall location.
• Low-Profile Wall Plate — A 5mm wall excursion and 2.75 x 4.5 inch footprint deliver a nearly flush, modern appearance.
• 100-Meter HDBaseT Distance — Extends both 1080p and 4K/60Hz 4:2:0 signals up to 100 meters over Cat6a.
• 18 Gbps Bandwidth with ICT — AVPro Edge's Invisible Compression Technology supports full 4K/60Hz 4:4:4 sources with HDR.
• Auto-Sensing Inputs — Automatically detects and activates transmission when an HDMI cable is connected.

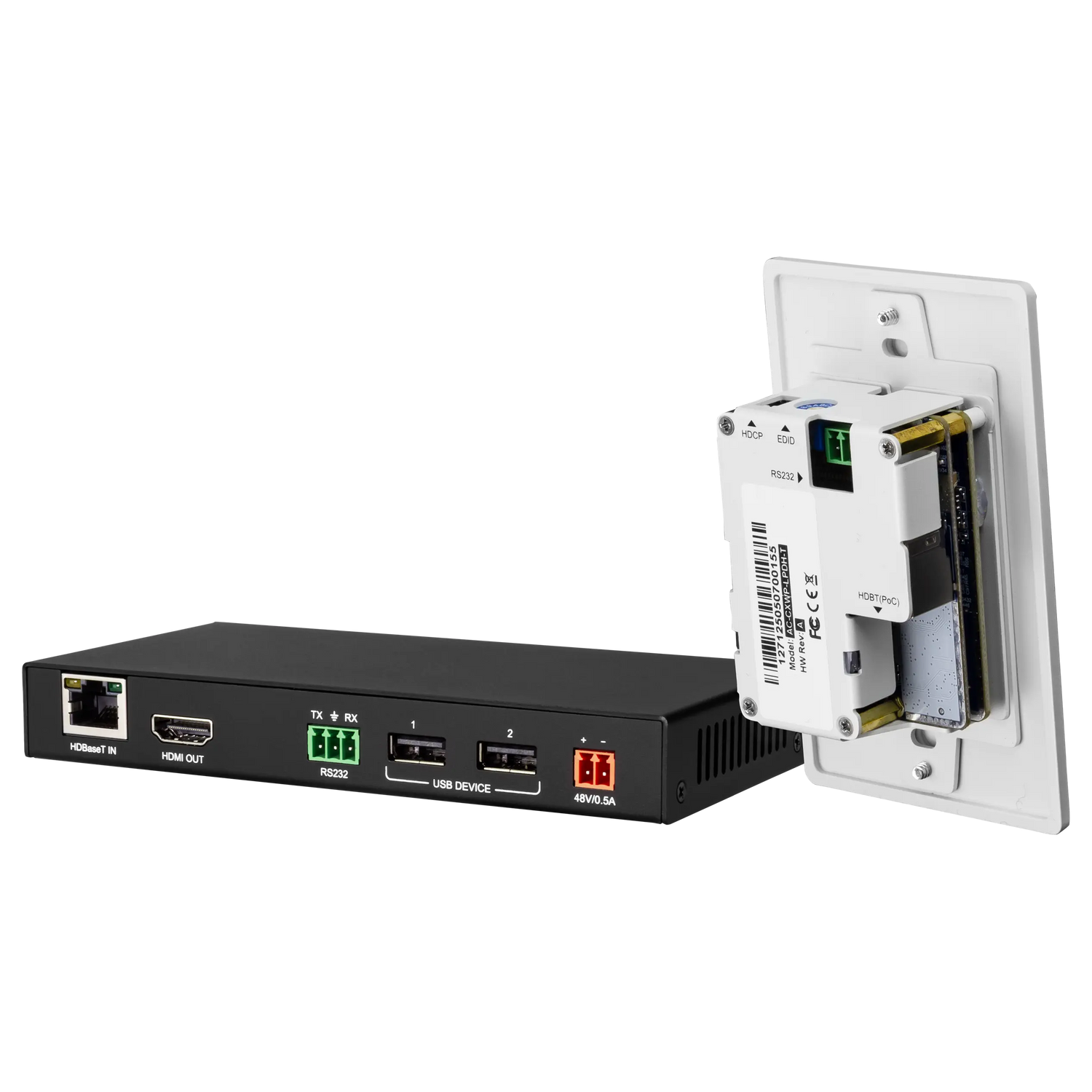

• USB Pass-Through at Receiver — Two USB Type-A ports at the receiver support peripheral connections at the display end.
• EDID Management — A 16-position rotary dial with copy-from-output capability simplifies source compatibility.
• No Local Power Required — Power is supplied via the HDBaseT receiver, eliminating a separate power supply at the wall plate.

Typical Applications

• Conference room
• Huddle room
• Training room
• Boardroom
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

• How many HDMI sources can I connect? Two. The transmitter has dual HDMI Type A inputs with a front-panel push button to switch between them.
• What is the maximum distance for 4K video? Up to 100 meters (328 feet) over Cat6a cabling for both 1080p and 4K/60Hz 4:2:0 signals.
• Does the receiver provide USB connectivity? Yes, two USB Type-A ports are available at the receiver for peripheral pass-through.
• Does this kit require local power at the wall plate? No. Power is supplied entirely through the HDBaseT connection from the receiver.
• What control options are supported? Both the transmitter and receiver include RS-232 via 3-pin terminal block for room control integration.
• Is a stand-alone transmitter version available if I already have a receiver? Yes, the transmitter-only unit is sold separately as the AC-CXWP-LPDH-T.

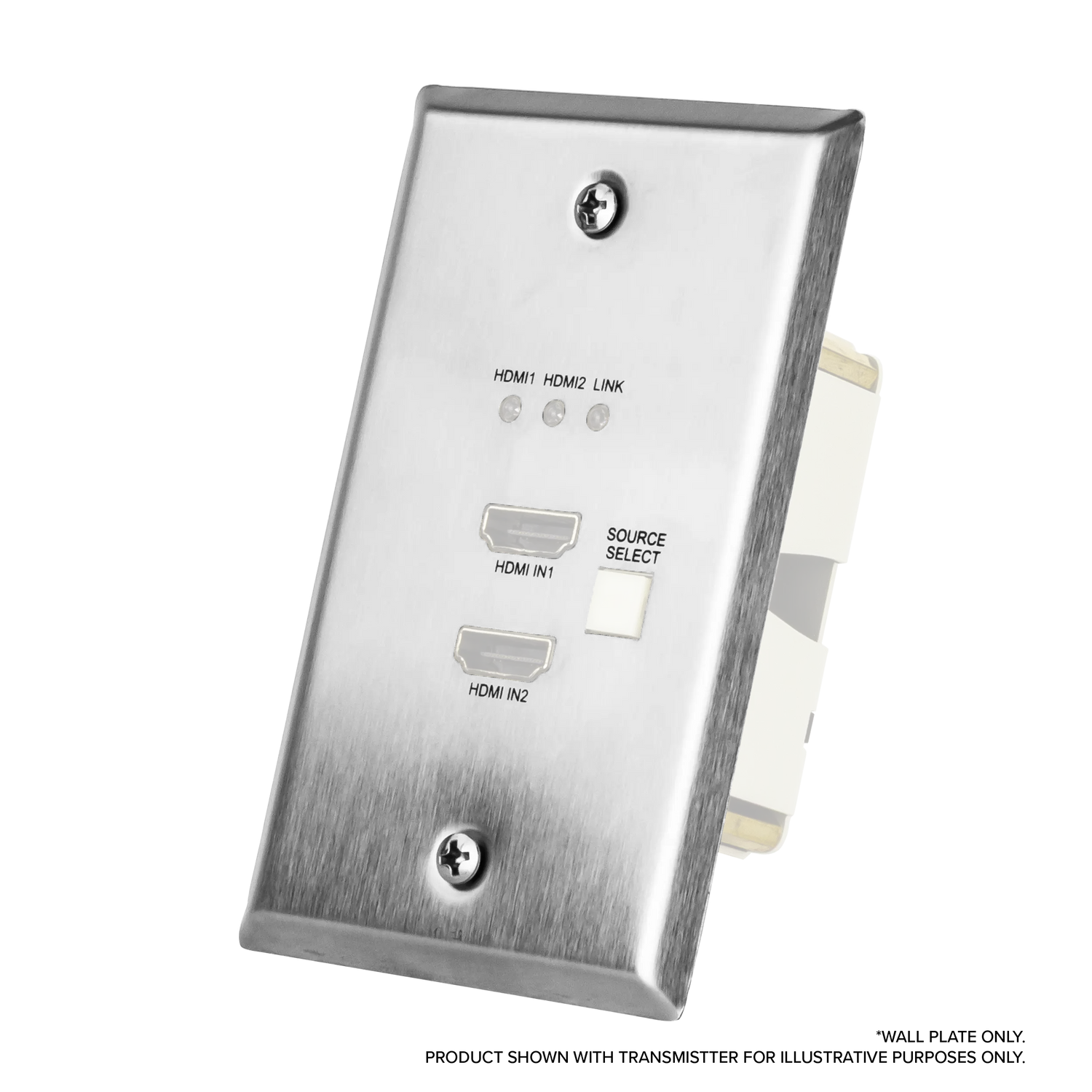

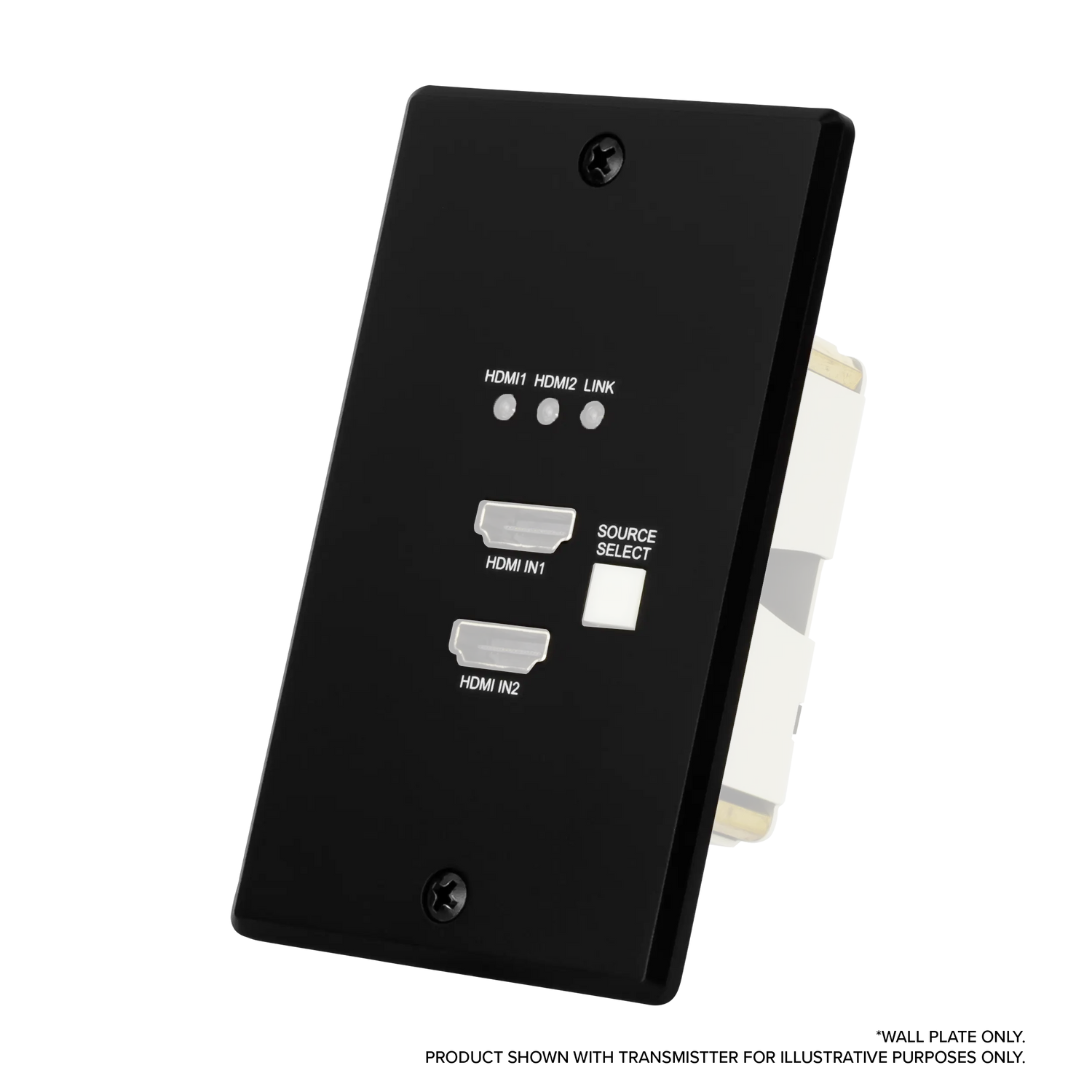

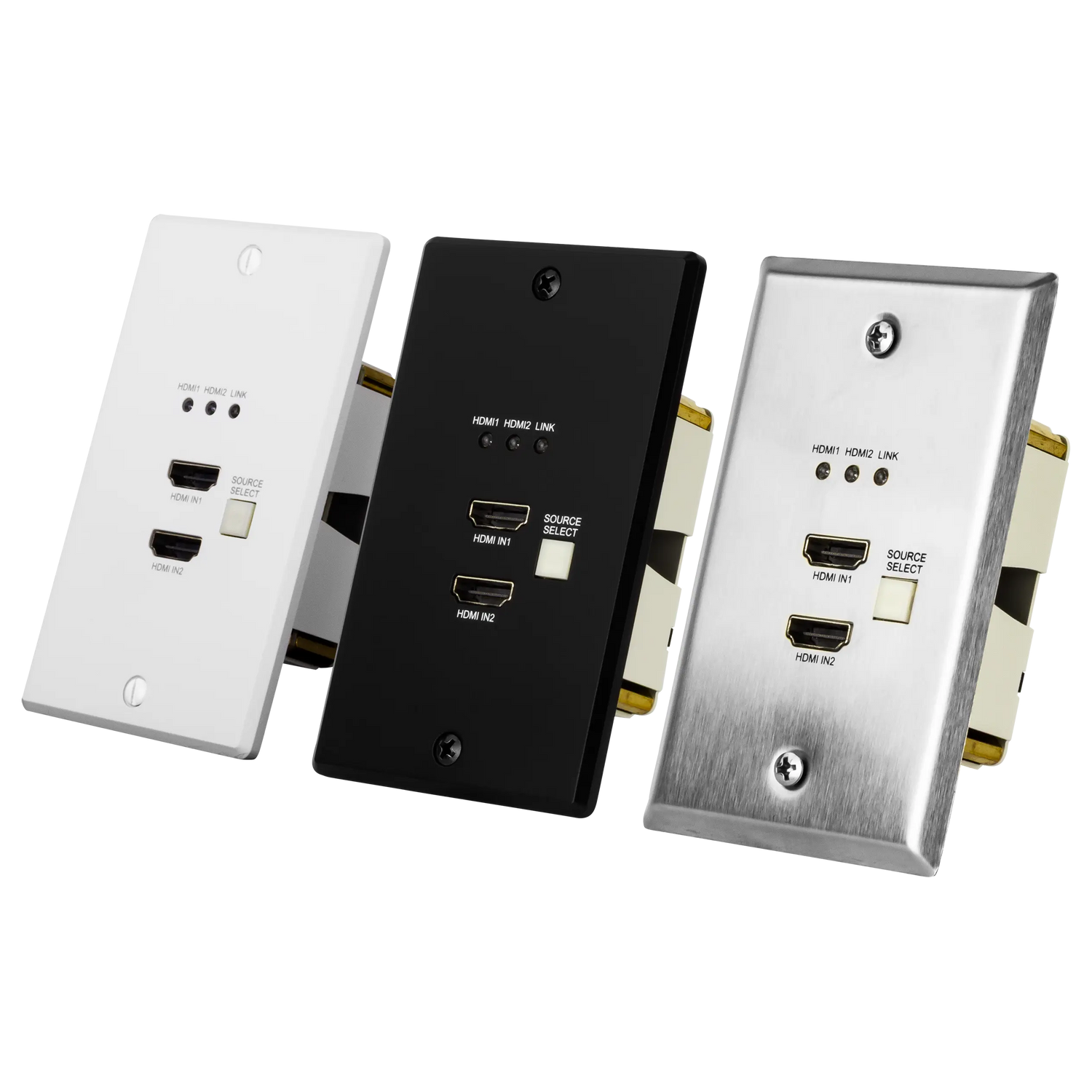

• What finishes are available for the wall plate? White, black, and stainless steel decora-style covers.
