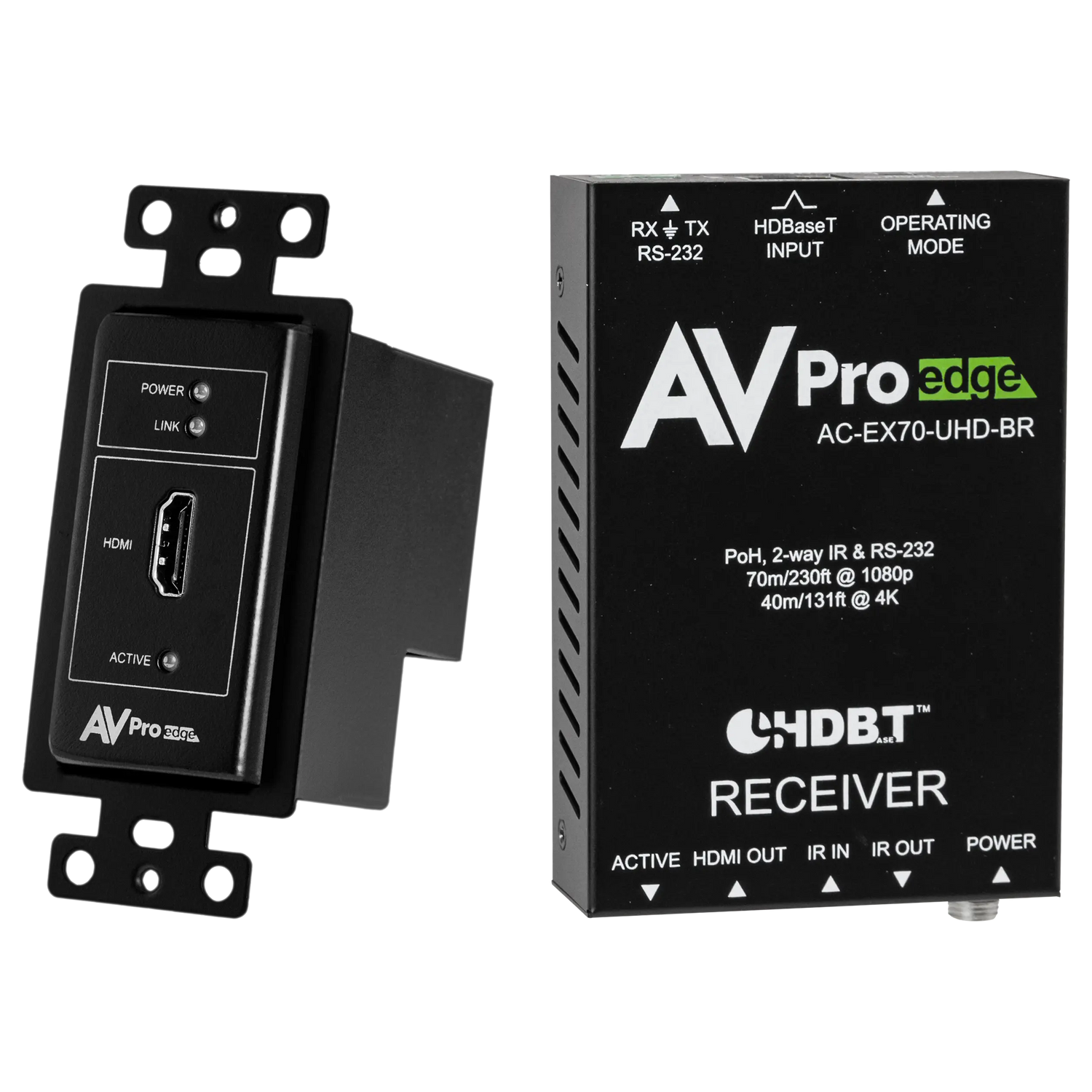

AVPro Edge AC-CXWP-HDMO-BKT-B – Basic HDMI Wall Plate Kit (Black)

Product Overview

The AVPro Edge AC-CXWP-HDMO-BKT-B is a basic HDBaseT wall plate transmitter and receiver kit designed for cost-effective HDMI extension in commercial AV installations. This entry-level HDMI wall plate extender kit sends a 1080p signal 70 meters and a 4K signal 40 meters over a single Cat6a cable, making it a practical choice for conference rooms and huddle rooms that need a straightforward wall plate HDMI extension without advanced features. The black single-gang decora wall plate fits standard mud rings for a clean commercial installation. As AVPro Edge's most affordable ConferX extender, it targets integrators who need reliable HDMI over HDBaseT wall plate transmission on a tighter budget.

Product Description

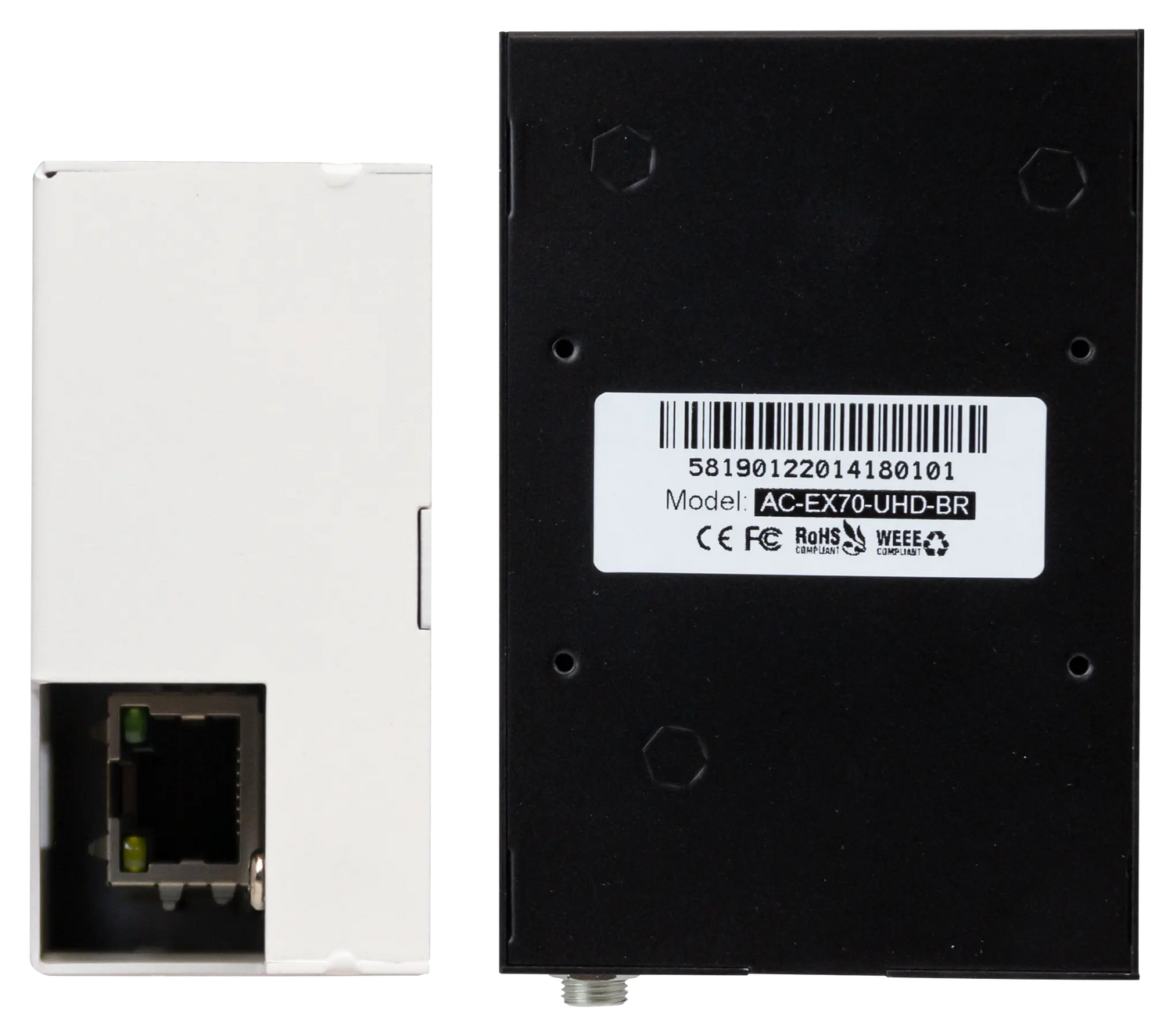

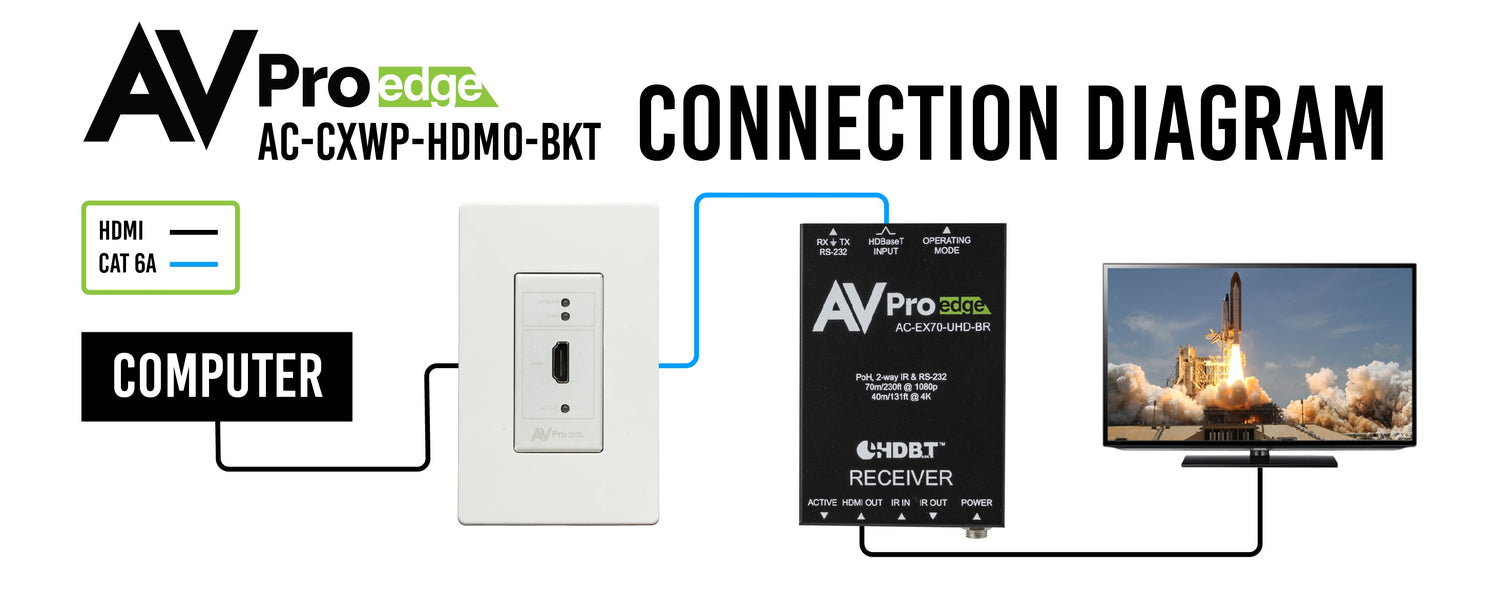

The AC-CXWP-HDMO-BKT-B pairs a single-gang HDBaseT wall plate transmitter with its matched receiver to deliver a complete HDMI extension solution over Cat6a or Cat7 cabling. It supports video resolutions up to 4K 60Hz 4:2:0 8-bit and passes HDMI audio formats including Dolby Atmos, DTS-X, and Dolby TrueHD, giving it enough bandwidth for standard commercial AV sources such as laptops, media players, and conferencing codecs. With 10.2 Gbps of bandwidth and HDCP 2.2 support, it covers the vast majority of commercial content sources without the premium cost of a full 18 Gbps extender. This is intentionally AVPro Edge's most basic wall plate kit in the ConferX line: it does not include Ethernet pass-through, ARC, eARC, USB, audio extraction, or IR control pass-through found on step-up models, and it must be used strictly as a matched transmitter-and-receiver pair rather than with a matrix switch. Power is delivered via PoC (Power over Cable) from a locking 12V 2A power supply rather than standard PoH, so it should not be mixed with other HDBaseT transmitters or receivers. The single-gang wall plate transmitter installs into standard mud rings, stud mounts, or metal and plastic low-voltage boxes for a clean commercial AV integration in spaces where a full-featured extender is not required.

Key Features

• 70M 1080p / 40M 4K Extension — Extends HD 1080p up to 70 meters and 4K signals up to 40 meters over Cat6a or Cat7 cabling.
• Budget-Friendly HDMI Extension — Provides a cost-effective wall plate extension option for basic commercial AV systems.
• 10.2 Gbps Bandwidth — Handles standard commercial video and audio sources up to 4K 60Hz 4:2:0 8-bit.
• Full HDMI Audio Pass-Through — Supports Dolby Atmos, DTS-X, Dolby TrueHD, and DTS-HD Master Audio for AV sources with advanced audio.
• Single-Gang Wall Plate — Fits standard mud rings, stud mounts, and metal or plastic low-voltage boxes.
• HDCP 2.2 Support — Passes copy-protected 4K and HD content from HDCP 2.2 and earlier sources.
• Matched Kit Design — Transmitter and receiver are sold and must be used as a matched pair for guaranteed compatibility.

Typical Applications

• Conference room
• Huddle room
• Commercial meeting space
• Training room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

• Can this kit be used with a matrix switch instead of the included receiver? No. It must be used strictly as a matched transmitter-and-receiver kit and will not work as an extender for a matrix switch.
• Can the transmitter be paired with a receiver from another AVPro Edge extender? No. This product uses PoC (Power over Cable) instead of PoH, and mixing it with other HDBaseT solutions can damage incompatible devices.
• What is the maximum 4K distance supported? Up to 40 meters (131 feet) over Cat6a or Cat7 cabling.
• Does this kit support Dolby Atmos and DTS-X audio pass-through? Yes, along with LPCM, Dolby Digital, DTS-HD Master Audio, and other common HDMI audio formats.
• What wall box types is this compatible with? Mud rings, stud mount, clamp mount, and standard metal or plastic low-voltage boxes.
• What is the warranty on this product? AVPro Edge extender kits in the ConferX line carry the standard AVPro Edge product warranty; contact AVPro Edge support for full terms.

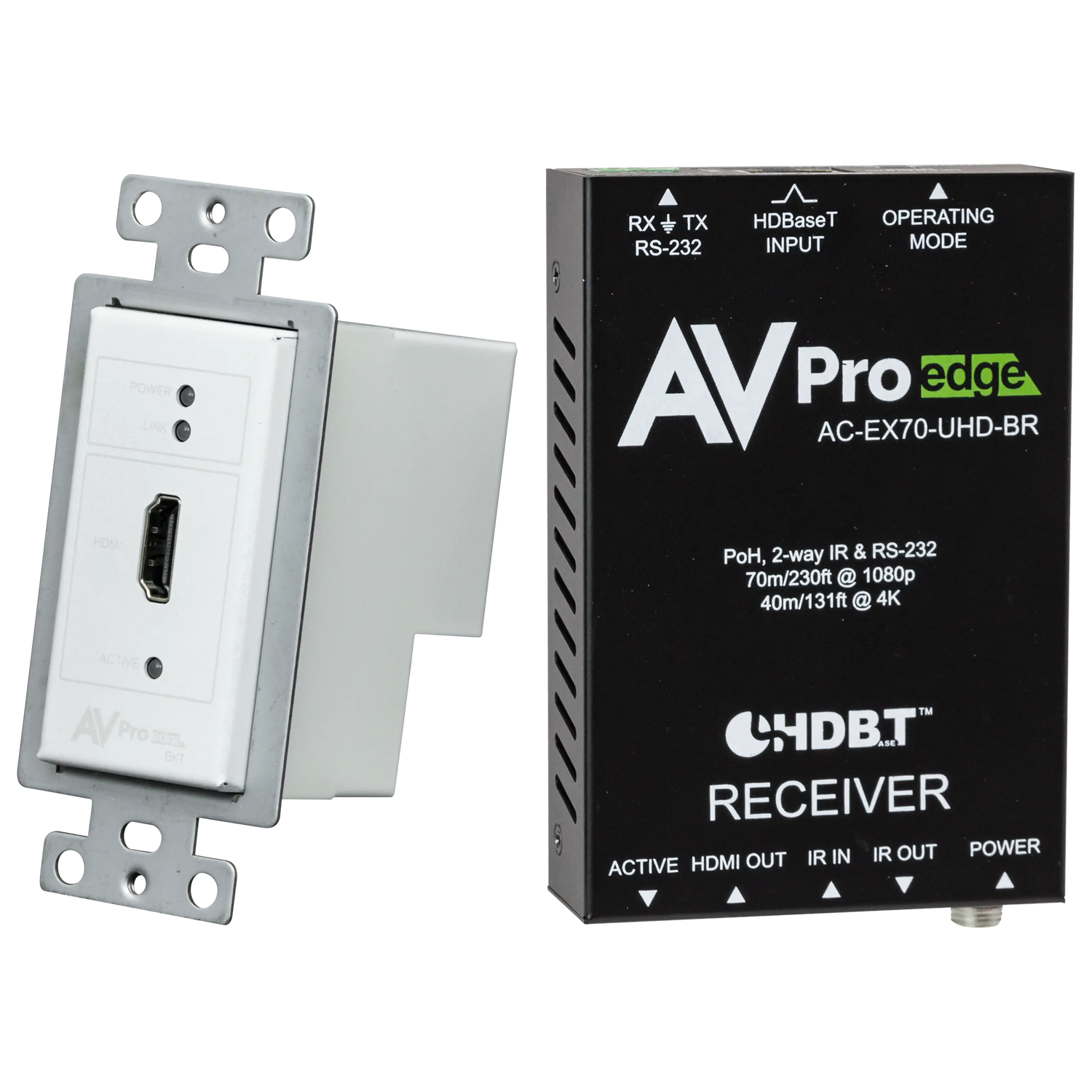

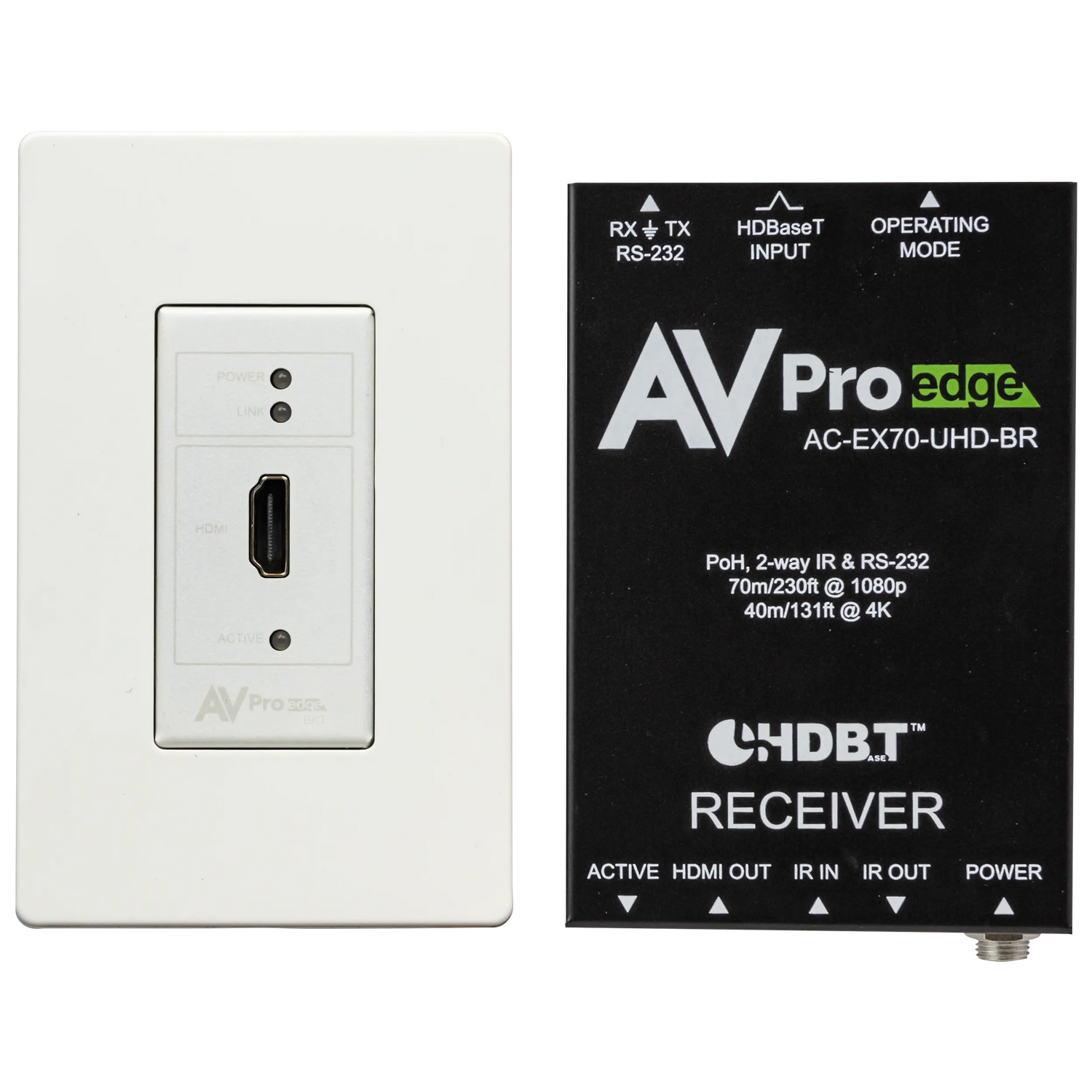

• Is a white wall plate version of this kit available? Yes, the same kit is available in white as the AC-CXWP-HDMO-BKT.
