AVPro Edge AC-CXWP-HDMO-BKT ConferX’s HDBaseT Wall Plate Transmitter/Receiver Basic Kit

Product Overview

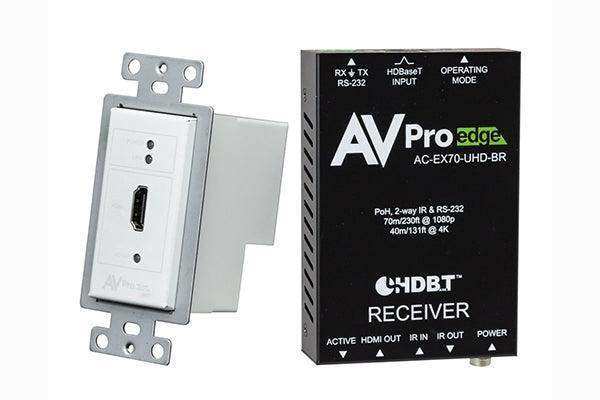

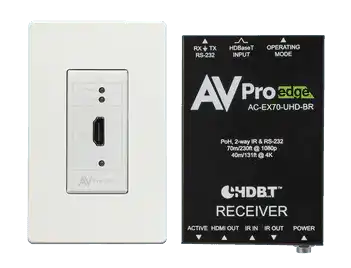

The AVPro Edge AC-CXWP-HDMO-BKT is a complete HDBaseT extension kit from the ConferX product line, pairing a single-gang Decora-style wall plate transmitter with a matching HDMI receiver to extend 4K HDMI signals up to 40 meters (130 feet) and 1080p signals up to 70 meters (230 feet) over a single CAT6A cable. Designed specifically for conference rooms, huddle spaces, classrooms, and single-office environments, the kit eliminates the length and fragility limitations of passive HDMI cables without requiring a separate rack-mount extender at the source end. The wall plate transmitter requires no local power — it draws power from the included receiver unit — keeping the presenter's end of the installation clean and cable-light. This is a point-to-point HDMI extension solution sold and used exclusively as a matched kit.

Product Description

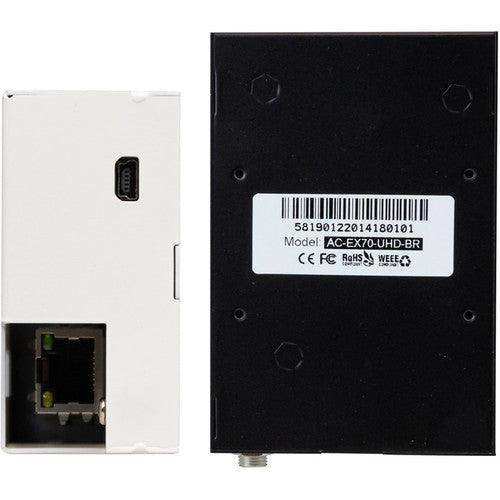

The AC-CXWP-HDMO-BKT solves a fundamental problem in meeting room AV design: getting HDMI from a presenter's connection point on a wall or table surface to a display or projector located 40 to 70 meters away, without the fragility and distance limitations of long passive HDMI cables. The single-gang wall plate transmitter (AC-CXWP-HDMO-T) mounts in any standard USA single-gang mud ring or Decora-type electrical box, presenting a clean flush-mounted HDMI input at the presenter's position. A single CAT6A cable run from the wall plate to the receiver (AC-EX70-UHD-BR) — which sits at the display end — carries the HDMI signal over HDBaseT at up to 40 meters for 4K30 4:4:4 or up to 70 meters for 1080p content. Audio is passed without modification, supporting uncompressed PCM 2CH, 5.1, and 7.1, as well as Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio, and Atmos over HDMI. HDCP 2.2 and all earlier versions are supported for compatibility with protected content from Blu-ray players, streaming devices, and computer sources. Note: this kit is designed for point-to-point extension only and is not compatible with matrix switches as a standalone transmitter or receiver.

Key Features

• Complete point-to-point HDBaseT kit — transmitter and receiver included, no additional components required
• Single-gang Decora wall plate transmitter fits standard USA mud rings and electrical boxes
• No local power required at the wall plate — powered via HDBaseT from the receiver
• 4K30 4:4:4 transmission up to 40 meters; 1080p up to 70 meters over CAT6A
• HDMI 2.0 input; 4K30 4:4:4 and 4K60 4:2:0 support
• HDCP 2.2 and all earlier versions supported
• Full audio pass-through: 2CH PCM, 5.1, 7.1, Dolby TrueHD, DTS-HD Master Audio, Atmos
• Plug-and-play auto input sensing — no configuration required for basic operation
• Compatible with HDBaseT-equipped displays, projectors, and AVRs
• Included Decora wall plate cover in white; fits standard single-gang box

Typical Applications

• Conference rooms and boardrooms requiring a clean wall plate HDMI connection for laptop presenters
• Classrooms and lecture halls where the display is located far from the podium or teaching position
• Huddle spaces and small meeting rooms needing quick HDMI extension without complex infrastructure
• Single-office and home office setups with long cable runs to wall-mounted displays
• Retail and corporate lobby display installations where cable management is a priority

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Can I use the wall plate transmitter with a different receiver or matrix switch?

No. The AC-CXWP-HDMO-BKT is designed and warranted for use exclusively as a matched kit. The transmitter is not compatible with third-party receivers or matrix switch HDBaseT inputs. For matrix-compatible HDBaseT wall plates, consider AVPro Edge's higher-tier ConferX products.

What cable type is required?

CAT6A (UTP or STP) is required for maximum performance — 40m at 4K and 70m at 1080p. CAT5e may work at shorter distances and lower resolutions, but CAT6A is the specified and recommended cable type.

Does the wall plate need its own power supply?

No. The wall plate transmitter draws power from the receiver via the HDBaseT cable, so no local power outlet or injector is needed at the presenter's wall plate position.

Is Dolby Atmos supported?

Yes. The kit passes the full HDMI audio bitstream including Dolby Atmos object metadata, Dolby TrueHD, and DTS-HD Master Audio to a connected display or AVR.
