An interactive kiosk is really two separate specification decisions bundled into one purchase: the touch display itself, and the interactive kiosk enclosure that protects it, mounts it, and manages airflow around it. Integrators and facilities teams often focus on the display spec and treat the enclosure as an afterthought, but for kiosks in high-traffic or outdoor environments, the enclosure is what determines whether the deployment survives daily public use.
The distinction matters because the two components fail for different reasons. Displays fail from heat, moisture ingress, and sunlight. Enclosures fail from impact, tampering, poor cable access, and a mounting method that did not match the floor or wall it landed on. A kiosk program that specifies a good panel inside the wrong enclosure produces a fleet of units that look fine at handover and generate service calls every quarter thereafter.
This guide works through kiosk specification in deployment order: environment first, then orientation and traffic flow, then the display and compute inside, then the physical site coordination that has to happen before installation day. It is written for the person who has to sign the bill of materials and then live with the result.
Browse the full Interactive Kiosks collection.
Where Interactive Kiosk Enclosure Specifications Go Wrong
The most frequent mis-spec is putting an indoor-rated enclosure in a location that is technically covered but functionally outdoor. A drive-thru canopy, a stadium concourse, a transit platform, and a loading vestibule all see wind-driven rain, temperature swings, and dust loads that an indoor cabinet was never sealed against. The rule worth applying: if the space is not on the building's conditioned HVAC loop, specify an outdoor enclosure with active thermal management, regardless of whether there is a roof over it.
The second mis-spec is brightness. A panel that reads perfectly in a lobby disappears behind its own reflection in direct sun. Indoor commercial displays commonly sit in the 350 to 700 nit range, while outdoor-rated panels used in menu board and exterior wayfinding kiosks are specified far higher, typically in the 1,500 to 3,500 nit band, and they pair that output with anti-reflective treatment or optical bonding. Optical bonding also removes the air gap where condensation forms, which is the reason bonded outdoor panels stay legible on a cold morning while unbonded ones fog.
Third, touch technology gets picked by price rather than by environment. Infrared touch frames are inexpensive and work with any object, but they rely on an unobstructed optical grid at the bezel, so direct sunlight, dust, insects, and standing water all cause false or missed touches outdoors. Projected capacitive sensing behind a tempered cover glass is the correct choice for exterior and heavy public-use kiosks, and it is also the only practical option when the enclosure requires a flush, sealed front surface.
Finally, accessibility gets discovered late. The 2010 ADA Standards limit unobstructed forward reach to a maximum of 48 inches and a minimum of 15 inches above the floor for operable parts. A tall portrait kiosk can easily place its interactive zone above that line, and the fix after installation is either a software layout change or a different enclosure. Verify the touch target height against the enclosure's published dimensions before the order, not after the concrete anchors are set.
How to Match an Interactive Kiosk Enclosure to the Site
Decide in this order: environment, orientation and sidedness, display and compute, then mounting and service access. Each step constrains the next, and reversing the sequence is what produces a compute module that will not fit the cabinet.
Step one: classify the environment honestly
Sort each location into conditioned interior, sheltered but unconditioned, or fully exposed. Only the first supports an indoor enclosure. The other two require sealed construction, filtered or closed-loop air circulation, and in cold climates a heater to bring the panel up to operating temperature before it is asked to display anything.
Step two: map the traffic pattern before choosing orientation
Walk the site during a busy period and watch how people approach. A single-file queue wants a portrait unit. A concourse with flow in both directions wants back-to-back or curved. An ordering line where two people transact at once wants two units, not one larger one. Orientation is a throughput decision, not an aesthetic one.
Step three: size compute to the transaction, not to the screen
A wayfinding map or a static menu runs comfortably on a display with an embedded system-on-chip. Anything involving a payment flow, a form, a barcode scanner, a printer, or a line-of-business application needs a real x86 compute module and a plan for how it will be patched and monitored.
Step four: confirm the physical site before ordering
Check the floor construction and anchor pattern, the location and type of the power stub-up, whether a dedicated circuit is available, and whether the network drop is a hardwired Cat6 run or someone's assumption about wireless coverage. Outdoor units also need to be sited so the service door can open fully without being blocked by a curb, bollard, or drive lane.
Indoor and Outdoor Kiosk Enclosures
The starting point for any kiosk spec is environment. Indoor and outdoor kiosks are not the same product with a different shell; outdoor units require active thermal management and sealed construction. Outdoor menu board kiosks like the Peerless-AV KOF555-2 (dual 55-inch) and KOF555-3 (triple 55-inch) digital menu boards are built with weatherproofing and airflow management for drive-thru and exterior food service applications. Choose the dual-screen unit where the menu fits two panels and the site has a narrow footprint at the order point; choose the triple where the operator needs a persistent promotional or combo panel alongside the core menu without cycling content.
Outdoor display mounting and airflow kits, such as the Peerless-AV KOF-OPT-SAM for Samsung OH55 displays and the KOF-OPT-LG for LG 55XE4F displays, let integrators pair a specific outdoor-rated display panel with the correct thermal management hardware inside a KOF555 enclosure. These kits are not optional accessories. The enclosure's cooling path is designed around a particular panel's depth and vent geometry, so specifying the enclosure without the matching kit for the panel you actually bought is how a drive-thru board ends up thermally shutting down in August.

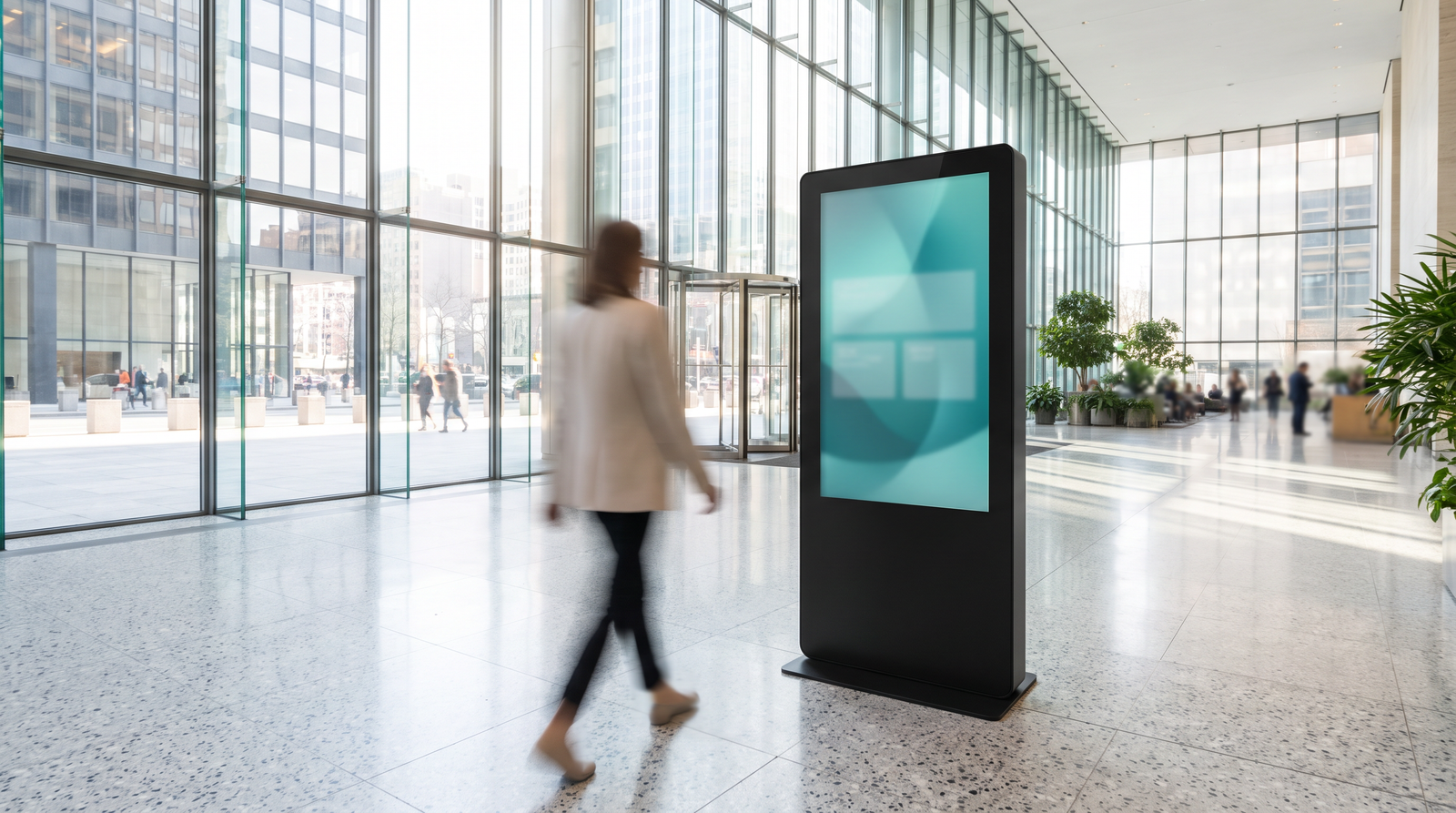

Indoor freestanding and wall kiosks like the Peerless-AV KIP522-S landscape/portrait kiosk and the KIPC2543 43-inch single-sided kiosk are built for lobby, retail, and wayfinding deployments where weatherproofing is not a requirement but durability against public handling still is. The 22-inch class suits a check-in or badge-print position at a desk height, while the 43-inch single-sided unit reads from across a lobby and carries enough screen area to combine wayfinding with directory content.
Orientation, Sidedness, and Traffic Flow
Kiosk enclosures are built around specific orientation and viewing configurations that should be matched to how people actually approach the unit. Portrait kiosks such as the Peerless-AV KIP555-S 55-inch floor-standing portrait kiosk and the KIP755-S 55-inch portrait in-wall kiosk suit single-user wayfinding and self-checkout applications where a vertical format reads more naturally at close range and the user stands directly in front of the glass.
Curved and back-to-back configurations, like the Peerless-AV KIPC2555 curved portrait kiosk and the KIPC2565 back-to-back kiosk for two 65-inch displays, are built for higher-traffic areas where two-sided visibility or a wraparound viewing experience improves throughput. Note the depth constraint published on the back-to-back unit: it accepts displays up to 1.81 inches deep, which rules out a good portion of the commercial signage panel market. Confirm panel depth against that figure before committing, because it is the single spec most likely to invalidate a display choice on this enclosure.
In-wall enclosures, like the KIP755-S and the KIP655 portrait wall kiosk enclosure, recess the unit into a wall for a built-in look, which also reduces the footprint in tight corridors compared with a freestanding unit. In-wall is the right call in a corridor narrower than about eight feet, where a freestanding cabinet would compromise egress width, but it moves the project onto the general contractor's schedule: the rough opening, blocking, conduit, and network drop all have to be coordinated with wall construction rather than dropped in after occupancy.
Touch Display and Compute Selection
The display and compute module inside the enclosure need to match the kiosk's transaction complexity. Simple wayfinding or information kiosks can run on a display-only touch panel like the Samsung KM24A Tizen kiosk touch display, while transactional kiosks handling payment, forms, or POS-style workflows need onboard compute, such as the Samsung KM24C-3 24-inch touchscreen all-in-one kiosk with an Intel i3 processor. Confirming the compute requirement early avoids retrofitting a PC module into an enclosure that was not designed for it.
The decision rule is straightforward: if the kiosk only renders content and captures simple touch input, an embedded platform is enough and it removes an operating system from the patch and antivirus inventory; if the kiosk runs a Windows line-of-business application, drives a receipt printer or scanner, or participates in a payment flow, specify x86 compute from the start. The intermediate case, a kiosk that starts as wayfinding and is expected to add transactions later, is the one to watch. Adding a compute module to a sealed enclosure that has no spare volume, no additional power feed, and no thermal budget for it is usually more expensive than having specified the transactional unit initially.
Floor stands, wall mounting, and in-wall coordination
Floor stand options, like the Samsung STN-KM24AXZA floor stand for the KM24A kiosk, are the fastest path to deployment in an open lobby, while in-wall and recessed enclosures require coordination with the building's wall construction ahead of installation day. A floor stand is also the pragmatic choice for a pilot: it can be relocated after two weeks of watching real traffic, which an in-wall unit cannot.
Cable, power, and network
Kiosk enclosures typically route power and network cabling internally through the base or rear of the unit, keeping cabling out of public reach, a detail worth confirming against local electrical code for public-access installations. Plan a hardwired Ethernet drop rather than relying on wireless coverage in a metal cabinet, and confirm that the power stub-up lands inside the base footprint so no conduit is exposed in a public walkway.
Bundled connection hardware
Bundles like the Samsung Windows Kiosk Touch Screen, Kiosk Connection Box and Stand package the display, connection box, and stand together, which simplifies procurement for a standard deployment versus sourcing each component separately. Bundles also reduce the risk of a mismatched cable kit arriving on a multi-site rollout where each location is being installed by a different crew.
What a Correctly Specified Kiosk Deployment Delivers
A quick-service restaurant drive-thru needs an outdoor menu board kiosk like the Peerless-AV KOF555 series with the correct display airflow kit for the chosen panel. A retail lobby or wayfinding application is well served by an indoor portrait kiosk like the KIP555-S or KIPC2555 for higher-traffic, two-sided visibility. A self-checkout or transactional application needs a compute-equipped touch display, such as the Samsung KM24C-3, rather than a display-only panel. Matching those three cases correctly is most of the job.
The operational payoff shows up in uptime and in truck rolls. An outdoor unit with the matched airflow kit runs through summer without thermal derating, which means the menu is legible during the busiest hours of the year rather than dimming or shutting down. A kiosk sited with its service door clear can be opened for a filter change in ten minutes instead of requiring a lane closure. A fleet standardized on one enclosure family and one compute platform can be imaged, monitored, and patched as a group, which is the difference between one technician supporting forty kiosks and one technician supporting forty individual problems.
Over a five to seven year service life, the enclosure usually outlives the panel and the compute inside it. That is the strongest argument for spending the specification effort on the cabinet: displays get replaced on a refresh cycle, but the enclosure, the anchors, the conduit, and the wall opening are effectively permanent.
Specifying Your Kiosk Deployment
- Classify every location as conditioned interior, sheltered but unconditioned, or exposed, and specify outdoor construction for the second and third.
- Match the display airflow and mounting kit to the exact panel model going into the enclosure, and verify panel depth against the enclosure's published limit.
- Choose orientation and sidedness from observed traffic flow, not from the rendering.
- Decide embedded versus x86 compute based on whether the kiosk will ever handle payments, peripherals, or a line-of-business application.
- Confirm ADA reach range, anchor pattern, dedicated circuit, hardwired network drop, and service door clearance before release for order.
