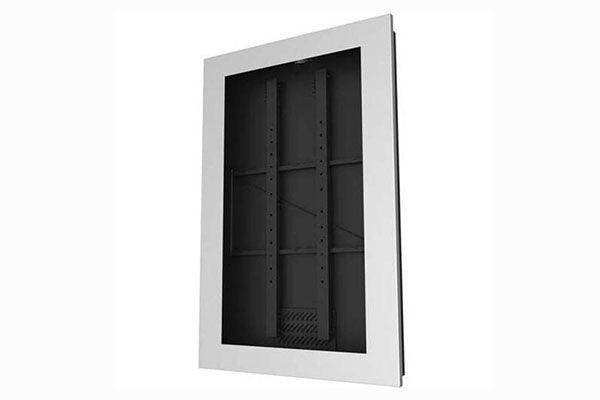

Peerless-AV KIP755-S – 55 Inch Portrait In-Wall Kiosk

Product Overview

The Peerless-AV KIP755-S is a 55" portrait in-wall kiosk enclosure that recesses a digital signage display into a standard wood stud wall for a low-profile, secure installation. With a profile less than 1" thin, this in-wall kiosk enclosure delivers a clean, integrated look for indoor digital signage in hospitality, retail, and entertainment venues. It accepts 55" displays up to 3.10" thick, includes a thermostat-controlled circulation fan, and ships pre-assembled to speed integration.

Product Description

The KIP755-S sets the display into the wall cavity so the finished signage sits nearly flush, extending roughly 1" (25mm) from the wall to meet ADA reach requirements. Extending mount arms pull the display outward for installation and maintenance, and a removable front cover provides access to internal components such as media players and power equipment. Thermal management is handled by a powerful, thermostat-controlled fan that draws air through the enclosure to protect the display and connected electronics during continuous operation. Eight-way micro adjustment lets the integrator dial in vertical, horizontal, and depth position so the display sits flush within the kiosk window. The silver powder-coat enclosure supports a range of aesthetic options and pairs well with other portrait kiosks in the Peerless-AV collection at Creation Networks, making the KIP755-S a practical choice for AV integrators deploying portrait digital signage in finished interior walls.

Key Features

• Low-Profile In-Wall Design — A profile less than 1" thin recesses the 55" display into the wall and extends about 1" (25mm) outward to meet ADA requirements.
• Thermostat-Controlled Fan — A powerful circulation fan maintains proper airflow to protect the display and internal electronics.
• 8-Way Micro Adjustment — Tool-friendly vertical, horizontal, and depth adjustment positions the display flush within the kiosk window.
• Removable Front Cover & Extending Arms — Pull-out mount arms and a removable cover provide quick access for installation and ongoing maintenance.
• Fits Thick Displays — Accommodates 55" displays up to 3.10" (78mm) thick while fitting within standard wood stud walls.
• Pre-Assembled — Ships assembled to simplify installation of the complete kiosk solution.
• 75 lb Load Capacity — Supports displays up to 75 lb (34 kg) with VESA patterns from 200 x 200 up to 400 x 600mm.
• Customizable Finish — Silver powder-coat enclosure supports glass/acrylic faces, color options, and vinyl wraps to match the environment.

Typical Applications

• Hospitality lobbies and guest-information signage
• Retail wayfinding and promotional displays
• Entertainment venues and auditoriums
• Transportation hubs and information points
• Corporate and education building directories

Technical Specifications

Frequently Asked Questions

What display does the KIP755-S fit?
It accepts 55" displays up to 3.10" (78mm) thick with VESA mounting patterns from 200 x 200 up to 400 x 600mm.

How far does the kiosk extend from the wall?
It sits less than 1" thin and extends roughly 1" (25mm) from the wall surface, meeting ADA reach requirements.

How is heat managed inside the enclosure?
A powerful, thermostat-controlled circulation fan maintains airflow to protect the display and any internal electronics.

How do I access the display for maintenance?
Extending mount arms and a removable front cover allow the display and internal components to be reached during installation and service.

Does it ship assembled?
Yes. The KIP755-S is pre-assembled to simplify installation of the complete kiosk solution.

What is the load capacity?
The enclosure supports displays up to 75 lb (34 kg).

What warranty applies?
Peerless-AV provides a 5-year warranty on metal components and a 1-year warranty on electronic components.
