ZeeVee ZYPERUHD-WE ZyPer UHD Wall Plate Encoder - Creation Networks
Roll over image to zoom in Click on image to zoom
ZeeVee ZYPERUHD-WE ZyPer UHD Wall Plate Encoder - Creation Networks
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

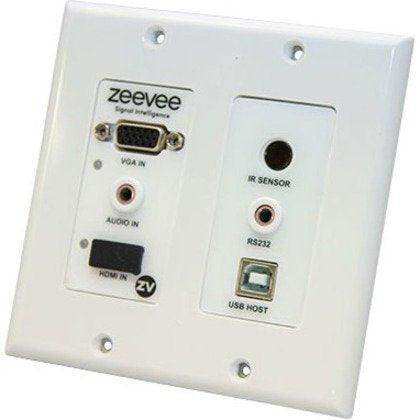

ZeeVee ZYPERUHD-WE ZyPer UHD Wall Plate Encoder

Availability: Call for Availability
Availability: Direct Ship
ZeeVee SKU: ZYPERUHD-WE
No reviews
Price:
$1,018.13

Description

The ZyPerUHD-WE Wallplate Encoder is a HDMI 2.0 and VGA input Encoder with IP streaming via Gbit/copper. Ports include: Audio Input of unbalanced stereo audio on 3.5mm jack, VGA video on 15-pin D-sub connector (no audio), HDMI 2.0a capable of up to 4KP60 4:2:0 with embedded audio and HDCP 2.2 encryption, IR, RS-232 control port and USB 2.0 Type B and POE. Power supply is not include. Includes wall mount brackets. Requires ZyPerUHD Decoder and ZyPerUHD/ZyPerHD management Platform. Cables not included

The ZyPerUHD platform allows for the easy distribution and switching of ultra high definition compressed video, audio, and other data signals using ZyPerUHD encoder and decoder modules and off-the-shelf 1Gb Ethernet switches.

  • JPEG 2000 compressed 4K video, audio, and control using off-the-shelf (OTS) 1Gb Ethernet switches. Support for both analogue and digital audio
  • ZyPerMP (Management Platform) with Maestroz software GUI allows simple set up and control of ZyPerUHD. ZyPerMP also has an open API allowing control via 3rd party systems
  • Power over Ethernet support (PoE)
  • Ultra low latency (less than 2 frames)
  • Supports HDR
  • Video Wall support up to 5x5
  • Source and display control (RS232, IR, USB)
  • HDCP 2.2 compliant
  • Wallplate Encoder option
  • ZyPerUHD can also be used in a point-to-point configuration to encode a 4K video source across a dedicated copper connection to a display up to 100m away
General Information
Manufacturer ZeeVee, Inc
Manufacturer Part Number ZYPERUHD-WE
Manufacturer Website Address http://www.zeevee.com
Brand Name ZeeVee
Product Model ZYPERUHD-WE
Product Name ZyPerUHD-WE: Wall Plate Encoder
Product Type Video Extender Transmitter
Technical Information
Connectivity Technology Wired
Number of Input Devices Supported 2
Maximum Operating Distance 328.08 ft
Video
Graphics Modes 4K UHD
Maximum Video Resolution 4096 x 2160
Interfaces/Ports
HDMI In Yes
VGA In Yes
USB Yes
Number of USB Ports 1
Number of HDMI Inputs 1
Number of VGA Inputs 1
Physical Characteristics
Form Factor Wall Plate
