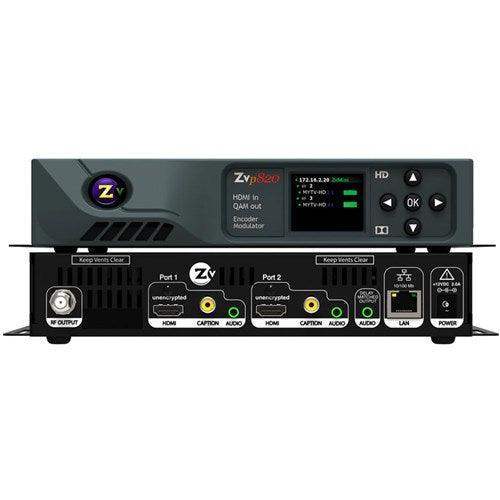

ZeeVee ZVPRO820-NA ZvPRO 820 Two Channel HDMI In - QAM Out Encoder/Modulator

Based on the same architecture as their big brothers (ZeeVee's HDbridge 2000 Series encoder/modulators), ZvPro ZVPRO820-NA ZvPRO 820 pack powerful features into a small space. At just 1RU high and shelf or rack mountable, it takes just one ZvPro to create a digital TV channel and broadcast it throughout your entire facility. Giving you smarter, smaller HD Video Distribution over Coax!

ZeeVee encoder/modulators convert video sources such as signage players and satellite receivers into digital cable channels that are broadcast over existing coaxial cabling to an unlimited number of HDTV’s. ZvPro’s broadcast technology eliminates the need for special equipment (including transmit/receive devices). It’s the easiest, most reliable way to distribute a few channels of HD video to multiple HDTV’s.

Important Notice: The HDMI input on ZeeVee products will only support unencrypted video, typically from a digital signage player, video camera or other self-generated content. All of ZeeVee's products broadcast a clear QAM (unencrypted) signal over coax, therefore would break HDCP (HDMI’s encryption rules/requirements) if ZeeVee tried to support encrypted video as an input. ZeeVee's HDMI input most likely will not work with Apple Products (such as Macs), Blu-ray players, satellite boxes or cable boxes, as they are typically encrypted.

Applications:

• Distribute HD video throughout your facility
• Replace multiple signage players
• Commercial or residential
• Use existing coaxial cabling
• Compatible with any HDTV

ZeeVee ZvPro 820 Features:

• Unencrypted HDMI input
• Shelf or rack mount - via integral flanges oroptional mounting kit
• Front-Panel Color LCD for Configuration and Status
• Web-based Management - local or remote setup andmonitoring
• Analog and Digital Audio - internally encoded andbroadcast as AC-3 or MPEG1 Layer 2 Audio Encoding (varies by region)
• Integrated Closed Caption support – required for ADA compliance in many applications.
• High power output - up to 45dBmV
• Strong retention force power connector
• Two year warranty
• Proudly designed in Massachusetts and Built in the USA

ZeeVee ZvPro 820 Specifications:

• Video Input
  • HDMI Video (2 ports per model): HDMI 1.3 Compliant. Backwards compatible to DVI 1.0 Specifications
  • Closed Caption: EIA/CEA-608 captions accepted over composite video input (-NA versions only)
• Audio Input
  • Analog Audio Input: 75 Ohm 0 to 0.7v at Line-levelinput, RCA R/W Connectors on DIN->RCA Cable, Combined 3.5mm stero connectoron DIN-> VGA cable
  • Digital Audio: Digital S/PDIF on DIN->RCACable (N/A on DIN->VGA cable)
  • Encoding: Internally encoded into Dolby® Digital AC-3 or MPEG1 Layer 2 (varies by region)
• Video Encoder
  • Encoder Video Profile: MPEG2 HD Profile 2: ISO13818-2MP @ HL
  • Traffic Shaping: Variable Bit Rate
  • Video Transport Bit Rate: 49.76 Mbps
  • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbsper channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 100 msec to 400 msec
  • Color Profile: 4:2:0
  • GOP Size: 24
  • Video, Audio PID: Programmable
  • Program Information: Programmable
• Audio Encoder
  • Encoder Audio Profile: ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer1 (varies by region)
• Modulator/Upconverter
  • Modulation Types: QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64, 2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region)
  • Cable Standard: HRC, IRC or STD or User defined (varies by region)
  • Frequency Range:
    • - Frequency Agile from 54 to 864MHz
    • - 2 kHz resolution
    • - +/- 30 ppm accuracy
    • - +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
  • MER: 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Spectral Tilt: < = 1dB over 6MHz typical
• Control/Setup
  • Network interface:
    • - 10/100 mb Ethernet via RJ45 connection
    • - IP address via DHCP or set by user
    • - HTML/Javascript served web interface for easy configuration
    • - Telnet connection for CLI scripting
    • - Easy firmware updates
    • - All settings saved in NV storage
  • Front Panel Color Display: Quickly obtain status at a glance
• General
  • Power: 100-240VAC 50/60Hz, 36W max rated. 18W Typical consumption. IEC 60320-C14
  • Cooling: Internal cooling fan, Front Inlet, Rear Exhaust
  • Mounting: Shelf mount flange or rack ears (ordered separately) 1RU high
  • Enclosure Type: Metal
  • Enclosure Dimensions: 8" x 10" x 1.75" (20.32cm x25.4cm x 4.445cm)
  • System Weight: 3.1 lb (1.4 kg) Carton Dimensions (individual) (HxWxD): 2.75" x 14" x 12" (6.985cm x 35.56cm x 30.48cm)
  • Shipping Weight: 5 lbs (2.3 kg)
  • Temperature/Humidity: Operating +32F to +113F (0C to +45C) / 10% to 80%, non-condensing
  • Vibration: NSTA 1A in carton
  • MTBF: 45,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (see manual for specifics), CE, RoHS
  • Part number: ZvPro 820-NA
  • Model name: ZvPro 820
