Based on the same architecture as their big brothers (ZeeVee's HD bridge 2000 Series encoder/modulators), ZvPro ZVPRO620-NA pack powerful features into a small space. At just 1RU high and shelf or rack mountable, it takes just one ZvPro to create a digital TV channel and broadcast it throughout your entire facility. Giving you smarter, smaller HD Video Distribution over Coax!
ZeeVee encoder/modulators convert video sources such as signage players and satellite receivers into digital cable channels that are broadcast over existing coaxial cabling to an unlimited number of HDTV’s. ZvPro’s broadcast technology eliminates the need for special equipment (including transmit/receive devices). It’s the easiest, most reliable way to distribute a few channels of HD video to multiple HDTV’s.
Applications:
- Distribute HD video throughout your facility
- Replace multiple signage players
- Commercial or residential?
- Use existing coaxial cabling
- Compatible with any HDTV
ZeeVee ZvPro 620 Features:
- Shelf or rack mount - via integral flanges or optional mounting kit

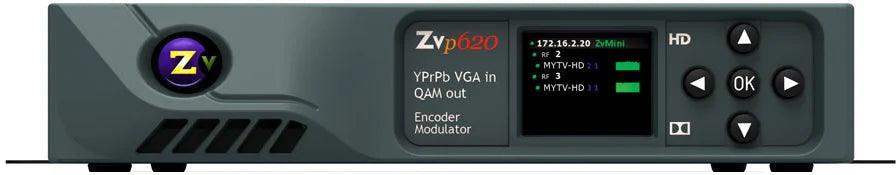

- Front-Panel Color LCD for Configuration and Status
- Web-based Management - local or remote setup and monitoring

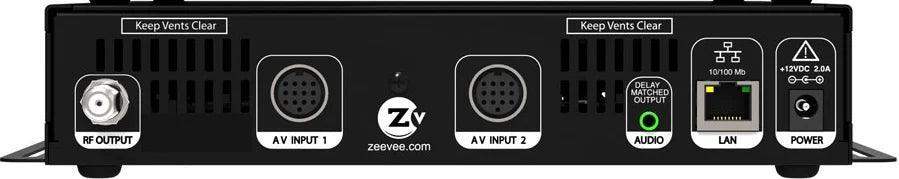

- Component/VGA input - two choices, from a full sized DIN connector:
- Hydra cables with 7 inputs (component HD video, analog and digital audio) for clean wiring, easy diagnostics and maximum flexibility
- VGAwith analog audio input
- MPEG2 Video and AC3 Audio Encoding
- Delay-matched Analog Audio Output
- Integrated Closed Caption support – required for ADA compliance in many applications
- ZeeVee's best video quality yet! 1080p/i, 720p,480p/i
- Single and dual channel versions in a smaller, fan-cooled package
- High power output - up to 45dBmV
- Strong retention force power connector
- Two year warranty
- Proudly designed in Massachusetts and Built in the USA
ZeeVee ZvPro 620 Specifications:
- Video Input
- YPrPb or RGB Video (2 ports per model): DIN connector HD bridge end, RCA connectors for HD source
- Computer VGA (Analog): HD-15 connector, 75 Ohm RGB 0to 0.7V, Separate H and V sync
- VGA Resolutions Supported: 640x480, 720x480, 800x600, 1024x768, 1152x864, 1176x664, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1440x900 at 60 70, 72, 75, 85 Hz. 1680x1050 and 1920x1080at 60 Hz. VGA resolutions are broadcast centered in the best vertical fit into 1920x1080p30 or 1280x720p60.
- Closed Caption: EIA/CEA-608 captions accepted over composite video input
- Audio Input
- Analog Audio Input: 75 Ohm 0 to 0.7v at Line-level input, RCA R/W Connectors on DIN->RCA Cable, Combined 3.5mm stero connector on DIN-> VGA cable
- Digital Audio: Digital S/PDIF on DIN->RCA Cable (N/A on DIN->VGA cable)
- Encoding: Internally encoded into Dolby® Digital AC-3 or MPEG1 Layer 2 (varies by region)
- Video Encoder
- Encoder Video Profile: MPEG2 HD Profile 2: ISO13818-2MP @ HL
- Traffic Shaping: Variable Bit Rate
- Video Transport Bit Rate: 49.76 Mbps
- Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
- Average Encoding Data Rate: 18 Mbs per channel
- Encoding Latency: Programmable 100 msec to 400 msec
- Color Profile: 4:2:0
- GOP Size: 24
- Video, Audio PID: Programmable
- Program Information: Programmable
- Audio Encoder
- Encoder Audio Profile: ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer1 (varies by region)
- Modulator/Upconverter
- Modulation Types: QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region)
- Cable Standard: HRC, IRC or STD or User defined (varies by region)
- Frequency Range:
- Frequency Agile from 54 to864MHz
- 2 kHz resolution
- +/- 30 ppmaccuracy
- +/- 35 ppm stability
- Output Power: +45 dBmV typical
- Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
- MER: 38 dB typical
- I/Q Amplitude Imbalance: < 1% typical
- Spectral Tilt: < = 1dB over 6MHz typical
- Control/Setup
- Network interface:
- 10/100 mb Ethernet via RJ45 connection
- IP address via DHCP or set by user
- HTML/Javascript served web interface for easy configuration
- Telnet connection for CLI scripting
- Easy firmware updates
- All settings saved in NV storage
- Front Panel Color Display: Quickly obtain status at a glance
- General
- Power: 100-240VAC 50/60Hz, 36W max rated. 18W Typical consumption. IEC 60320-C14
- Cooling: Internal cooling fan, Front Inlet, Rear Exhaust
- Mounting: Shelf mount flange or rack ears (ordered separately) 1RU high
- Enclosure Type: Metal
- Enclosure Dimensions: 8" x 10" x 1.75" (20.32 x 25.4 x 4.445cm)
- System Weight: 3.1 lb (1.4 kg)
- Carton Dimensions (individual)(HxWxD): 2.75" x 14" x 12" (6.985 x 35.56 x 30.48cm)(108 x 785 x 308 mm)
- Shipping Weight: 5 lbs (2.3 kg)
- Temperature/Humidity: Operating +32°F to +113°F (0°C to +45°C) / 10% to 80%, non-condensing
- Vibration: NSTA 1A in carton
- MTBF: 45,000 hours
- Compliance: FCC Class A, IEC60065, EN61000 (see manual for specifics), CE, RoHS
- Part number: ZvPro 620-NA
- Model name: ZvPro 620
