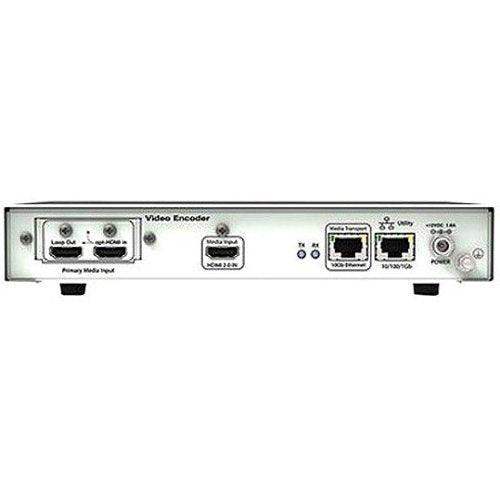

ZeeVee Z4KHDMIENCF3U ZyPer4K HDMI 2.0 Fiber Encoder and HDMI Loop-Out with USB

Product Overview

The ZeeVee Z4KHDMIENCF3U is a ZyPer4K SDVoE fiber encoder with HDMI 2.0 input, HDMI loop-out for local monitoring, and USB 2.0 extension over 10Gb multimode fiber up to 300 meters. This is the most fully featured HDMI-only ZyPer4K fiber encoder, providing simultaneous local display monitoring, long-distance network distribution, and KVM-over-IP capability from a single source-side unit. It integrates with the ZyPer Management Platform for centralized routing, video wall, and multiview management.

Product Description

The Z4KHDMIENCF3U adds USB 2.0 extension to the Z4KHDMIENCF3 platform, making it suitable for control room, broadcast, and campus AV installations where the source position needs a local confidence monitor, long-distance fiber network distribution, and USB peripheral sharing with remote display locations. The encoder transmits uncompressed 4KP60 4:4:4 video over 10Gb SFP+ multimode fiber up to 300 meters to the network switching infrastructure. The HDMI loop-out passes the source signal to a local display without additional hardware. ZMP manages all routing, video wall configurations (up to 15x15), and multiview (up to 19 sources) across the full SDVoE network. HDCP 2.2 and AES-128 encryption are standard. RS-232 (9-pin D-sub, 115.2 kbps) and IR (3.5mm) pass-through are included for control system integration. Power consumption is approximately 9W per unit.

Key Features

• HDMI 2.0 Input + HDMI Loop-Out — Integrated local monitoring output eliminates a separate HDMI splitter at the source.
• USB 2.0 Extension — Extends USB peripherals from the source over the SDVoE fiber network for KVM capability.
• 10Gb Multimode Fiber (SFP+) — Reaches network switching infrastructure up to 300m from the source.
• Uncompressed 4KP60 4:4:4 — Full-bandwidth, zero-latency 4K encoding over SDVoE fiber.
• Video Wall: 15x15 — Configured and managed via ZyPer Management Platform.
• Multiview: 19 Sources — Flexible multi-source display layout management.
• HDCP 2.2 + AES-128 — Content protection and encrypted network transport.
• RS-232 & IR Pass-Through — Control system integration at the source end.
• ~9W Power Draw — Low consumption for large-scale fiber deployments.
• 3-Year Warranty — ZeeVee standard commercial warranty.

Typical Applications

• Broadcast production positions over fiber with confidence monitors and USB peripheral requirements
• Control rooms and NOCs on fiber infrastructure requiring local monitoring and KVM
• Campus AV installations with source locations beyond copper distance limits
• Houses of worship with fiber infrastructure, confidence monitors, and presenter control requirements
• Government and secure facilities with encrypted, long-distance KVM-over-IP over fiber

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What makes the Z4KHDMIENCF3U different from the Z4KHDMIENCF3?

The Z4KHDMIENCF3U adds a single USB 2.0 port for peripheral extension over the SDVoE network. The HDMI loop-out, fiber connectivity, and all other specifications are identical to the Z4KHDMIENCF3.

Does the HDMI loop-out work independently of the fiber network connection?

Yes. The HDMI loop-out passes the source signal to a local display regardless of the network connection status, provided the source device is active.

What USB devices work with this encoder?

Standard HID devices (keyboard, mouse) and most USB 2.0 peripherals are supported. Verify high-bandwidth peripheral compatibility with ZeeVee before deployment.

Can this encoder be paired with copper decoders?

Yes. Fiber encoders and copper decoders can coexist on the same ZyPer4K SDVoE network, provided the 10GbE switching infrastructure supports both interface types.

Is a fiber version without USB available?

Yes. The Z4KHDMIENCF3 provides the same fiber connectivity and HDMI loop-out without the USB port.
