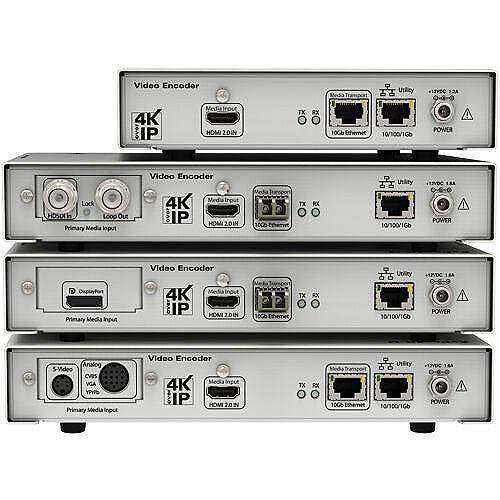

ZeeVee Z4KENCC3 ZyPer4K-XS HDMI 2.0 Input Encoder

Product Overview

The ZeeVee Z4KENCC3 ZyPer4K HDMI 2.0 Copper Encoder is a full-size SDVoE AV-over-IP encoder designed for large-scale commercial AV distribution over standard 10GbE copper infrastructure. It delivers uncompressed 4K60 4:4:4 video at zero-frame latency, making it the correct choice for command centers, broadcast environments, and enterprise video distribution where signal integrity cannot be compromised. As a ZyPer4K uncompressed 4K AV-over-IP encoder, it integrates directly into any SDVoE-compatible network fabric, enabling any-to-any routing without dedicated matrix switchers. Long-tail deployments including 10Gbps uncompressed video distribution across campus networks benefit from its Cat6a copper connectivity up to 100 meters per segment.

Product Description

The Z4KENCC3 accepts HDMI 2.0 sources with full HDCP 2.2 pass-through and encodes them for transport across a 10GbE switched network using the SDVoE protocol — no compression, no frame buffering, no perceptible delay. The encoder supports resolutions from VGA through 4K/UHD at 60Hz with 4:4:4 chroma sampling and color depths up to 48-bit, ensuring that high-end visualization, medical imaging, and broadcast-grade content retains full fidelity from source to display. Audio is handled via LPCM up to 8 channels over HDMI, with an additional unbalanced 3.5mm stereo analog I/O for local monitoring or program audio injection. RS-232 and IR pass-through ports enable control signal extension across the IP network, simplifying integration with room control systems such as AMX, Crestron, or Extron. The utility 1Gb RJ45 port provides a secondary network path for management or downstream device connectivity. The ZyPer Management Platform (ZMP) handles centralized configuration, routing, and video wall layout management across all encoders and decoders on the network. With support for video walls up to 15x15 and multiview compositions of up to 19 simultaneous sources, the Z4KENCC3 scales to the most demanding AV-over-IP for commercial AV deployments. Power draw is approximately 9W, and the unit ships with a locking Neutrik NAC3MPX power connector for secure installation in AV racks.

Key Features

• Uncompressed 4K60 4:4:4 Transport — Encodes HDMI 2.0 sources at full 4K resolution with zero compression artifacts for broadcast and visualization-grade applications.
• Zero-Frame Latency — SDVoE protocol eliminates buffering delays, enabling real-time interactivity in control rooms and live production environments.
• 10GbE Copper Connectivity — Connects via RJ45 or SFP+ over Cat6a up to 100 meters, leveraging existing enterprise switching infrastructure.
• HDCP 2.2 Compliance — Supports encrypted premium content distribution without signal compromise.
• RS-232 and IR Extension — Passes control signals end-to-end across the IP network for seamless integration with room automation systems.
• 8-Channel LPCM Audio — Transports full multi-channel audio alongside video over the same network connection.
• Video Wall and Multiview Support — Supports video walls up to 15x15 and multiview layouts with up to 19 sources via ZMP software.
• AES-128 and 802.1X Security — Enterprise-grade encryption and network authentication protect distributed AV content.
• 3-Year Warranty — Backed by ZeeVee's standard commercial warranty for long-term deployment confidence.

Typical Applications

• Enterprise and corporate AV distribution across 10GbE network infrastructure
• Command and operations centers requiring zero-latency 4K video routing
• University and campus-wide digital signage and lecture capture distribution
• Broadcast and live production environments with multiple display zones
• Healthcare facilities distributing medical imaging to conference and consultation rooms
• House of worship video distribution to overflow areas and lobby displays
• Large-scale video wall installations managed centrally via ZMP

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the Z4KENCC3 require a proprietary switch?

No. The Z4KENCC3 operates over any standards-based 10GbE network switch that supports multicast and jumbo frames. It does not require ZeeVee-branded switching hardware, unlike some competing systems that mandate proprietary infrastructure.

What software manages routing between encoders and decoders?

The ZeeVee ZyPer Management Platform (ZMP) handles all routing, video wall configuration, multiview layouts, and encoder/decoder management. ZMP runs as a software application on a network-connected server or VM.

Can the Z4KENCC3 support KVM applications?

The standard Z4KENCC3 does not include a USB port. For KVM-over-IP deployments that require USB HID or peripheral extension, use the Z4KENCC3U, which adds a USB 2.0 Type B port.

What is the maximum cable run for copper connectivity?

The Z4KENCC3 supports Cat6a cabling up to 100 meters per segment on its primary 10Gb RJ45 port. For longer runs, consider the fiber variant (Z4KENCF3) which supports multimode fiber up to 300 meters.

Is HDCP-protected content supported?

Yes. The Z4KENCC3 supports HDCP 2.2 pass-through, enabling distribution of HDCP-encrypted content across compliant display endpoints.

How many displays can one encoder feed?

A single encoder can feed an unlimited number of decoders simultaneously via IP multicast, subject to network bandwidth capacity. ZMP handles the one-to-many routing configuration.

What rack space does the Z4KENCC3 require?

The unit is not a standard 1U rackmount form factor — it measures 8.7 x 7.8 x 2.8 inches and is typically shelf- or rack-tray-mounted. Confirm rack tray compatibility with your enclosure before installation.
