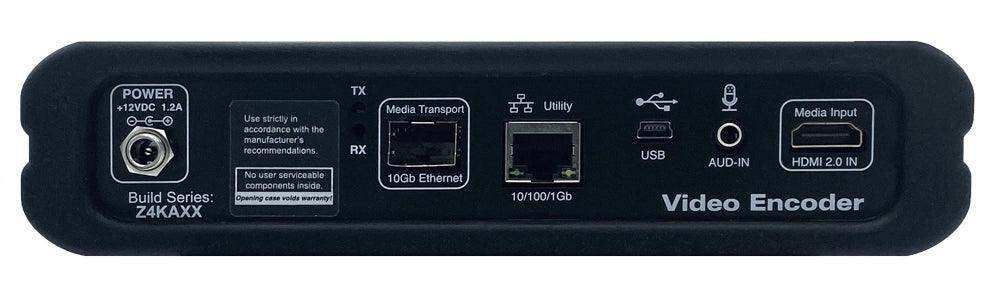

ZeeVee Z4KENCF3XS ZyPer4K-XS Uncompressed 4K Fiber Encoder

Product Overview

The ZeeVee Z4KENCF3XS ZyPer4K-XS is a 10Gbps fiber-connected AV-over-IP encoder that captures and transmits uncompressed 4K/60 4:4:4 video over multimode fiber to any ZyPer4K-compatible decoder on the network. Designed for commercial AV system designers and integrators, it enables zero-frame latency 4K video distribution without the signal degradation associated with compressed AV-over-IP systems. Operating over standard managed 10Gbps IP switches with multimode fiber runs up to 300 meters, it is well-suited for inter-building distribution, large campus deployments, and environments where electrical isolation is required. It is fully interoperable with the full-size ZyPer4K decoder family and managed through ZeeVee's ZyPer Management Platform.

Product Description

The Z4KENCF3XS accepts HDMI 2.0 input from source devices — including media servers, presentation systems, video conferencing endpoints, and digital signage players — and encapsulates the uncompressed 4K video stream for distribution over a 10Gbps multimode fiber network. HDCP 2.2 is supported end-to-end, making this encoder appropriate for protected content workflows. Up to 8 channels of LPCM digital audio are embedded from the HDMI input, and a 3.5mm analog stereo input allows for analog audio injection at the source point. USB 2.0 is supported between ZyPer4K-XS and ZyPer4K-XR endpoints for KVM-style applications in collaboration rooms. The encoder integrates with ZMP for centralized routing, configuration, and real-time monitoring across the entire AV-over-IP infrastructure. Fiber connectivity provides inherent immunity to electrical interference, making this encoder suitable for deployments in electrically noisy environments such as broadcast facilities, manufacturing floors, or large public venues. Power draw is approximately 9W, supporting dense encoder deployments without significant power infrastructure changes.

Key Features

• Uncompressed 4K/60 4:4:4 Encoding — Captures and transmits full-bandwidth 4K video with zero-frame latency over a 10Gbps fiber network.
• 10Gbps Multimode Fiber Output — 850nm multimode fiber supports runs up to 300 meters, ideal for inter-building or large-venue deployments.
• HDMI 2.0 Input with HDCP 2.2 — Accepts 4K sources with full HDCP pass-through for protected content workflows.
• Up to 8-Channel LPCM Audio Embedding — Embeds multi-channel audio from HDMI input for complete AV signal transport over the IP network.
• Analog Audio Input (3.5mm) — Injects unbalanced stereo audio at the source point for environments requiring analog audio integration.
• USB 2.0 Extension — Enables KVM and peripheral sharing between ZyPer4K-XS and XR devices over the IP network.
• Electrical Isolation via Fiber — Fiber connectivity eliminates ground loops and provides immunity to electrical interference.
• AES-128 Encryption & 802.1X Authentication — Secures video streams over shared enterprise IP infrastructure.
• ZyPer Management Platform (ZMP) Integration — Centralized routing, monitoring, and configuration across all endpoints.
• ZyPer4K Ecosystem Compatible — Interoperates with full-size ZyPer4K decoders for flexible, mixed-generation deployments.
• Low Power (~9W) — Efficient power profile supports large-scale encoder deployments in rack or wall-mount configurations.
• 3-Year Warranty — Commercial-grade warranty coverage from ZeeVee.

Typical Applications

• Boardroom and conference room AV source encoding
• Digital signage content distribution over fiber infrastructure
• Command center and NOC source input nodes
• Broadcast and production facility signal acquisition
• Higher education lecture capture and campus distribution
• Healthcare facility point-of-care display systems
• Large venue and auditorium source distribution

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What source devices can connect to the Z4KENCF3XS?

Any HDMI 2.0 source device — including media servers, PCs, presentation switchers, video conferencing codecs, and Blu-ray players — can connect to the Z4KENCF3XS encoder.

Does this encoder require a proprietary switch or matrix?

No. The Z4KENCF3XS operates over any standard managed 10Gbps Ethernet switch with multicast support enabled. No proprietary AV matrix hardware is required.

What fiber type does the encoder use?

The Z4KENCF3XS uses 850nm multimode fiber (OM3 or OM4 recommended) and supports runs up to 300 meters.

Can this encoder work with full-size ZyPer4K decoders?

Yes. The ZyPer4K-XS encoder is fully compatible with full-size ZyPer4K decoders and is managed through the same ZyPer Management Platform instance.

Is USB extension supported?

USB 2.0 extension is supported between ZyPer4K-XS and ZyPer4K-XR devices. It is not supported between XS and full-size ZyPer4K units.

What security features are included?

The encoder supports AES-128 stream encryption, HDCP 2.2 compliance, and 802.1X network authentication for enterprise security environments.

What is the warranty period?

ZeeVee covers the Z4KENCF3XS with a 3-year limited warranty against manufacturing defects.
