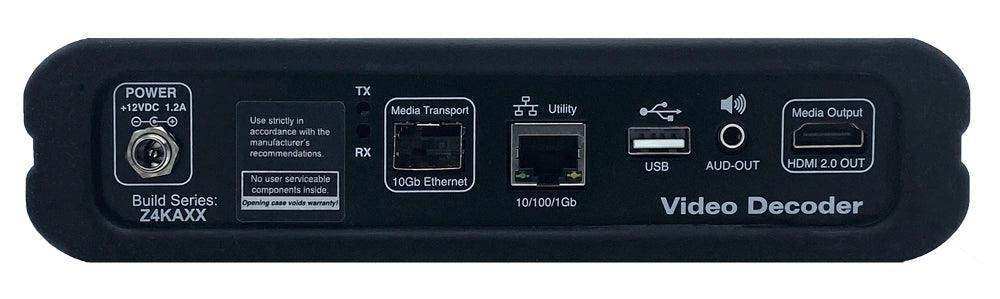

ZeeVee Z4KDECF3XS ZyPer4K-XS Uncompressed 4K Fiber Decoder

Product Overview

The ZeeVee Z4KDECF3XS ZyPer4K-XS is a 10Gbps fiber-connected AV-over-IP decoder designed for large-scale uncompressed 4K video distribution across enterprise and commercial AV environments. Operating on multimode fiber (850nm) at distances up to 300 meters, it delivers zero-frame latency 4K/60 4:4:4 uncompressed video over standard IP infrastructure — no proprietary matrix switch required. As part of the ZyPer4K-XS family, it is fully compatible with full-size ZyPer4K encoders and decoders, making it an ideal endpoint for mixed deployments. Primary use cases include video wall controllers, boardroom displays, command center screens, and digital signage endpoints requiring uncompressed SDVoE-based distribution.

Product Description

The Z4KDECF3XS decodes uncompressed 4K video received over multimode fiber from any ZyPer4K or ZyPer4K-XS encoder on the same managed 10Gbps IP network. It accepts HDMI 2.0 output connections and passes HDCP 2.2-protected content to downstream displays without additional decryption hardware. Audio support includes up to 8 channels of LPCM digital audio via HDMI, plus an unbalanced 2-channel analog stereo output via 3.5mm jack — useful for audio breakout in conference rooms or control rooms. USB 2.0 extension is supported between ZyPer4K-XS and ZyPer4K-XR devices, enabling peripheral sharing across the AV network for collaborative spaces. The decoder integrates into ZeeVee's ZyPer Management Platform (ZMP) for centralized routing, monitoring, and configuration. Video wall configurations up to 15x15 are supported, and multiview layouts of up to 19 simultaneous sources can be rendered on a single display. Security features include AES-128 encryption, 802.1X network authentication, and HDCP 2.2 compliance. At approximately 8W power draw, the XS form factor is suitable for space-constrained rack and wall installations.

Key Features

• Uncompressed 4K/60 4:4:4 over Fiber — Delivers zero-frame latency, full-bandwidth 4K video over multimode fiber up to 300 meters without compression artifacts.
• 10Gbps Multimode Fiber Interface — 850nm multimode fiber connection supports longer runs than copper, suitable for inter-building or large-campus deployments.
• HDMI 2.0 Output with HDCP 2.2 — Direct connection to 4K displays with full HDCP pass-through for protected content distribution.
• Up to 8-Channel LPCM Audio — Full surround audio over HDMI for auditoriums, screening rooms, or multi-channel AV environments.
• Analog Audio Output — Unbalanced 3.5mm stereo output for local audio breakout without additional DSP hardware.
• USB 2.0 Extension — Peripheral sharing between ZyPer4K-XS and XR endpoints for conferencing and collaboration rooms.
• Video Wall Support (Up to 15x15) — Supports large-scale video wall configurations managed centrally through ZMP.
• Multiview Up to 19 Sources — Display multiple simultaneous sources on a single screen for NOC, control room, or monitoring applications.
• AES-128 Encryption & 802.1X Authentication — Enterprise-grade security for sensitive AV distribution over shared IP networks.
• ZyPer4K Ecosystem Compatible — Interoperates with full-size ZyPer4K encoders and decoders for phased or mixed deployments.
• Low Power Consumption (~8W) — Compact, efficient design suitable for distributed endpoint deployments at scale.
• 3-Year Warranty — Backed by ZeeVee's standard commercial warranty for enterprise deployments.

Typical Applications

• Boardroom and executive conference room display endpoints
• Command center and NOC video wall decoder nodes
• Digital signage distribution over fiber infrastructure
• Higher education lecture hall and auditorium AV systems
• Broadcast and production monitor wall endpoints
• Healthcare facility display distribution
• Transportation hub public display systems

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the Z4KDECF3XS compatible with full-size ZyPer4K encoders?

Yes. The ZyPer4K-XS family is fully interoperable with full-size ZyPer4K encoders and decoders on the same ZyPer Management Platform (ZMP) network.

What fiber type does the Z4KDECF3XS require?

The Z4KDECF3XS uses 850nm multimode fiber and supports runs up to 300 meters. Single-mode fiber is not supported by this model.

Does this decoder require a proprietary switch?

No. The ZyPer4K-XS operates over standard managed 10Gbps Ethernet switches, eliminating the need for proprietary AV matrix hardware.

Can this unit participate in a video wall configuration?

Yes. Each Z4KDECF3XS decoder can act as a node in a video wall up to 15x15 when managed through ZMP.

Is USB extension supported with this decoder?

USB 2.0 extension is supported between ZyPer4K-XS and ZyPer4K-XR devices only. It is not supported between XS and full-size ZyPer4K units.

What security protocols are supported?

The decoder supports AES-128 content encryption, HDCP 2.2 for display compliance, and 802.1X for network port authentication.

What is the warranty on this product?

ZeeVee provides a 3-year limited warranty on the Z4KDECF3XS covering defects in materials and workmanship.
