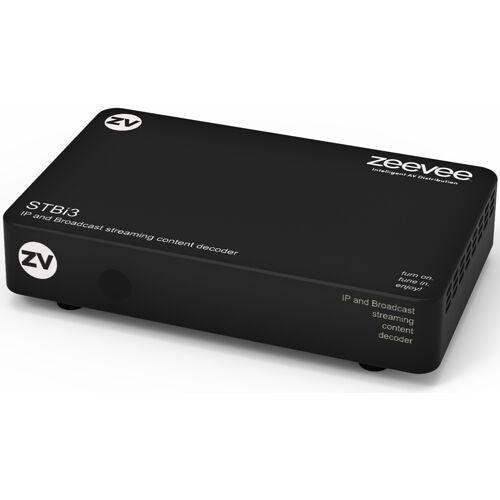

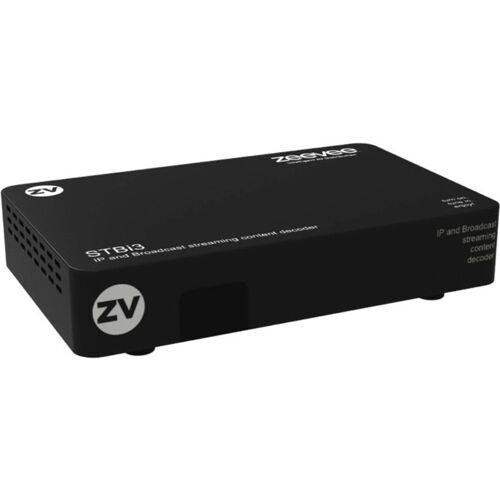

Zeevee STBI3 IP and Broadcast Streaming Content Decoder

Product Overview

The ZeeVee STBI3 is an IP and broadcast streaming content decoder combining H.264 IP stream decoding with an integrated RF QAM tuner for use as a digital signage or IPTV display endpoint in commercial AV systems. It accepts UDP and RTP IP video streams over 100Mb Ethernet and can also decode QAM-modulated channels from ZeeVee HDbridge or ZvPRO headend systems, outputting via HDMI to any connected display. As an H.264 IP stream decoder with QAM tuner for commercial display, the STBI3 serves as the receiving endpoint for ZeeVee-based IPTV and digital signage distributions.

Product Description

The STBI3 functions as both an IP streaming decoder and an RF QAM set-top decoder, making it a dual-purpose endpoint for installations using ZeeVee HDbridge or ZvPRO headend encoders. On the IP side, it decodes H.264 UDP and RTP streams delivered over standard 100Mb Ethernet infrastructure. On the RF side, the integrated QAM tuner receives and decodes channels modulated by HDbridge or ZvPRO systems over coaxial cable, providing flexibility for installations transitioning between IP and RF distribution or using both simultaneously. HDMI output connects directly to commercial displays, digital signage screens, or patient room televisions. The STBI3 is managed in conjunction with the ZMPCNTRL browser-based routing controller for IP stream routing assignments. It is particularly suited to hospitality, healthcare, and education facilities running ZeeVee-based IPTV or digital signage headend systems.

Key Features

• H.264 IP Decoding — Accepts UDP and RTP H.264 IP video streams over 100Mb Ethernet for IPTV and digital signage delivery.
• Integrated RF QAM Tuner — Decodes QAM-modulated channels from HDbridge and ZvPRO headend systems over coax.
• HDMI Output — Connects to any HDMI-compatible commercial display, patient TV, or digital signage screen.
• 1080i Capable — Supports HD content delivery for sharp display output.
• Dual-Mode Operation — Operates as an IP streaming decoder or RF QAM decoder depending on signal source.
• Compatible with ZeeVee ZMPCNTRL — Integrates with the ZyPer Controller browser-based routing tool for IP stream management.

Typical Applications

• Hospitality IPTV and digital signage endpoint
• Healthcare patient room television endpoint for ZeeVee HDbridge systems
• Education facility digital signage display endpoint
• Corporate lobby and common area IPTV display
• Multi-tenant facility ZeeVee ZvPRO distribution endpoint

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the STBI3 work with any IP video source, or only ZeeVee systems?

The STBI3 decodes standard H.264 UDP and RTP streams, so it can receive streams from non-ZeeVee sources as long as the stream is delivered in a compatible H.264 format. The QAM tuner function, however, is designed for ZeeVee HDbridge and ZvPRO headend output.

Can the STBI3 receive both IP and RF signals simultaneously?

The STBI3 can operate in either IP or RF QAM mode depending on the selected source. Consult ZeeVee documentation for simultaneous dual-mode operation capability.

What routing controller is used with the STBI3?

The ZMPCNTRL ZyPer Controller is the recommended browser-based routing management tool for IP stream routing to STBI3 decoders in ZeeVee IPTV systems. It is sold separately.

Is the STBI3 suitable for 4K display applications?

No. The STBI3 is an HD decoder with a maximum resolution of 1080i. For 4K AV-over-IP applications, ZeeVee's ZyPer4K product line is the appropriate solution.

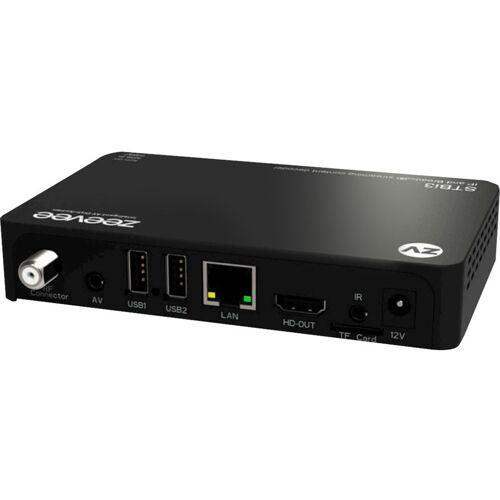

What cable infrastructure does the STBI3 require?

IP streaming mode requires 100Mb Ethernet. QAM RF mode requires a coaxial cable connection from the HDbridge or ZvPRO output. Installations may use both connections simultaneously for mode flexibility.
