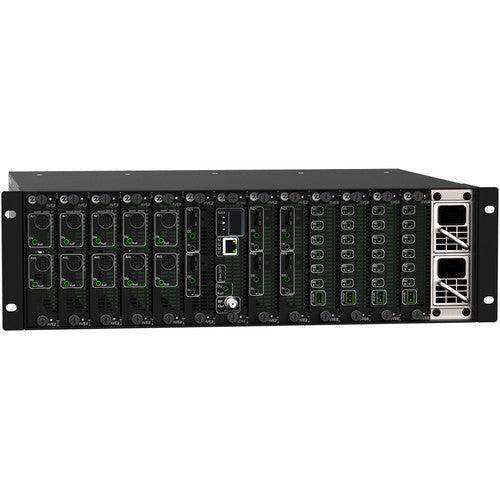

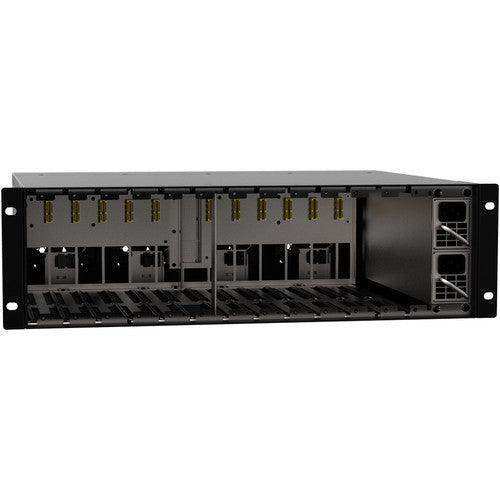

ZeeVee HDB3KR-NA HDBridge3000 Chassis (3 RU)

No reviews

Sale price$3,571.61


Ideal for organizations looking for an easy and affordable way to create a digital head-end for distributing large numbers of AV sources to an unlimited amount of displays, the HDbridge3000 provides a reliable way to deliver multiple channels of video simultaneously within a compact 3RU footprint. Whether you are distributing SD or HD content, over RF or IP, the ZeeVee HDbridge3000 provides the flexibility needed.

The HDbridge3000 is modular with hot-swappable cards, allowing you to mix and match cards with different interfaces and resolution as needed. Populate the chassis with up to 72 channels of SD over RF, 24 channels of HD over RF (with the optional IP streams) or 48 channels of H.264 IP streams. Combine multiple HDbridge3000 units to increase the number of channels.

Increase Security

The HDbridge3000 has built-in Emergency Alert System capability. The ZeeVee Emergency Alert System (EAS) can tie into national or local alert systems. ZeeVee processes alerts sent with either EAS-NET or MPEG streaming. When an alert is active, all current audio and video will be interrupted and replaced with the alert.

Configure, Manage, and Monitor with Ease

The HDbridge3000 built-in management software, called Maestro, makes it simple to set up and manage channels, content, and more from anywhere on your network. ZeeVee RF Modulation products autodetect each other and all devices to managed from one user interface without having to log into multiple devices.

Create Custom Channels

On certain media modules for the HDbridge3000, there is an option an extra channel, called ZvShow, that offers looping customized content. ZvShow will play a video file on a separate channel to enable you to use displays to play commercials, showcase menus, or as digital signage.

Control Set-Top Boxes

The HDbridge3000 management software can control DirecTV and other supported receivers directly from the web interface. You can turn the receiver on or off, change channels, as well as edit a channel’s on-screen display name.

  • 12 media module slots for delivery of any type of content regardless of source inputs
  • Simultaneous video output in both RF over coax and IP over CATx
  • Up to 24 channels of HD content or 72 channels of SD content
  • Zero downtime with hot-swappable media modules, fans, and power supplies
  • No active components on the backplane
  • Configured and maintained using ZeeVee’s user-friendly Maestro management platform
  • Distributes video over RF to an unlimited number of displays leveraging the QAM tuner in the TV
  • ZvEAS connects to national EAS and allows for local emergency message information
  • Playback custom content using the ZvShow channel
  • Compact 3RU form-factor

ZeeVee HDB 3KR Specs

Power 100 to 240 VAC 50/60 Hz, 300 W capacity, IEC 60320-C14 jack
Cooling Four hot swappable, N+1 redundant, high-capacity cooling fans, front inlet, rear exhaust
Supported Modulation Types QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
Cable Standard Standard, HRC, or IRC
Frequency Range Frequency agile QAM RF CATV from 54-864 MHz, Channels 2-135
Frequency must be within 400 MHz band within the chassis
Output Level Adjust 34 to 13 dBmV in 1 dBmV steps
MER > 39 dB, typical
Network Interface 10/100/1000 Mb Ethernet via RJ45 connection
Mounting Standard 19" (48.26 cm) equipment rack mounting
Three standard rack units
Front or rear mountable rack ears
Temperature / Humidity 32 to 113°F (0 to 45°C)
Weight Not specified by the manufacturer
Dimensions 17.4 x 5.1 x 14.75" (441 x 129 x 374 mm)
