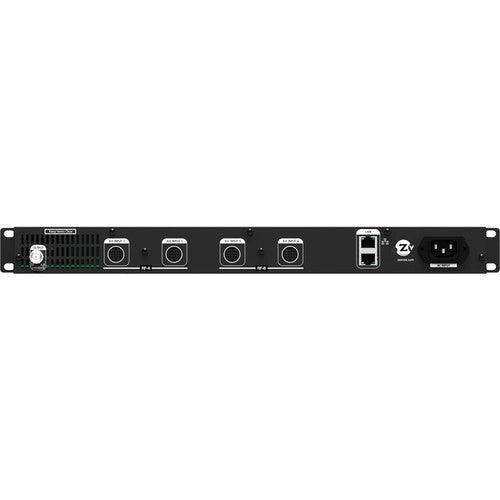

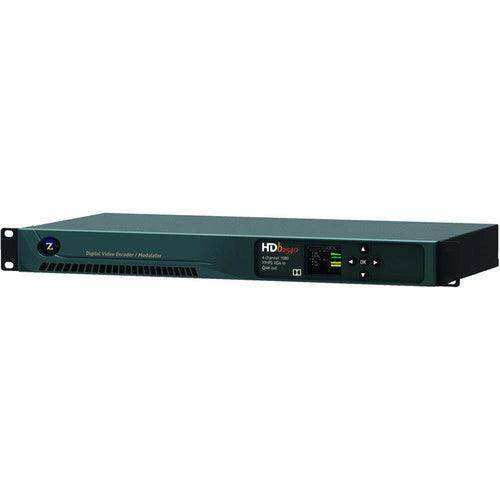

ZeeVee HDB2540-DT 4-Channel HD Digital Encoder/Modulator

Product Overview

The ZeeVee HDB2540-DT is a 4-channel HD digital encoder and QAM modulator in the standalone HDbridge2000 series, designed for DirecTV H25 receiver integration via Hydra cable with component or VGA input support. It is an HD video QAM modulator for IPTV and coax distribution builds at hospitality properties running DirecTV satellite service, delivering four encoded HD channels per unit over existing coax infrastructure. As an MPEG-2 encoder for coax TV distribution, it supports the H25 receiver’s component and VGA outputs through the Hydra cable connection for flexible source routing. Multiple units can be stacked to scale total channel count for larger DirecTV hospitality headend deployments.

Product Description

The HDB2540-DT encodes four independent HD source channels from DirecTV H25 receivers via Hydra cable, connecting to either component or VGA inputs and encoding to MPEG-2 QAM RF for coax distribution. The 4-channel capacity per unit reduces the number of encoder/modulator units needed in a large DirecTV headend compared to 2-channel alternatives, lowering rack space requirements and simplifying cabling. QAM RF output feeds directly into standard coax distribution amplifiers and splitter networks, reaching QAM-capable guest room televisions without requiring individual set-top boxes at each display. The standalone rack-mount form factor integrates into headend equipment racks without requiring a separate chassis, and multiple units can be combined for channel counts beyond four. This model is specifically the DirecTV H25-compatible variant of the HDB2540; for non-DirecTV component or VGA sources, see the HDB2540-NA. MPEG-2 encoding ensures compatibility with the QAM tuners built into commercial hospitality-grade televisions across major brands.

Key Features

• 4-Channel HD Encoding — Encodes four DirecTV H25 HD sources simultaneously per unit for efficient headend channel density.
• DirecTV H25 Compatible — Connects via Hydra cable to DirecTV H25 receivers using component or VGA outputs.
• QAM RF Output — Distributes four HD channels over coax to QAM-capable televisions throughout the property.
• MPEG-2 Encoding — Broad compatibility with hospitality TV QAM tuners.
• Standalone Rack-Mount — No chassis required; integrates directly into headend equipment racks.

Typical Applications

• Hotel and resort DirecTV satellite TV distribution over coax
• Extended stay and multi-unit residential properties with DirecTV service
• Larger hospitality DirecTV headends using multiple units for 8+ channel builds

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the HDB2540-DT and the HDB2540-NA?

The HDB2540-DT is configured for DirecTV H25 receivers using a Hydra cable. The HDB2540-NA accepts standard component or VGA inputs and is not DirecTV-specific.

Is a Hydra cable included with the unit?

Confirm Hydra cable inclusion with Creation Networks at time of purchase.

Can this unit be used with non-DirecTV satellite receivers?

The HDB2540-DT is designed specifically for DirecTV H25. For other receiver types, the HDB2540-NA is the appropriate model.
