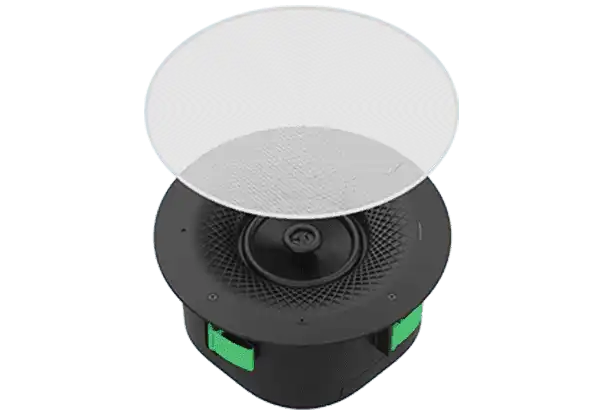

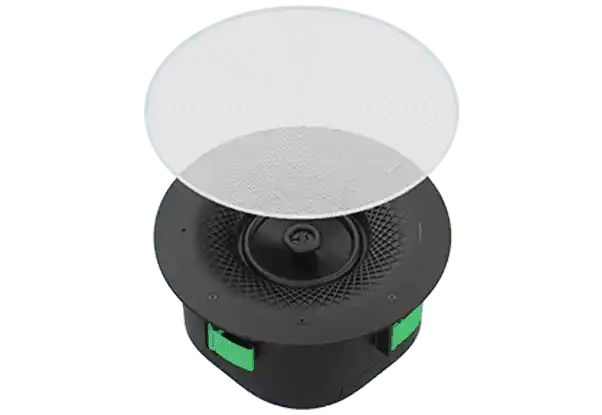

Yealink SkySound CS10-D – Dante Network Ceiling Loudspeaker

Product Overview

The Yealink SkySound CS10-D is a low-profile 2-way coaxial ceiling loudspeaker built for professional video conferencing and presentation audio. It transmits audio over the Dante network protocol and draws power over PoE, simplifying cabling and installation across diverse ceiling types. At just 120mm tall, it disappears into modern conference room ceilings while delivering acoustically tuned, speech-focused sound. This Dante Edition is designed for AV integrators standardizing on networked audio for medium and large meeting spaces.

Product Description

The CS10-D pairs a 5.7 inch low-frequency woofer with a 1.1 inch high-frequency tweeter in a coaxial structure, producing high-fidelity, full-range audio from a single point source. Its acoustic tuning prioritizes speech clarity, making conversations and presentations intelligible across the room. With a sensitivity of 88dB at 1W/1m and a maximum SPL of 99dB at 20W/1m, the speaker fills medium and large rooms with clear, powerful sound.

As a Dante speaker, the CS10-D integrates with standard Dante devices, letting integrators route audio across a networked AV system without point-to-point analog wiring. It functions as an active speaker with an integrated DAC, performing digital signal processing directly from the network for low latency and a clean signal path. Because it is PoE-enabled, a single network cable carries both audio and power, reducing installation time and cost.

The CS10-D supports diverse indoor installation solutions compatible with various ceiling types and grid systems. Its detachable, paintable magnetic grille comes in black and white, allowing the low-profile housing to blend into any interior. Explore the full Yealink collection at Creation Networks, or browse our Yealink audio conferencing products to build a complete networked room.

Key Features

• Dante Network Audio — Supports the Dante audio transmission protocol for integration with standard Dante devices across a networked AV system.
• Coaxial 2-Way Design — Combines a 5.7 inch LF woofer and a 1.1 inch HF tweeter for high-fidelity, full-range audio from a single point source.
• Speech-Tuned Acoustics — Acoustically tuned for speech clarity, with 88dB sensitivity and a 99dB maximum SPL for conferences and presentations.
• PoE-Enabled Active Speaker — Integrated DAC and PoE deliver power and audio over one cable with minimal latency and fast setup.
• Versatile Deployment — Compatible with various ceiling types and grid systems for flexible indoor installation.
• Low-Profile Design — A 120mm housing with a detachable, paintable magnetic grille in black and white blends into modern interiors.

Typical Applications

• Conference and meeting rooms — Speech-tuned coaxial audio keeps remote and in-room participants intelligible.
• Boardrooms and executive spaces — The low-profile, paintable grille preserves a clean ceiling aesthetic.
• Training and presentation rooms — High SPL output fills the room with clear, powerful sound.
• Networked AV deployments — Dante routing simplifies multi-room and multi-zone audio distribution.
• New construction and retrofits — PoE wiring and flexible mounting reduce installation labor.

Technical Specifications

Frequently Asked Questions

Q: Does the CS10-D require a separate amplifier?
A: No. It is an active speaker with an integrated DAC, so it performs digital signal processing directly from the Dante network without an external amplifier.

Q: How is the speaker powered?
A: The CS10-D is PoE-enabled, so a single network cable delivers both power and Dante audio.

Q: Will it integrate with other Dante devices?
A: Yes. It supports the Dante audio transmission protocol and integrates with standard Dante devices across a networked AV system.

Q: What room sizes is it suited for?
A: Its 99dB maximum SPL and speech-tuned acoustics make it well suited to medium and large conference, training, and presentation rooms.

Q: Can the grille be painted to match our ceiling?
A: Yes. The detachable magnetic grille is paintable and ships in black and white to blend with the surrounding interior.

Q: What ceiling types does it support?
A: It supports diverse indoor installation solutions compatible with various ceiling types and grid systems.
