Yealink MVC S40-C5-000 – Teams Rooms System

Product Overview

The Yealink MVC S40-C5-000 is a native Microsoft Teams Rooms system engineered for small to medium conference rooms. This Yealink MVC S40 Teams Rooms system bundles the SmartVision 40 AI camera, MCore Pro mini-PC, and MTouch Plus touch console into a single certified kit that delivers AI-framed video, premium audio, and one-touch meeting control. For AV integrators and IT teams standardizing on Microsoft Teams Rooms, the MVC S40 provides inclusive video conferencing with dual 48MP lenses, IntelliFocus, and Multi-Stream IntelliFrame in a compact, single-camera deployment. It balances performance, simplicity, and cost-efficiency for hybrid small-to-medium meeting spaces.

Product Description

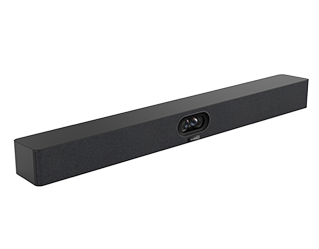

The Yealink MVC S40-C5-000 combines the SmartVision 40 intelligent all-in-one device with the MCoreKit-C5 package to create a complete Microsoft Teams Rooms solution. The SmartVision 40 camera uses dual 48MP wide-angle lenses with a 120-degree field of view, AI-powered framing, and an automatic privacy shutter, plus Teams-certified features including IntelliFocus, Video Fence, and IntelliFrame. Audio is handled by an 8 MEMS microphone array with 6-meter voice pickup, AI-based noise reduction, and integrated stereo speakers for natural in-room sound.

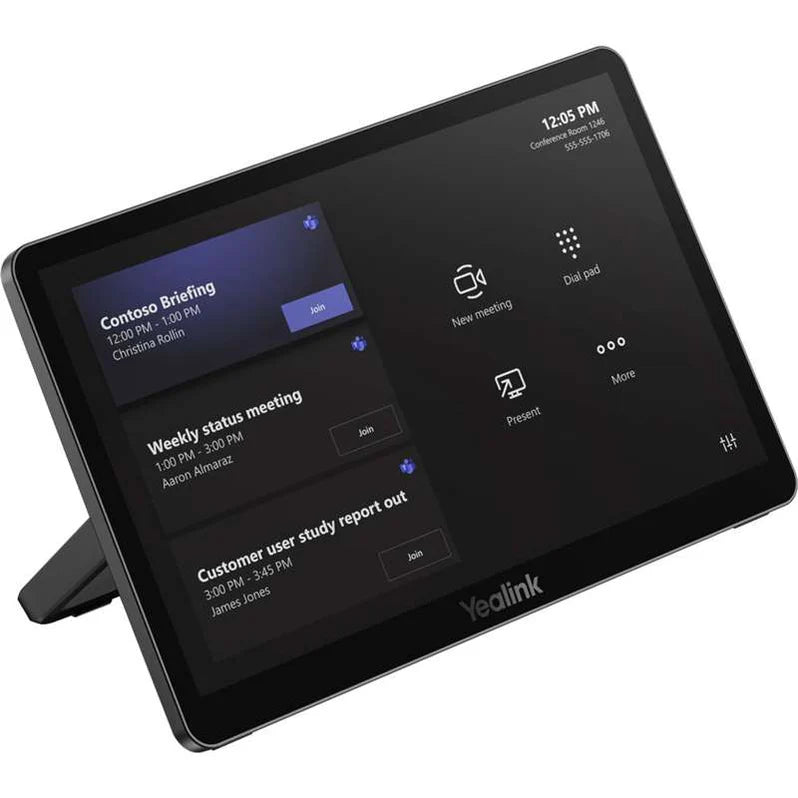

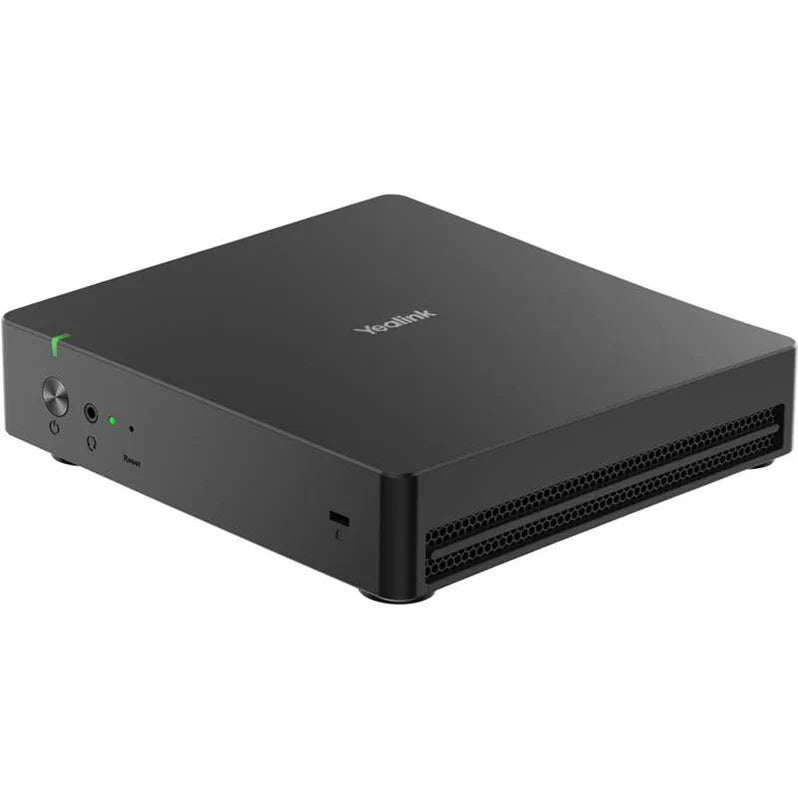

At the core of the kit is the MCore Pro mini-PC, built on the Intel Ultra 5 125H with an integrated NPU delivering 34 TOPS of AI computing, 8GB RAM, 128GB SSD, and a built-in EDID module with CEC for flexible room integration. The MTouch Plus console features a large 11.6-inch Full HD touchscreen with HDMI and USB-C input, wireless content sharing, and a motion sensor for instant wake-up. An included RoomSensor automatically detects occupancy and reports real-time environmental data such as temperature and humidity on the MTouch Plus panel.

The MVC S40 is future-ready with Multi-Stream IntelliFrame, giving each participant an individual video feed with name tag and speaker identification for next-generation Teams meeting equity. Enterprise-grade security includes TPM 2.0, secure boot, and AVLAN/Internet separation for IT-approved deployment. The mini-PC ships preloaded with Windows 11 IoT, the Teams Rooms app, and the Yealink Camera Control Plug-in, plus power adapters, cables, and a wall bracket. Compared with larger systems like the MVC S50, the S40 suits smaller huddle spaces and mid-sized rooms where compact installation and all-in-one functionality matter. Browse the full Yealink collection at Creation Networks to compare Teams Rooms kits and accessories.

Key Features

• SmartVision 40 AI Camera — Dual 48MP wide-angle lenses with 120-degree field of view, AI framing, and automatic privacy shutter.
• Teams-Certified AI Framing — Includes IntelliFocus, Video Fence, and IntelliFrame for clear, equitable participant framing.
• Premium Audio — 8 MEMS microphone array with 6-meter voice pickup, AI noise reduction, and integrated stereo speakers.
• MCore Pro Mini-PC — Intel Ultra 5 125H with integrated NPU for 34 TOPS of AI computing, 8GB RAM, and 128GB SSD.
• MTouch Plus Console — 11.6-inch Full HD touchscreen with HDMI/USB-C input, wireless sharing, and motion-sensor wake-up.
• RoomSensor Integration — Detects occupancy and reports temperature and humidity directly on the MTouch Plus panel.
• Multi-Stream IntelliFrame — Gives each participant an individual feed with name tag and speaker identification for Teams equity.
• Enterprise-Grade Security — TPM 2.0, secure boot, and AVLAN/Internet separation for IT-approved deployment.

Typical Applications

• Small to Medium Conference Rooms — The all-in-one camera and compact kit fit huddle and mid-sized rooms without multi-camera complexity.
• Hybrid Team Workspaces — AI framing and Multi-Stream IntelliFrame keep remote participants seen and framed equitably.
• Standardized Teams Deployments — Preloaded Teams Rooms software and one-touch start simplify rollouts across multiple rooms.
• Security-Conscious Environments — TPM 2.0 and AVLAN/Internet separation support IT-approved installations.

Technical Specifications

Frequently Asked Questions

Q: Is the MVC S40 a native Microsoft Teams Rooms system?
A: Yes. The MCore Pro mini-PC ships preloaded with Windows 11 IoT and the Microsoft Teams Rooms app for native Teams operation.

Q: What room sizes does it support?
A: The MVC S40 is designed for small to medium conference rooms and huddle spaces using its single all-in-one SmartVision 40 camera.

Q: What is included in the kit?
A: The kit includes the SmartVision 40 camera, MCore Pro mini-PC, MTouch Plus console, RoomSensor, power adapters, cables, and a wall bracket.

Q: How does the MVC S40 differ from the MVC S50?
A: The S40 uses a single SmartVision 40 camera for small-to-medium rooms, while the S50 uses the triple-camera SmartVision 60 for medium-to-large rooms with extended coverage.

Q: What security features support IT deployment?
A: It includes TPM 2.0, secure boot, and AVLAN/Internet separation for IT-approved deployment.

Q: What warranty is included?
A: The MVC S40 includes a 2-year Yealink hardware warranty.

Q: Where can I compare other Yealink Teams Rooms systems?
A: Browse the Yealink collection at Creation Networks to compare kits and accessories.
