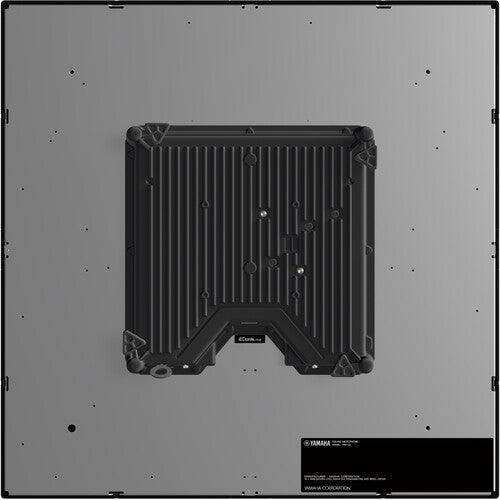

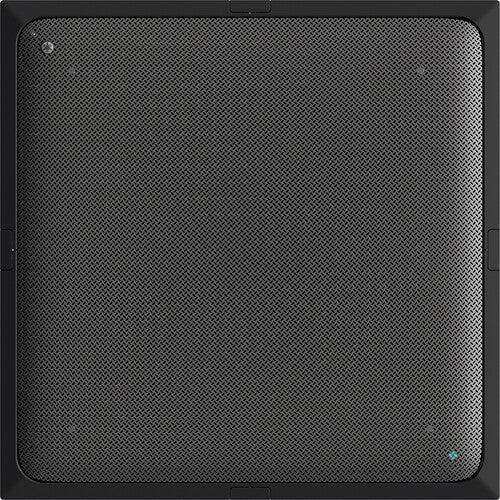

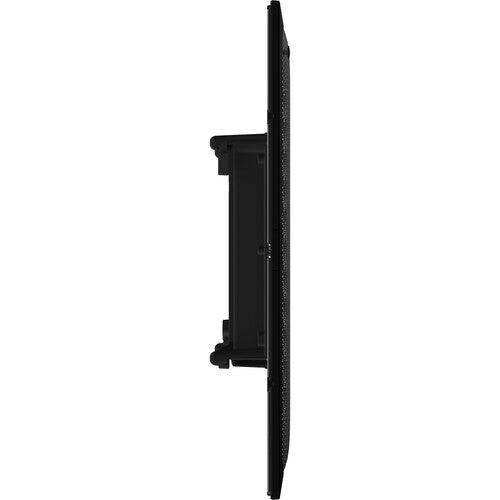

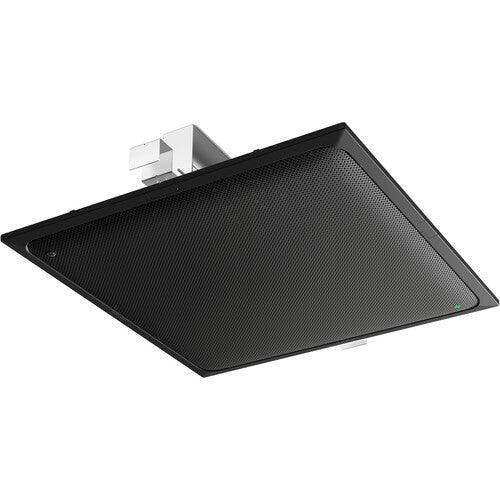

System integrators and installers looking for a complete and customized communication solution for meeting spaces, and classroom audio will be impressed with the black Yamaha RM-CG, a beamforming ceiling array microphone that's part of the ADECIA system and includes remarkable processing technology that enables high-quality communication.
The RM-CG utilizes four auto-tracking beams to track simultaneous speech, allowing the dynamic voice tracking technology to scan for the human voice and ensure lively conversations. Yamaha incorporated several innovative technologies into the system including Adaptive Echo Canceller, Automatic Gain Control, Noise Reduction, and Dereverberation.
The RM-CG interfaces with the RM-CR remote conference processor (sold separately) for automatic detection and configuration. A single PoE cable connection avoids troublesome wiring and enables network audio support and control via Dante. The RM-CG supports three types of mounting methods for use with a variety of ceiling conditions.
- Microphone for ADECIA System
- Customizable Communications Solutions
- Dynamic Voice Tracking for Human Voice
- Four Auto Tracking Beams
- Works with RM-CR Signal Processor
- Incorporates Innovative Technologies
- Network Audio Support for Dante
- Single PoE Network Cable Connection
- Supports Multiple Mounting Methods
Yamaha AD-CG-B Specs
|Audio I/O||Dante: 1 x Input, 2 x Outputs|
|Sampling Rate||48 kHz|
|Latency||56 ms (Except Dante Connection)|
|Frequency Response||160 Hz to 16 kHz (-10 dB)|
|SPL Level||117.8 dB Maximum Input Level of SPL (0 dBFS)|
|Self Noise||-0.8 dBA|
|SNR||94.8 dB (Ref. 94 dB SPL at 1 kHz)|
|Dynamic Range||118.6 dB|
|Signal Processing||Multi-Beam Tracking, Acoustic Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto-Gain Control, User Program EQ, Output Gain|
|Ethernet||Dante Audio/Dante Control, Remote Control, WebUI, PoE+|
|Cable Requirements||Cat 5e or higher (STP Recommended)|
|Indicator||Front Indicator (Mute/Unmute & Status)
Network Port Indicator
|Power||PoE (IEEE 802.3af), 48 VDC|
|Power Consumption||7.2 W, Maximum|
|Ip Rating||Dust Protection: IP5X Equivalent|
|Plenum Rating||UL2043 (With Junction Cover)|
|Temperature & Humidity||
Temperature in Operation: 32 to 104°F / 0 to 40°C
Temperature in Storage: -4 to 140°F / -20 to 60°C
Humidity in Operation: 30 to 90%
Humidity in Storage: 20 to 90%
|Dimensions||22 x 22 x 3.5" / 560 × 560 × 90 mm (Includes Protrusion/Microphone Panel: 0.86" / 22 mm)|
|Weight||12.3 lb / 5.6 kg|
