Yamaha ADECIA Ceiling Bundle Black – RM-CG-B Conference Room System

Product Overview

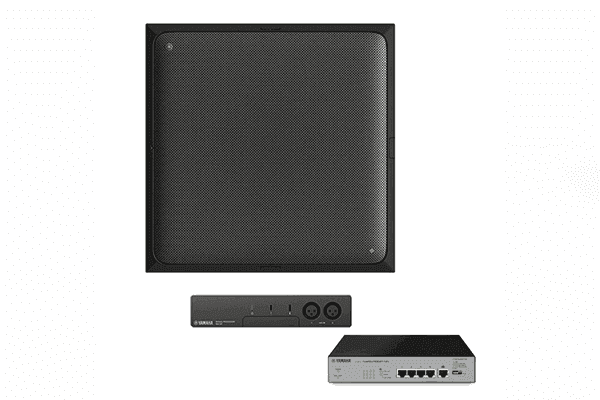

The Yamaha ADECIA Ceiling Bundle Black (RM-CG-B) is a complete, networked ceiling microphone conference system in black finish, engineered for professional meeting rooms with dark ceiling aesthetics. It pairs the RM-CG-B black ceiling array microphone with the RM-CR Remote Conference Processor and an SWR-2100P-5G PoE network switch, delivering a single-vendor Dante audio deployment out of the box. AV integrators and facilities managers benefit from automatic acoustic tuning, integrated signal processing, and a single-cable PoE architecture that reduces installation complexity. The bundle is suited to boardrooms, executive suites, and commercial spaces where a black ceiling microphone finish is specified.

Product Description

The RM-CG-B Ceiling Array Microphone uses Multi Beam Tracking to follow active speakers continuously without manual beam adjustment or operator intervention. Powered over a single Cat 5e+ STP cable via PoE (IEEE 802.3af, 7.2W max), the microphone connects via RJ45 and transmits audio over Dante at 48kHz/24-bit with 1 Dante input and 2 Dante outputs. UL2043 plenum rating (with terminal cover) and IP5X dust protection satisfy commercial above-ceiling installation requirements, making the RM-CG-B code-compliant in most jurisdictions.

Onboard signal processing includes Acoustic Echo Cancellation (AEC), Noise Reduction, Dereverberation, Auto Mixer, Automatic Gain Control, and Parametric EQ — all handled without external DSP. The RM-CR Remote Conference Processor performs Auto Tuning at commissioning and provides USB, Bluetooth, and analog audio I/O for compatibility with Windows, macOS, iOS, and Android UC platforms. The SWR-2100P-5G PoE switch powers and interconnects all bundle components over a single managed network. Standard latency is 58ms; low-latency mode reduces this to 22ms for demanding conferencing applications. The black (RM-CG-B) finish integrates with black T-bar ceilings, dark acoustic tile, or design-forward interior environments.

Creation Networks supplies this bundle as a complete, verified Yamaha ADECIA Ceiling Bundle for commercial AV deployments across the United States. For complementary ceiling speakers, DSP, and video conferencing peripherals, visit creationnetworks.net.

Key Features

• Multi Beam Tracking — Continuously follows active speakers around the room, no manual steering required.
• Single-Cable PoE Architecture — Dante audio, control, and power over one Cat 5e+ STP cable via IEEE 802.3af simplifies ceiling runs.
• Integrated Signal Processing — AEC, Noise Reduction, Dereverberation, Auto Mixer, AGC, and PEQ built in, eliminating the need for a separate DSP in most deployments.
• Auto Tuning via RM-CR — Automatic acoustic calibration at commissioning reduces on-site tuning time.
• Plenum-Rated Construction — UL2043 rating with terminal cover and IP5X dust protection for compliant above-ceiling installation.
• Native Dante Transport — 48kHz/24-bit Dante integrates directly with Dante-enabled amplifiers, DSPs, and UC platforms.
• USB + Bluetooth + Analog I/O — RM-CR connects to all major UC clients across Windows, macOS, iOS, and Android.
• Black Finish (RM-CG-B) — Designed for dark ceilings, black T-bar grids, and design-forward commercial interiors.
• Low-Latency Mode — 22ms Dante latency option for applications where end-to-end delay is critical.
• Complete Bundle — Microphone, processor, and PoE switch ship together as a single SKU for streamlined procurement.

Typical Applications

• Corporate boardrooms and executive conference rooms with dark ceiling finishes
• Design-forward commercial meeting spaces
• Training rooms and lecture halls with black acoustic tile
• Huddle spaces requiring ceiling-mounted mic coverage
• Government and higher education conference facilities
• Healthcare administrative meeting rooms
• AV-over-IP Dante network installations

Technical Specifications

Frequently Asked Questions

What is included in the Yamaha ADECIA Ceiling Bundle Black?

The bundle includes the RM-CG-B Black Ceiling Array Microphone, the RM-CR Remote Conference Processor, and the SWR-2100P-5G PoE Network Switch. All three components are required for a complete ADECIA ceiling microphone deployment.

How does the black bundle differ from the white bundle (RM-CG-W)?

The only difference is microphone finish: RM-CG-B is black for dark ceilings or design-forward spaces; RM-CG-W is white for standard commercial ceiling tile. All technical specifications and included components are identical.

Does this system require additional DSP hardware?

No. The RM-CG-B includes built-in AEC, Noise Reduction, Dereverberation, Auto Mixer, AGC, and PEQ. The RM-CR adds Auto Tuning and audio routing. For most commercial conference rooms, no third-party DSP is required.

What cabling is required to install the RM-CG-B?

A single Cat 5e or better shielded twisted pair (STP) cable runs from the RM-CG-B to the SWR-2100P-5G switch, delivering Dante audio, control, and PoE power on one run. No separate power cabling is needed at the ceiling.

Is the RM-CG-B plenum-rated for above-ceiling installation?

Yes. With the terminal cover installed, the RM-CG-B carries a UL2043 plenum rating. IP5X dust protection is also included, meeting commercial building codes for above-ceiling spaces in most jurisdictions.

Which UC platforms work with this system?

The RM-CR connects via USB, Bluetooth, or analog audio I/O and supports Windows, macOS, iOS, and Android platforms, covering Microsoft Teams, Zoom, Cisco Webex, and other major UC clients.

Can the system be expanded with additional microphones?

Yes. The ADECIA architecture supports expansion with additional microphone units connected through the RM-CR and managed network. Contact a Creation Networks specialist at creationnetworks.net to plan a multi-microphone deployment.

What ceiling types are compatible with the RM-CG-B installation?

The RM-CG-B supports ceiling mount, wire mount, and VESA mount configurations, accommodating standard drop ceilings, open plenum spaces, and custom mounting scenarios common in commercial AV installations.
