Yamaha ADECIA Ceiling Bundle White – RM-CG-W Conference Room System

Product Overview

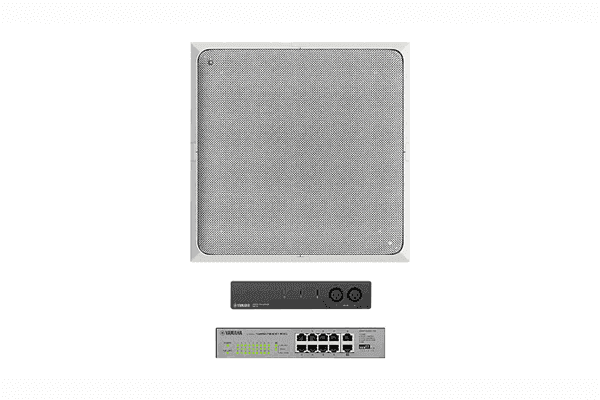

The Yamaha ADECIA Ceiling Bundle White (RM-CG-W) is a complete, networked ceiling microphone conference system engineered for professional meeting rooms. It pairs the RM-CG-W white ceiling array microphone with the RM-CR Remote Conference Processor and an SWR-2100P-5G PoE network switch, providing everything required for a single-vendor Dante audio deployment. AV integrators and facilities managers can deploy a fully configured conferencing solution with automatic acoustic tuning and zero-touch audio optimization. The bundle suits boardrooms, huddle rooms, and any commercial space where ceiling microphone coverage is preferred over tabletop alternatives.

Product Description

The RM-CG-W Ceiling Array Microphone uses Multi Beam Tracking to follow active speakers across the room without manual adjustment. Powered entirely over a single Cat 5e+ STP cable via PoE (IEEE 802.3af, 7.2W max), the microphone connects to the network through an RJ45 port and transmits audio over Dante at 48kHz/24-bit with 1 Dante input and 2 Dante outputs. The microphone carries a UL2043 plenum rating (with terminal cover) and IP5X dust protection, meeting the installation requirements for above-ceiling spaces in commercial buildings.

Built-in signal processing on the RM-CG-W includes Acoustic Echo Cancellation (AEC), Noise Reduction, Dereverberation, Auto Mixer, Automatic Gain Control, and Parametric EQ — all configurable without third-party DSP hardware. The RM-CR Remote Conference Processor adds Auto Tuning, USB, Bluetooth, and analog audio I/O, and is compatible with Windows, macOS, iOS, and Android conferencing platforms. The included SWR-2100P-5G PoE network switch powers and interconnects all system components over a single managed network infrastructure. Latency is 58ms in standard mode and 22ms in low-latency mode, suitable for demanding live conferencing applications. The white (RM-CG-W) finish integrates cleanly with standard commercial ceiling tile systems.

Creation Networks supplies this bundle as a complete, verified Yamaha ADECIA Ceiling Bundle for commercial AV deployments across the United States. For complementary ceiling speakers, DSP, and video conferencing peripherals, visit creationnetworks.net.

Key Features

• Multi Beam Tracking — Automatically tracks active speakers around the room without manual beam steering or reconfiguration.
• Single-Cable PoE Connectivity — Dante audio, control, and power all run over one Cat 5e+ STP cable via IEEE 802.3af PoE, simplifying installation.
• Integrated Signal Processing — AEC, Noise Reduction, Dereverberation, Auto Mixer, AGC, and PEQ are built into the microphone, reducing dependency on external DSP.
• Auto Tuning via RM-CR — The Remote Conference Processor performs automatic acoustic calibration at commissioning, cutting setup time significantly.
• Plenum-Rated Construction — UL2043 rating with terminal cover and IP5X dust protection satisfies commercial building installation codes for above-ceiling deployment.
• Dante Audio Network — Native Dante transport at 48kHz/24-bit integrates directly with Dante-enabled amplifiers, DSPs, and UC platforms.
• USB + Bluetooth + Analog I/O — RM-CR supports multiple connection types for UC platforms across Windows, macOS, iOS, and Android.
• Complete Bundle — Microphone, processor, and PoE switch ship together as a single SKU, reducing procurement complexity for integrators.
• Low-Latency Mode — 22ms Dante latency option supports applications where end-to-end delay is a critical factor.
• VESA and Wire Mount Options — Ceiling, wire, and VESA mounting adapters allow flexible installation across varied ceiling types.

Typical Applications

• Corporate boardrooms and executive conference rooms
• Medium to large formal meeting rooms
• Training rooms and lecture halls
• Huddle spaces requiring ceiling-mounted mic coverage
• Government and higher education conference facilities
• Healthcare administrative meeting rooms
• AV-over-IP Dante network installations

Technical Specifications

Frequently Asked Questions

What is included in the Yamaha ADECIA Ceiling Bundle White?

The bundle includes the RM-CG-W White Ceiling Array Microphone, the RM-CR Remote Conference Processor, and the SWR-2100P-5G PoE Network Switch. All components are required for a complete ADECIA ceiling microphone deployment.

Does this bundle require additional DSP hardware?

No. The RM-CG-W includes built-in AEC, Noise Reduction, Dereverberation, Auto Mixer, AGC, and PEQ. The RM-CR adds Auto Tuning and manages audio routing. For most commercial conference rooms, no third-party DSP is required.

What cabling is required to install the RM-CG-W?

A single Cat 5e or better shielded twisted pair (STP) cable runs from the RM-CG-W to the SWR-2100P-5G switch, carrying Dante audio, control signals, and PoE power simultaneously. No separate power cabling to the microphone is needed.

Is the RM-CG-W suitable for above-ceiling plenum spaces?

Yes. The RM-CG-W carries a UL2043 plenum rating when installed with the terminal cover, and provides IP5X dust protection. It meets standard commercial building codes for above-ceiling installation in most jurisdictions.

What UC platforms are compatible with this system?

The RM-CR connects via USB, Bluetooth, or analog audio I/O and is compatible with Windows, macOS, iOS, and Android platforms, covering major UC clients including Microsoft Teams, Zoom, Cisco Webex, and others.

How large a room can the RM-CG-W cover?

The RM-CG-W is designed for medium to large conference rooms. Coverage area depends on ceiling height and room acoustics. Yamaha's Auto Tuning via the RM-CR adapts the beam patterns to the specific room geometry at commissioning.

Can additional microphones be added to expand coverage?

Yes. The ADECIA system supports expansion via additional ADECIA microphone units connected through the RM-CR and managed network. Contact a Creation Networks AV specialist at creationnetworks.net to design a multi-microphone deployment.

What is the difference between the white (RM-CG-W) and black (RM-CG-B) ceiling bundles?

The only difference is the microphone finish. The RM-CG-W is white for standard commercial ceilings; the RM-CG-B is black for dark ceilings or design-forward environments. All technical specifications and included components are identical.
