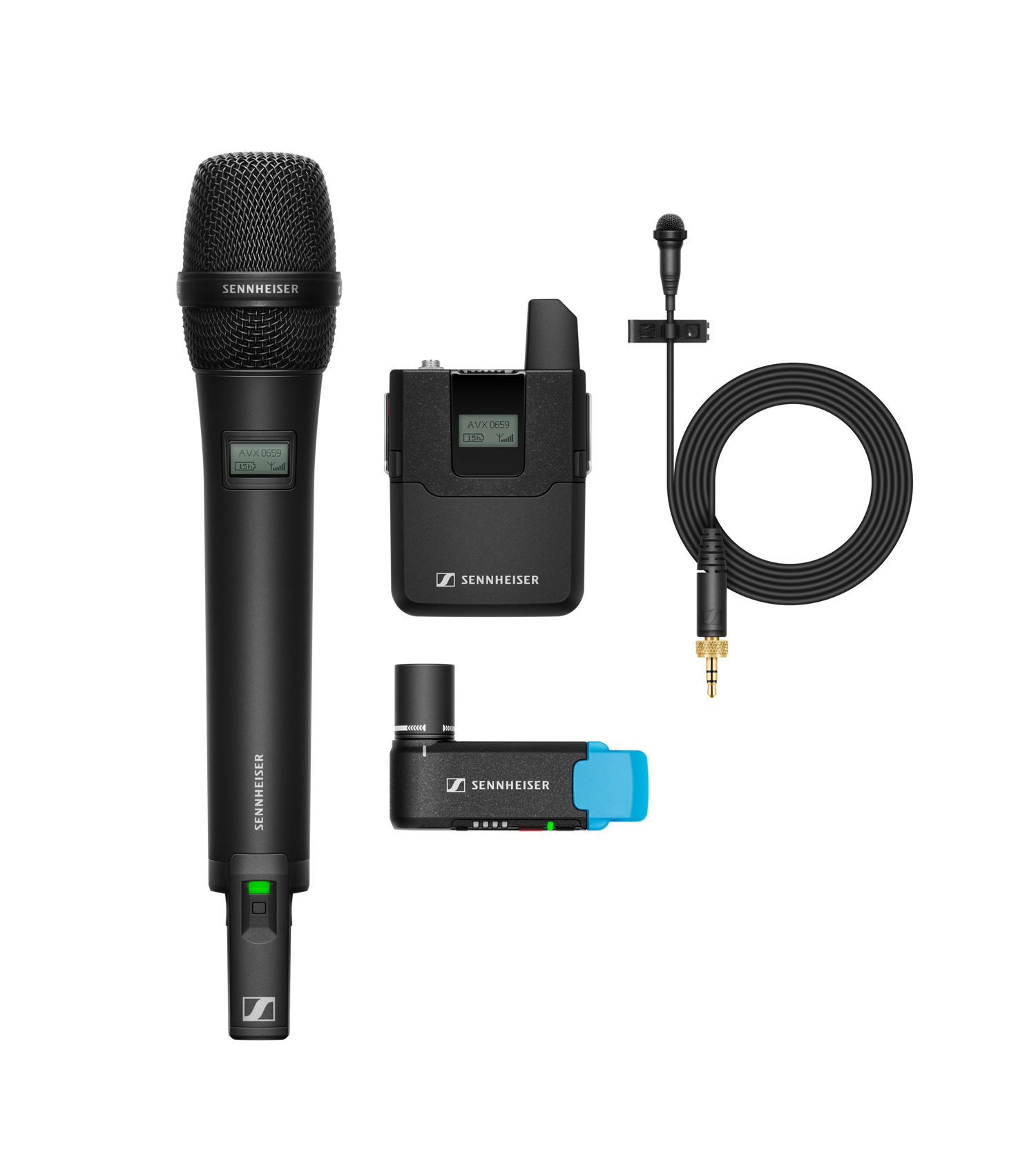

Sennheiser Wireless vocal set. Inc. EKP AVX receiver, SK AVX bodypack transmitter, ME 2 clip-on mic, SKM AVX handheld transmitter with MMD 835 capsule, BA batteries, EKP AVX adapter, NT 5-10U power supply, CI 400 cable, misc.

Product Overview

The Sennheiser AVX Wireless Vocal Set (SKU 509103) is a complete digital 1.9 GHz wireless system combining a handheld transmitter, bodypack transmitter, ME 2 lavalier, and the compact EKP AVX plug-on receiver in a single kit. Designed for broadcast, corporate video, filmmaking, and mobile production, the AVX system uses automatic frequency management and self-configuring digital transmission to eliminate manual RF setup entirely. Operating license-free in the 1.9 GHz band, it is suited for ENG, EFP, interview, and small conference room wireless deployments where speed of setup and audio quality are priorities.

Product Description

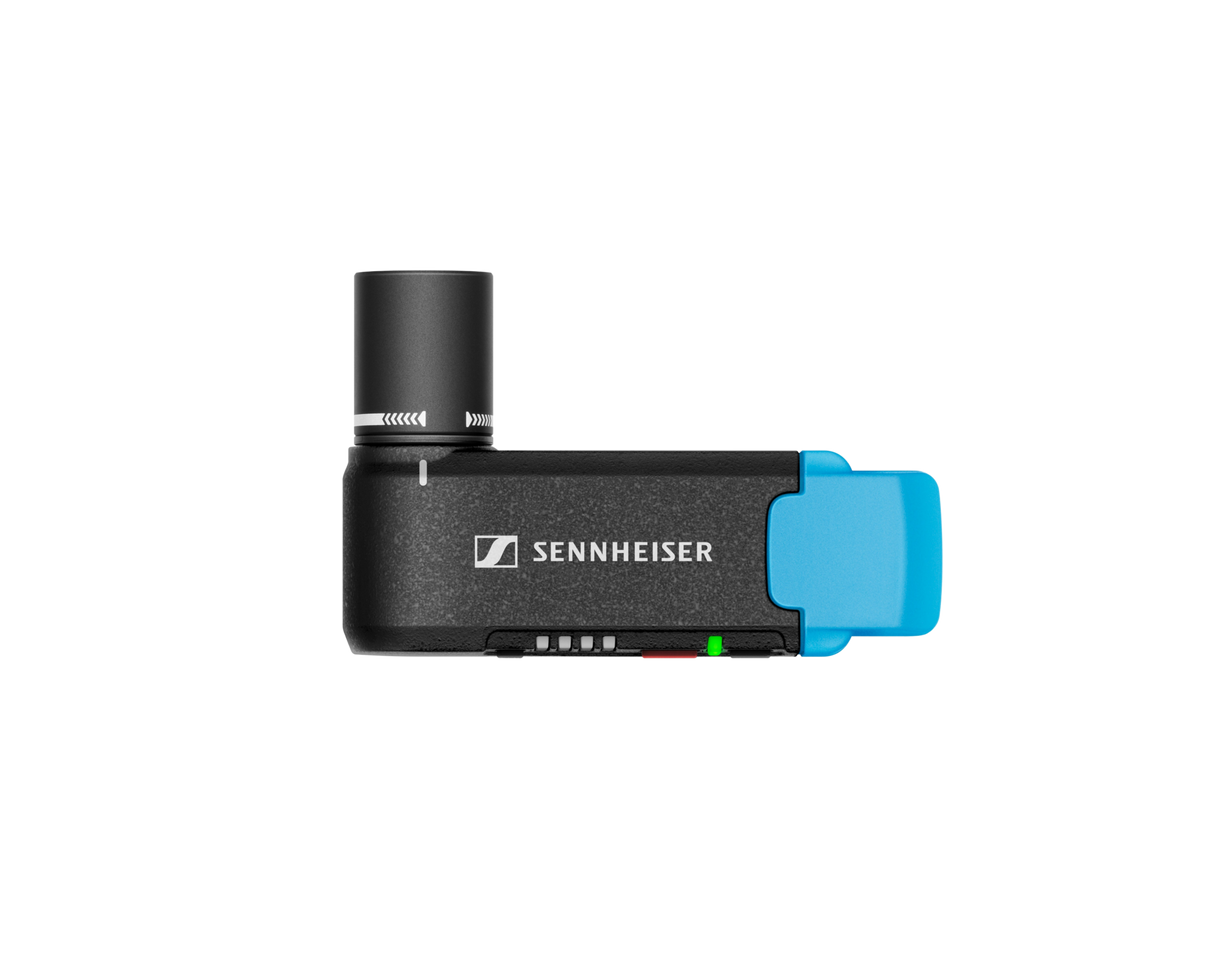

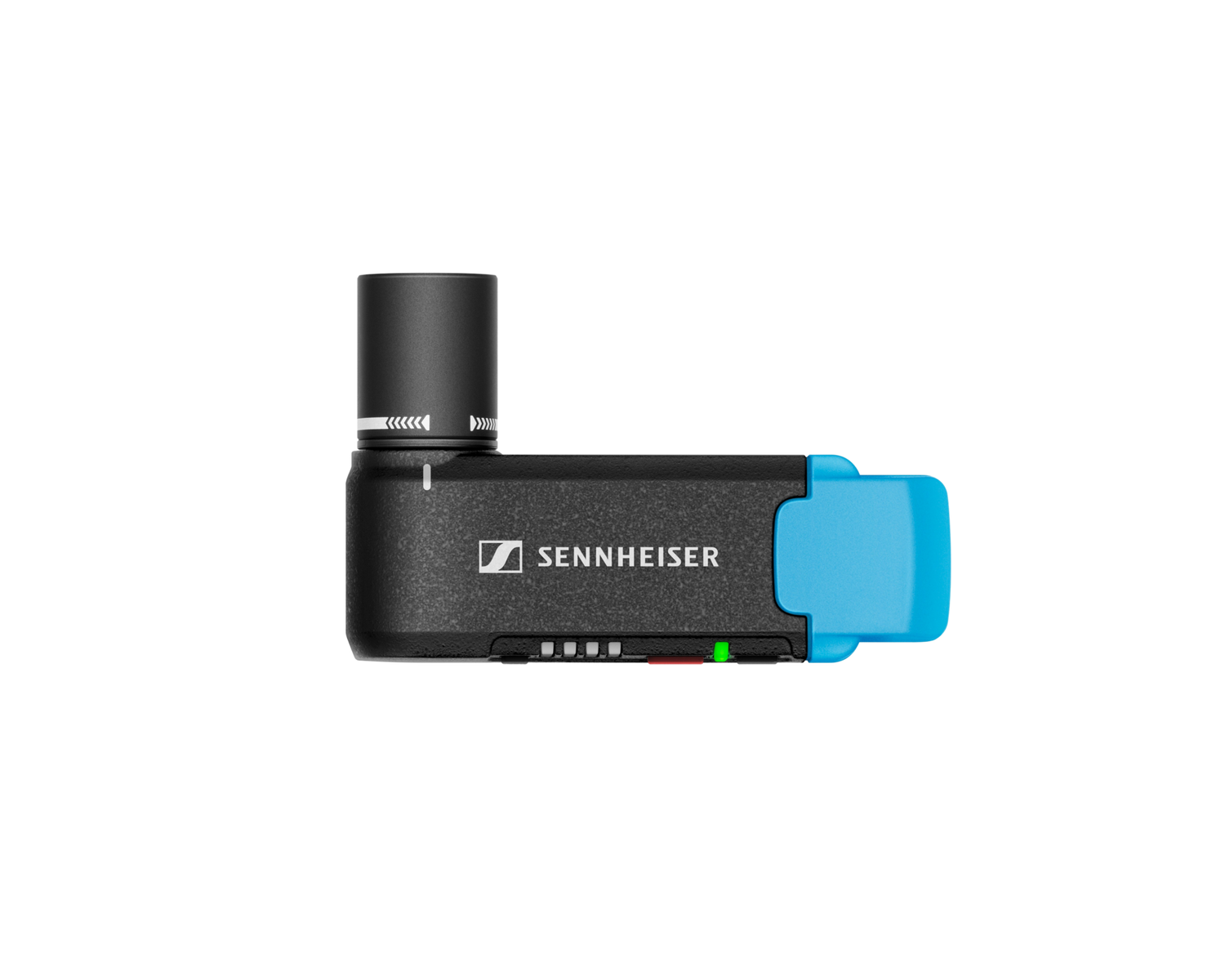

The AVX system is built around the EKP AVX plug-on receiver, a compact unit that mounts directly onto a camera or recorder’s XLR input and powers on and off automatically via P48 phantom power — no separate power cable required. Auto frequency management continuously scans the 1.9 GHz band and selects the cleanest available channel without user intervention, supporting up to 12 systems operating simultaneously in range. The SK AVX bodypack transmitter includes the ME 2 omnidirectional condenser lavalier microphone and is powered by the rechargeable BA 30 battery pack. The SKM AVX handheld transmitter ships with the MMD 835 cardioid dynamic capsule and is powered by the BA 10 rechargeable battery. All audio is processed at 24-bit / 48 kHz with AES 256 encryption and greater than 120 dB dynamic range, with a 19 ms system latency. The operating range is up to 30 meters (98 feet) line of sight, suitable for standard interview and conference settings. The included NT 5-10U USB power supply charges the accupacks, and the CI 400 adapter cable accommodates mini-jack connections where needed. No FCC license is required for US operation in the 1.9 GHz band.

Key Features

• Auto Frequency Management — Self-configuring digital system selects the cleanest available channel automatically, eliminating manual RF coordination.
• Phantom-Powered EKP AVX Receiver — Plug-on receiver mounts directly to XLR input on cameras or field recorders; powers on/off automatically with P48 phantom power.
• License-Free 1.9 GHz Operation — No FCC license required for US operation; up to 12 systems usable simultaneously.
• 24-bit / 48 kHz Audio — Broadcast-grade digital audio with greater than 120 dB dynamic range.
• AES 256 Encryption — All wireless audio transmission is encrypted for secure interview and corporate video production.

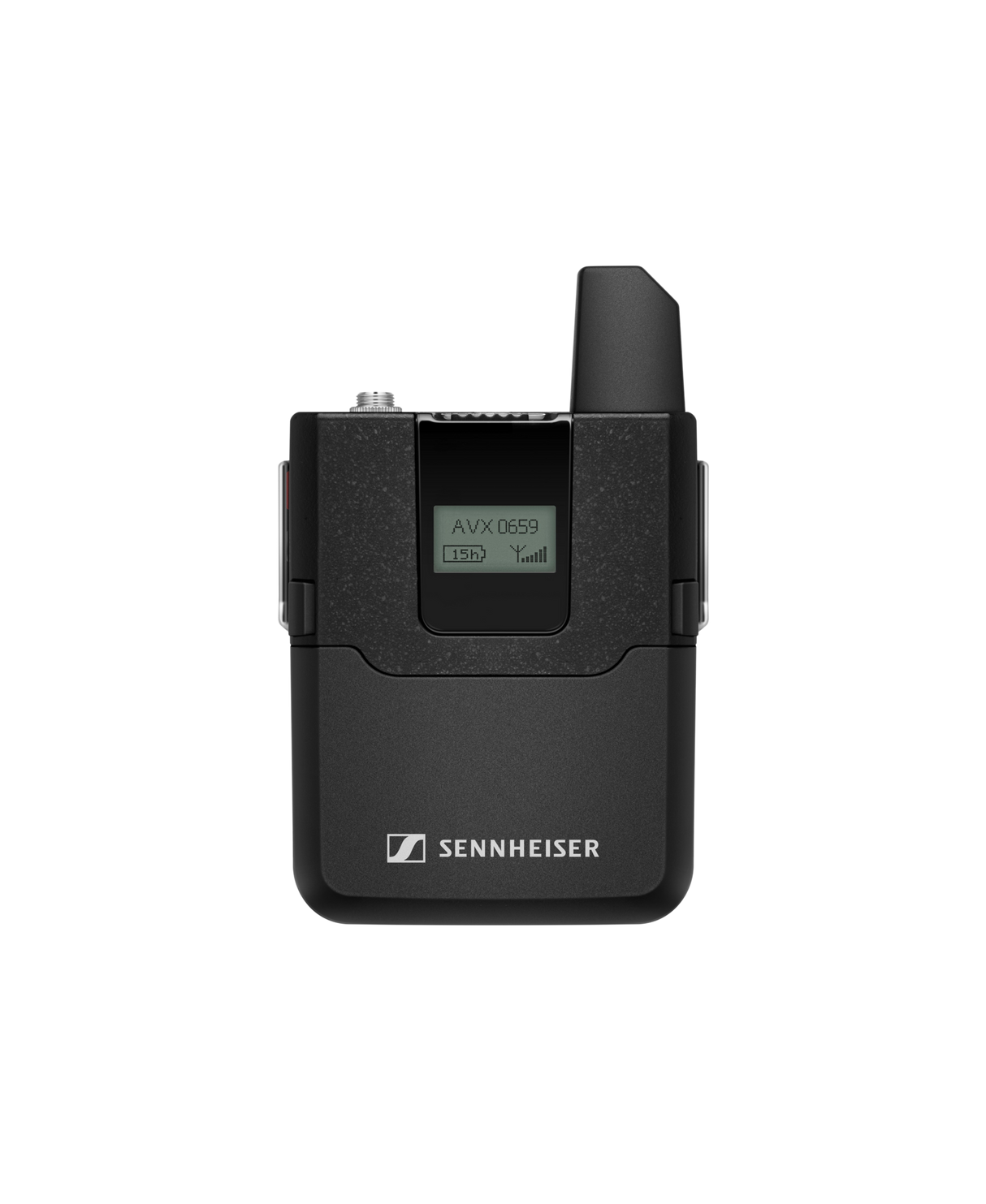

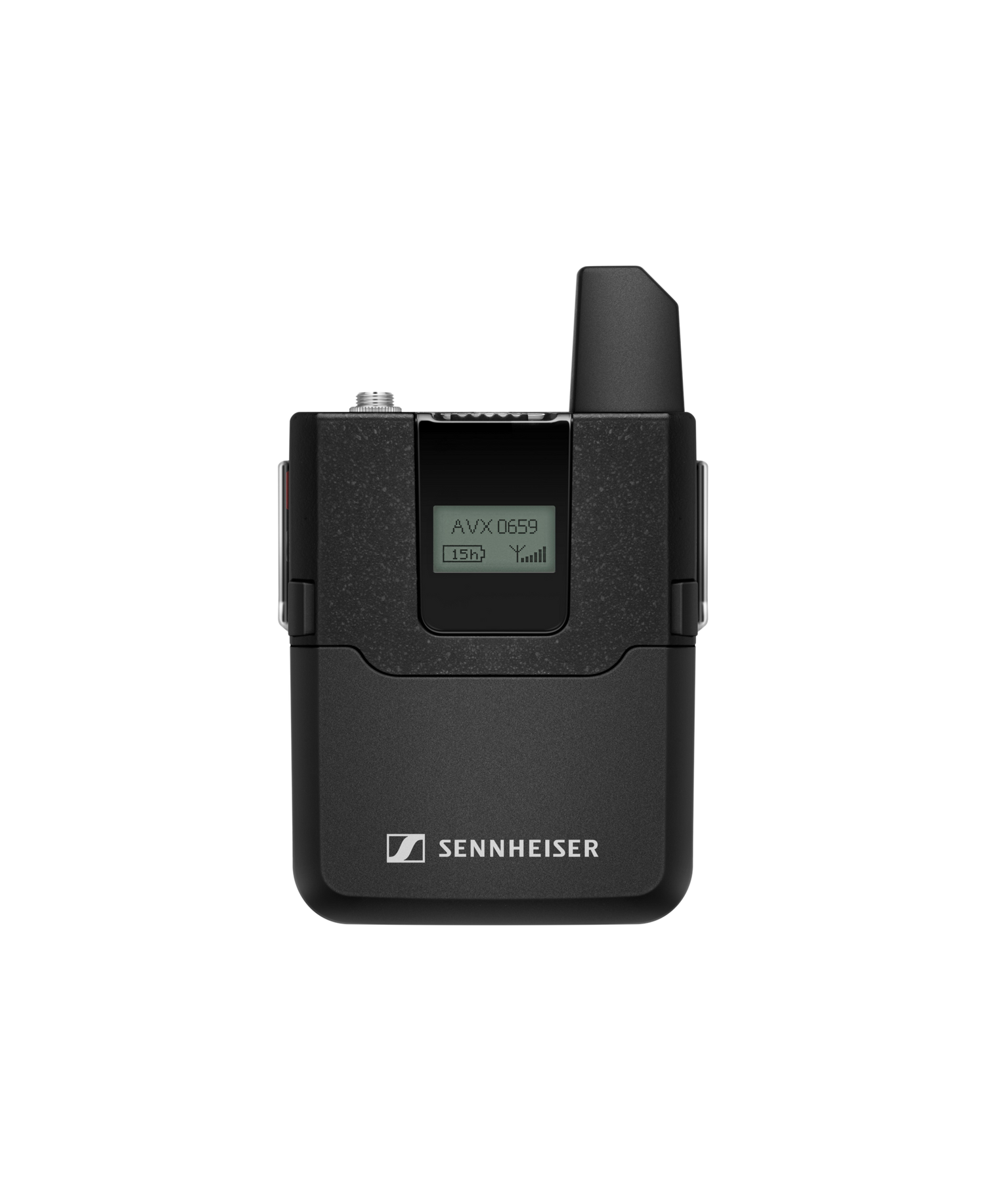

• ME 2 Omnidirectional Lavalier Included — Clip-on condenser lavalier for hands-free talent audio on bodypacks.

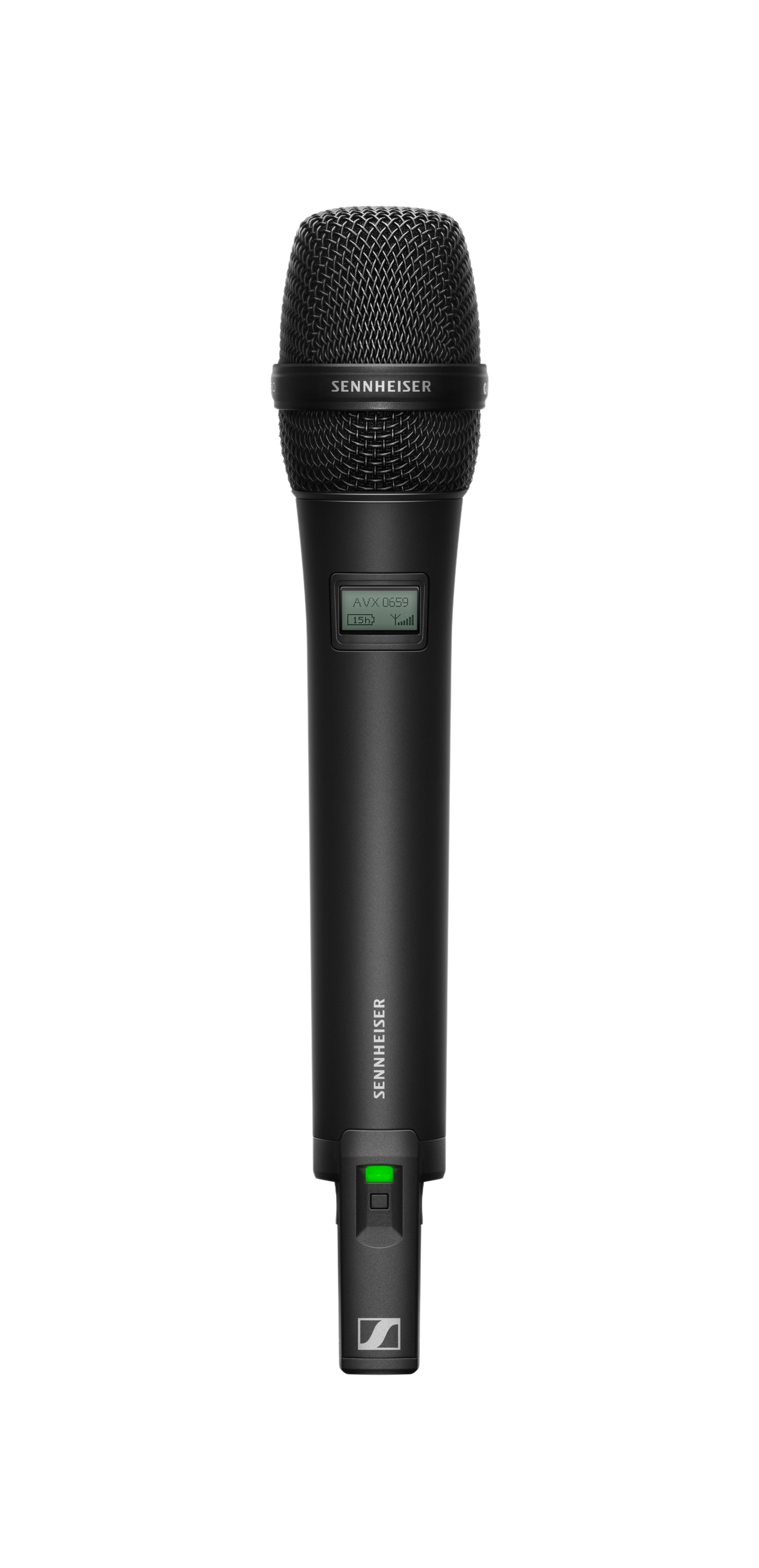

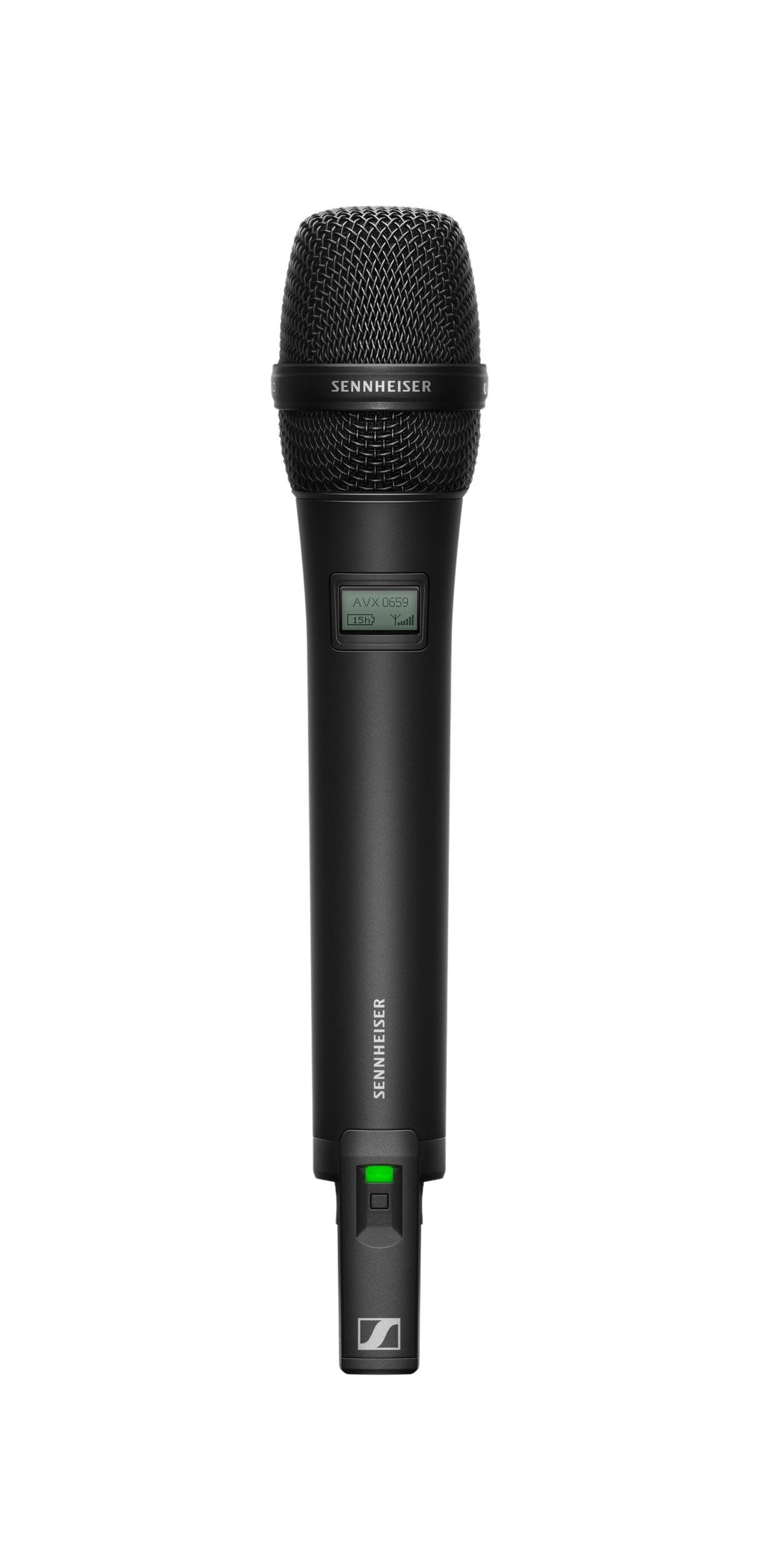

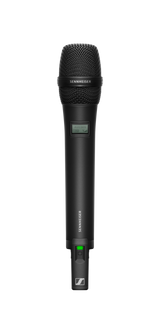

• MMD 835 Cardioid Dynamic Capsule Included — Handheld capsule suited for presenter, interview, and vocal applications.
• Rechargeable Battery System — BA 30 (bodypack), BA 10 (handheld), and BA 20 (receiver) accupacks included; 15-hour typical runtime on transmitters.
• Compact System Format — EKP AVX receiver rotates around XLR connector to avoid collision with other camera-mounted accessories.

Typical Applications

• Broadcast studio and ENG wireless interview systems
• Corporate video production and executive interview
• Training room and classroom wireless microphone
• Conference room presenter wireless system
• House of worship EFP and video production

Technical Specifications

Frequently Asked Questions

Does the AVX Combo Set require an FCC license?

No. The AVX system operates in the 1.9 GHz license-free band and can be used in the US without any frequency coordination or licensing.

How many AVX systems can operate simultaneously?

Up to 12 AVX systems can operate simultaneously within the same frequency range, suitable for small panel discussions, multi-presenter conference sessions, or multi-camera video shoots.

How does the EKP AVX receiver mount to a camera?

The EKP AVX plugs directly into any XLR input on a camera or field recorder. It powers on and off automatically with P48 phantom power from the camera, and the receiver body rotates around the XLR connector to prevent collision with other mounted accessories.

Can the ME 2 lavalier be swapped for a different microphone?

The SK AVX bodypack accepts Sennheiser-compatible 3.5 mm lavalier connections. For a wider range of microphone options, the EW-DX platform (also available at creationnetworks.net/collections/sennheiser) offers broader capsule compatibility.

What is the battery runtime on the transmitters?

The SK AVX bodypack and SKM AVX handheld both deliver approximately 15 hours of runtime on their respective Li-ion rechargeable accupacks. The EKP AVX receiver delivers more than 4 hours on its BA 20 accupack.

What is the warranty on this system?

Sennheiser provides a standard 2-year limited warranty on the AVX Combo Set.
