Williams AV CHG 3502 – Dual-Bay Body-Pack Battery Charger
Williams AV CHG 3502 – Dual-Bay Body-Pack Battery Charger is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Williams AV CHG 3502 – Dual-Bay Body-Pack Battery Charger
Product Overview

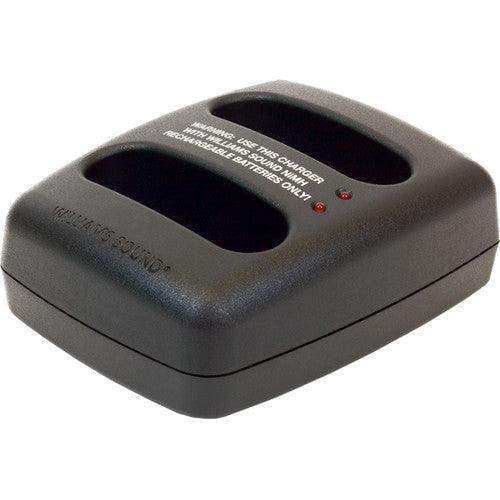

The Williams AV CHG 3502 is a dual-bay drop-in battery charger for Williams AV body-pack transmitters and receivers, including select T36, T46, R37, and Motiva models. Components dock directly into the two bays and the charger recharges the NiMH AA batteries inside — no battery removal needed. It is a simple, dependable charging solution for small FM, infrared, and hearing loop assistive listening systems.
Product Description
Compatibility spans the PLR BP1 loop receiver, PPA R37, R37-8, and R38 FM receivers, PPA T46 FM transmitter, WIR RX22-4 infrared receiver, and Motiva PFM T36, PFM R36, and PFM R33 personal FM units — making the CHG 3502 a fit for classroom FM systems and small venue receiver pairs alike. Devices must have NiMH batteries installed and be set to the NiMH battery setting before docking.
A red LED at each bay confirms charging is in progress, and the full recharge cycle takes 16 hours nominal — sized for overnight charging. It is safe to leave components docked after the batteries reach full charge, so units stay ready between sessions. The ABS chassis measures under five inches long, fitting on a lectern shelf or AV cart, and the included power supply accepts 100-240 VAC.
Larger inventories are better served by the CHG 3512 12-bay body-pack charger. See compatible receivers and transmitters in the Williams AV collection.
Key Features
- Two Drop-In Bays — Charges NiMH batteries inside two docked body-pack transmitters or receivers without opening battery doors.
- Wide Device Compatibility — Supports PLR BP1, PPA R37/R37-8/R38, PPA T46, WIR RX22-4, and Motiva PFM T36/R36/R33 units.
- Safe Continuous Docking — Components can remain in the charger after the 16-hour cycle completes without battery damage.
- Per-Bay LED Indicators — A red LED for each bay shows charging status at a glance.
- Compact ABS Housing — At 4.9" x 3.9" x 2", the charger fits on carts, lecterns, and equipment shelves.
- Universal Input Power Supply — The included supply accepts 100-240 VAC, 50/60 Hz and outputs 6 VDC.
Technical Specifications
| Unit Capacity | 2 components |
| Compatible Units | PLR BP1, PPA T36, PPA T46, PPA R38, PPA R35-8, PPA R37, WIR RX22-4, Motiva PFM T36, PFM R36, PFM R33 |
| Charging Time | 16 hours nominal |
| Charger Power | Input: 6 VDC, 300 mA, center positive; output: 100 mA per bay |
| Power Supply | Input: 100-240 VAC, 50/60 Hz, 0.5-0.3 A; output: 6 VDC, 250 mA |
| Batteries | NiMH (not included) |
| Indicators | 2 red LEDs, one per bay; lit while charging |
| Enclosure | ABS plastic |
| Dimensions | 4.9" x 3.9" x 2" (12.4 x 9.8 x 5.1 cm) |
| Weight | 1.12 lb (0.51 kg) |
| Approvals | CE, FCC, RoHS |
