Williams Sound NKL 001 – Mono Neckloop for T-Coil Hearing Aids (18 in)

Product Overview

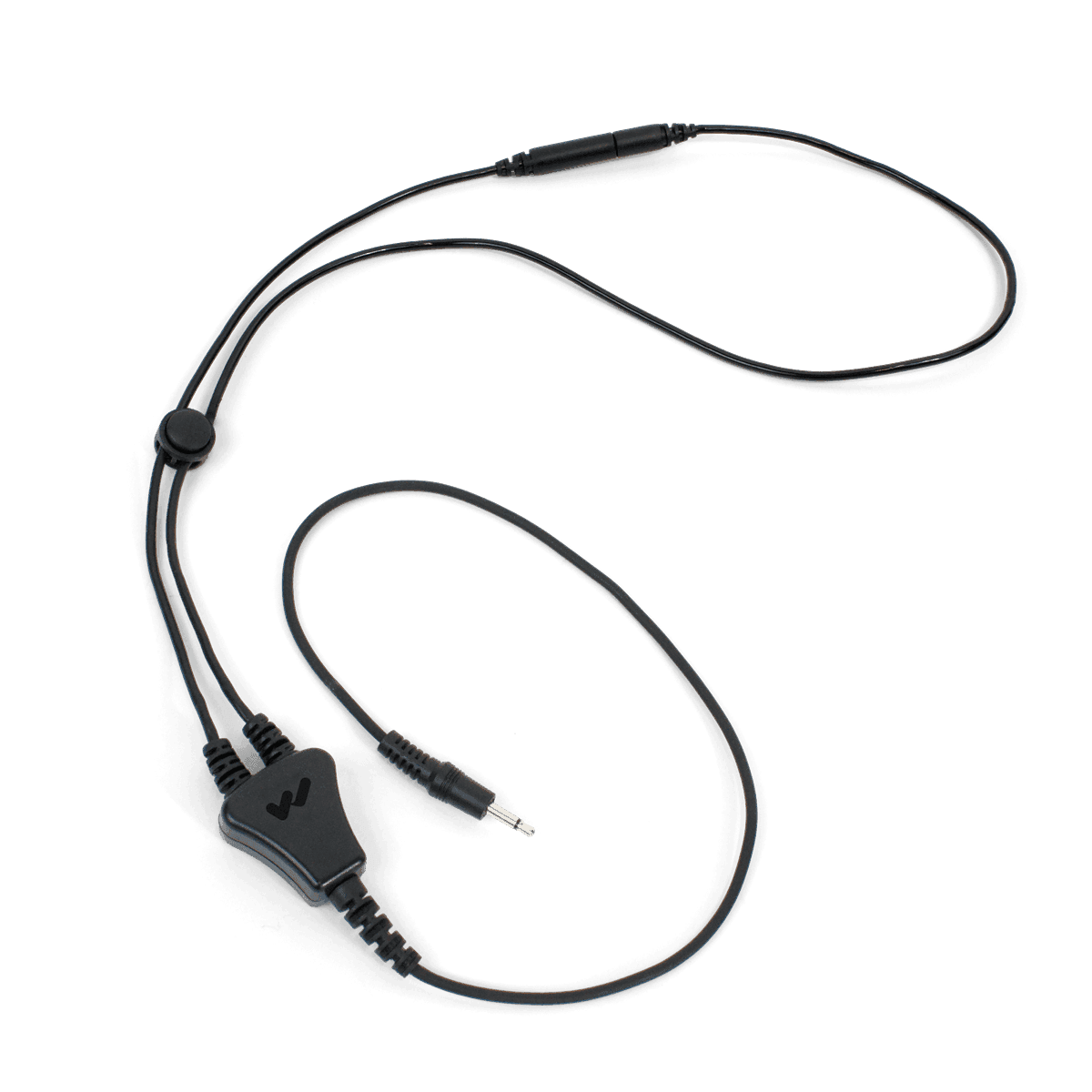

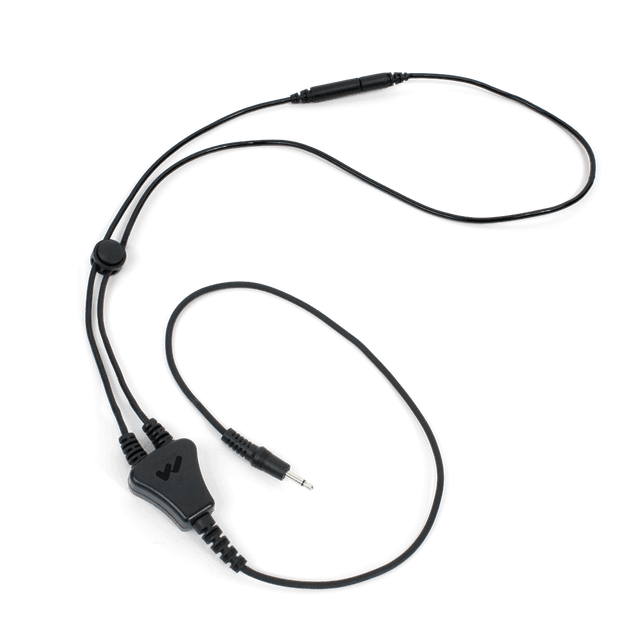

The Williams Sound NKL 001 is an 18-inch mono neckloop designed for use with hearing aids and cochlear implants equipped with a T-coil switch. It connects to the 3.5 mm mono output of Williams Sound PockeTalker personal amplifiers and the WF R1 FM receiver, converting the audio signal into a magnetic induction field that T-coil hearing devices can receive directly. The NKL 001 is a fundamental accessory for individuals with moderate to severe hearing loss who prefer to use their own hearing aids rather than a standard earphone. An integrated safety breakaway connector reduces entanglement risk during use.

Product Description

The NKL 001 mono neckloop works by creating a magnetic induction field around the user's neck from the audio output of a compatible personal amplifier or FM receiver. When a hearing aid's T-coil (telecoil) switch is activated, it detects this field and feeds the audio signal into the hearing aid's processing circuitry, delivering amplified sound in a way that complements the user's existing hearing device. This is particularly useful in noisy environments where separating the desired audio source from background noise improves intelligibility. The 18.5-inch cord is adult-sized and allows the connected receiver to be pocketed or clipped nearby. Impedance is rated at 8 to 16 ohms with a maximum input power of 500 mW. The induction field strength is characterized as 1.7 A/m at 6 inches above the center of the loop at 25 mW input at 1000 Hz, and 0.1 A/m per IEC standard at 85 microWatts. The 3.5 mm mono plug is designed for receivers with a mono output; users needing a stereo plug should select the NKL 001-S instead. Approvals include RoHS and WEEE, confirming compliance with European substance and disposal regulations.

Key Features

• Mono Plug — 3.5 mm mono connector for receivers with mono output jacks; stereo version available as NKL 001-S.
• T-Coil Induction — Generates magnetic field for direct T-coil hearing aid and cochlear implant reception.

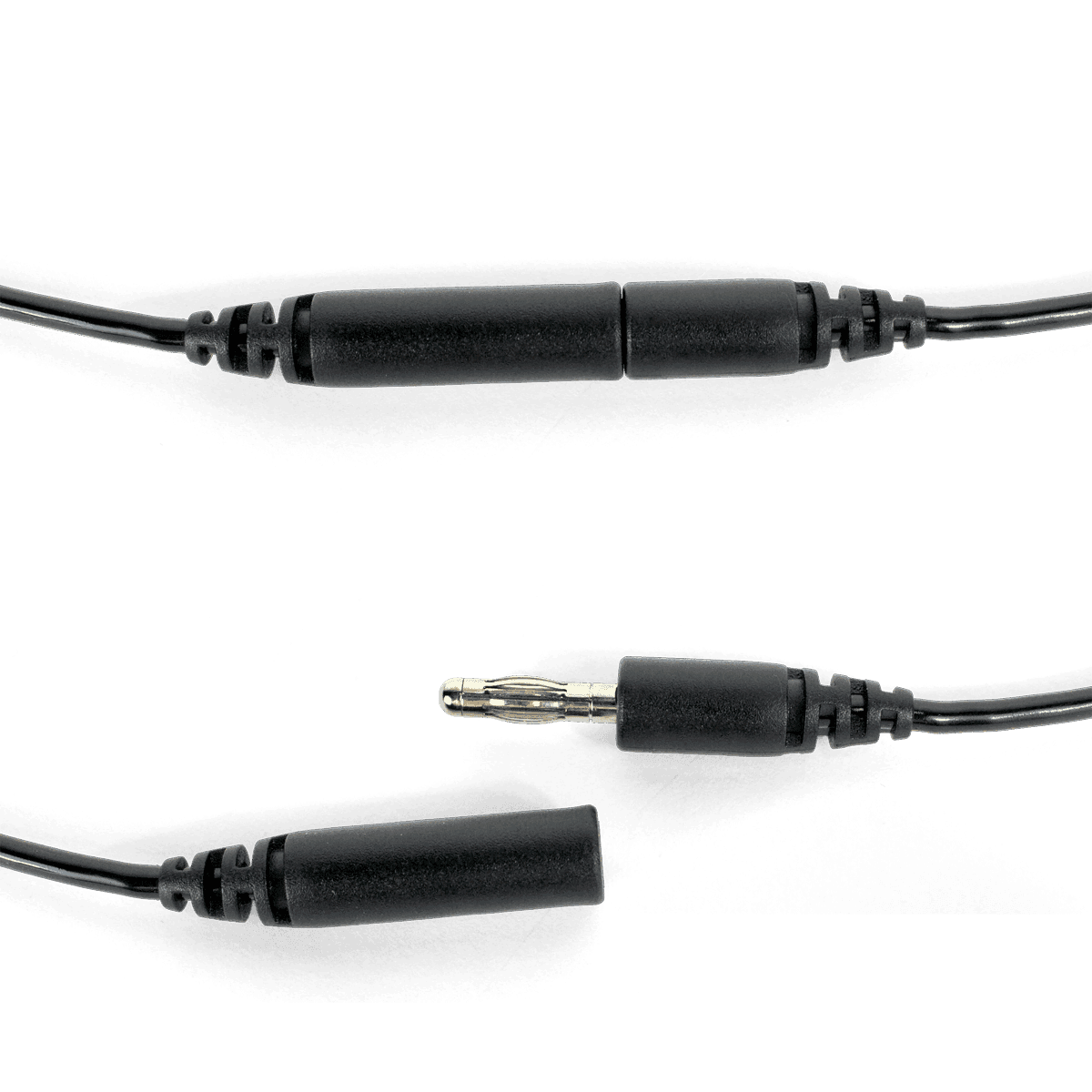

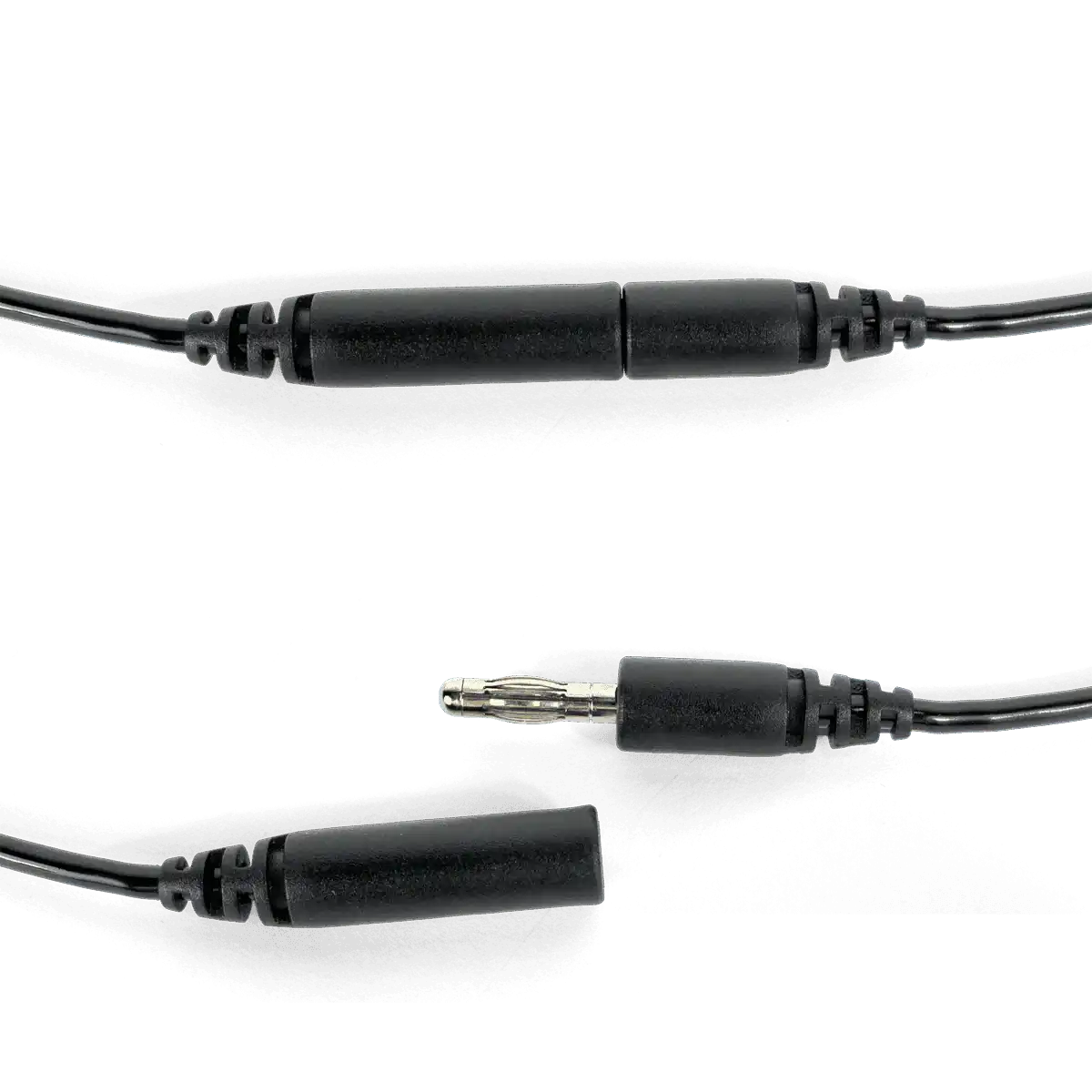

• Safety Breakaway Device — Integrated disconnect reduces entanglement and injury risk.
• 18.5-Inch Adult Cord — Sized for adult use with comfortable device reach.
• 8–16 Ohm Impedance — Matches Williams Sound PockeTalker and WF R1 receiver output specifications.
• 500 mW Max Input — Sufficient power handling for standard receiver output levels.
• RoHS / WEEE Compliant — Meets EU substance and disposal standards.
• One-Year Warranty — Standard Williams Sound neckloop warranty.

Technical Specifications
