Williams AV MIC 188 – Dual-Muff Hard-Hat Headset Microphone

Product Overview

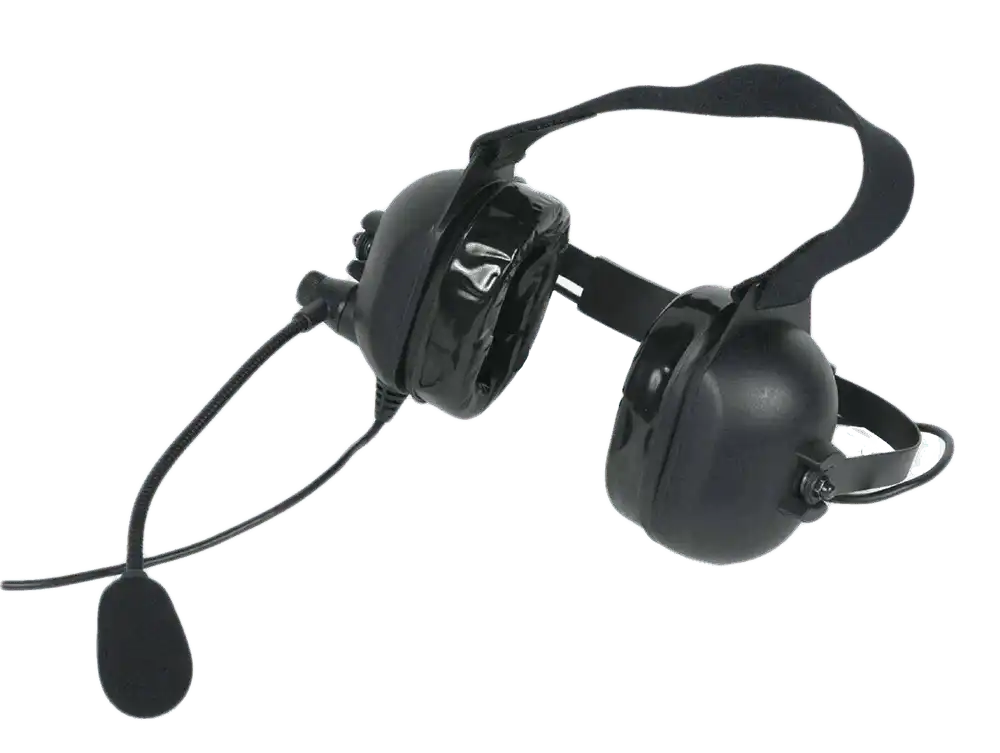

The Williams AV MIC 188 is a dual-muff, hard-hat headset microphone designed exclusively for the Digi-Wave DLT 400 transceiver. Purpose-built for industrial guided tours and plant communication, it mounts to a hard hat and combines a noise-cancelling electret boom microphone with circumaural gel-cushion ear cups. It is the headset AV integrators specify when Digi-Wave tour and intercom systems must operate on manufacturing floors and other PPE-required environments.

Product Description

Standard headsets cannot be worn with a hard hat, which leaves a gap in many industrial Digi-Wave deployments. The MIC 188 closes that gap with a hard-hat-mount design that keeps both communication and head protection in place, so tour leaders, trainers, and plant staff stay compliant with site safety requirements while talking and listening over the Digi-Wave 400 Series system.

The noise-cancelling electret element is tuned for voice in loud surroundings, with 680 Ω impedance at 1 kHz, a 58 dB signal-to-noise ratio, and -47 dB sensitivity. The headphone side uses 32 Ω drivers rated for 60–100 mW input with a 250 Hz – 4,000 Hz response focused on the speech band, which keeps spoken instructions intelligible over machinery noise. Soft circumaural gel ear cushions seal around the ears for passive isolation and remain comfortable across full shifts. A single 3.5 mm TRRS plug with 360-degree strain relief connects directly to the DLT 400 transceiver headset jack with no adapters required.

For non-hard-hat positions on the same Digi-Wave system, pair the MIC 188 with the MIC 158 dual-muff headset or the heavy-duty MIC 168. See the full range of Digi-Wave transceivers and headset accessories in our Williams AV collection.

Key Features

• Hard-Hat Mount Design — The headset attaches to a hard hat so workers keep required head protection while communicating over Digi-Wave.
• Noise-Cancelling Electret Microphone — The voice-optimized element with a 58 dB signal-to-noise ratio keeps transmitted speech clear over machinery noise.
• Dual-Muff Gel Ear Cushions — Soft circumaural gel cushions provide passive isolation and all-shift comfort in loud industrial spaces.
• Speech-Band Headphone Tuning — The 250 Hz – 4,000 Hz response concentrates output where voice intelligibility matters most.
• Direct DLT 400 Connection — A single 3.5 mm TRRS plug with 360-degree strain relief plugs straight into the Digi-Wave DLT 400 headset jack.
• Durable Strain-Relieved Cable — The 360-degree strain relief resists cable failure from constant movement on tour routes.
• Certified for Commercial Use — WEEE, CE, and RoHS approvals with a 90-day manufacturer warranty.

Technical Specifications
