Williams AV MIC 149 – Mono Tabletop Conference Microphone

Product Overview

The Williams AV MIC 149 is an omnidirectional tabletop conference microphone with a 3.5mm mono plug, compatible with PPA T46, PPA T27 FM transmitters, and the IR T2 transmitter. The low-profile electret design provides reliable close-field speech pickup for conference tables, podiums, and fixed-installation ALS transmitter inputs. It is the mono-plug counterpart to the MIC 449 and serves FM/IR system deployments where a tabletop microphone input is required.

Product Description

The MIC 149 connects via a 3.5mm mono plug to Williams AV PPA T46, PPA T27, and IR T2 transmitters, enabling tabletop speech pickup for FM and IR assistive listening system transmitters. The omnidirectional electret capsule with -40 dB sensitivity and 1500Ω output impedance is designed for close-field conference table use, where the microphone sits on the table surface while the transmitter is positioned nearby or on a podium. The 39" (99 cm) cord provides adequate reach from the transmitter to tabletop placement. The 60mm diameter x 16mm height puck form factor is unobtrusive on presentation and conference surfaces, and bias power (1.0–10 VDC) is supplied by the connected transmitter with no external power required. The MIC 149 is appropriate for ADA hearing accommodation transmitter inputs in boardrooms, conference centers, courtrooms, and houses of worship where a fixed-position tabletop microphone is preferred over a headset or lavalier.

Key Features

• 3.5mm Mono Plug — Direct connection to PPA T46, PPA T27 FM transmitters, and IR T2 transmitter inputs.
• Omnidirectional Polar Pattern — 360-degree coverage for conference table placement without directional positioning.

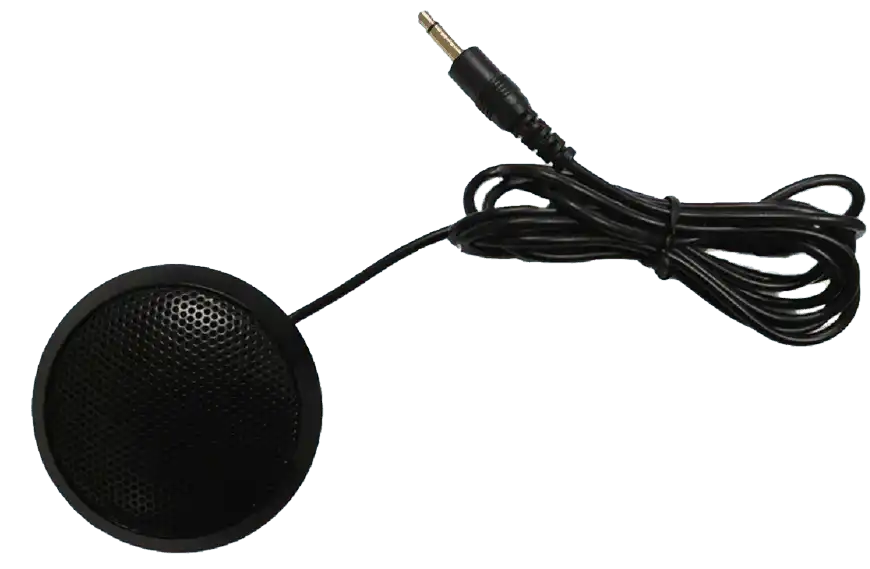

• Low-Profile Puck Design — 60mm x 16mm form factor stays unobtrusive on tables and podiums.
• Electret Condenser Element — -40 dB ± 3 dB sensitivity for consistent close-field speech pickup.
• Bus-Powered — 1.0–10 VDC bias power from the connected transmitter; no external power supply needed.
• 39" Cord Length — 99 cm cable accommodates typical transmitter-to-tabletop placement distances.
• FM and IR System Compatible — Works with multiple Williams AV FM and IR transmitter models for flexible deployment.

Technical Specifications
