Williams AV MIC 144 – Single-Ear Headset Microphone, TRRS Plug
Product Overview

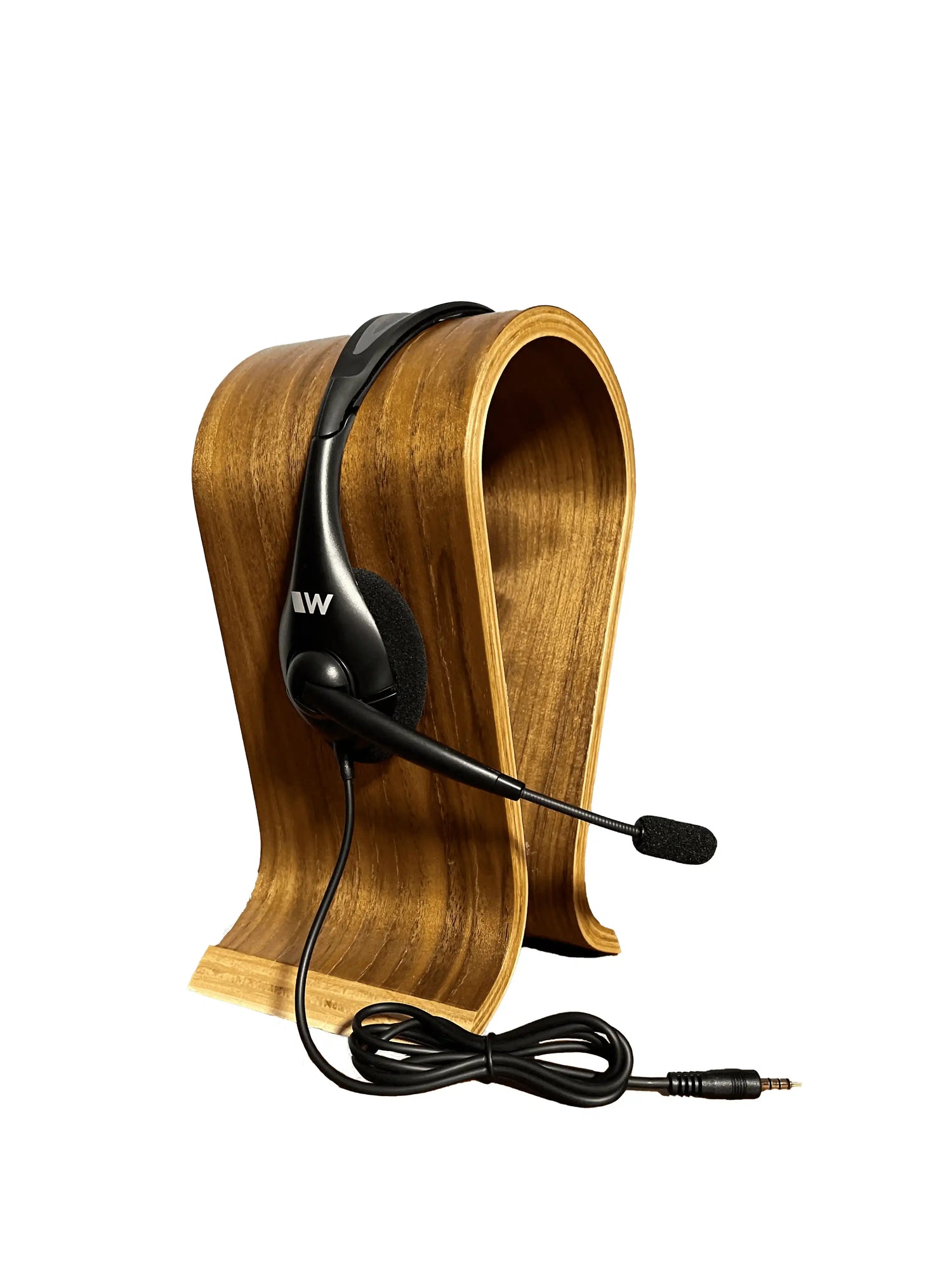

The Williams AV MIC 144 is a single-ear headset microphone with a TRRS 3.5mm plug, designed for use with the Digi-Wave DLT 400 transceiver. The noise-cancelling electret condenser element with gooseneck boom provides reliable hands-free speech pickup for interpreters, guides, and conference operators. The single-ear earphone design allows one ear to remain open for situational awareness during active interpretation or moderation sessions.
Product Description
The MIC 144 is a single-ear headset microphone that combines voice pickup with single-ear audio monitoring for Digi-Wave DLT 400 deployments. The noise-cancelling electret condenser capsule provides more than 60 dB signal-to-noise ratio at 1 kHz, with -62 dBv sensitivity appropriate for close-field speech pickup in interpretation booths and conference rooms. The 3.5mm TRRS plug connects to the DLT 400’s single input/output TRRS port, carrying both microphone and audio over one connection. The gooseneck boom allows consistent positioning without requiring the user to hold the microphone. The single-ear earphone design—as opposed to the dual-muff MIC 145—is preferred by interpreters and moderators who want to monitor one audio channel while maintaining ambient awareness with the other ear. The headset stand is not included and must be sourced separately if a desktop stand configuration is required. The MIC 144 is DLT 400 exclusive and is not compatible with FM or IR system transmitters.
Key Features
- Single-Ear Monitoring Design — One-ear earphone keeps the opposite ear open for ambient awareness during interpretation and moderation.
- Noise-Cancelling Electret Condenser — Capsule rejects ambient noise for clear speech transmission in shared-space environments.
- TRRS 3.5mm Plug — Single plug carries both microphone input and earphone audio for DLT 400 transceiver connection.
- Gooseneck Boom — Flexible positioning for consistent capsule placement relative to the talker’s mouth.
- Over 60 dB SNR — High signal-to-noise ratio for professional-grade voice intelligibility.
- 32Ω Earphone Impedance — Matched to DLT 400 headset output for direct connection.
- DLT 400 Exclusive — Designed for Williams AV Digi-Wave DLT 400 transceiver; headset stand not included.
Technical Specifications
| Specification | Value |
|---|---|
| Model | MIC 144 |
| Microphone Element | Electret Condenser, Noise Cancelling |
| Microphone Sensitivity | -62 ± 4 dBv/µbars @ 1 kHz @ 1/4" |
| Microphone Frequency Response | 100 Hz – 10 kHz |
| Microphone Signal to Noise Ratio | More than 60 dB @ 1 kHz |
| Earphone Sensitivity | 105 dB SPL typical at 1 kHz @ 1 mW |
| Earphone Impedance | 32 Ω typical @ 1 kHz |
| Boom | Gooseneck |
| Plug | 3.5mm TRRS with black plastic housing and strain relief |
| Headset Stand | Not included |
| Compatible With | DLT 400 transceiver only |
| Warranty | 90 days |
