Product Overview

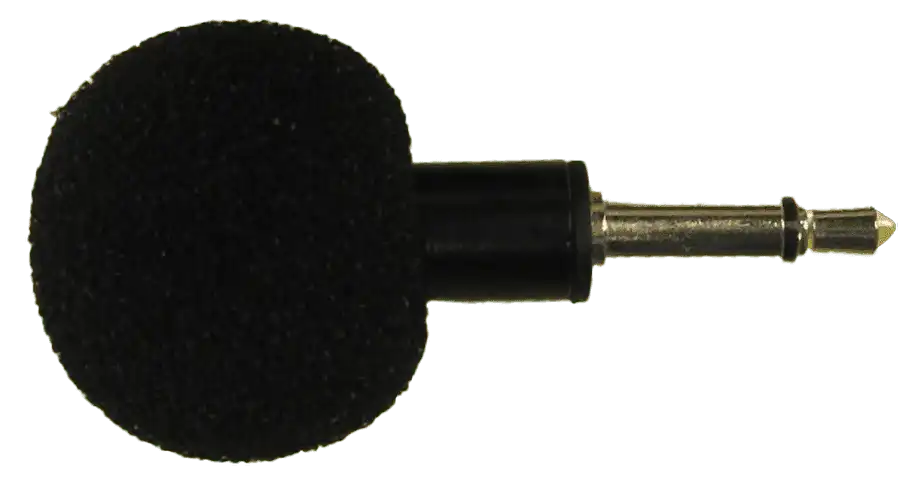

The Williams Sound MIC 014-R is a plug-mount omnidirectional electret condenser microphone designed for use with Williams Sound PockeTalker personal amplifiers and Digi-Wave DLT 300 transceivers. The cordless plug-mount design connects directly to the 3.5 mm mono jack of compatible devices, eliminating cable clutter while providing a compact, always-ready microphone solution for personal amplification and assistive listening applications. With a sensitivity of -42 dB and a frequency range of 20 Hz to 16 kHz, the MIC 014-R captures clear speech for one-on-one and small group listening scenarios.
Product Description
The MIC 014-R electret condenser microphone plugs directly into the 3.5 mm mono input of the Williams Sound PockeTalker or Digi-Wave DLT 300 transceiver without requiring a separate cable run. The omnidirectional pickup pattern captures audio from all directions, making it suitable for use in face-to-face conversations, small meeting rooms, or any scenario where the speaker's position relative to the microphone may vary. The microphone capsule measures 10 mm in diameter without windscreen and 19 mm with the included windscreen installed. Frequency response extends from 20 Hz to 16 kHz, appropriate for clear speech reproduction. Output impedance is 2.2 kΩ and the standard operating voltage range is 2 to 10 V DC — compatible with the bias voltage provided by standard personal amplifier inputs. Signal-to-noise ratio exceeds 58 dB, providing adequate dynamic range for speech-intelligibility applications. The gold-colored microphone capsule is finished for corrosion resistance. Optional accessories include the WCA 007 12-foot extension cord, CLP 014 microphone clip, and WND 002 replacement windscreen.
Key Features
- Plug-Mount Design — No cord; plugs directly into the 3.5 mm mono input of compatible devices.
- Omnidirectional Pickup — Captures speech from all angles for flexible one-on-one and small group use.
- Electret Condenser Element — Provides consistent sensitivity without phantom power requirement.
- 20 Hz – 16 kHz Response — Full speech-band frequency coverage for clear audio reproduction.
- SNR Greater Than 58 dB — Sufficient dynamic range for speech intelligibility in quiet to moderate environments.
- Compatible Devices — Works with PockeTalker personal amplifiers and Digi-Wave DLT 300 transceivers.
- Optional Extension Cord — WCA 007 12-foot cord available for extended reach applications.
- RoHS Compliant — Meets EU hazardous substance restrictions.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | MIC 014-R |
| Phantom Powered | No |
| Pickup Pattern | Omnidirectional |
| Element | Electret Condenser |
| Mic Diameter | 10 mm (without windscreen); 19 mm (with windscreen) |
| Sensitivity | -42 dB ± 3 dB |
| Frequency Range | 20 Hz – 16 kHz |
| Output Impedance | 2.2 kΩ |
| Operating Voltage | 2–10 V DC |
| Signal-to-Noise Ratio | >58 dB |
| Plug | 3.5 mm mono |
| Cord | None |
| Color | Gold |
| Weight | 5 g (0.2 oz) |
| Replacement Windscreen | WND 002 |
| Optional Extension Cord | WCA 007 (12 ft) |
| Optional Mic Clip | CLP 014 |
| Approvals | RoHS |
| Warranty | 90 Days |
