Overview

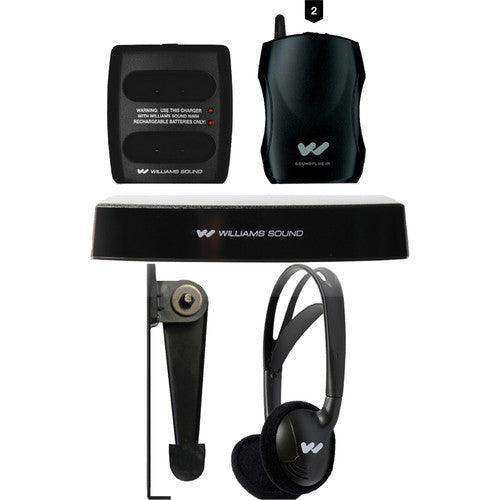

The IR SY2 Small Area Infrared System 2 Kit from Williams Sound includes an IR T1 small-area infrared transmitter, a TPF 055 power supply, a WCA 106 6' micro-USB cable, a WCA 124 adapter cable (3.5mm female to RCA), two WIR RX22-4N infrared receivers, an STD 008 flat-panel TV mounting bracket, HED 027 heavy-duty folding headphones, a NKL 001 Neckloop, a CHG 3502 two-bay bodypack charger, and BAT 026-2 AA NiMH batteries. This IR SY2 kit can be used for one- or two-channel operation as a small-area assistive listening system or for private TV listening in small conference rooms, hospital rooms, assisted living facilities, medical treatment centers, and jury deliberation rooms. It provides a coverage area of up to 1300 square feet.

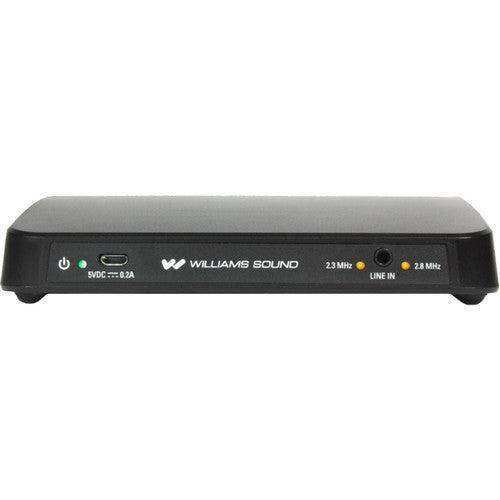

Williams Sound IR T1 Small Area Infrared Transmitter for Assistive ListeningThe Williams Sound IR T1 is a dual-channel, infrared base transmitter designed for assistive listening in small areas. It is compatible with the WIR RX22-4 and WIR RX18 receivers and is well-suited for private TV listening in conference rooms, hospital rooms, assisted-living facilities, medical treatment centers, jury deliberation rooms, and more.
Easy to set up, the IR T1 features an 1/8" input jack that accepts any line level stereo audio. The operating frequencies (2.3/2.8 MHz) minimize high-efficiency lighting interference for a clear sound and provide a coverage area up to 1000 ft².
Three LEDs display power status and audio input strength. If a minimum acceptable audio level is not present on a channel, after twelve minutes that channel will automatically go into sleep/power-save mode to decrease power consumption by 80%.

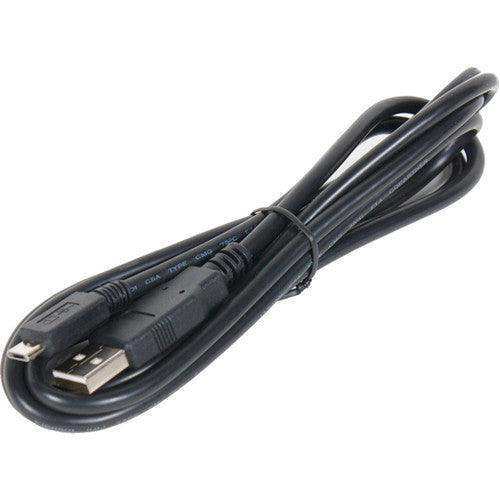

The IR T1 can be mounted on any camera tripod stand with a 1/4"-20 threaded connector. It ships with a power supply and USB power cable, an 1/8" stereo audio cable, and an adapter cable for use with a TV equipped with an RCA audio output.
Williams Sound TFP 055 Power Supply for IR T1 TransmitterThe TFP 055 from Williams Sound is a power supply for the IR T1 transmitter less the power cord. It features a 100-240 VAC input with 50 to 60 Hz and 0.6 amperes. It can be used when paired with a WLC 004 USA line cord (sold separately). The output is 24 VDC, 1.04 amps, 25 watts maximum, and it is built with a barrel-style plug, center positive.
Williams Sound WCA 124 - 3.5mm Female TRS to Two RCA Male Cable Adapter for IR T1 (10.25")The WCA 124 from Williams Sound is a 3.5mm female TRS to RCA male Stereo Cable that can be used for TV or any other audio source with RCA stereo outputs. The cable converts the RCA outputs to a 3.5mm jack that can then be used with a 3.5mm stereo male to male cable (sold separately).

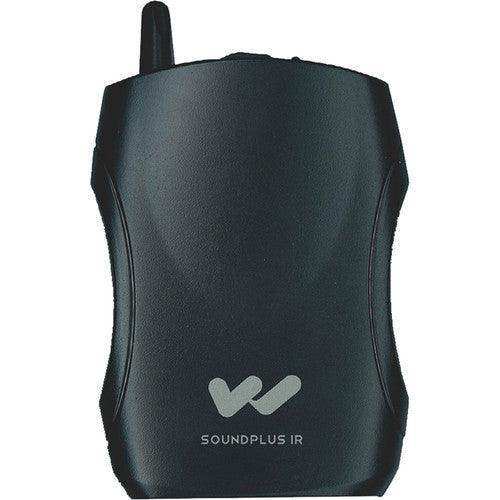

Williams Sound WIR RX22-4N Infrared 4 Channel Bodypack Listening Receiver (2.3 - 3.8MHz)The Williams Sound WIR RX22-4N Bodypack is an infrared bodypack listening receiver for use with compatible Williams Sound transmitters. The bodypack features 4-channels and operates on the 2.3, 2.8, 3.3, 3.8MHz bandwidth. The WIR RX22-4 can be used with mono or stereo headphones and earphones, or a neck-loop. Dual infrared detectors provide maximum sensitivity and operating range.
Ideal for lectures, conferences, worship and more Compatible with Willams Sound transmitters operating on the 2.3, 2.8, 3.3, 3.8MHz Can be used with mono or stereo headphones and earphones, or a neckloopWilliams Sound STD 008 TV Top Shelf for IR T1 Transmitter (Flat Black)
The flat black STD 008 from Williams Sound is a TV top shelf for the IR T1 transmitter (sold separately). It features an all-steel adjustable arm with a swivel lock. The front padded lip rests on the top portion of the TV (sold separately) and the adjustable arm with the swivel lock supports the rear of the shelf against the back of the TV.
Williams Sound HED 027 Heavy-Duty Folding Mono HeadphonesTurn up the volume with the adult-sized HED 027 Heavy-Duty Folding Mono Headphones from Williams Sound. These headphones are designed to offer crisp sound in a lightweight and comfortable design. Foam earpads keep you listening in comfort for hours. The single-sided cord helps to minimize snags and tangles, and the standard 3.5mm mono plug is compatible with Williams Sound receivers and Pocketalkers.
Williams Sound NKL 001 Induction Neckloop for T-Switch Hearing AidsThe Williams Sound NKL 001 is an induction neckloop designed to magnetically couple an audio signal to a telephone coil-equipped (T-Switch) hearing aid. The neckloop has a standard 1/8" mini plug that can be connected to any audio device that has an 8-16 Ohm 1/8" output, such as a beltpack receiver, TV, tape player, etc. The neckloop has a slider so you can adjust the tension, and the 18" cord provides a good amount of slack for use with body-worn devices.
- Integrated safety breakaway device
- Cord Length: 18"
- Adult size
- Connector: 1/8" mono plug
- Monoaural
- Impedance: 8 to 16 Ohms
- Recommended for FM receivers and select IR receivers
- For individuals with moderate to severe hearing loss

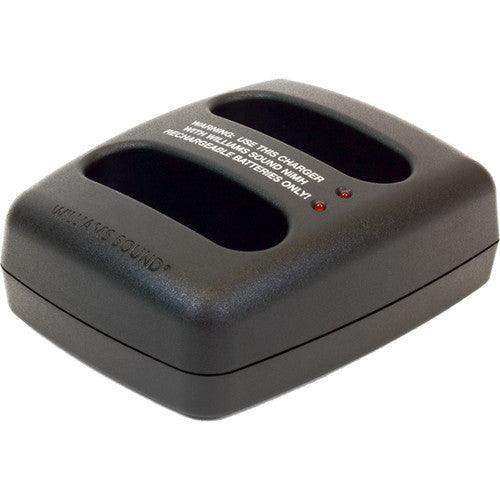

The black CHG 3502 Dual-Bay Bodypack Battery Charger from Williams Sound is used for charging select Williams Sound T36, T46, R37 and Motiva bodypack transmitters and receivers. The two-bay charger allows you to simply dock the components and recharge the NiMH batteries inside without removing them.
The charger's plastic chassis features a red LED for each bay that indicates the battery is being charged. Note that you must have NiMH batteries installed and the components must be set to the NiMH setting. It takes 16 hours to fully recharge the batteries, and it's safe to leave the units in the charger even after the batteries have fully charged.
Compatible with- PLR BP1 loop receiver
- PPA R37 FM receiver
- PPA R37-8 FM receiver
- PPA R38 FM receiver
- PPA T46 FM transmitter
- WIR RX 22-4 infrared receiver
- Motiva PFM T36 personal FM transmitter
- Motiva PFM R36 personal FM receiver
- Motiva PFM R33 personal FM receiver
Looking for a pair of AA NiMH rechargeable batteries? Check out the Williams Sound BAT 026-2, a pair of AA rechargeable NiMH batteries rated at 1.2 volts and 1500mAh.
Features
- Two-channel infrared transmitter for assistive listening in small areas
- For private TV listening in conference rooms, hospital rooms, assisted-living facilities, medical treatment centers, jury deliberation rooms, and more
- Compatible with WIR RX22-4 and WIR RX18 receivers
- Easy, plug-and-play setup
- 1/8" jack accepts any line level stereo audio input
- Coverage area up to 1000 ft²
- Sleep mode/power-save feature
- Compact design
- High-efficiency LEDs display power status and audio input
- Can be mounted on any camera tripod stand with a 1/4”-20 threaded connector
- Optional mounting options include the STD 008 TV top shelf mounting kit and the BKT 024 omnidirectional mount for wall or ceiling mounting
- Power with included A/C power supply
- Power from a standard USB port on a TV via the included USB cable
- No FCC license or radio approval is required
Specifications
Williams Sound IR T1 Small Area Infrared Transmitter for Assistive Listening Specs
| Compatible Receivers | WIR RX22-4 WIR RX18 |
| Modulation | Wideband FM ± 50 kHz deviation maximum 50 μs pre-emphasis |
| Audio Carrier Frequencies | Channel 1: 2.3 MHz Channel 2: 2.8 MHz Default at Power On: Carriers off Carriers are automatically enabled upon presence of audio |
| Coverage Area | 1000 ft² / 93 m² |
| Audio Inputs | 1/8" / 3.5 mm stereo line level input jack Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve |
| Audio Indicators | 1 x yellow LED per channel Lights up and stays on steady with minimum audio level |
| Signal-to-Noise Ratio | 70 dB, at onset of limiting |
| Frequency Response | 100 Hz to 12 kHz |
| Power Supply | TFP 050 (included) Input: 100-240 VAC, 50/60 Hz Output: 5 VDC, 0.2 A (USB Type-A) Universal supply with international adapters Other USB power supply (must be at least 5 VDC, 0.2 A) |
| Power Cable | USB Type-A to micro-USB |
| DC Power Input | Micro-USB connector, 5 VDC, 0.2 A |
| Power Indicators | Green LED |
| Power Save Mode | Shuts off carrier when no audio is present for 12 minutes |
| Color | Black |
| Mounting | 1/4"-20 threaded hole |
| Operating Requirements | 32 to 122°F / 0 to 50°C |
| Approvals and Compliance | CE, RCM, FCC, Industry Canada, PSE, CUL, WEEE, RoHS, CB Scheme |
| Dimensions | 5.65 x 3.65 x 1.15" / 14.4 x 9.3 x 2.9 cm |
| Weight | 8.3 oz / 235 g |
| Package Weight | 1.27 lb |
| Box Dimensions (LxWxH) | 9.7 x 5.4 x 3.3" |
Williams Sound TFP 055 Power Supply for IR T1 Transmitter Specs
| Input | 100 to 240 VAC, 50 to 60 Hz, 0.6 A |
| Output | 24 VDC, 1.04 Amp, 25 W Maximum Barrel-Style Plug, Center Positive |
| Approvals | UL, CE, RoHS, Energy Star 6 |
| Recommended Line Cord | Not Included, Sold Separately WLC 004 USA WLC 005 Europe WLC 006 United Kingdom WLC 007 Australia |
| Dimensions | Not Specified by Manufacturer |
| Weight | 0.4 lb / 0.2 kg |
Williams Sound WCA 124 - 3.5mm Female TRS to Two RCA Male Cable Adapter for IR T1 (10.25") Specs
| Cable Length | 10.25" / 26.0 cm |
| Weight | 0.8 oz / 23 g |
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 8.1 x 2.45 x 0.75" |
Williams Sound WIR RX22-4N Infrared 4 Channel Bodypack Listening Receiver (2.3 - 3.8MHz) Specs
| Carrier Frequency | 2.3, 3.3, 2.8, 3.8 MHz |
| Signal-to-Noise Ratio | 60dB Min |
| Squelch | @ 40dB S/N Ratio |
| Frequency Response | 25Hz to 16kHz |
| THD & Noise | Less than 1% |
| Connector | 1/8" (3.5mm) Connector |
| Controls | On/Off/Volume, Channel Selector Knobs |
| Batteries | x2 AA Alkaline or NiMH 60 Hours w/Alkaline, 30 Hours w/Rechargeable |
| Dimensions | 4.1 x 2.5 x 1.2" (104 x 72.4 x 30.4mm) |
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 6 x 3.8 x 1.9" |
Williams Sound STD 008 TV Top Shelf for IR T1 Transmitter (Flat Black) Specs
| Material of Construction | Painted Steel |
| Shelf Support | Front Padded Lip Rest on TV. Adjustable Arm with Swivel Lock Supports Rear of Shelf. |
| Dimensions | 6 x 4.8" / 15.2 x 12.2 cm |
| Weight | 0.6 lb / 0.3 kg |
Williams Sound HED 027 Heavy-Duty Folding Mono Headphones Specs
Headphone| Driver Size | 1.6" / 40 mm |
| Maximum Power Handling | 100 mW |
| Foldable | Yes |
| Audio Connector to Source | 1/8" / 3.5 mm |
| Package Weight | 0.235 lb |
| Box Dimensions (LxWxH) | 9.1 x 6.15 x 3.1" |
Williams Sound NKL 001 Induction Neckloop for T-Switch Hearing Aids Specs
| Magnetic Field Strength | 25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop 85μW input produces 0.1 A/m (IEC Standard) |
| Input Power | 500 mW max |
| Impedance | 8 to 16 Ohms |
| Connector | 1/8" / 3.5 mm mono mini-plug |
| Cable Length | 18 / 457 mm |
| Color | Black |
| Approvals | RoHS, WEEE |
| Weight | 1.5 oz / 43 g |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 5.65 x 4.4 x 1" |
Williams Sound CHG 3502 Dual-Bay Battery Charger for Select Bodypack Transmitters and Receivers (Black) Specs
Headphone| Compatible With |
PLR BP1 Loop receiver PPA T36 Personal FM Transmitter PPA T46 Transmitter PPA R38 Receiver PPA R35-8 Receiver PPA R37 Receiver WIR RX 22-4 Infrared Receiver Motiva PFM T36 Personal FM Transmitter Motiva PFM R36 Personal FM Receiver Motiva PFM R33 Personal FM Receiver |
| Charging Time | 16 Hours (Nominal) |
| Capacity | 2 Components |
| Indicators | 2 x Red LEDs (One for Each Bay); LEDs Are Lit When Charging |
| Enclosure | ABS Plastic |
| Power Supply | Input: 100 to 240 VAC, 50/60 Hz; 6 W, 0.5-0.3 A Output: 6 VDC, 250 mA |
| Power | Charger: Input: 6 VDC, 300 mA, Center Positive Output: 100 mA per Bay |
| Batteries | NiMH Batteries Not Included |
| Approvals and Certifications | CE, FCC, RoHS |
| Dimensions | 4.9 x 3.9 x 2 / 12.4 cm x 9.8 cm x 5.1 cm |
| Weight | 1.12 lb / 0.51 kg |
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 7.3 x 2.9 x 0.4" |
Williams Sound Rechargeable AA NiMH Batteries (1500mAh, 2-Pack) Specs
Headphone| Battery Chemistry | NiMH |
| Battery Type | AA |
| Voltage | 1.2 V |
| Battery Capacity | 1500 mAh |
| Package Weight | 0.12 lb |
| Box Dimensions (LxWxH) | 2.05 x 1.2 x 0.7" |
