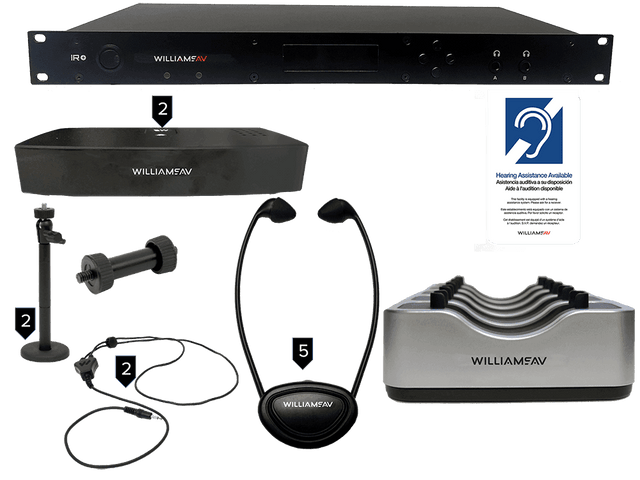

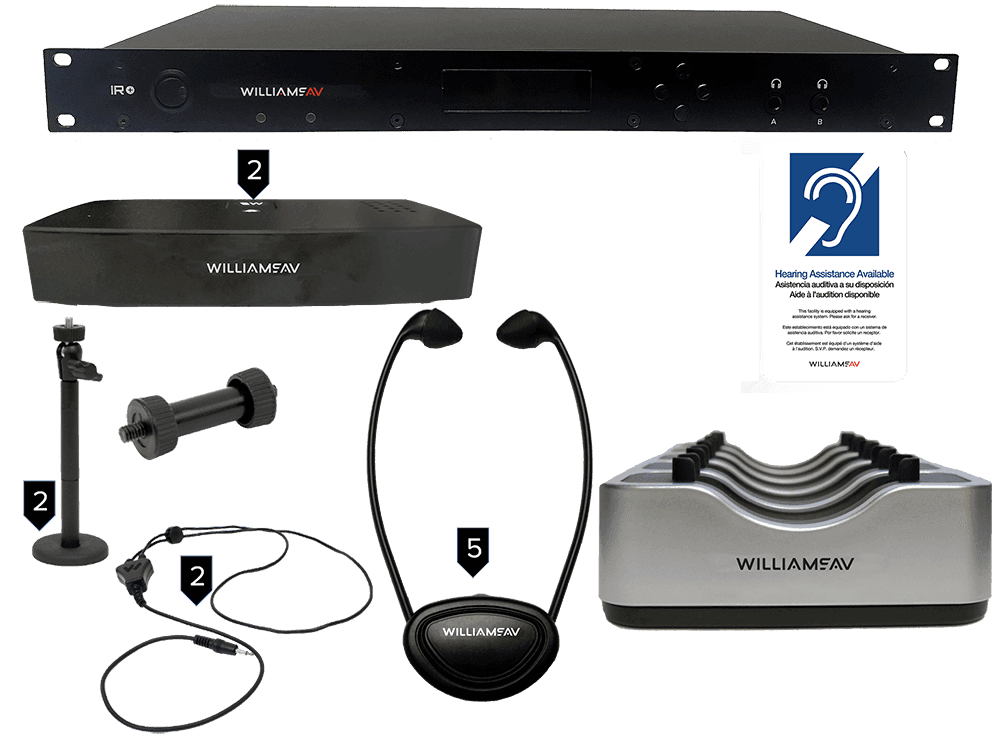

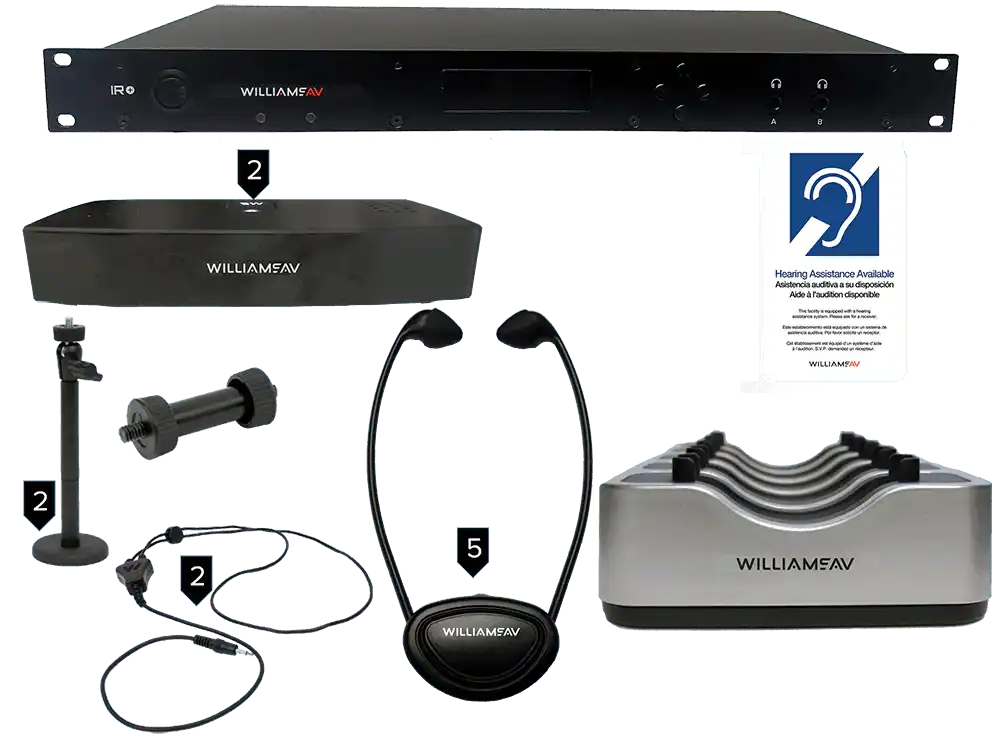

System Includes
IR M1 infrared modulator
(2) IR E4 emitters
(5) IR RX20 receivers
CHG 520 charger
(2) NKL 001 Neckloops
MLB 003 Linking bar
(2) BKT 024 brackets
IDP 008 Accessibility Signage
Specifications
IR SY12
IR M1
| Dimensions: | 19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm) |
| Weight: | 5.2lb. (2.4 kg) |
| Color: | Black |
| Rack Mount: | Single Rack Unit |
| Power Supply: | International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive |
| Power Switch: | Rocker switch with LED |
| Signal to Noise Ratio: | 67 dB (typical) |
| Modulation: | FM Wideband, +50kHz deviation, 50uS pre-emphasis |
| Carrier Frequency: | Selectable, 2.3/2.8 or 3.3/3.8MHz |
| Frequency Response: | 40 to 16,000Hz, +1 dB, -3dB, electrical response |
| Total Harmonic Distortion: | Less than 2%, electrical response |
| Audio Processor Functions: | DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control |
| Auto Carrier Shut-Off: | Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage. |
| Infrared Test LED: | Dual IR LED for receiver testing, monitoring, and audio signal testing. |

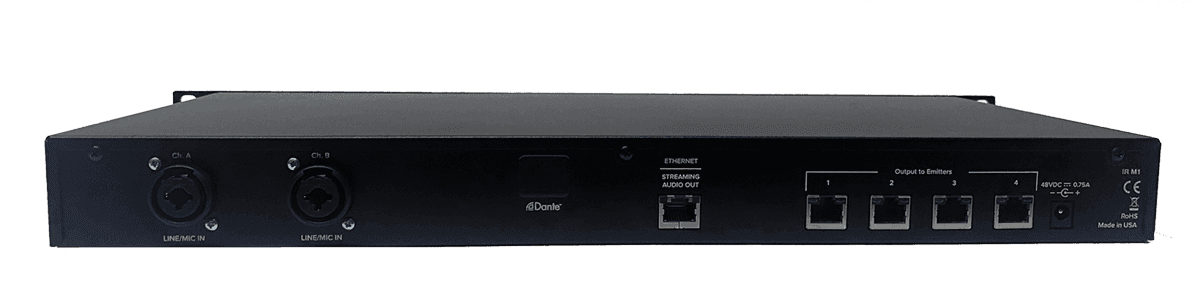

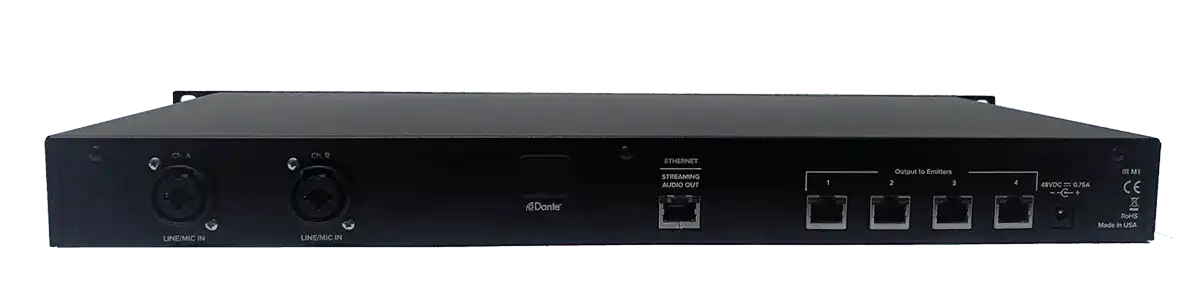

| Audio Input: | (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power |
| Dante: | Optional |
| Internal Test Tone: | 400 Hz internal test tone selectable as audio input source for setup and diagnostics |

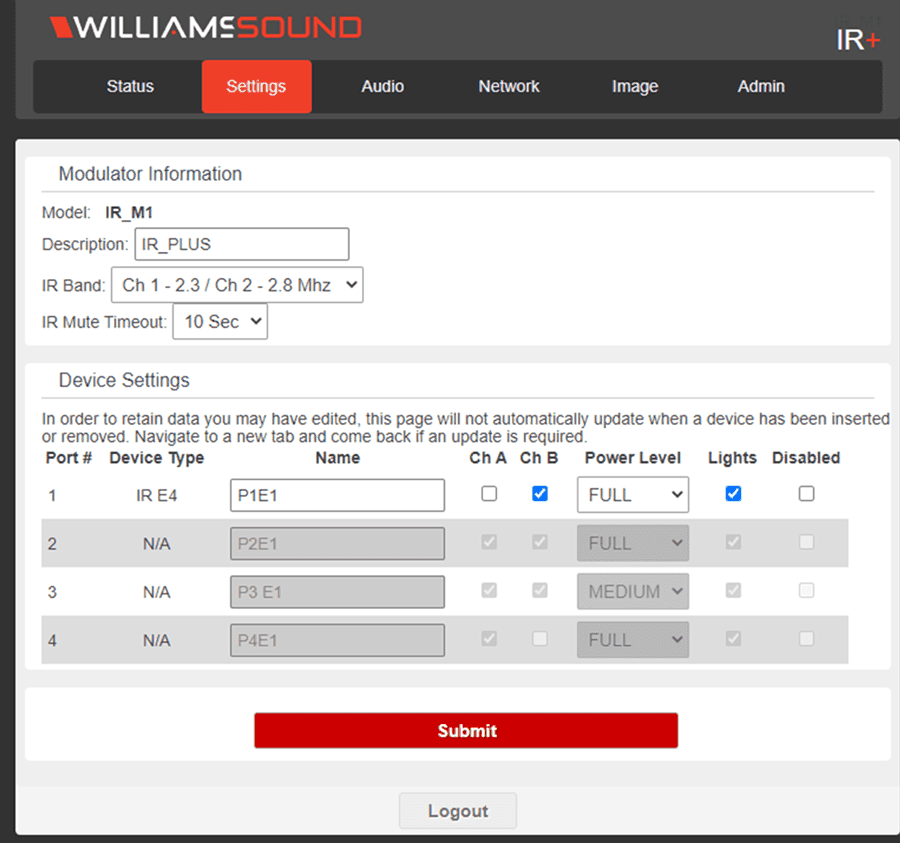

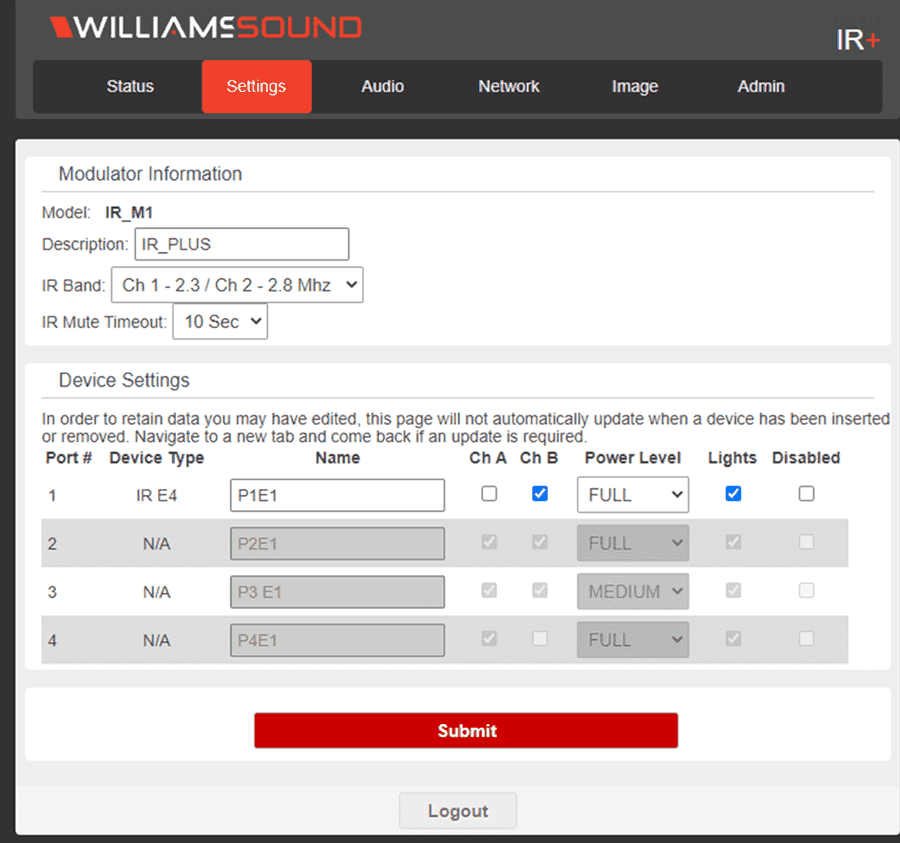

| Remote Configuration: | Available through embedded website |
| Headphone Output: | (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs |
| Emitter Output Jack: | Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission. |
| Operating requirements: | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals: | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Warranty: | 2 years on Modulator, 90 days on accessories |
IR E4
| Dimensions: | 7.5” (W) x 1.4” (H) x 3.6” (D) (19.1 cm x 3.6 cm x 9.1 cm) |
| Weight: | 0.8 lb (362 g) |
| Color: | Black |
| Power: | 48 VDC supplied by IR M1 via CAT 5e cable. |
| Coverage Area: | Up to 18,000 square feet in single channel mode |
| Connectivity: | +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1. |
| Operating requirements: | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals: | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Warranty: | 2 years on Emitter; 90 days on accessories |
CHG 520
| Dimensions: | 12″L x 6.25″W x 1.5″H (30.48 cm x 15.875 cm x 3.81 cm) |
| Weight: | 13.6 lbs |
| Color: | Black metal and plastic |
| Power Supply Input: | 120 VAC |
| Power Supply: | 100-240V / 12VDC TFP 043 |
| Unit Capacity: | 5 Units |
| Indicators: | Individual Charging Indicators: Red LEDs |
| Warranty: | 1 year (90 day warranty on cables and power supply) |
| Approvals: | WEEE, RoHS, CE, FCC, CANADA, RCM, VCCI |
IR RX20
| Weight: | 1.6 oz |
| Material and Color: | IR Transparent polycarbonate, black |
| Battery Type: | LiPo |
| Battery Life: | 8 hours |
| Battery Charger: | CHG 520 |
| Operating Temp: | 32-122° F (0-50° C) |
| Range: | Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter |
| Operating Frequency: | 2.3 MHz or 2.8 MHz or stereo |
| Frequency Response: | 100 Hz to 12 kHz, ± 3 dB |
| Signal to Noise Ratio: | 60 dB at 10 m |
| Controls: | Volume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power |
| Acoustic Output: | 120 dB MAX SSPL90 with 2 cc coupler |
| Compatibility: | Compatible with 2.3 MHz and 2.8 MHz IR transmitters |
| Headphone Jack: | 3.5mm stereo |
| Ear pads: | EAR 089 |
| Approvals: | CE, RoHS, FCC, Canada, RCM, VCCI, WEEE |
| Warranty: | 5 years (90 days on battery) |
Warranty
2 Years
