Williams Sound IR SY11 IR+ Complete

Williams Sound SKU: IR SY11
No reviews
Price:
$5,125.00

Description

IR+ system fully packed with all the tools needed for a large, functioning system.

IR Plus Complete - Includes: (1) IR M1 IR + Infrared Modulator / Wi-Fi Server, (2) IR E4 IR + Infrared emitters, (1) MLB 003 metal linking bar,(4) WIR RX22-4N receivers, (2) BAT KT6 rechargeable batteries and 2-bay charger, (4) HED 021 headphones, (2) NKL 001 neckloops, and (1) IDP 008 ADA wall plaque.

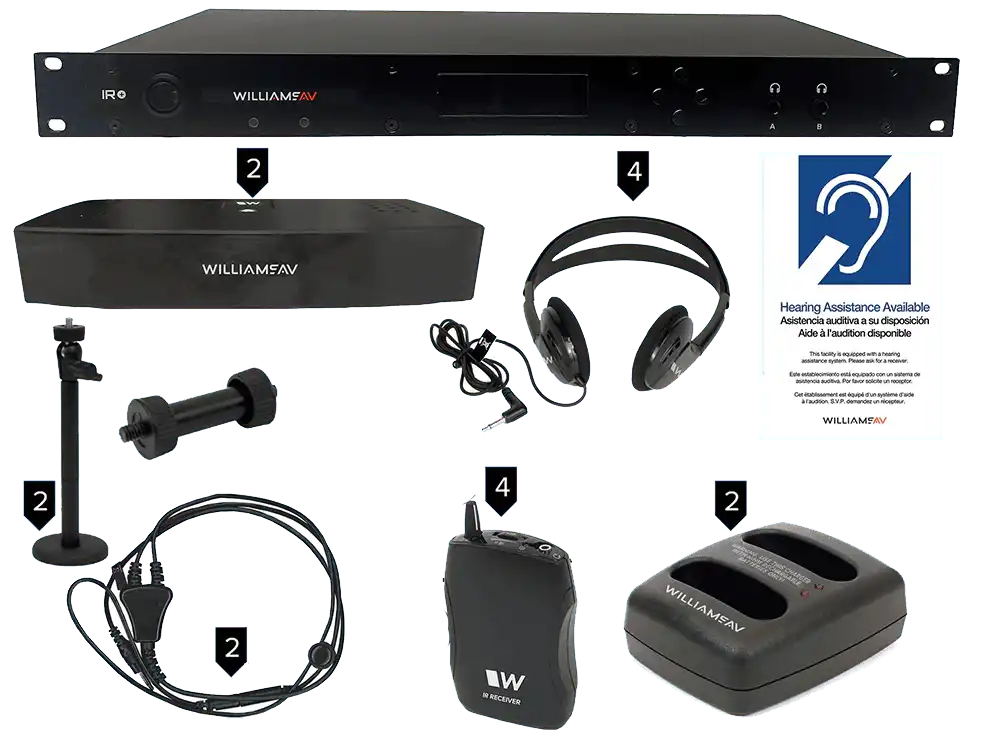

System Includes

(1) IR M1 rack mounter Modulator
(2) IR E4 Wall mounted IR Emitters
(4) WIR RX22-4 4 Ch. IR receivers with lanyard
(2) CHG 3502 2-Bay drop in charger
(2) NKL 001 Neckloop attachment couples to hearing aid (needed for ADA compliance )
(4) HED 021 Performance headphones
(4) BAT 026-2 Rechargeable NiCad AA batts ( pair)
(1) MLB 003 Linking bar for dual emitters
(2) BKT 024 Wall mount for dual emitters
(1) IDP 008 ADA signage

IR SY11

IR M1

Dimensions: 19” (W) x 1.75” (H) x 8.2” (D)
(48.3 cm x 4.5 cm x 20.8 cm)
Weight: 5.2lb. (2.4 kg)
Color: Black
Rack Mount: Single Rack Unit
Power Supply: International Desktop Supply
Input: 36 W, 110-240 VAC 50-60 Hz
Output: +48VDC, 0.75A center-positive
Power Switch: Rocker switch with LED
Signal to Noise Ratio: 67 dB (typical)
Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis
Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz
Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion: Less than 2%, electrical response
Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing.

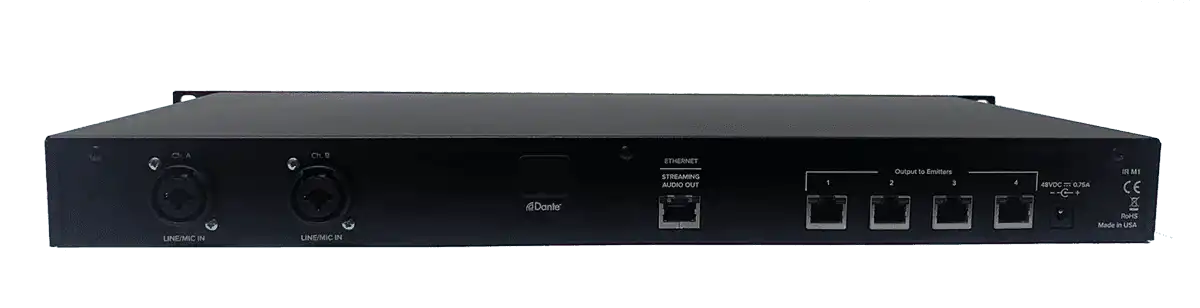

Audio Input: (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Dante: Optional
Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics

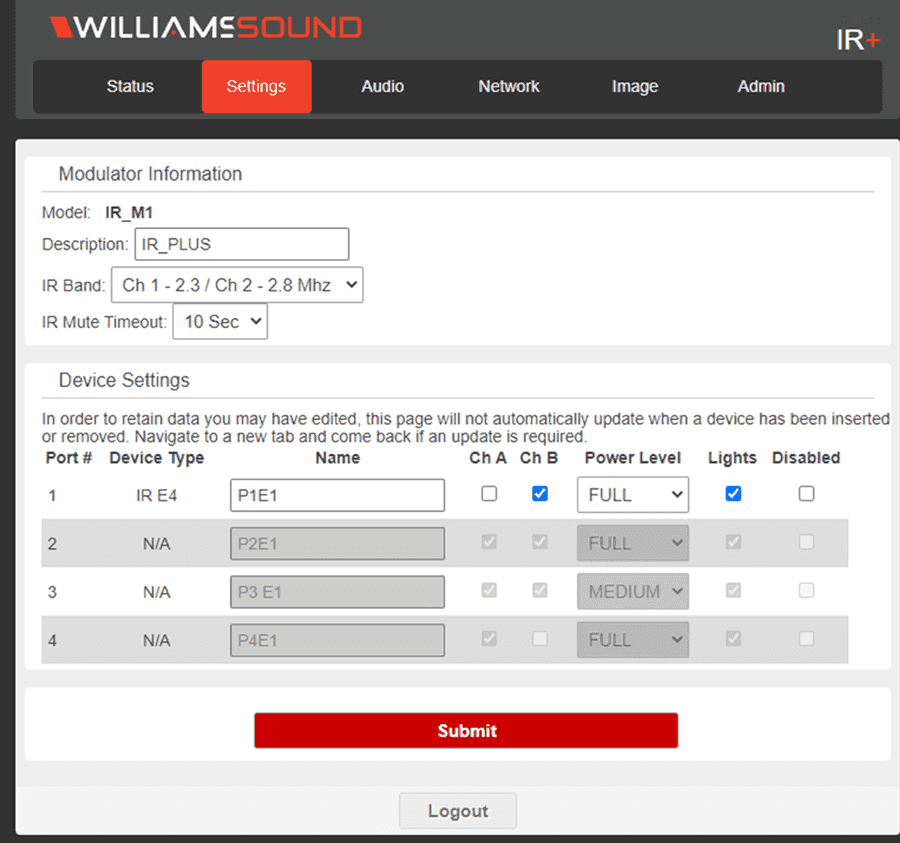

Remote Configuration: Available through embedded website
Headphone Output: (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty: 2 years on Modulator, 90 days on accessories

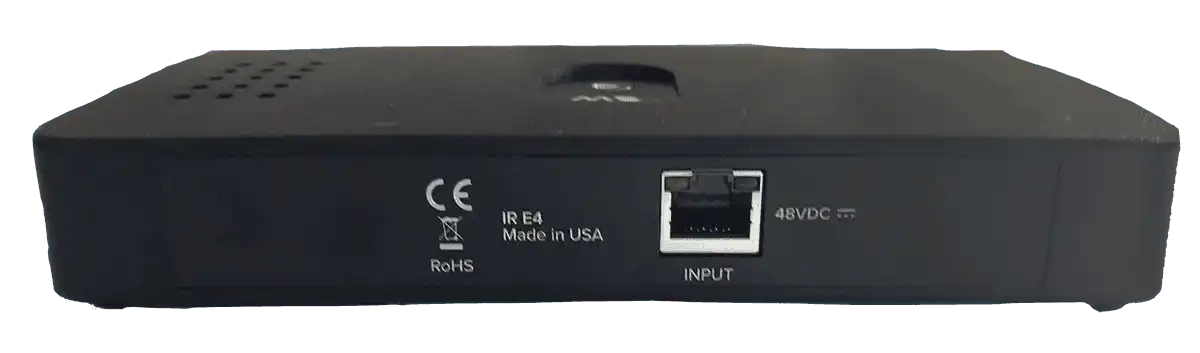

IR E4

Dimensions: 7.5” (W) x 1.4” (H) x 3.6” (D)
(19.1 cm x 3.6 cm x 9.1 cm)
Weight: 0.8 lb (362 g)
Color: Black
Power: 48 VDC supplied by IR M1 via CAT 5e cable.
Coverage Area: Up to 18,000 square feet in single channel mode
Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty: 2 years on Emitter; 90 days on accessories

WIR RX22

Receiver Style: Body-Pack, dual-lens detector, lanyard
Size: 4.1″ L x 2.85″ W x 1.2″ H (104.1 mm x 72.4 mm x 30.4 mm)
Weight: 4.5 oz (127 g) with batteries
Color and Material: Black
Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck
Operating Temperature: -10° C to +50° C
Battery Type: 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
Battery Drain: 25 mA, nominal
Charging Contacts: For use only with CHG 3512
Carrier Frequency: Channel 1: 2.3 MHz, Channel 2: 2.8 MHz



Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
De-Emphasis: 50 uS
FM Deviation: ±50 kHz
Signal-to-Noise Ratio: 60 dB min.
Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion: Less than 1%, electrical response
Controls: ON/OFF/VOLUME: combination thumbwheel knob



Channel Selector: four-position rotary switch
Indicators: Red LED “ON” indicator, flashes to indicate Low battery
Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
Audio Output Power: 15 mW max at 32 Ω
Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
Approvals: CE, FCC, RoHS, WEEE
Warranty: 5 years on receiver, 90 days on accessories
Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001

CHG 3502

Dimensions:

4-7/8″L x 3-7/8″”W x 2″H (12.4 cm L x 9.8 cm W x 5.1 cm)

Shipping Weight:

1.1 lbs (0.5 kg)

Enclosure:

Black, ABS plastic

Charger Power:

Input: 6 VDC, 300mA, Center Positive.

Output: 100mA per bay.

Power Supply:

Williams Sound TFP 041 (US)

Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A

Output: 6 VDC, 1.5 A.

Charging Time:

16 hours nominal *

Unit Capacity:

2 Units

Indicators:

2 Red LEDs – one for each bay. LEDs are lit when charging.

Warranty:

2-year

Approvals:

CE, FCC, RoHS

Warranty

2 Years
