Overview
FM Plus Large-area Dual FM and Wi-Fi assistive listening system with 12 FM R38 receivers. Features Dante input, coaxial cable and rack panel kit for professional installation. System includes: (1) FM T55 D transmitter, (12) FM R38N receivers, (12) EAR 022 surround earphones, (3) NKL 001 neckloops, (1) CHG 3512 12-bay chargers, (12) BAT 026-2 AA NiMH rechargeable batteries, (1) ANT 005 remote coaxial antenna, (1) IDP 008 ADA wall plaque, and (1) RPK 005 rack panel kit. Check for availability
Temporarily on back order. Contact your Williams AV representative for alternative options.
The FM 558 PRO system package is a complete turnkey solution. It includes 12 PPA R38 receivers and an FM+ D transmitter for both FM and Wi-Fi transmission from the same box. The PRO bundle includes Dante, a coax cable, and rack panel kit for professional installation.
This system features the cutting edge PPA T55 transmitter (replacing the T45 FM transmitter) with multiple digital audio input options, and an OLED display with easy-to-manage navigation, and network control features.
Each FM R38 is a multi-channel FM receiver with a high-resolution OLED screen. The receiver comes with earphones and batteries, but is otherwise identical to the PPA R38. The R38 offers a quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wide-band frequencies (72-76 MHz). The system is expandable, accommodating any number of listeners. This system complies with 2010 ADA guidelines for hearing assistance all for nearly the same cost as traditional FM systems.

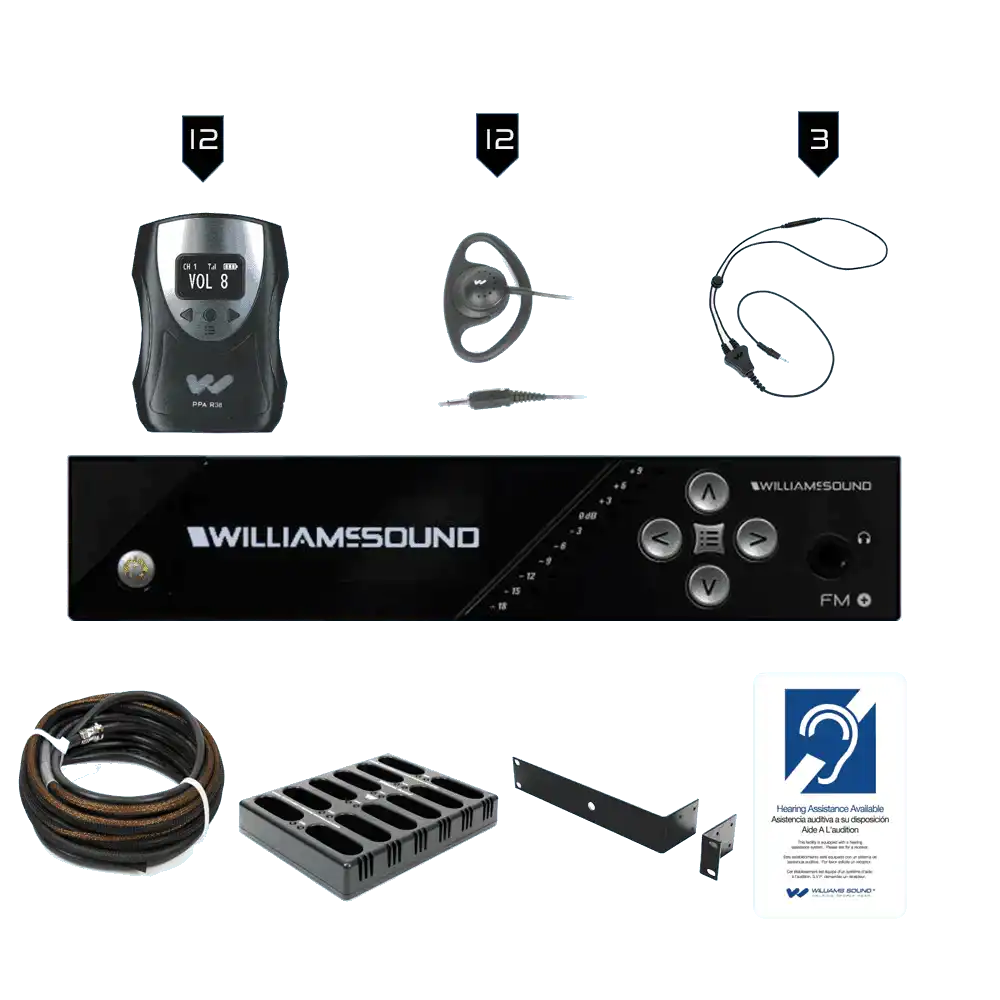

System Includes
(1) FM T55 D transmitter
(12) PPA R38N receivers
(12) EAR 022 surround earphones
(3) NKL 001 neckloops
(1) CHG 3512 12-bay chargers
(12) BAT 026-2 AA NiMH rechargeable batteries
(1) ANT 005 remote coaxial antenna
(1) IDP 008 ADA wall plaque

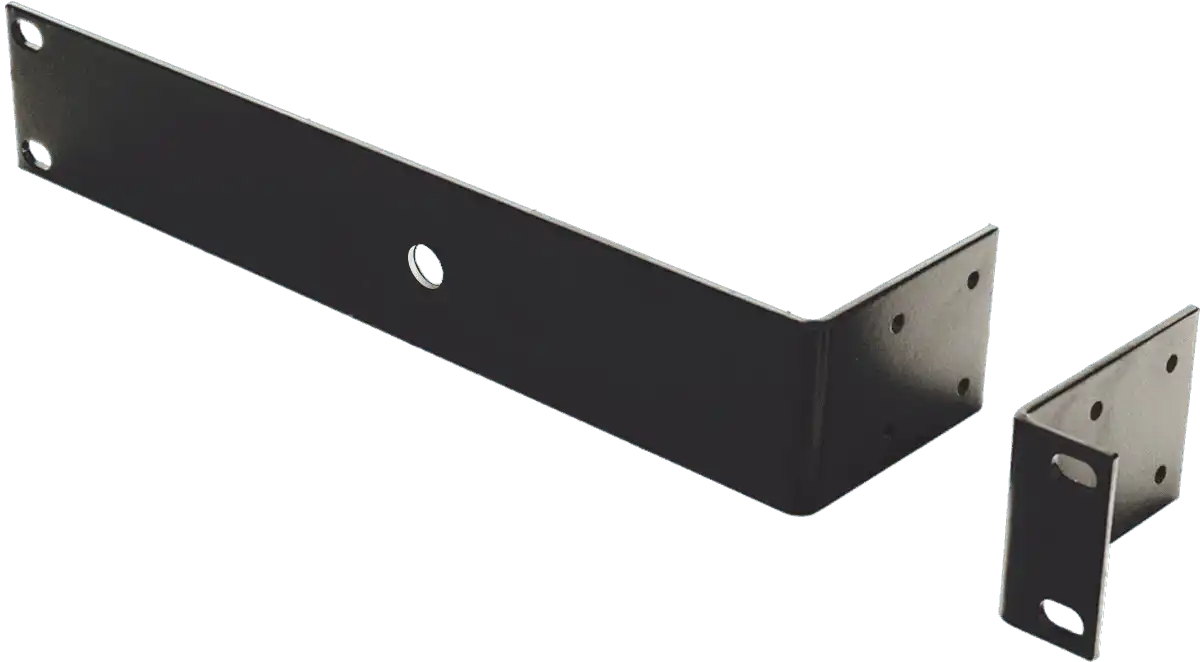

(1) RPK 005 rack panel kit
Specifications
FM 558-12 PRO D
NOTE: The FCC requires this device to be used with approved, FCC 15.203 compliant antennas and be professionally installed. Refer to Williams AV’s Antenna Selection Install Guide for compliant antennas for this product.
The FM + connects to the installation location’s Wi-Fi Network. It does not provide a network on its own. The Wi-Fi network will need to be installed and established before the FM + can be used.
| Dimensions | 8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 21 cm x 4.4 cm) | |||
| Weight | Transmitter: 3.2 lbs (1.45 kg) | |||
| Color | Black/Silver with silver legends on the front, white legends on the back | |||
| Rack Mount | Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits |
|||
| Power Supply | Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector | |||
| Power ON Indicator | Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode. | |||
| Temperature Range | Operating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C) | |||
| User Interface | 3.12” High Resolution OLED display with selections via buttons. Hosted Web page. Remote control and monitoring. | |||

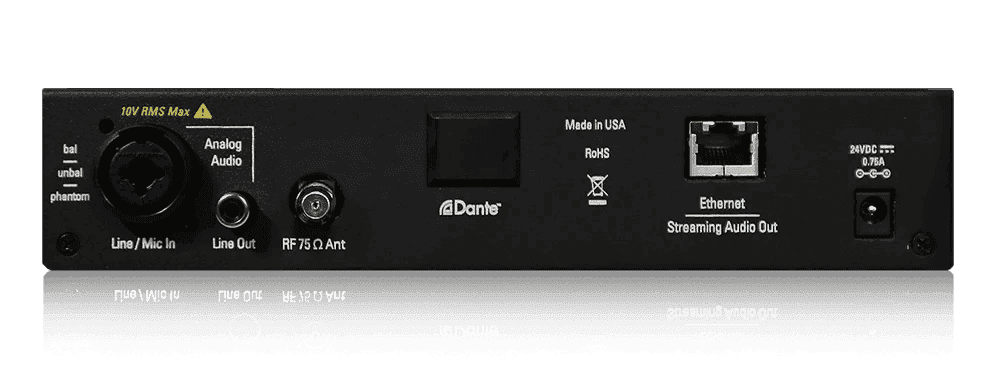

| Dante | Only available on FM T55 D | |||
| Ethernet | RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address | |||
| RF Section | ||||
| Operating Frequencies | 72.1-75.9 MHz , 17 wideband channels (selectable) | |||
| Frequency Accuracy | ± 2 ppm stability, 0-50˚ C | |||
| Deviation | ± 75 kHz maximum | |||
| Pre-Emphasis | 75 microsec | |||
| RF Field Strength | Does not exceed 80 mV/m at 3 m | |||
| Compatible Antennas | ANT 005, ANT 021, ANT 024, or ANT 025
Refer to Williams AV’s Antenna Selection Install Guide for FCC-compliant antennas for this product. |
|||
| Transmission Range | Up to 1000 ft (304 m) with ANT 005 coaxial antenna mounted on rear chassis connector | |||
| RF Outputs | (1x) #10-32 stud connector in center of unit (pcb mounted) (1x) F-connector on rear chassis |
|||
| RF Transmit Indicator | 1 Green LED On Air Indicator | |||
| RF Power | Full, Medium, Low or OFF indiacted by menu icon. | |||
| RF Time Out (sleep mode) | 30 min. duration, 4 hr. duration, or Always On selected via menu. Starts when audio is below -18 dB level with no button pressed for selected duration. | |||
| Audio Section | ||||
| Audio Processor Functions | DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control | |||
| Frequency Response | 31-16000 Hz, ±3 dB (re: 1 kHz, ±3 dB) (“Music” Audio Preset) | |||
| Signal-to-Noise Ratio | 67 dB (typical) Transmited RF | |||
| Total Harmonic Distortion | Less than 0.25% @ 1 kHz (RF output) | |||
| Common Mode Rejection | Greater than 57 dB @ 1 kHz, Mic or Line | |||
| Audio Inputs | (1x) Combination 3-pin XLR, 1/4″ (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power | |||
| Audio Input Gain Adjust | In menu, adjustable to 0 to -50 dB, in 1dB steps | |||
| Phantom Power | 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4″ TRS jack | |||
| Audio Level Indicators | 10-LED array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks | |||
| Headphone Output | 1/4″ TRS stereo jack, mono signal, 14.85 mW at +9dB, maximum in 33 Ω (level adjustable in menu 0 to -40 dB in 2 dB steps) | |||
| Line Output | RCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 ohms at +9dB | |||
| Input Levels (Bal or Unbal) (at Audio Input Gain = 0dB) |
|
|||
| Microphone |
|
|||
| Line |
|
|||
| Approvals | FCC, RoHS3, WEEE, Industry Canada | |||
| Warranty | 2-year parts and labor | |||
NOTE: Specifications are subject to change without notice.
* Stresses above these ratings may cause permanent damage or degrade reliability.

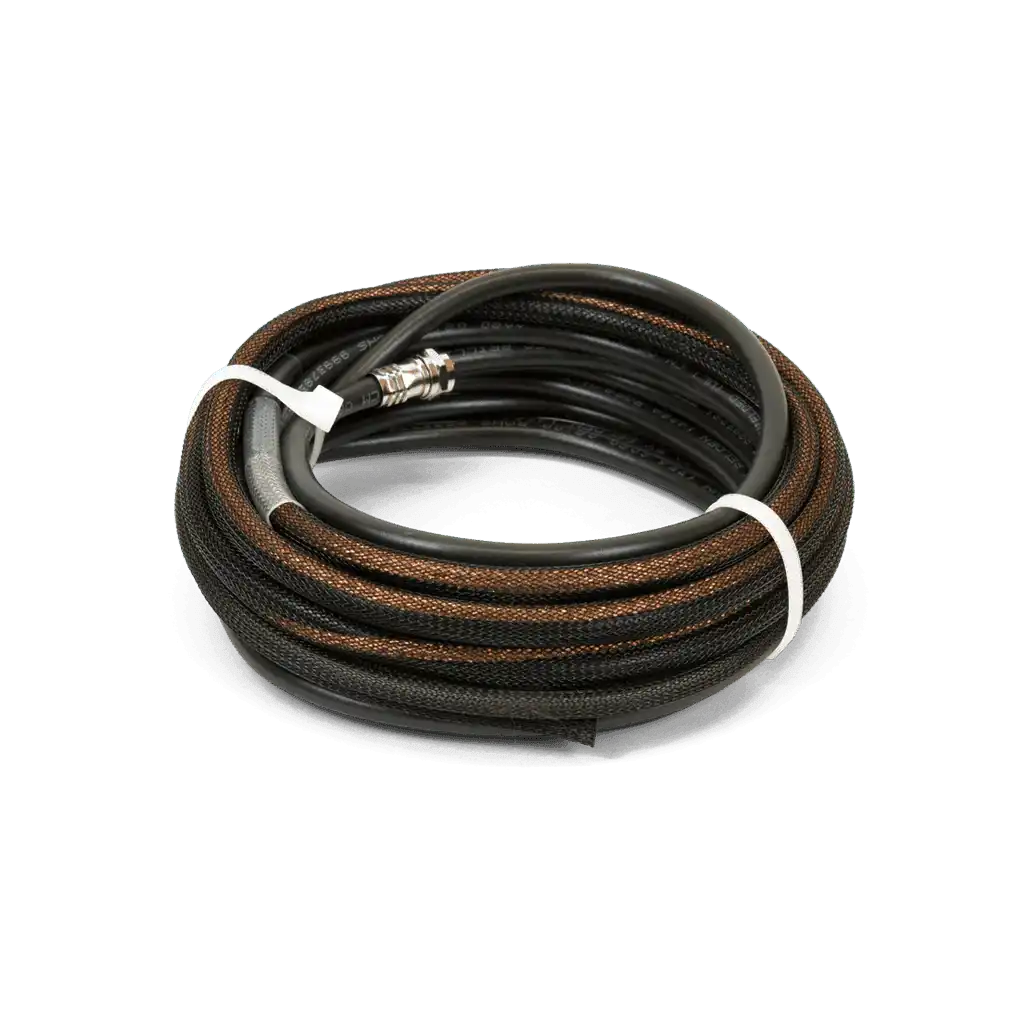

ANT 005
| Use with | PPA T45, PPA T55, PPA T55C, PPA T27 Transmitters |
| Connector type | F-connector |
| Cable type | RG 59 coax |
| Nominal Impedance | 75 Ohm |
| Total Cable Length | 22 ft |
| Active Antenna Length | 80 in |

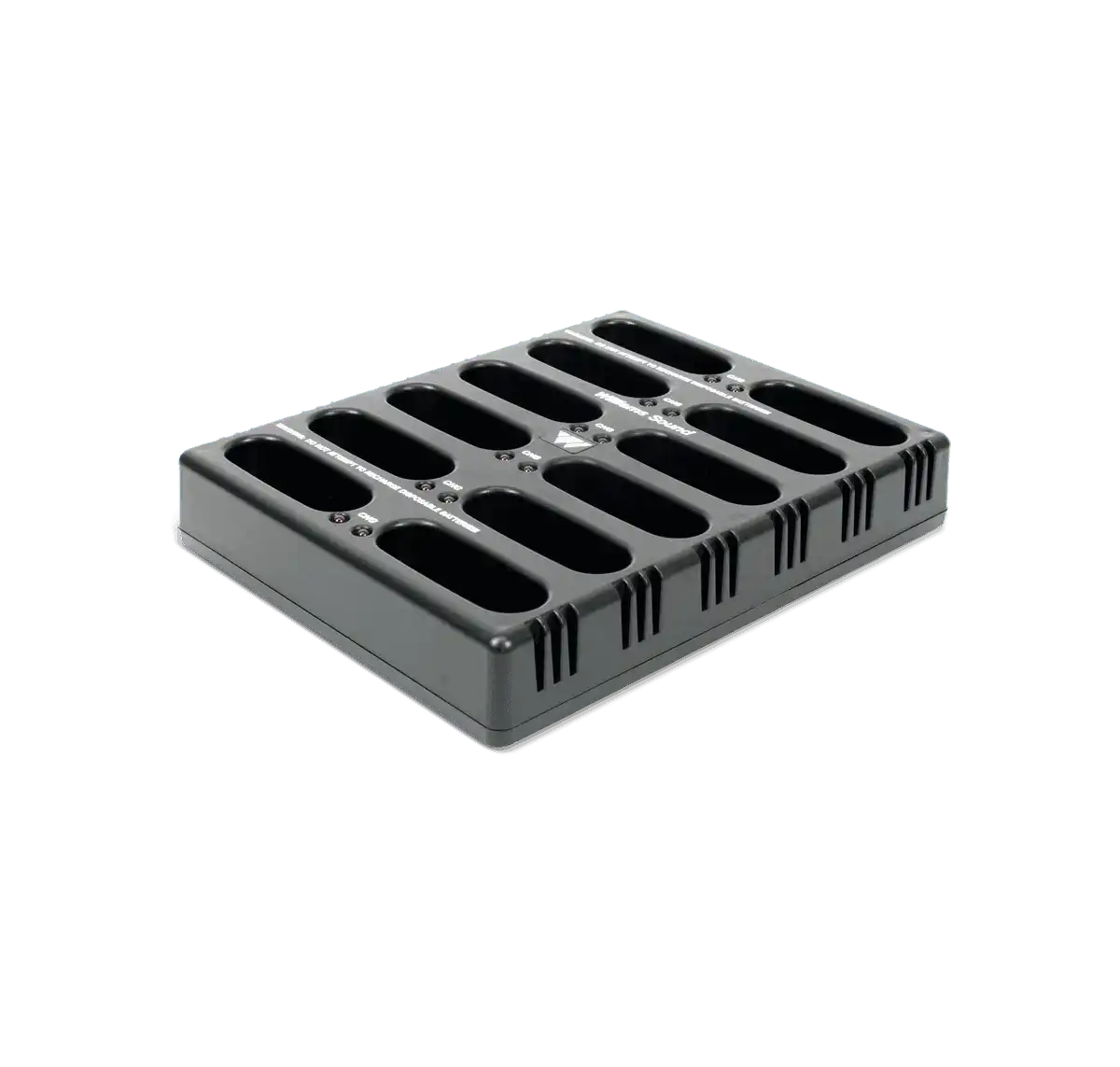

CHG 3512 architectural and engineering specifications
- The CHG 3512 shall be a 12-unit, drop-in battery charger and shall charge a maximum of 24 AA size NiMH batteries while they are installed into the Williams Sound PPA R37, PPA R35-8, R36, R863, RX22-4 style 3V receivers, or PPA T36, PPA T46, PFM T36, T863 style 3V transmitters.
- The charger CHG 3512 shall be microprocessor controlled and enclosed in ABS plastic, measuring 9.5" L x 7.4" W x 1.7" H (24.1cm L x 18.8cm W x 4.3cm H). The CHG 3512 unit shall weigh 1.2 lbs (2.64 Kg) without power supply, 2.48lbs (1.1 Kg) shipping weight. In the optional carry case, the charger shall weigh 10 lbs. (4.53 kg).
- The charger shall be a timed charger at 16 hours, and will provide a maintain charge once the timer has completed its charging cycle. Each bay on the charger shall have a red LED indicating charging status. The LEDs shall be on constantly during charging and will blink indicating when batteries are fully charged.
- The charger CHG 3512 shall be powered by an external switching power supply (90-240 VAC input; 5 VDC, 4A output) via a CD barrel connector.
- The charger shall have CE approval, and be compliant with RoHS and WEEE regulations.
- The charger shall be the Williams Sound model CHG 3512.
CHG 3512
| Size: | 9.5"L x 7.4"W x 1.7"H (24.1 cm L x 18.8 cm W x 4.3 cm H) |
| Weight: | 1.2 lbs (.54 kg), excluding power supply |
| Color: | Black ABS |
| Power Supply Input: | 90 - 240 VAC input |
| Power Supply: | TFP 037 Switching AC adapter, 5 VDC - 4A output |
| Charging Rate: | 16 Hour Charge: 140 mA Pulse/Maintain: 140 mA |
| Charging Time: | 16 hours nominal |
| Unit Capacity: | 12 Units |
| Indicators: | Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged |
| Warranty: | 1 year (cables and power supply warrantied for 90 days) |
| Approvals: | CE, WEEE, RoHS |
EAR 022
| Style | Around-ear speaker |
| Plug | 3.5mm mono |
| Cord | 39" |
| Driver Size | 23 mm |
| Nominal Impedance | 32Ω |
| Freq. Response | 20 - 20kHz |
| Weight | 15g |
| Max Power Input | 30 mW |
| Sensitivity | 118 dB @ 1kHz |
IDP 008
10-3/8" (L) x 6-¼" (W) x 1/8" (H)NKL 001
| Color: | Black |
| Weight: | 1.5 oz |
| Length: | 18.5” cord |
| Connector: | NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected |
| Impedance: | 8-16 Ohms |
| Input Power: | 500 mW max |
| Magnetic Field Strength: | 25 mW input at 1000 Hz produces 1.7 A/m 6” above the center of loop 85μW input produces 0.1 A/m (IEC Standard) |
| Approvals: | RoHS, WEEE |
| Warranty: | One Year |
PPA R38N architectural and engineering specifications
The receiver shall be encased in black, PC/ABS impact-resistant plastic with a hinged battery door. The receiver shall be a body-pack style and include a detachable belt-clip for hands-free operation. The receiver shall have a 3.5mm stereo jack to accommodate stereo or mono low impedance earphones, headphones and neckloops. The receiver shall have a power button that is backlit indicating power is on. The receiver shall receive 17 preset wideband channels between 72-76MHz. Channel selection shall be made in the menu. The receiver shall have channel-lock capability. The receiver shall have a slide switch inside the battery compartment to select disposable Alkaline or NiMH rechargeable battery operation. It shall have charger contacts on the bottom of the receiver for use with Williams Sound drop-in chargers CHG 3512 and CHG 3502. The recevier shall operate up to 50 hours with two disposable AA Alkaline batteries (BAT 001-2) and up to 32 hours with two AA NiMH rechargeable batteries (BAT 026-2). The receiver shall provide a maximum output of 35mW at 16Ω with an earbud type earphone. The systems audio frequency response shall be 200Hz to 15kHz ± 3dB and the signal to noise ratio shall be 65dB min. The receiver sensitivity shall be 2µV or better at 12dB Sinad with squelch defeated. The receiver shall accept up to ±75kHz FM deviation and have a 75 µS de-emphasis time constant. The receiver shall have FCC, Industry Canada approvals and be compliant with RoHS and WEEE regulations. The receiver shall be covered by a Lifetime PLUS Limited Warranty, 90 Days on most accessories. This receiver model shall be the Williams Sound model PPA R38N.PPA R38N
|
Dimensions: |
4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
|
Weight: |
4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
|
Color: |
Black/Silver. Black ABS Plastic case with Aluminum faceplate. |
|
Battery Type: |
(2) AA Alkaline or (2) AA NiMH Rechargeable |
|
Battery Life: |
(2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. |
| (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs. | |
|
Current Consumption: |
52mA nominal |
|
Operating Temp. Range: |
32° – 122°F (0° to 50°C) |
|
Channels: |
17 Wideband, accessed via menu |
|
Operating Frequencies: |
72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz* |
|
FM Deviation: |
75 kHz |
|
De-Emphasis: |
75 µS |
|
Display Screen: |
1" OLED |
|
Power Indication: |
Power button, backlit green. Good battery strength - glows solid. Low battery - flashes. |
|
Sensitivity: |
2 µV at 12 dB Sinad with squelch defeated |
|
Input Overload: |
100 mV |
|
Frequency Response: |
200 Hz – 15 kHz, ±3dB |
|
Modulation: |
FM, +/- 75 kHz peak deviation |
|
Signal-to-Noise Ratio: |
Minimum 65 dB @ 1.0V |
|
Receive Antenna: |
Integral with earphone/headphone cord |
|
Audio Output: |
35 mW max at 16 Ω |
|
Headphone Connector: |
3.5 mm stereo jack, mono output for stereo or mono earphones/headphones |
|
Supplied Earphone: |
Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 Ω |
|
Power Save Mode: |
Enters sleep mode after approximately 3 minutes of no RF signal |
|
Approvals: |
FCC, Industry Canada, RoHS, WEEE |
|
Warranty: |
Lifetime PLUS Limited Warranty, 90 Days on most accessories. |
