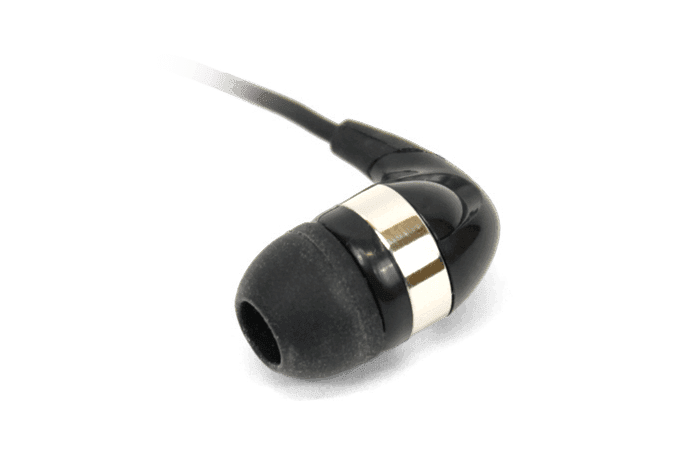

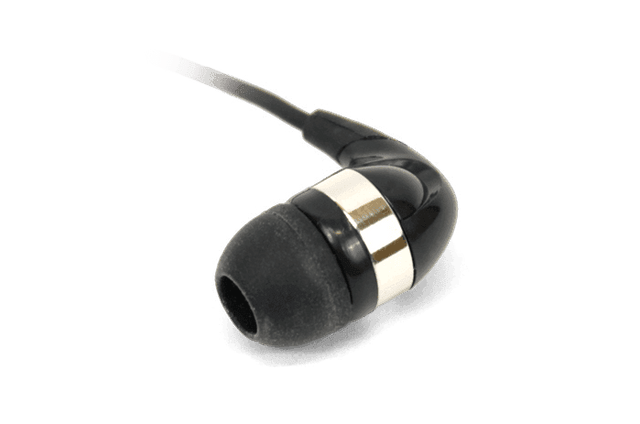

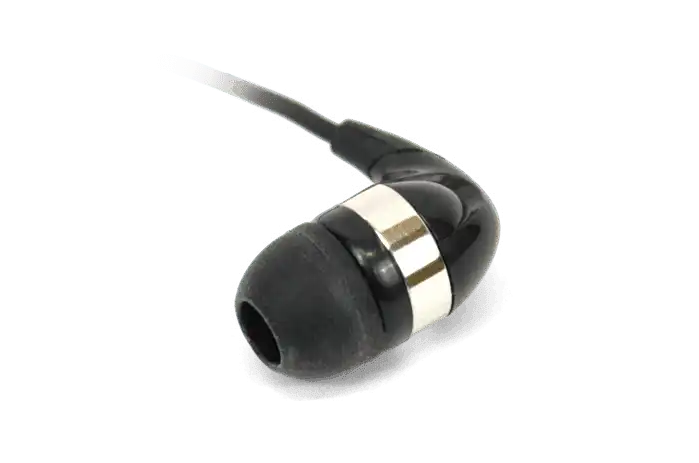

Williams Sound EAR 041 – Single In-Ear Isolation Earphone for Assistive Listening

Product Overview

The Williams Sound EAR 041 is a single in-ear isolation earphone designed for monaural personal listening applications with Williams Sound FM receivers, Digi-Wave transceivers, and PockeTalker personal amplifiers. The in-ear design positions the earphone in the outer portion of the ear for passive noise isolation, improving speech intelligibility in ambient environments. With a 16-ohm impedance and 104 dB sensitivity, the EAR 041 is efficient and compatible with standard Williams Sound receiver output stages. Replacement silicone tips are available as EAR 043.

Product Description

The EAR 041 single earphone is the mono counterpart to the dual EAR 042, providing a single-channel in-ear listening option for users of Williams Sound personal listening systems. The 10 mm driver sits in the outer ear, creating a physical seal for passive noise isolation without blocking the ear canal fully. This wearing position is common in assistive listening applications where a single-channel clear speech signal is required. The 16-ohm nominal impedance and 104 dB sensitivity at 1 kHz match the output characteristics of Williams Sound FM and Digi-Wave receivers. The frequency response of 20 Hz to 20 kHz covers the full range of speech and audio content relevant to assistive listening use. The 39-inch mono cord with 3.5 mm mono plug is a standard length for clip-worn or pocket-carried personal receivers. Maximum power input is 5 mW, appropriate for the output level of standard portable receivers. At 6 grams, the EAR 041 is the lightest earphone in the Williams Sound lineup, adding virtually no weight to the receiver during use. Replacement silicone tips are available as EAR 043 for hygiene maintenance or when worn tips degrade the acoustic seal.

Key Features

• Single In-Ear Design — Monaural earphone for single-channel assistive listening receiver outputs.
• Passive Noise Isolation — Outer-ear in-ear position provides acoustic attenuation of ambient noise.
• 10 mm Driver — Compact capsule for comfortable extended wear in the outer ear.
• 16-Ohm Impedance — Compatible with Williams Sound FM, IR, and Digi-Wave receiver outputs.
• 104 dB Sensitivity at 1 kHz — High efficiency for clear output from low-power portable receivers.
• 39-Inch Mono Cord — Standard length for portable clip-worn receiver configurations.
• 6 g Lightweight — Minimal added weight during use.
• Replaceable Tips — EAR 043 silicone tips available separately for hygiene and seal maintenance.

Technical Specifications
