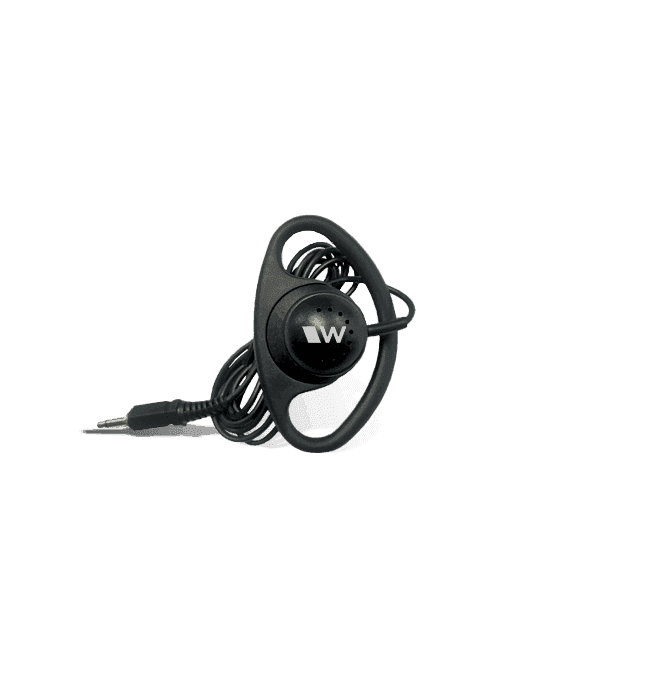

Williams Sound EAR 022 – Surround Earphone for FM and IR Receivers

Product Overview

The Williams Sound EAR 022 is a monaural surround earphone that hangs on the outside of the ear, designed for use with Williams Sound FM receivers and select infrared assistive listening systems. With a 32-ohm impedance, 118dB sensitivity, and 3.5mm mono plug, it is rated for users with mild and low gain hearing loss in hearing assistance deployments. The lightweight 15-gram construction makes it suitable for extended use during tours, courtroom proceedings, and worship services. This Williams Sound earphone accessory connects to assistive listening receivers without adapter cables.

Product Description

The EAR 022 surround earphone positions itself around the ear using an external hook design, resting comfortably without inserting into the ear canal. This makes it a practical option for users who find in-ear earphones uncomfortable or impractical during extended events. Its 118dB sensitivity at 1kHz is among the highest in the Williams Sound earphone range, delivering strong output even from low-volume receiver settings. The 23mm driver provides clear mid-range reproduction appropriate for speech intelligibility in FM and IR assistive listening applications. At 15 grams with a 39-inch cord and 3.5mm mono plug, the EAR 022 is suited for daily distribution from a venue carry case. The 30mW maximum power input is appropriate for the output levels of Williams Sound portable FM and IR receivers. This earphone is rated for mild and low gain hearing loss classification, and is recommended for FM receivers and select IR receivers.

Key Features

• External Ear-Surround Design — Wraps around the outer ear without canal insertion for comfortable extended wear.
• High Sensitivity at 118 dB — Delivers strong, clear audio output from low-power FM and IR assistive listening receivers.
• 3.5mm Mono Plug — Direct connection to Williams Sound FM receivers and select IR receivers.
• 23mm Driver — Focused mid-range response for voice intelligibility in hearing assistance applications.
• Lightweight at 15g — Minimal carrying weight for all-day use in venues.
• 32-Ohm Impedance — Matched for Williams Sound portable receiver output characteristics.
• Broad Frequency Response — 20Hz to 20kHz for accurate audio reproduction.
• 90-Day Warranty — Backed by Williams Sound standard accessory warranty.

Technical Specifications
