Williams AV CHG 520 – 5-Bay Charger for IR RX20 Receivers

Product Overview

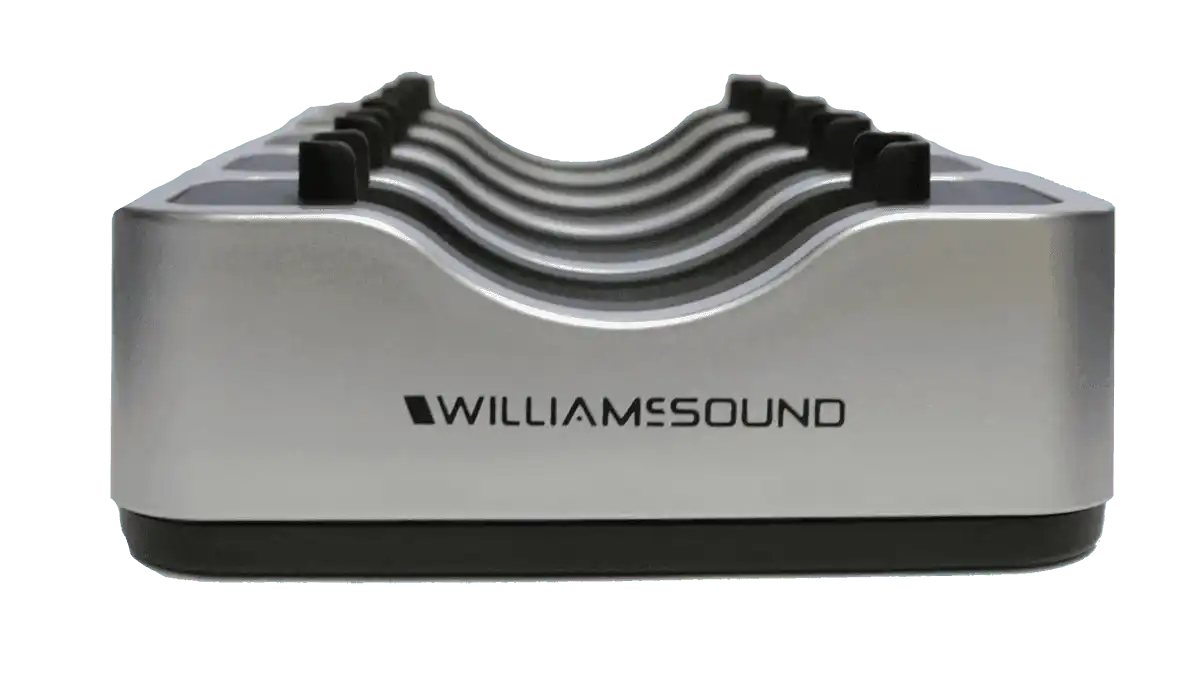

The Williams AV CHG 520 is a 5-bay drop-in charger for IR RX20 under-the-chin infrared assistive listening receivers. The 6-hour smart charger docks, charges, and stores up to five receivers at once, keeping an infrared assistive listening system organized and ready between performances or services. Up to three CHG 520 chargers can daisy-chain from a single power supply, so capacity grows with the receiver count without adding outlets.

Product Description

The drop-in bay design eliminates battery swapping: staff seat each IR RX20 directly into a bay and the charger replenishes the receiver's internal rechargeable LiPo battery (BAT 020) over a 6-hour smart charge cycle. Individual red LED indicators at each bay confirm that every receiver is seated correctly and charging, which makes end-of-night checks at an usher station or box office quick and reliable.

Daisy-chain capability is the CHG 520's practical advantage for growing systems — connect up to three chargers (15 receivers) to one power supply, reducing cable clutter and outlet requirements at the charging station. The black metal and plastic housing is built for daily handling in theaters, courtrooms, and worship spaces where receivers circulate constantly. As a storage point, the charger also helps staff verify that all checked-out receivers have been returned.

For larger inventories, the CHG 1520 15-bay charger pack bundles three pre-configured CHG 520 units with jumper cables. Find IR transmitters, emitters, and receivers in the Williams AV collection at Creation Networks.

Key Features

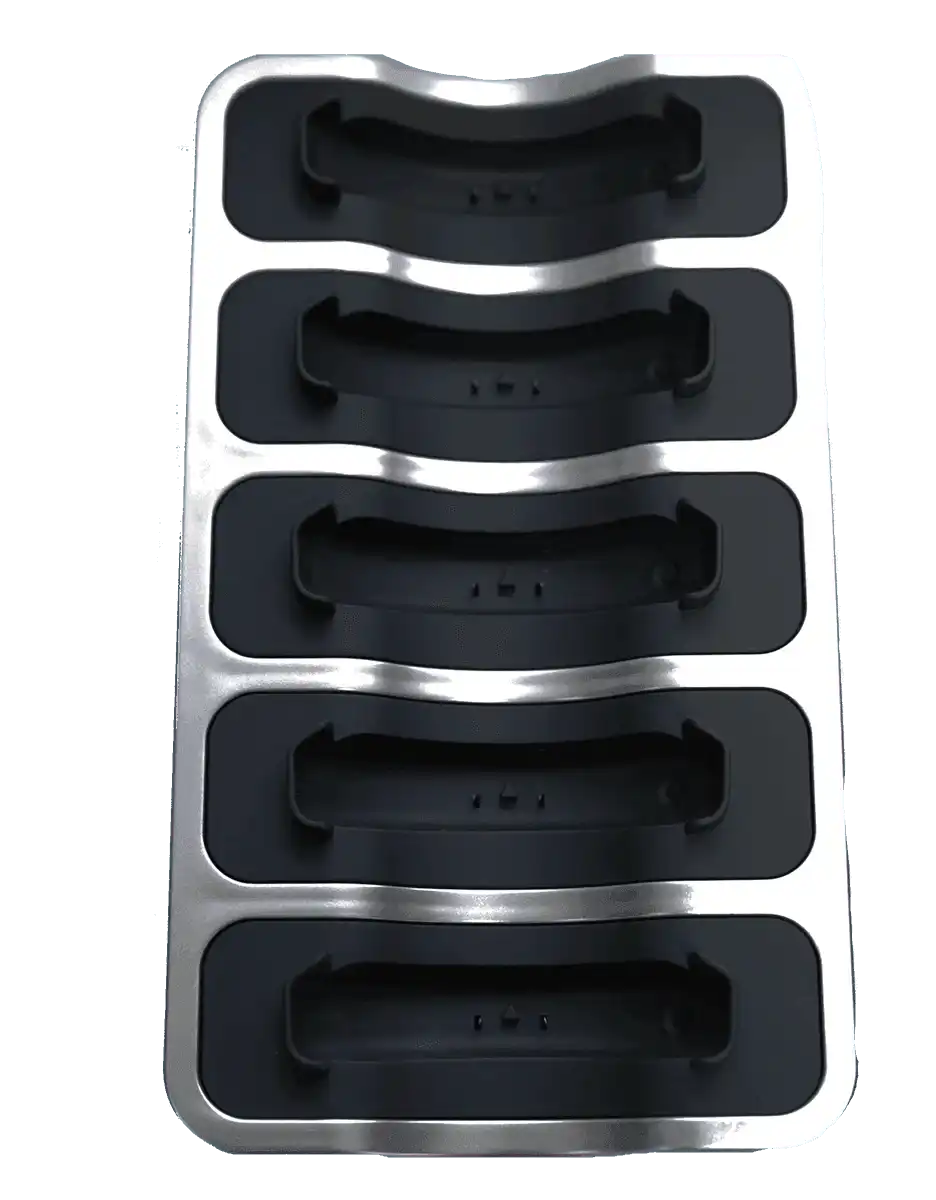

• 5-Bay Drop-In Charging — Charges and stores up to five Williams AV IR RX20 under-the-chin infrared receivers without removing batteries.
• 6-Hour Smart Charge — Replenishes each receiver's internal BAT 020 LiPo battery in approximately six hours for overnight or same-day turnaround.
• Daisy-Chain Expansion — Connect up to three CHG 520 chargers to one power supply to charge as many as 15 receivers from a single outlet.
• Individual LED Indicators — A red LED per bay confirms each receiver is docked and charging at a glance.
• Built-In Storage — Drop-in bays keep receivers organized and inventoried between events.
• Durable Housing — Black metal and plastic construction stands up to constant device check-in and check-out.

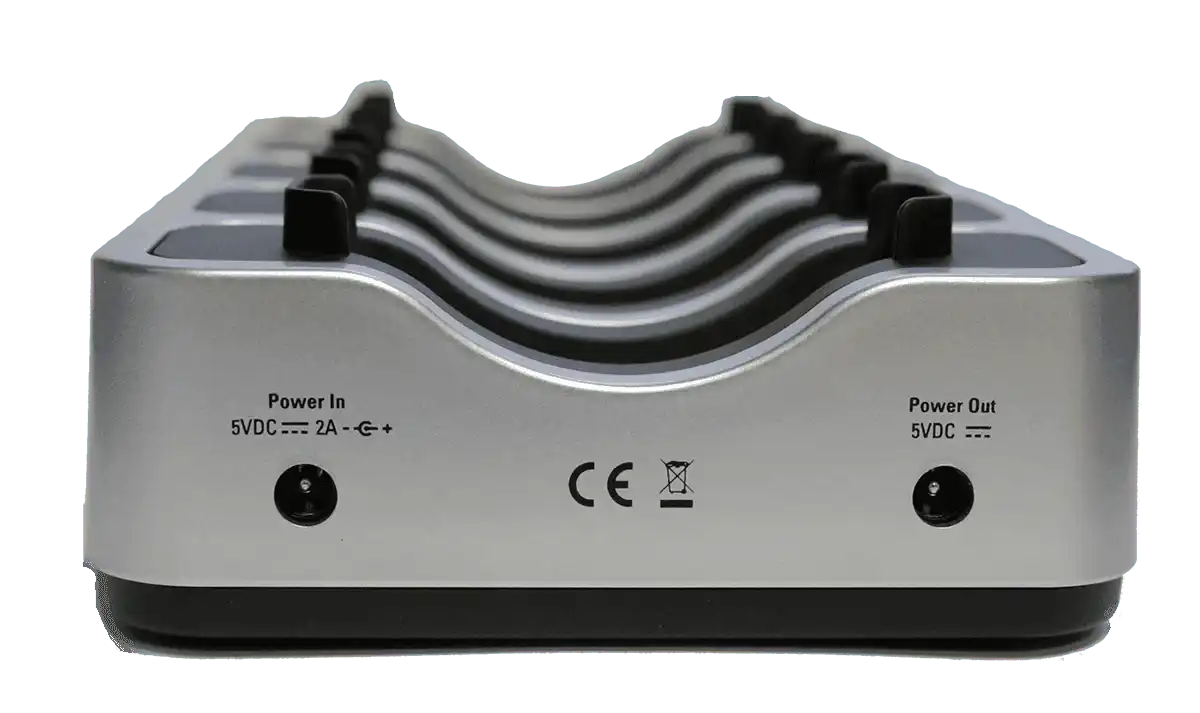

• Universal Power Supply — 100-240 V supply with 5 VDC output for standard 120 VAC installations.

Typical Applications

• Auditorium
• House of worship
• Government space
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Which receivers does the CHG 520 support?

The CHG 520 is purpose-built for the Williams AV IR RX20 under-the-chin infrared receiver with the internal rechargeable BAT 020 LiPo battery. Other Williams AV receiver families use different chargers.

Can I expand beyond five bays?

Yes. Up to three CHG 520 chargers can be daisy-chained to a single power supply, supporting 15 receivers from one outlet. The CHG 1520 charger pack ships this configuration pre-bundled with jumper cables.

How long does a charge take?

The smart charge cycle runs approximately six hours, based on the IR RX20's internal BAT 020 LiPo battery — well suited to overnight charging between events.

How do I verify receivers are charging?

Each of the five bays has its own red LED charging indicator, so a quick visual check confirms every docked receiver is charging.

What warranty does the CHG 520 carry?

Williams AV provides a 1-year warranty on the charger, with 90-day coverage on cables and the power supply.
