Williams AV BKT 024 – Wall and Ceiling Mounting Bracket

Product Overview

The Williams AV BKT 024 is an omnidirectional wall and ceiling mounting bracket for infrared assistive listening hardware, including the IR E4 emitter, IR T2 transmitter, and WIR TX90 DC. It ships with two interchangeable bases — a round solid-surface base and a T-bar clip for drop-ceiling rails — plus a 190-degree tilt, 360-degree turn, and 360-degree rotation head for precise aiming. For integrators installing IR emitters in conference rooms, courtrooms, and worship spaces, the BKT 024 covers both hard-surface and suspended-ceiling mounting in one part number.

Product Description

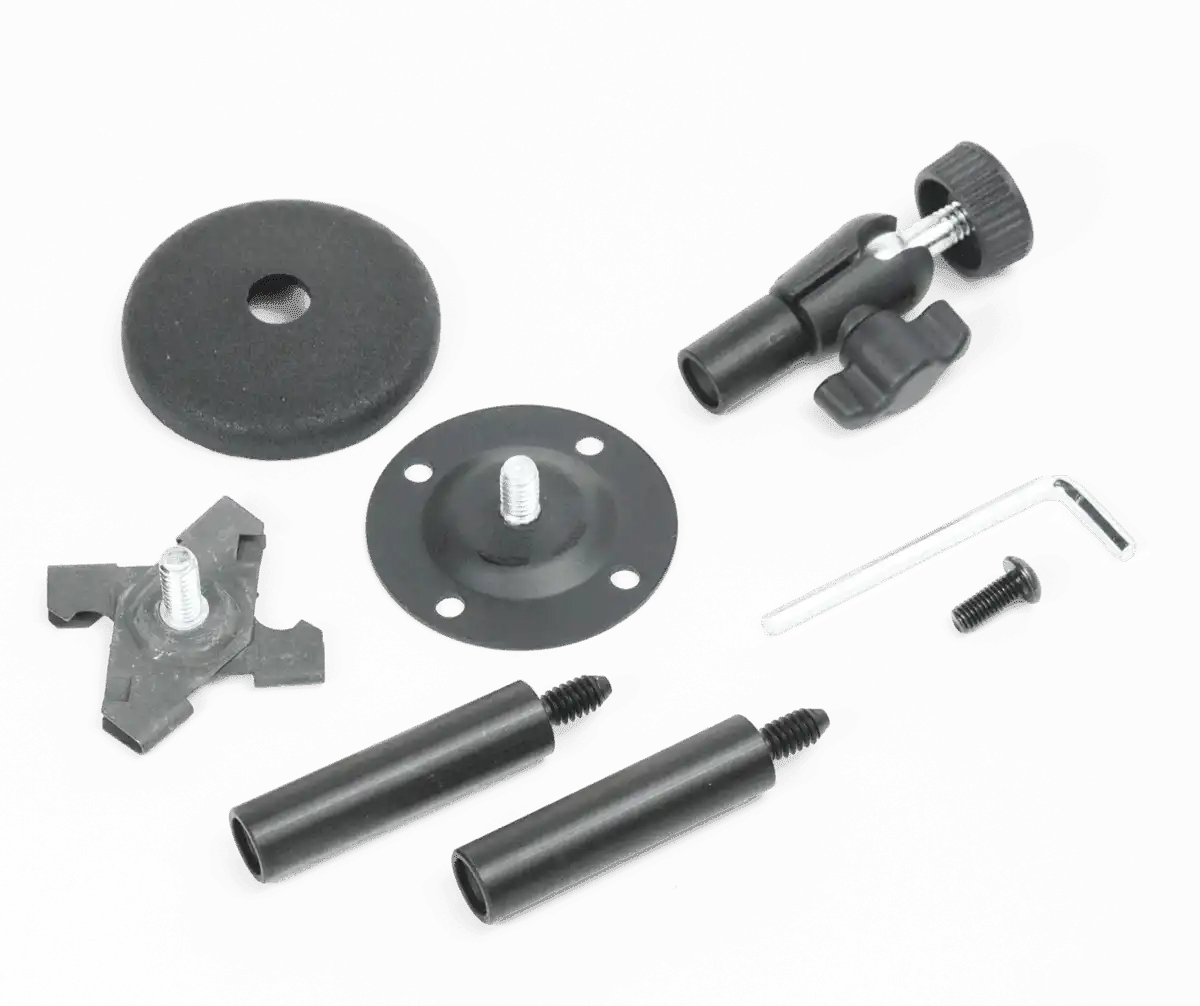

Infrared assistive listening coverage depends on emitter placement and aim: the emitter must have clear line-of-sight to the seating area, which usually means mounting it high on a wall or at the ceiling and tilting it down toward listeners. The BKT 024 gives the installer that flexibility. Base 1 is a 2-inch round base with four mounting holes on a 1.6-inch bolt circle for solid surfaces such as drywall, wood, or concrete; Base 2 is a T-bar clip that snaps onto standard drop-ceiling grid rails. A black vinyl base cover conceals either base for a clean finished appearance.

Two 2-inch black aluminum shafts with a 1/4-20 stud and lock ring build out to finished lengths of 2, 4, or 6 inches, and the articulating head provides 190-degree tilt with full 360-degree turn and rotation — enough range to aim an emitter into virtually any seating layout. Rated for devices up to 3 pounds, it comfortably carries the Williams AV IR E4 IR+ emitter and similar IR hardware from the Williams AV assistive listening line.

Key Features

• Dual Mounting Bases Included — Ships with a round solid-surface base and a T-bar clip so one bracket handles both wall and drop-ceiling installations.
• Full Articulation Head — Provides 190-degree tilt, 360-degree turn, and 360-degree rotation for precise infrared emitter aiming.
• Adjustable Finished Length — Two 2-inch aluminum shafts build to 2-, 4-, or 6-inch finished lengths to clear ceiling tiles and trim.
• Standard 1/4-20 Stud with Lock Ring — Mates with Williams AV IR emitters and locks the aim in place after commissioning.
• 3-Pound Load Rating — Supports the IR E4, IR T2, and WIR TX90 DC without strain.
• Concealed Hardware — Included black vinyl cover hides the base for a clean, finished look in client-facing spaces.
